ICC Mirius Bedienungsanleitung

ICC Mirius Quick Installation Guide

Page 1 PN11146-1022

1. Install the latest ICC Configuration Studio software:

http://www.iccdesigns.com/icc-configuration-studio.html

2. Create a configuration project using the ICC Configuration Studio and download the

configuration to the Mirius via the included USB cable.

•Online Tutorial Videos are available in the ICC Configuration Studio’s Help Menu.

•The Mirius User’s Manual and protocol driver manuals are available in the ICC

Configuration Studio’s Help Menu. Additional Mirius documentation and other

resources can be found on the Mirius product page:

http://www.iccdesigns.com/mirius.html

3. Secure the Mirius using one of the following mounting options:

•Panel/Wall –Insert the included two wall suspension elements into the base of

the enclosure. Mark and drill two holes. Secure the Mirius with two screws.

•DIN rail –The base of the enclosure is designed to quickly and simply lock onto

standard DIN rails, complying with the DIN EN 60715 TH35 standard.

Clip onto DIN rail

Release from DIN rail

Panel/Wall mount

Suspension element

Suspension element

Drill hole and set screw

Drill hole and set screw

ICC Mirius Quick Installation Guide

Page 2 PN11146-1022

4. Connect the Port A RS-485 wiring.

5. Connect the Port B wiring and configure the Port B jumpers appropriately for your

application. Refer to the Mirius User’s Manual.

6. Connect a power supply:

•9V to 24V –Connect AC or DC voltage to the VAC/VDC-and VAC/VDC+ terminals.

•USB –Temporary connection to configure, troubleshoot, and optionally power the

Mirius. USB cable may be connected while using any other power supply option,

but should be removed under normal operation.

7. Installation is complete

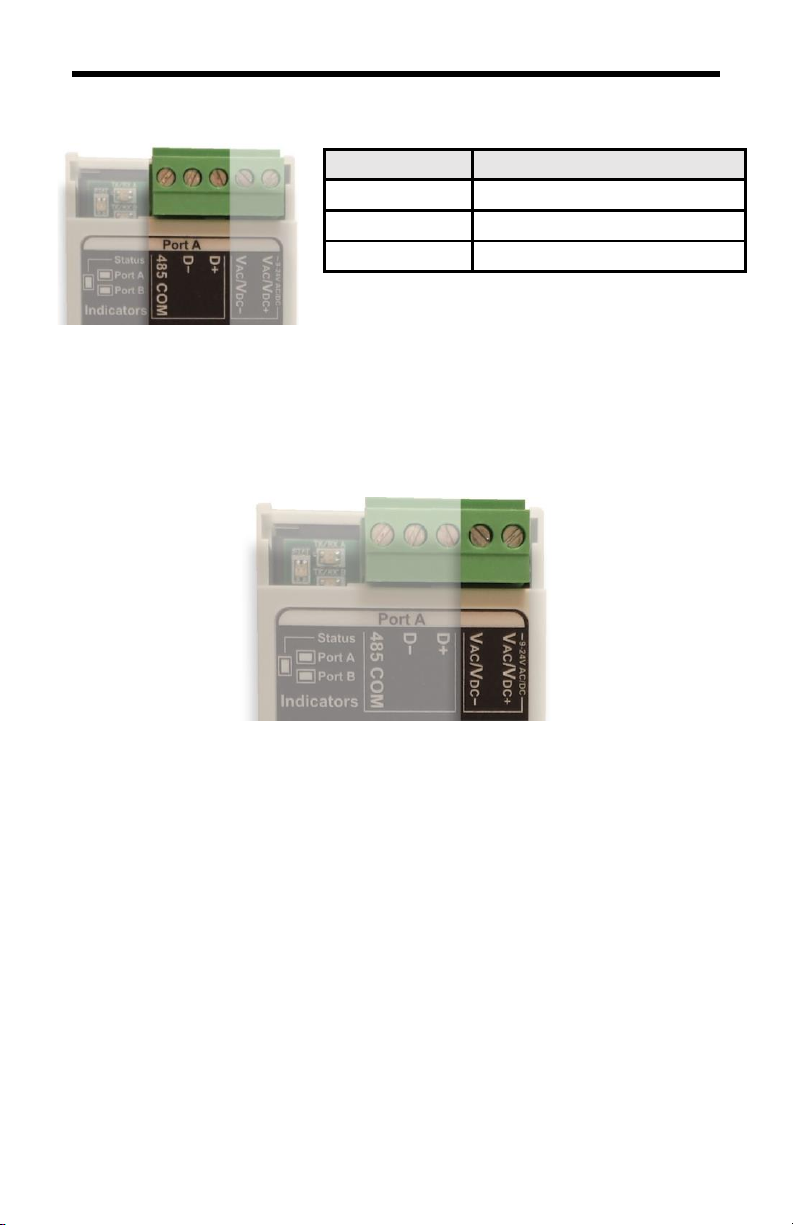

Port A Terminal

Network Connection

D+

RS-485 non-inverting data signal

D-

RS-485 inverting data signal

485 COM

RS-485 common-mode reference

Port A RS-485 terminals

Power terminals
