icklebubba Moon Bedienungsanleitung
English P. 2-13
Francais P. 14-25
Deutsch P. 26-37
Español P. 38-49
Italiano P. 50-61
Moon
02
Contents
Page 03
Components
Page 04
Assembly: Parts & Opening the
Frame
Page 05
Assembly: Installing the Rear
Wheels
Page 06
Assembly: Installing the Front
Wheels & Using the Bumper Bar
Page 07
Assembly: Using the Harness &
Installing the Pram Hood
Page 08
Assembly: Preparing the Seat Unit
& Attaching Seat Unit to Pram
Page 09
Assembly: Converting Pram Mode
to Seat Unit & Operating the Brakes
Page 10
Operating the Front Wheel
Lock & Seat Recline
Page 12
Warnings
Page 11
Folding the Frame & Important
Safety Information
Page 13
Warranty Information
IMPORTANT! READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND
KEEP THEM FOR FUTURE REFERENCE.
V.11.20
5
Components
03
1
2
3
5
6
7
8
1
23
7
6
4
10 Shopping Basket
* Not Pictured
8
4
11
Built in Suspension
12 Foam Filled Wheels
13 Brake
10
11
13
12
14 Footmu*
15 Raincover*
Folding Button
Hood
Seat Recline
Seat Unit Toggle
Bumper Bar
Bumper Bar Release
5 Point Safety Harness
Seat/Pram Body
Removal Button
9
9 Convertible Pram Body
& Seat Unit
V.11.20
Assembly - Parts
04
1. Chassis Frame 2. Seat Unit/Pram Body
3. Bumper Bar
4. Front Wheels
5. Rear Wheels
6. Rear Wheel Axle
& Break
9. Footmu
7. Rear Wheel
Hub Caps
8. Rear Wheel
Locking Caps
Assembly - Opening the Frame
1. Unhook the latch, located on
the right hand side of the frame
2. Lift the handlebar in the
direction of the arrow until the
frame locks into place.
V.11.20
05

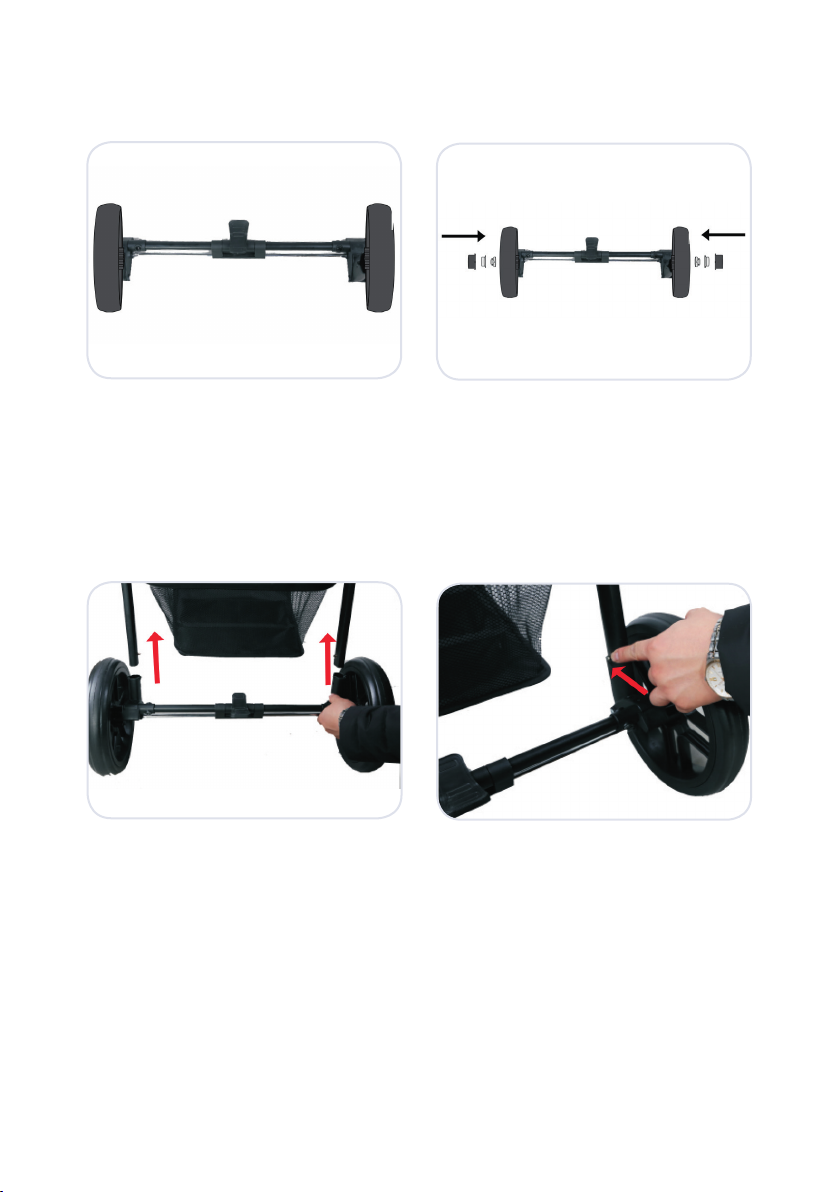

Assembly - Installing the Rear Wheels
1. Insert the axle through each
rear wheel, with the axle going
through the break cluster on
the wheel first.
2. Fix the smallest locking cap
at the end of the axle to lock
the wheel on, then repeat with
the hub cap. Repeat this for
both wheels, ensuring both
sides are securely locked in
place.
3. Once the wheels are fixed
onto the axle, place the axle
onto the frame of the chassis.
Push it upwards until you hear a
‘click’ on both sides
4. To remove the rear wheel
axle, push both the metal push
pin clips inward, and slide
downwards until the axle is
clear of the chassis.
V.11.20
06
Assembly - Installing the Front Wheels
1. Push each front wheel onto
the front wheel bayonet until
you hear a ‘click’. Ensure it is
securely attached to the stroller
before use.
2. To remove the front wheels,
locate the release button which
can be found at the top of the
wheel bayonet, on the inner
side. Push the button in firmly
and the wheel will disengage.
Release
Button
Assembly - Using the Bumper Bar
1. Align the bumper bar with the
fitting on the frame and push
inwards until you hear a ‘click’
on each side and see the safety
release buttons are in the raised
position.
2. To remove, press each of the
safety release buttons (indicat-
ed above) and pull the bumper
bar outwards.
V.11.20
07
Assembly - Using the Harness
1. Insert both shoulder
strap fasteners securely
into the loops located
on the side straps
2. Press the two side
straps into the centre
clasp until both sides are
clicked in securely.
Adjust each strap length
as required.
3. To undo the harness,
press the buckles in the
centre of the harness
and pull apart.
1. Insert the metal
frame of the hood into
the corresponding re-
ceptors located on the
pram frame.
2. Align the zip located
on the rear side of the
hood to the zip found
on the pram/seat
unit fabric and fasten.
3. To remove the hood,
unfasten the zip, then
press both of the
hood connector but-
tons and pull the metal
hood frame upwards.
Removing the Harness for Pram Mode
To remove the harness during pram body mode, place your hand through
the Velcro opening at the back of the seat and thread each of the plastic
tabs through the openings in the wooden base and pull through the front
of the seat fabric. To reinstall, repeat the process in reverse, and ensure
that each harness belt is secured.
Assembly - Installing the Pram Hood
V.11.20
08
Assembly - Preparing the Seat Unit
1. Firstly, locate the seat
unit support.
2. Align either side of the
support with the two holes
situatied on both sides of
the inner seat frame.
Ensure that the support
is facing downwards and
towards the lower end of
the seat frame.
3. Push the support into
the holes and secure in
place with the two push
press clips located on
the seat unit fabric.
1. Align the seat unit
adapters with the cor-
responding holders on
the pram frame
2. Push the seat unit
downwards until both
sides ‘Click’. Ensure that
the seat is securely fas-
tened before use.
3. To remove the seat
unit, press the release
buttons on both sides
of the seat frame and
lift the seat upwards.
Assembly - Attaching Seat Unit to Pram
V.11.20
09
1. To use the seat unit in
pram mode, discon-
nect the two clips locat-
ed at the bottom of the
seat unit, and loosen the
toggle at the top. Push
the fabric downwards
from the inside to en-
sure it lies flat.
2. To convert pram
body to seat unit,
connect the two clips
located at the bottom
of the pram body/seat
unit
3. Tighten the tog-
gle located on the
top of the pram
body/seat unit. Ensure
that all fabrics and
buckles are secure
before use.
Assembly - Converting Pram to Seat
Operating the Brakes
1. To engage the brake, apply
a light downward pressure to
the brake lever. Ensure that the
brakes have been applied cor-
rectly and that the stroller will
not move.
2. To release the breakes, gently
lift up the brake lever.
V.11.20
10
Operating the Front Wheel Lock
1. Pull the lever located at the
rear of the front wheel inwards
towards the pram to engage
the front wheel lock.
2. To release the lock, pull the
lever outwards. Note that each
wheel will require the lever to
be pulled in a dierent direction
- inwards & outwards, and not
left or right.
Operating the Seat Recline
1. To recline the seat,
lift the handle located
at the top of the seat
unit.
2. The seat has 3 posi-
tions - Fully reclined,
mid recline and upright.
3. Please note that the
fully upright position
should only be used for a
child over 6 months old.
NOTE: When using from birth please make sure the pushchair is in the
pram mode
v.02.20
V.11.20
