IClick Sohlo 7 Bedienungsanleitung

PREFACE

Thank you for purchasing our product. In order to operate this device correctly we

recommend reading this user’s manual before you use this MP3 player.

Specifications are subject to change without notice.

**Precautions**

1. Remove the battery from the MP3 player when you are not going to use it for a long time in

order to prevent any damage caused by battery seepage or erosion.

2. Do not use this device in extreme thermal conditions (i.e. in cold, dusty or wet

environments).

3. Make sure the hold key is in the “Off” position before using this device.

4. You may need to replace the new battery under the following circumstances:

a) The battery indicator on the LCD display shows “Empty Battery”.

b) The device powers off unexpectedly.

c) The function buttons are not responding normally.

5. In order to prevent static electricity, do not use this device in particularly dry

circumstances.

6. Do not disconnect this device while it is being formatted or while uploading/downloading

files. It may cause damage to the hardware.

7. Do not disconnect your MP3 player while a file is being downloaded. Disconnecting

while downloading could damage the MP3 Player.

8. If the MP3 player is not working properly, check the battery to make sure that it is not

drained. If you are sure that the battery is working, re-insert the battery into the MP3

player for 3 seconds.

9. If the MP3 player is not working properly while connected to the computer, check the

USB connection to make sure that it is properly connected.

DEVICE FEATURES:

♦Supports MP3 and WMA audio formats.

♦USB1.1 interface.

♦Supports 6 Equalizer effects (normal, rock, jazz, full bass, pop, classical).

♦Supports 6 types of repeat modes: Normal, repeat one, repeat all, random, shuffle all,

intro.

♦Supports ID3 information display.

♦Lyrics display when the corresponding lyric file exists.

♦Read speed: 900KBps

♦Write speed: 600KBps

♦Doubles as USB Flash Disk with PC.

♦A-B point-to-point replay

EXTERIOR VIEW AND KEYS FUNCTION

1 Neck strap loop

2 Power ON/OFF/Play/Pause/Stop

3 Dot-Matrix LCD

4 USB plug

5 Battery compartment

6 USB plug cap

7 Earphone jack

8 HOLD key

9 VOL-

10 VOL+

11 Previous track / Rewind

12 Menu key

13 Next track /Forward

LCD SCREEN DISPLAY:

S/N Description S/N Description

1 Repeat mode 6 Playing status

2 Hold icon 7 Number of current music/

voice file

3 Battery indicator 8 Total Number of music/voice

files

4 A-B repeat mode icon 9 Playback time

5 ID3 information

Operating the function keys: There are two ways to use the function keys that will

allow you to access different menu options on your MP3 player: the quick press and

press and hold.

♦The quick press: Press the key quickly to perform the function.

♦Press and hold: Press the key and continue to hold it down for about 2~3 seconds to

perform the function.

STARTING THE MP3 PLAYER

1. Turning the power on /off:

a. Press and hold the PLAY key to turn ON the power. The blue back light will light up and the

LCD screen will display “MP3 PLAYER”. One you see “MP3 PLAYER”, release the PLAY key.

b. While the player is on, press and hold the PLAY key to turn the power OFF. The LCD

screen will display “BYE BYE” as it powers off.

2. Playing MP3/WMA music or recorded files:

While the MP3 player is powered on, quickly press the PLAY key to play music. The LCD screen

will display information about the music playing.

3. Pause Music/Voice Track

Quickly press the PLAY key to pause the music/voice track. To resume playing, quickly press

the PLAY key again.

4. Stop Music/Voice Track

While the music/voice track is playing, press and hold the PLAY key to stop the music/voice

track and return to Standby mode.

5. Track Selection

In either Standby or Play mode, shift the MODE key to the left or right to choose the track you

want to play.

6. Fast Forward/Rewind

While playing music, shift and hold the MODE key to the right or left to fast forward or rewind

the current track.

7. A-B Repeat

While playing music, quickly press the MODE key to enter into AÆB mode.

a. Once you press the MODE key, you will see the “A” in the top left corner of the LCD display. The “A” indicates

the starting point of the part of the track you want to repeat.

b. To choose which part of the track you would like to select as the ending point of the repeat, quickly press the

MODE key again. You will see a “B” in the top, left corner of the LCD display. Once you see the “A-B” in the

top left corner, this means that you have successfully selected the portion of the track that you would like to

repeat. The selection will continue to repeat until you cancel the repeat function.

c. To cancel the AÆB repeat mode, quickly press the MODE key again to return to normal playing status.

8. Volume Control

While the MP3 player is in play mode, press the volume +/- keys to adjust the volume level.

MAIN MENU:

While the player is on, quickly press the MODE key while in Standby/Pause Mode or you may

press MODE key in Playing Mode to open Menu, the function menu will appear on LCD screen,

shift the MODE key forward or backward to select the function as follow:

Normal

Rock

Jazz

Full Base

Pop

Classical

Normal

Repeat

One

Repeat All

Random

Shuffle All

Intro

1. Navigation

2. Music

3. Voice

4. Record

5. Erase File 1. Delete Music

2. Delete Voice3. Delete Exit

6. Settings 1. EQ Set

2. Play Mode

3. Contrast

4. Back Light

5. BL Color

6. Power Set

7. Record Set

8. Language

9. Exit

7. About

7. Exit

ENC

Sample

English &GBK

English &BIG5

中文&简体

中文&繁体

English & KOR

English & JAP

English & EUR

PCM

IMADPCM

MSADPCM

8000Hz

11025 Hz

16000 Hz

22050 Hz

32000 Hz

44100 Hz

•Navigation Mode: Select folder or music to play.

•Music Mode: Enter into music files playback mode.

•Voice Mode: Enter into voice files playback mode.

•Record Mode: Enter into voice record mode and begin record.

•Erase File Mode: Erase music file or voice file.

•Settings Mode: Select various settings for the MP3 player.

•About Mode: Displays firmware version and memory information for the MP3 player.

1. Navigation Mode

Navigation mode allows you to browse through selected folders or music files that are

stored on your MP3 player.

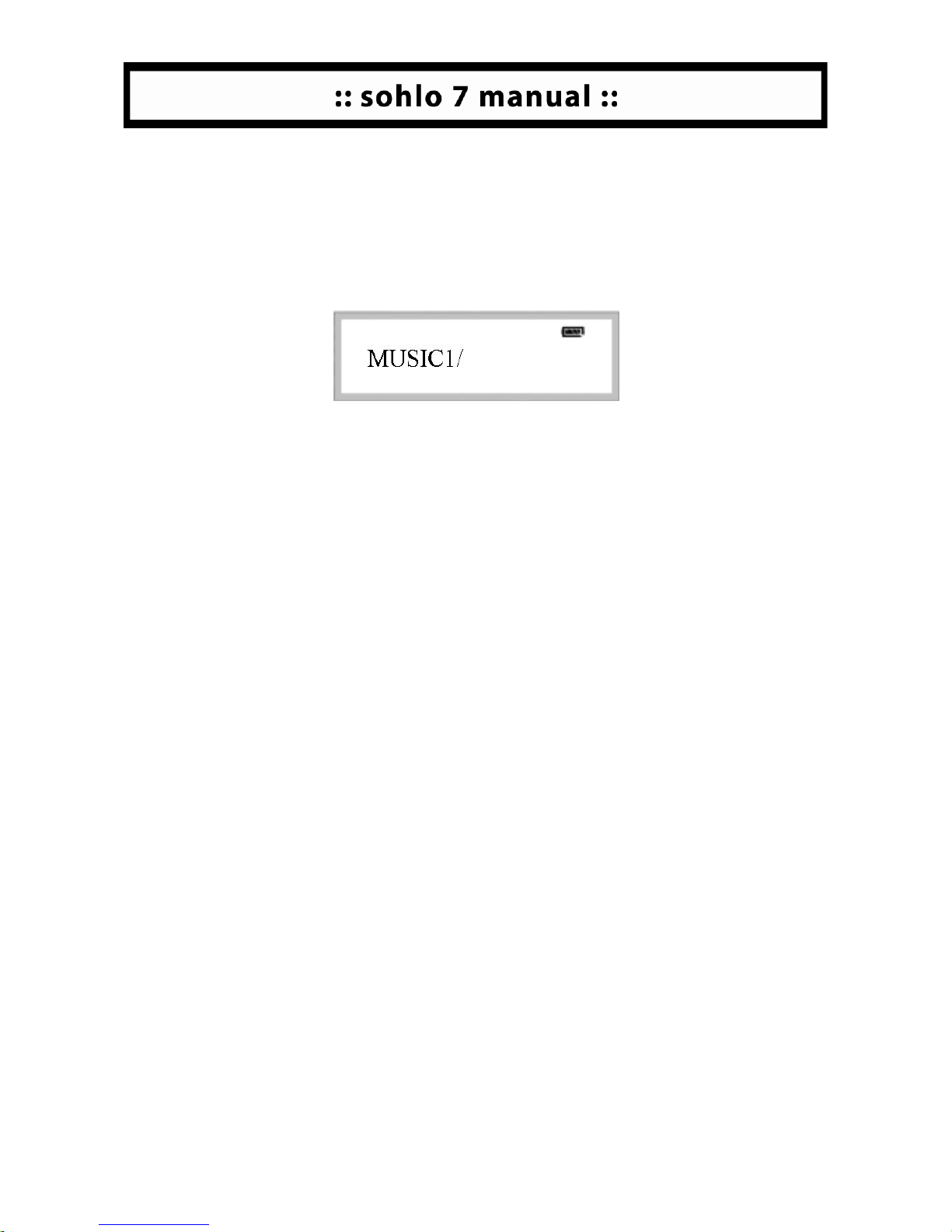

a. To enter into Navigation mode, press and hold the MODE key to access the main

menu, and then quickly press the MODE key again to enter Navigation mode. The

LCD will display the folder(s) or music file(s) which exist in the root directory of the

MP3 Player.

b. To view all of the files and folders stored on your MP3 player, Shift the MODE key

to the left or right to scroll through the folder(s) or music file(s).

c. To access a single music file that is not stored within a folder, select the track by

quickly pressing the PLAY key. The MP3 player will revert back to Music mode and

you will need to press the PLAY key a second time to play the selected track.

d. To access files stored within a folder while in Navigation mode, scroll through the

files until you find the folder you would like to select tracks from, then quickly

press the MODE key to enter the folder and then press the PLAY key to select the

file within the folder that you would like to play. Once you have made your

selection, the MP3 player will revert back to Music mode and you will need to press

the PLAY key a second time to play the selected files.

e. To access the entire folder while in Navigation mode, scroll through the files until

you find the folder you would like to select and quickly press the PLAY key to select

the folder that you would like to play. Once you have made your selection, the

MP3 player will revert back to Music mode and you will need to press the PLAY key

a second time to play the folder files.

f. To back out of a folder or subdirectory in Navigation mode, quickly press the VOL+

key.

g. To delete files in Navigation mode, select the file that you would like to delete by

quickly pressing the MODE key. Then quickly press the VOL- key to confirm your

selection. Next, quickly press the MODE key again and the LCD will display the

delete option. To delete, press the PLAY key. If the deletion is successful, the

LCD will read “File Deleted”. If you decide not to delete the file, quickly press the

VOL+ key to exit back to Navigation mode. Please note: you may only delete

SINGLE files using this method. To delete an entire folder, you must remove the

folder from the MP3 player by using your computer to move or delete the folder.

2. Music Mode

Music mode allows you to scroll through and listen to music files stored on your MP3

player. If there are no music files available on your MP3 player, “NO MP3 FILE” will

appear on the LCD screen indicating that there are no music files stored on the player. To

select Music mode from the main menu, press and hold the MODE key to enter the main

menu. Use the MODE key to scroll through the menu options. Select “Music” and quickly

press the MODE key to enter Music mode.

3. Voice Mode

Voice mode allows you to listen to recorded tracks. If there are no recorded/voice files

available on your MP3 player, “NO VOC FILE” will appear on the LCD screen indicating that

there are no recorded/voice files stored on the player. Please note that voice mode only

allows you to listen to recorded tracks, so music files will not appear in this mode. To

select Voice mode from the main menu, press and hold the MODE key to enter the main

menu. Use the MODE key to scroll through the menu options. Select “Voice” and quickly

press the MODE key to enter Music mode.

4. Record Mode

Record Mode allows you to record voice tracks. Once you record a track in Record mode,

you must switch your MP3 player back to Voice mode to listen to your recorded tracks.

Therefore, you can only record in Record mode.

a. To begin recording a track, press and hold the MODE key to enter the main menu.

Use the MODE key to scroll through the menu options until you find “Record”.

Quickly press the MODE key again to select “Record”. The MP3 player will enter

Record Mode and immediately begin recording.

b. During the recording process, you may pause the recording by quickly pressing the

PLAY key to pause the recording. To resume recording, quickly press the PLAY key

again. Please note that you will continue to record one track if you continue to

play and pause the recording. To record a separate track you must stop recording

and begin the record process again.

c. To stop recording, quickly press the MODE key. The MP3 player will immediately

return to Voice mode where you can listen to your recorded track. To begin

recording another track, follow steps a through c, and you should notice that the

number of recorded tracks increases when you return back to Voice mode.

5. Erase File Mode

Erase file mode allows you to erase both music and voice files from your MP3 player.

Please note that you may erase only individual files, not folders. To erase folders or

multiple files from your MP3 player, you must connect the MP3 player to your computer

and delete the folders or multiple files using your computer.

a. Enter into Erase File mode by pressing and holding the MODE key to enter the

main menu. Using the MODE key, scroll through the menu options and select

“Erase File” by quickly pressing the MODE key.

b. To erase music files, select “Delete Music” from the Erase File submenu and

quickly press the MODE key to confirm your selection. Using the MODE key,

scroll through the music tracks stored on your MP3 player and quickly press the

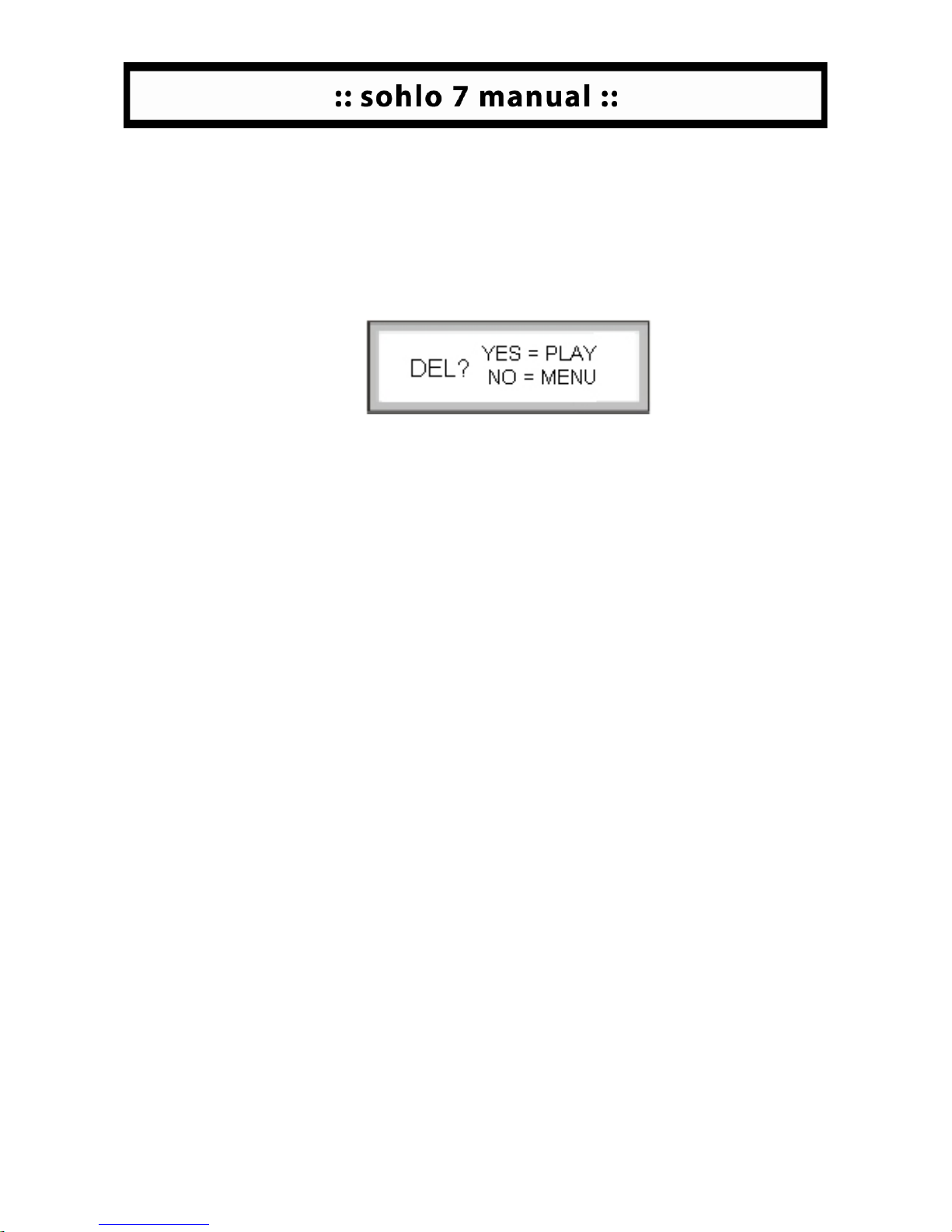

MODE key again to select the track you wish to delete. The LCD screen will

display the delete option shown below. Press the PLAY key to delete the music

file. If you decide not to delete the selected file, press the VOL+ key to return to

the Erase File submenu.

c. To erase voice files, select “Delete Voice” from the Erase File submenu and quickly

press the MODE key to confirm your selection. Using the MODE key, scroll

through the voice/recorded tracks stored on your MP3 player and quickly press

the MODE key again to select the track you wish to delete. The LCD screen will

display the delete option shown above. Press the PLAY key to delete the

voice/recorded file. If you decide not to delete the selected file, press the VOL+

key to return to the Erase File submenu.

d. To exit the Erase File submenu, select Delete Exit to return to the main menu.

From the main menu, you may use the MODE key to scroll through the main

menu options.

6. SETTINGS:

•EQ Set:

The EQ Set mode allows you to select from different equalizer settings to adjust the sound

quality of the music stored on your MP3 player. There are 6 equalizer settings: Normal,

Rock, Jazz, Full Base, Pop, and Classical. Once you select an equalizer setting, the setting

will apply to all tracks stored on your MP3 player.

a. To enter into the EQ Set mode, press and hold the MODE key to enter into the main

menu. Using the MODE key, scroll through the main menu options and select

“Settings” and quickly press the MODE key again to confirm your selection. EQ Set

is the first choice in the Settings submenu. Quickly press the MODE key to select

“EQ Set” to enter EQ Set mode.

b. Use the MODE key to scroll through the EQ settings (Normal, Rock, Jazz, Full Base,

Pop, and Classical). Quickly press the MODE key to select the setting you wish to

use. Note, if you have a music track playing while you scroll through the EQ

settings, you can hear the difference in the EQ setting options.

c. Once you have selected the EQ Setting you prefer, you will return to the Settings

submenu. Use the MODE key to scroll through the Settings submenu and once

select “Exit” by quickly pressing the MODE key to return to the main menu.

•Play Mode:

The Play mode allows you to set your MP3 player to play your music tracks in various

ways. There are six play modes and they are:

+ Normal: Plays all music files and stops at the last music file.

+ Repeat One: Plays only a single music file repeatedly.

+ Repeat All: Plays all music files repeatedly.

+ Random: Plays all music files at random and stops at the last music file played.

+ Shuffle All: Plays all music at randomly and does not stop after the last music file

has been played.

+ Intro: Plays the first 10 seconds of each music file.

a. To enter into Play mode, press and hold the MODE key to enter into the

main menu. Using the MODE key, scroll through the main menu options

and select “Settings” and quickly press the MODE key again to confirm

your selection. Using the MODE key, scroll through the Settings submenu

options and select “Play Mode” and quickly press the MODE key again to

confirm your selection. Play Mode is the second choice in the Settings

submenu.

b. Use the MODE key to scroll through the Play Mode settings (Normal,

Repeat One, Repeat All, Random, Shuffle All, Intro). Quickly press the

MODE key to select the setting you wish to use.

c. Once you have selected the Play mode you prefer, you will return to the

Settings submenu. Use the MODE key to scroll through the Settings

submenu and once select “Exit” by quickly pressing the MODE key to

return to the main menu.

•Contrast:

Contrast mode allows you to adjust the contrast of the information that appears on the

LCD screen of the MP3 player.

a. To enter into Contrast mode, press and hold the MODE key to enter into the main

menu. Using the MODE key, scroll through the main menu options and select

“Settings” and quickly press the MODE key again to confirm your selection. Using

the MODE key, scroll through the Settings submenu options and select “Contrast”

and quickly press the MODE key again to confirm your selection. Contrast is the

third choice in the Settings submenu.

b. Use the MODE key to increase or lower the contrast level on your MP3 player.

c. Once you have selected the contrast level you prefer, you will return to the

Settings submenu. Use the MODE key to scroll through the Settings submenu and

once select “Exit” by quickly pressing the MODE key to return to the main menu.

•Back Light:

The Back light mode allows you to adjust the length of time the back light stays on while

you use your MP3 player. The time ranges from 0 to 60 seconds.

a. To enter into back light mode, press and hold the MODE key to enter into the main

menu. Using the MODE key, scroll through the main menu options and select

“Settings” and quickly press the MODE key again to confirm your selection. Using

the MODE key, scroll through the Settings submenu options and select “BackLight”

and quickly press the MODE key again to confirm your selection. Back Light is the

fourth choice in the Settings submenu.

b. Use the MODE key to increase or lower the amount of time you would like the back

light to stay on.

c. Once you have selected the contrast level you prefer, you will return to the

Settings submenu. Use the MODE key to scroll through the Settings submenu and

once select “Exit” by quickly pressing the MODE key to return to the main menu.

•Power Set:

The Power Set mode allows you to adjust how long your MP3 player will stay on before it

automatically shuts off. The automatic shut off timer will start the count down if no key is

pressed in while the MP3 player is stopped or not playing files. The MP3 player will

automatically turn off after the count down time ends. The count down time ranges from 0

to 10 minutes, unless the Power Set mode is disabled. Please note that if this feature is

disabled, the system will never power off automatically.

a. To enter into the Power Set mode, press and hold the MODE key to enter into the

main menu. Using the MODE key, scroll through the main menu options and select

“Settings” and quickly press the MODE key again to confirm your selection. Using

the MODE key, scroll through the Settings submenu options and select “Power Set”

and quickly press the MODE key again to confirm your selection. Power Set is the

fifth choice in the Settings submenu.

b. Use the MODE key to scroll through the Power Set count down times (Disable, 1

min, 2 mins, 5 mins, 10 mins). Quickly press the MODE key to select the setting

you wish to use.

c. Once you have selected the Power Set count down time you prefer, you will return

to the Settings submenu. Use the MODE key to scroll through the Settings

submenu and once select “Exit” by quickly pressing the MODE key to return to the

main menu.

•Record Set:

ENC: Set encode format. There are 3 types: PCM, IMADPCM, and MSADPCM

Sample: Set recording rate. There are 7 types: 8000Hz, 11025 Hz, 16000 Hz, 22050

Hz, 32000 Hz and 44100Hz

Right or left shift MODE key to select the option and short press MODE key to select

which encode format or recording rate you prefer.

Inhaltsverzeichnis

Andere iClick MP3-Player Handbücher

iClick

iClick Sohlo G5 Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken

Blaupunkt

Blaupunkt Compact Drive MP3 Bedienungsanleitung

Memorex

Memorex MMP9008 - 8GB USB 2.0 Bedienungsanleitung

Meizu Electronic Technology

Meizu Electronic Technology E5 Bedienungsanleitung

Naxa

Naxa NMV-173NX Bedienungsanleitung

Philips

Philips PSA250 Bedienungsanleitung

Zipy

Zipy go! Waving Bedienungsanleitung

Sylvania

Sylvania SMPK4068 Bedienungsanleitung

Sony

Sony NW-MS7 - Memory Stick Walkman Bedienungsanleitung

Irradio

Irradio RF-42UC Bedienungsanleitung

NABAIJI

NABAIJI SWIM MUSIC 100 Bedienungsanleitung

Laser

Laser MP3-A9-4GB Bedienungsanleitung

Samsung

Samsung YP-T7F Bedienungsanleitung

Savant

Savant SMS-1001-00 Kurzanleitung

Trevi

Trevi XP 71 BT Bedienungsanleitung

AGPtek

AGPtek C2 Bedienungsanleitung

MobiBlu

MobiBlu DAH-1500i Bedienungsanleitung

Denver

Denver MPS-201 Bedienungsanleitung

Steren

Steren MP3-002 Bedienungsanleitung

iClick Sohlo 7 Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken
