Icom IC-M501 Kurzanleitung

IC-M501

- 1 -

IC-M502 Operational Manual

Table of contents

1. Front panel layout

2. Rear Panel

3. Radio operation

I Display

Ii Readout and operation

III DSC operation

Iv User set mode

IC-M501

- 2 -

1. Front panel

1. Front panel1. Front panel

1. Front panel

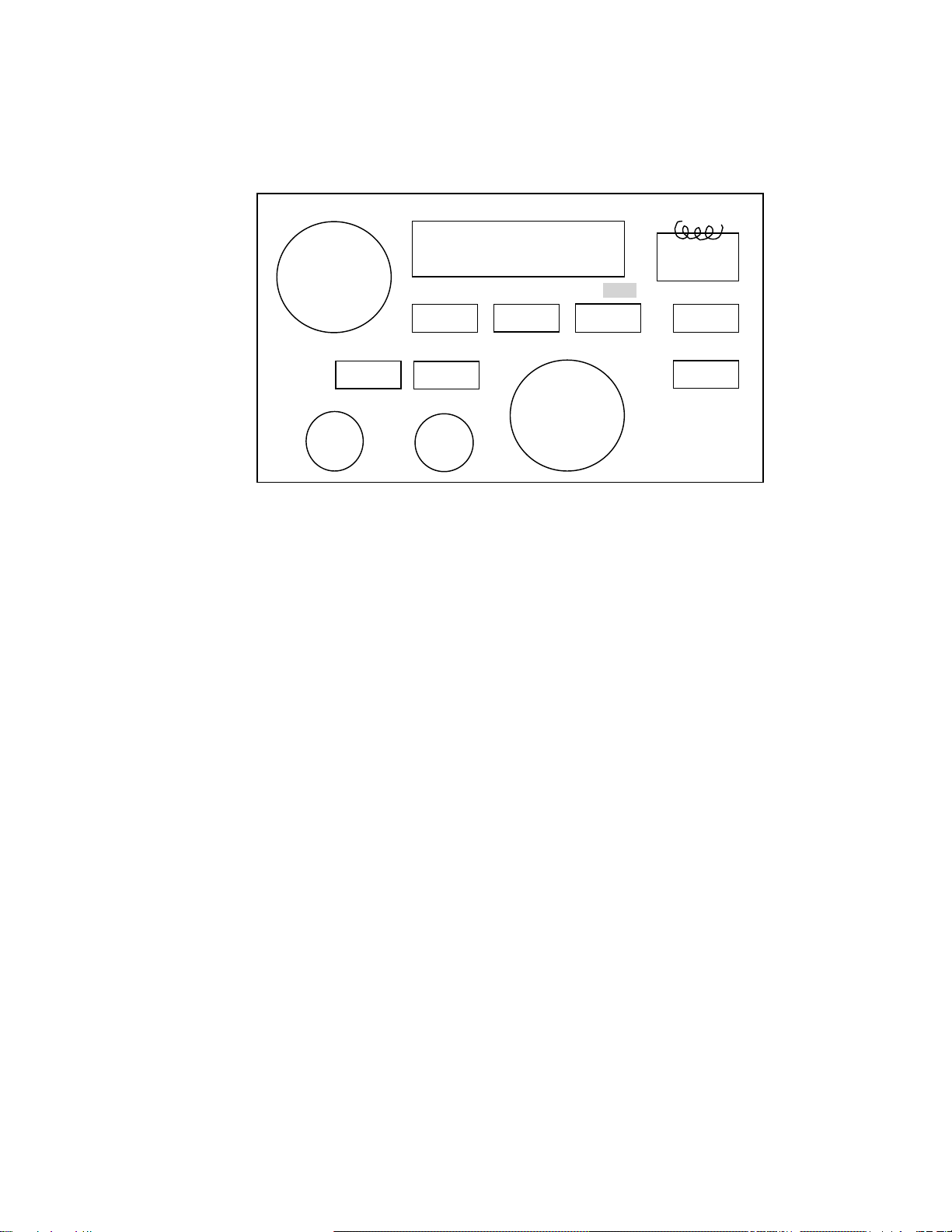

USA Model

USA ModelUSA Model

USA Model

VOL

LO/DX

DSC/ENT

POS

SCAN

TAG

HI/LOW

DIMMER

SQL

DISTRESS

CH/WX

DW U/I/C

SEL

POWER

IC-M501

- 3 -

Name Operation Silk Print Function and Operation

Repress once 16 Recall CH16

Holding for one sec. 9 Recall CH9 or reprogramming CALL CH when CH 9 is

selected

16 Repress 16 with holding

HI/LOW button Editing CH name

Repress once CH/WX Toggle between user CH and WX

Holding for 1sec. DW Start/Stop Dual or tri watch

CH/WX Repress CH/WX with

holding HI/LOW button U/I/C Selecting USA, INT or CANADA mode

Repress once SCAN Start/Stop normal or priority scan

Holding for 1sec. TAG Tag or un-tag channel for scanning

SCAN Repress SCAN with

holding HI/LOW button Clear all tagged channel with holding those buttons

Repress once HI/LOW Switch output power between 25W and 1W

Holding for 1sec. No function

HI/LOW With Holding HI/LOW

button No function

Repress once DSC/ENT Selecting DSC call menu and selection

Holding for 1sec. POS Display LAT/LON and time

DSC/ENT Repress DSC with

holding HI/LOW button No function

Repress once LO/DX Turning on/off ATT on receiver

Holding for 1sec. IC Turning on/off intercom

LO/DX Repress LO/DX with

holding HI/LOW button Turning on/off scrambler

Repress once No function

Holding for 5 sec. DISTRESS Transmitting distress signals

DISTRESS Repress DISTRESS with

holding HI/LOW button No function

Turning knob Selecting CH

SELECTOR Turing Dial knob with

holding HI/LOW button Adjusting dimmer

POWER Repress POWER Turning on /off the radio

VOLUME Turing knob VOL Adjusting receive audio

SQUELCH Turning knob SQL Adjusting SQL

Turning on the radio with holding CH 16 will select radio setup mode

IC-M501

- 4 -

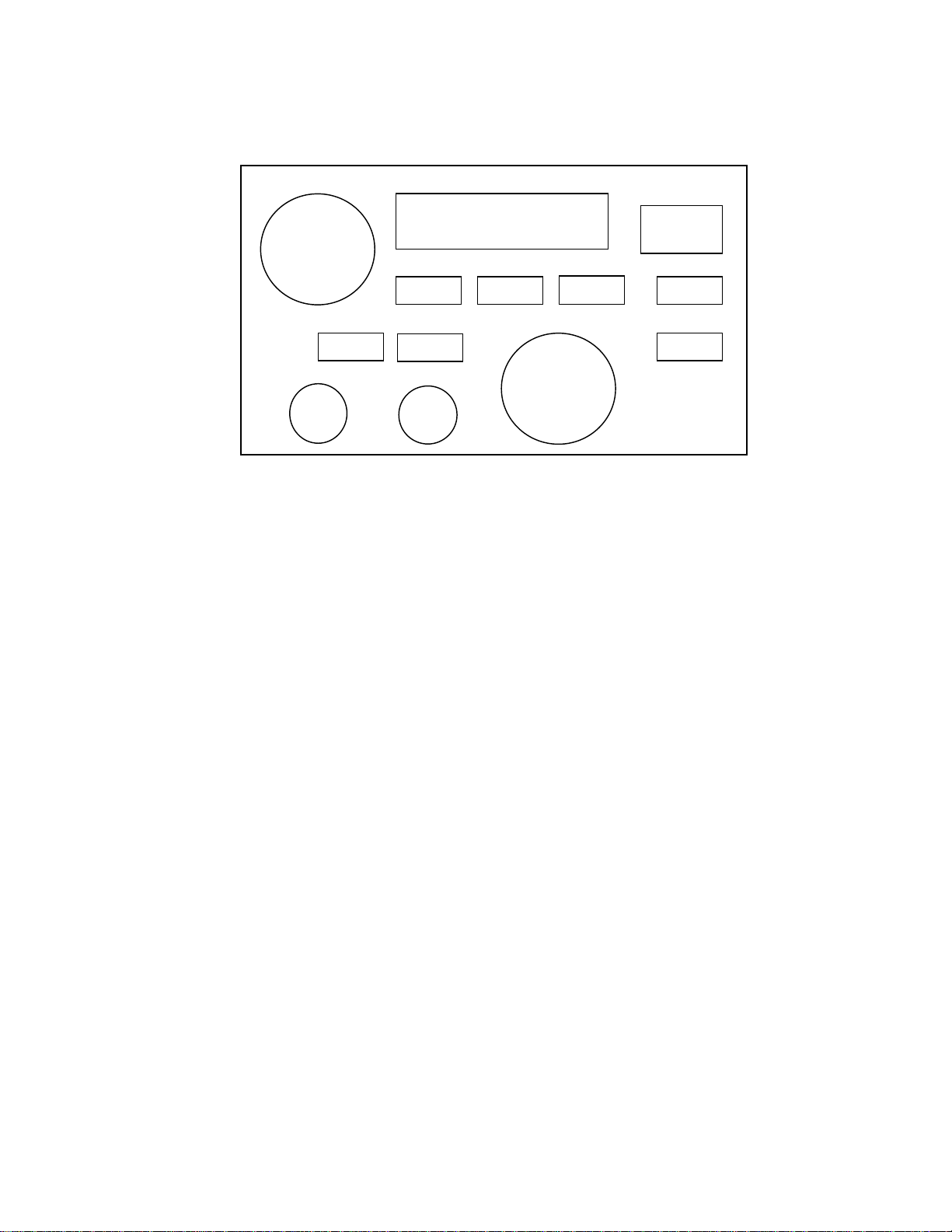

Europe Model

Europe ModelEurope Model

Europe Model

CALL

VOL

DIMMER

DUAL

SCAN

TAG

HI/LOW

SQL

DIAL

SEL

POWER

IC-M501

- 5 -

Name Operation Silk Print Function and Operation

Repress once CALL Recall CALL CH

Holding for one sec. Reprogramming CALL CH

CALL Repress CALL with

holding HI/LOW button Editing CH name

Repress once DIAL Switching to user CH mode

Holding for 1sec. No function

DIAL Repress DIAL with

holding HI/LOW button Selecting USA, INT mode

Repress once SCAN Start/Stop normal or priority scan

Holding for 1sec. TAG Tag or un-tag channel for scanning

SCAN Repress SCAN with

holding HI/LOW button Clear all tagged channel with holding those buttons

Repress once HI/LOW Switch output power between 25W and 1W

Holding for 1sec. No function

HI/LOW With Holding HI/LOW

button No function

Repress once DUAL Start/Stop dual or tri watch

Holding for 1sec. No function

DUAL Repress DUAL with

holding HI/LOW button No function

Repress once DIMMER Selecting Dimmer level

Holding for 1sec. DIMMER No function

DIMMER Repress DIMMER with

holding HI/LOW button Turning on/off scrambler

Repress once 16 Recall CH16

Holding for 1 sec. No function

16 Repress DISTRESS with

holding HI/LOW button No function

Turning knob Selecting CH

SELECTOR Turing Dial knob with

holding HI/LOW button No function

POWER Repress POWER Turning on /off the radio

VOLUME Turing knob VOL Adjusting receive audio

SQUELCH Turning knob SQL Adjusting SQL

Turning on the radio with holding CH 16 will select radio setup mode

IC-M501

- 6 -

2.Rear Pan

2.Rear Pan2.Rear Pan

2.Rear Panel

elel

USA Model

USA ModelUSA Model

USA Model

1. NMEA input jack (Pig Tail)

2. Speaker output jack (Pig Tail)

3. Socket for remote control unit

4. DC power cable (Pig Tail)

Europe Model

Europe ModelEurope Model

Europe Model

1. Speaker output jack (Pig Tail)

2. Socket for DS-100 (DSC unit)

3. DC power cable (Pig Tail)

IC-M501

- 7 -

3.3.

3. Radio Operation

Radio OperationRadio Operation

Radio Operation

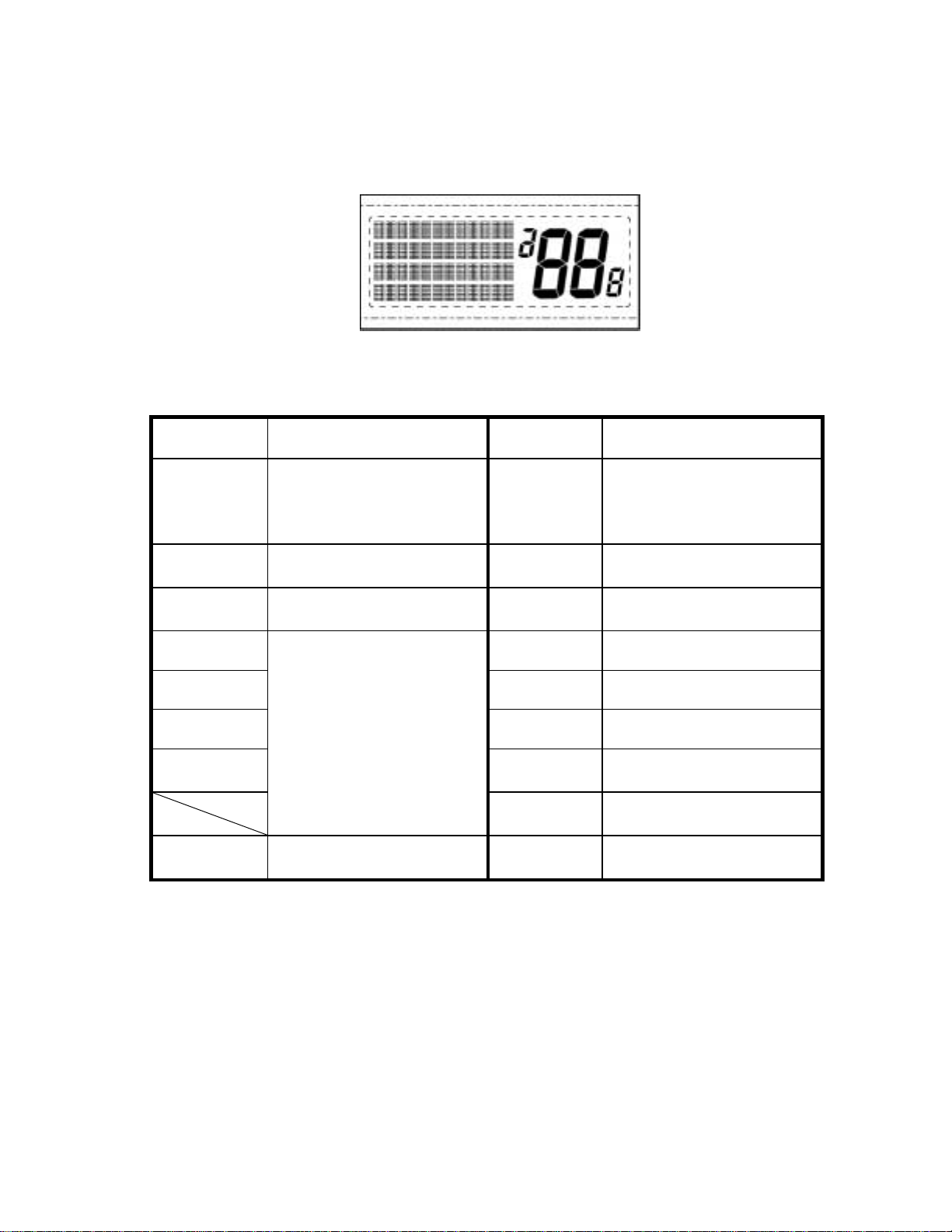

i.. Display

Following words are showing on display

TX Transmit indicator TAG Tagged CH indicator

BUSY

The BUSY indicator

shows radio has

incoming receive

signals

SCAN Blinks during scanning

 RF output power

indicator DUAL

WATCH Blinks during dual

watch

CALL Call channel indicator TRI-

WACH Blinks during tri

watch

CAN DUP Shows duplex channel

USA SC Scrambler indicator

INT LOCAL Receive ATT on

WX Low Battery It shows DC voltage is

less than 10 V

Mode display

CH display

7seg It shows current

selected CH

ALERT WX alert display SP OFF Internal speaker is

off

IC-M501

- 8 -

Ii Display and operation

1. Transmit and receive readout



 



 09

CH16 is selected



 

  20 RX with SQL close

 



 

  20 RX with SQL open



 16

 



 

  20 TX with high power

 



 

  20 TX with low power

CALL CH is selected

IC-M501

- 9 -

2 Operation mode readout

Repressing CH/WX button while holding HI/LOW button

3 DUAL / TRI watch

Radio setup mode selects DUAL or TRI watch

4 Scan

The radio comes with four different scanning modes, Normal scan, Normal scan

with WX alert, Priority scan and Priority scan with WX alert, and you may

select them from setup mode

When you repressed UP or DOWN button, the radio will pause scan

If you repress UP or DOWN button again, the radio will display tagged

channels, then the radio will resume scanning



 





 





 

  20



 

  20





 

  20

IC-M501

- 10 -

During pausing scan, holding SCAN button for 1 sec. will un-tag the channel,

and will resume scanning

5 WX channel

6 LAT/LON display

Holding DSC/ENT button for 1 sec will display position

Repressing other button will cancel this mode

   20



  10

  20



 

 



 

 

GPS connected

’

’

  20 Position error from GPS

No GPS receiver is connected

Blinks
