Slimline Burner Manual

www.iconfires.com

Operating Manual

Thank you for purchasing this Icon Fires product. Icon Fires places the highest priority on safety

of its products. Every care has been taken in designing, manufacturing and assembling your

Icon Fires Burner to ensure it operates effectively, efficiently and safely. Live-fire products must

be treated with care. We ask that you exercise care when using this product and follow the

instructions below. Before using your Icon Fires Burner, please read all the information

contained in this Operation Manual carefully. Icon Fires cannot be held responsible for any

damage or injury caused if these instructions are not followed.

Retain this Manual for future reference.

IMPORTANT SAFEGUARDS

When using this Fireplace, basic precautions should always be followed, including but not

limited to the following. Read all instructions and warnings before using this Fireplace.

WARNING

•DO NOT OVERFILL THE BURNER’S INTENDED CAPACITY.

•USE ONLY THE FUEL FOR WHICH THE SLIMLINE BURNER IS INTENDED.

•DO NOT TOUCH THE EXTERIOR OF THE SLIMLINE BURNER DURING OR AFTER BURNING.

•PARTS OF THIS SLIMLINE BURNER CAN REACH HIGH TEMPERATURES.

•DO NOT HAVE COMBUSTIBLE OBJECTS IN CLOSE PROXIMITY TO THE BURNER.

•DO NOT INSTALL INTO AN AREA WHERE THERE IS A DRAFT WHICH CAN AFFECT THE

FLAME.

•NEVER POSITION THE BURNER WITHIN RANGE OF COMBUSTIBLE ITEMS THAT CAN BE

MOVED/BUMPED BY ACCIDENT OR BLOWN BY THE WIND. E.G. CURTAINS, BLANKETS,

PAPERS ETC...

•ONLY USE THE SLIMLINE BURNER IN AREAS WITH GOOD VENTILATION.

•DO NOT COVER THE SLIMLINE BURNER VENT WITH ANY DECORATIVE ITEMS WHETHER

THEY ARE COMBUSTIBLE OR NON-COMBUSTIBLE, INCLUDING BUT NOT LIMITED TO

ARTIFICIAL LOGS, STONES, PEBBLES, GLASS BEADS etc.

•CUSTOMS INSTALLATION: ICON FIRES IS NOT LIABLE FOR ANY INJURIES OR DAMAGES

SUSTAINED BY CUSTOM MADE OR PRIVATELY COMISSIONED FIREBOXES. ICON FIRES

RECOMMENDS USING THE BURNERS IN THE FIREBOXES MANUFACTURED BY ICON

FIRES ONLY. ANY ALTERATIONS TO THE ICON PRODUCT VOIDS ANY WARRANTY OR

LIABILITY.

CAUTION

•Make sure you have read and understood this Manual before using this product.

•Do not overfill or spill fuel when refilling.

•If fuel is spilled, wipe with a dry cloth and allow the rest to evaporate before introducing

a flame to the Burner.

•If the Burner is accidentally overfilled, follow the steps given in these next pages.

•To refill, wait until the Burner is at the room temperature after the flame has been

turned off. NOTE: the flame may not be visible to the naked eye in daylight and must be cool before filling.

•Never refill over or near an open flame.

•Use the supplied funnel or pump to refill.

•Remove all plastic & packaging before using the Burner.

Trouble shooting and operating tips:

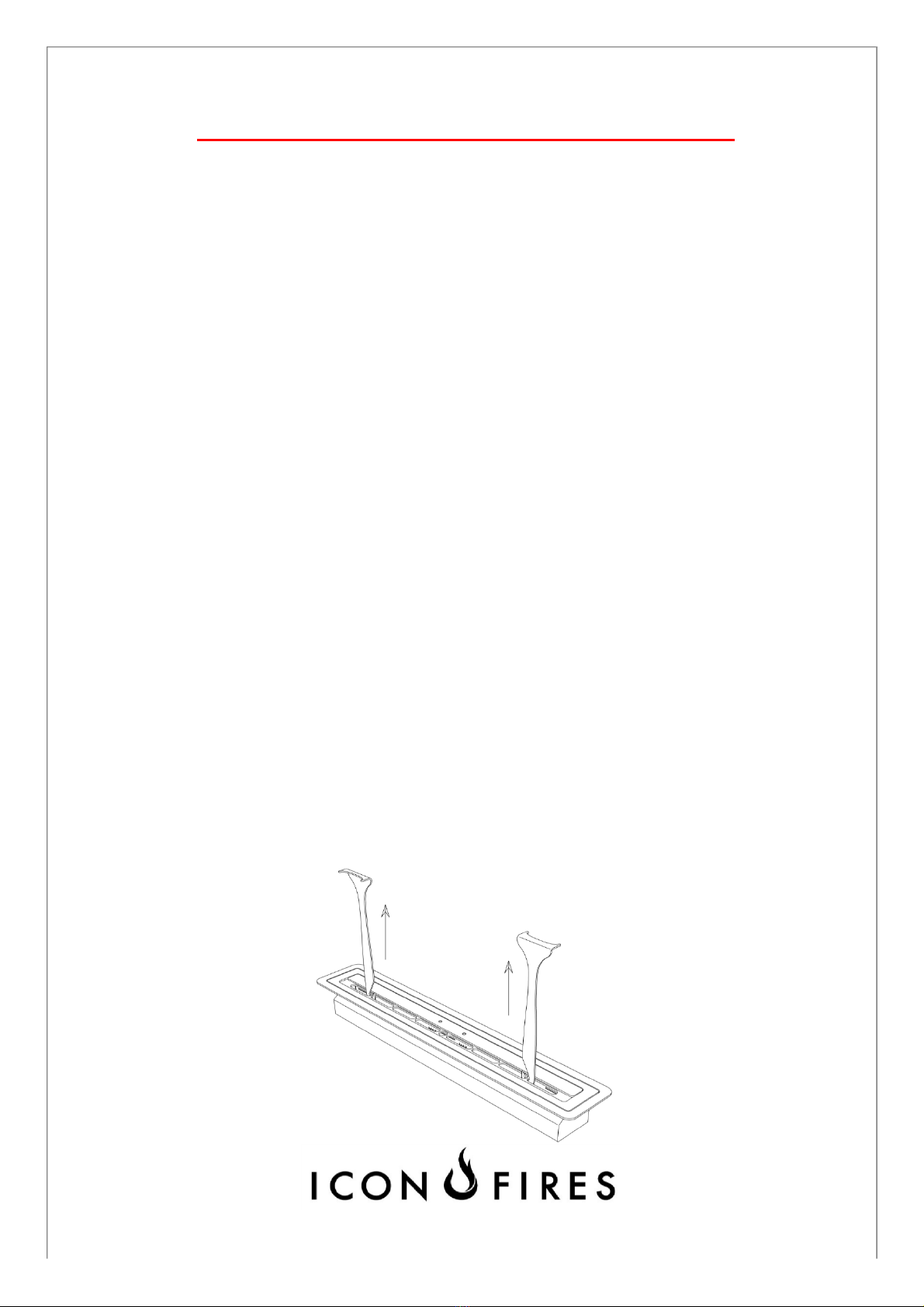

•The hooks on the back of the Sliding Lid Handle can be used to carry the Slimline Burner

by hooking it around the slotted openings in the Vent Plate as shown in the image

below.

•The first fill will take longer as the material inside the Fuel Tank will absorb the fuel.

Subsequent filling should be quicker. Take care to not fill the Burner at a faster rate than

what the material inside can absorb the fuel.

•If the fire does not extinguish the first time by closing the Sliding Lid follow these steps and

repeat if necessary.

oCheck that the surface below the sliding plate is clean and free from

obstruction.

oApply strong downward force and in one quick motion move the sliding plate

towards the closed position. If the flame is still visible repeat this step as a

double motion still applying strong downward force in quick succession.

•Never blow on the flame whilst the Sliding Lid is in an open position.

•If your Slimline Burner does not ignite after it has been closed overnight, you will need to

refill the Burner to a full level to enable the Burner to be relit.

•VERY IMPORTANT: Take special care when adding fuel to the Slimline Burner, always

close the Sliding Lid for a few minutes before adding fuel to make sure there is no visible

flame in the Burner Vent.

•If after some time you find the Sliding Lid has become ‘sticky’ when attempting to move

it then remove the Sliding Lid from its housing and rub the underside using the green side

of a Scotch Bright scouring pad. Take care to only scrub in the direction of the brushing

lines of the stainless steel.

•Make sure you keep your Burner clean especially the surface that the Sliding Lid slides on

and ensure that any excess fuel on the surface of the Burner is wiped off before use.

CONTENT OF PACKAGING:

•Burner Body - qty 1

•Slider - qty 1 (2 of for 1400 Burner)

•Sliding Lid Handle - qty 2 (1 of 500 Burner)

•Battery operated Fuel Pump - qty 1

MAKE SURE THE FIREPLACE HAS COOLED OFF COMPLETELY BEFORE CLEANING:

To clean dust, wipe with a dry cloth or sponge.

To clean stainless steel parts, use bio-ethanol or stainless steel cleaning products.

Make sure the Sliding Lid for the Slimline Burner slides correctly and fully after cleaning and

that any excess cleaning product has been wiped off completely.

KEEP HANDY A CLASS B FIRE EXTINGUISHER:

Class B fire extinguishers are used to put out fires that are caused by combustible liquids. Class B fire

extinguishers quell the flames by expelling a dry chemical powder or foam with a nitrogen propellant.

The specific chemical can vary depending on the make or model. Water will not extinguish this flame.

PROCEDURE IF BURNER IS OVERFILLED:

In case of accidental overfilling of the fuel tank, follow these steps:

•NEVER light the Slimline Burner if it is filled past the filling line by more than 15mm, shown

in the section of Filling the Slimline Burner.

•Remove the Slimline Burner from its housing, using the hooks on the back end of the

Sliding Lid Handle or rubber gloves.

•Empty the excess fuel into a container, suitable to hold the volume of the Burner.

•Wipe off all excess fuel that may have dripped on the outside of the Slimline Burner

during emptying and allow any residual fuel to evaporate. Leave for 1 hour.

•Place the Slimline Burner back into its housing.

•Ignite the Slimline Burner only once all residual fuel outside the Burner has completely

evaporated and the container used to fill the Burner has been sealed and moved to a

safe distance from the Burner.

USE CORRECT FUEL - COMMERCIAL NAMES:

Australia, India, New Zealand, South Africa, Germany, United Kingdom, USA & Canada, France: Bio-

Ethanol - Denatured Alcohol, Holland/The Netherlands: Spiritus - Brand Spritus, Italy: Alcool Denaturo -

Spirito de Brucaire, Japan: Nen-ryo yoh, Scandinavia: T-Sprit - Rod Sprit - Denaturoitu Sprii - Sinol - Marinol,

Spain: Alcohol Metalico - Alcohol de Quemar, Switzerland: Brennsprit, Turkey: Ispirto.

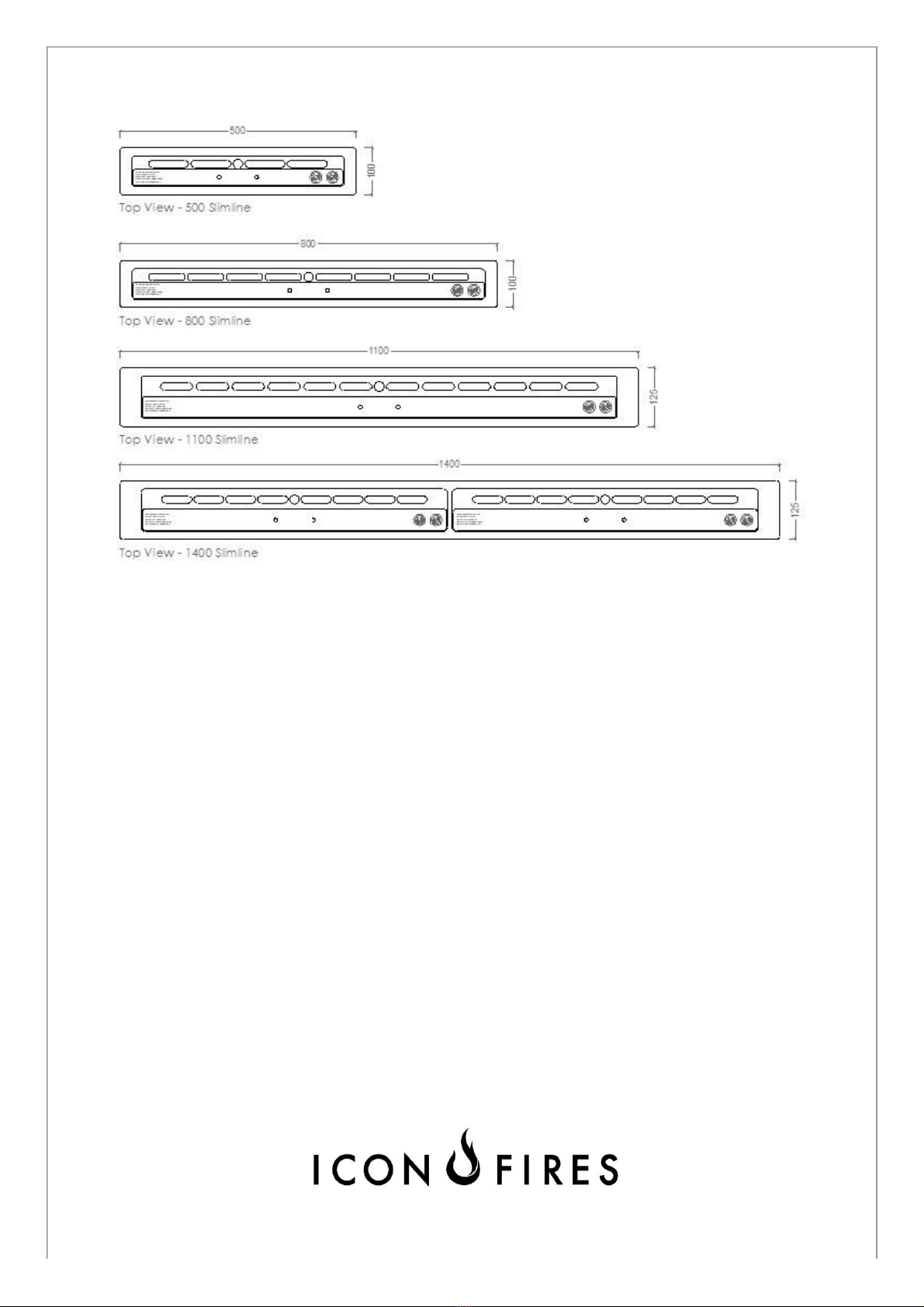

Slimline Burner Range

The following information is provided to assist in understanding how each model

within our collection can be incorporated into your desired settings. It is intended as

a guide only and it is important that you read the detailed Model Specification of

the model you are interested in before ordering, specifying, installing or operating

the fire.

Model

No.

Dimensions in

mm (L x W x

Approx.

Fuel

Capacity

Material

Heats On

Average

Minimum

Room

Area

Thermal

Output

Net

Burning

Time On

*Average

Consumption

*Average

SB500C

500x100x100

2.75 ℓ

Brushed

304 SS

up to 90 m³

40 m³

2.5

kW/hr

6-9 hrs

0.30 ℓ/hr

SB800C

800x100x100

4.50 ℓ

Brushed

304 SS

up to 165

m³

70 m³

4.35

kW/hr

5.5-8.5

hrs

0.60 ℓ/hr

SB1100C

1100x125x10

6.25 ℓ

Brushed

304 SS

up to 210

m³

90 m³

7.25

kW/hr

6.5-9 hrs

0.90 ℓ/hr

SB1400C

1400x125x10

8.15 ℓ

Brushed

304 SS

up to 270

m³

110 m³

9.5

kW/hr

7-9.5 hrs

0.90 ℓ/hr

*Average consumption and burn time are based on mixed settings of maximum and moderate output. These burn

times and consumption rates may vary depending on room characteristics.

Accompanying Accessories

Model No.

Burner & Lid

Fuel Pump

Handles

Instruction

Manual

SB500C

yes

SB800C

yes

SB1100C

yes

SB1400C

yes

NOTE: There are many different variations available for installing the Burner Range. In

all cases, the Slimline Burner must:

•Installed into non-combustible material ONLY;

•All gas connections or pipelines near your new Burner installation must be

disconnected and made safe by an appropriately qualified professional prior to

installation;

•Installed into a fixed, level and secure position before filling, lighting and

operating;

•Installed in a position that limits relocation requirements to eliminate the risk of

accidents caused by fuel spillage. These Burners are not designed to be

relocated frequently;

•Installed into a level platform;

•Not installed directly beside or near wallpaper, laminate, veneer or any surface

that has not been fire rated and considered combustible.

•A minimum of 1000mm radius to any combustible material.

•Not be within the reach of any objects that are not fixed in position and can be

moved by the wind or bumped over easily i.e. curtains, blankets, newspapers

etc.

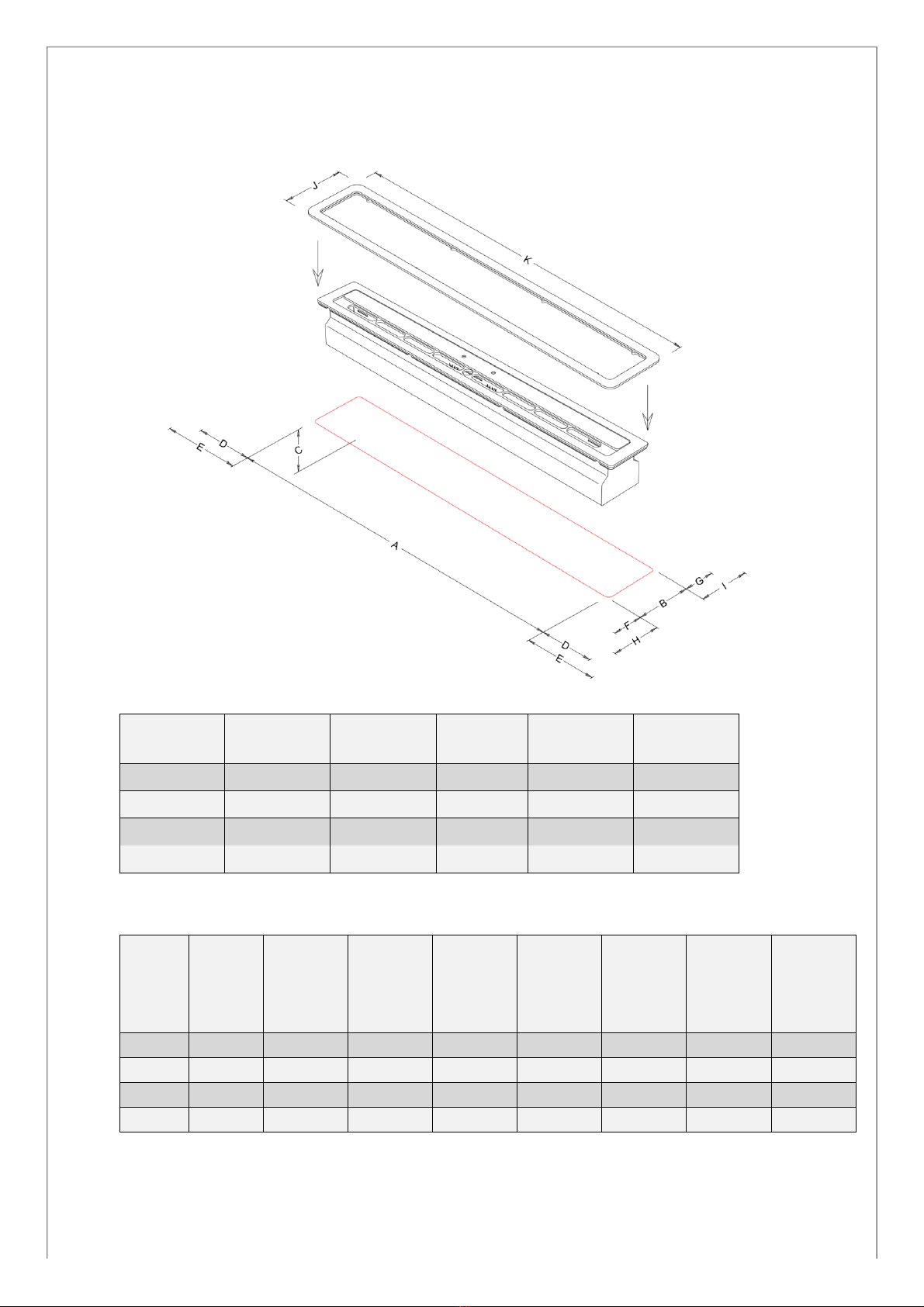

Installation - Standard Mount Plate

Standard Mount Plate - Sizes

Model No.

Cut out

Length - A

Cut out

Width - B

Cut out

Depth - C

Mount Plate

Length - K

Mount Plate

Width - J

SB500C

530 mm

130 mm

110 mm

545 mm

145 mm

SB800C

830 mm

130 mm

110 mm

845 mm

145 mm

SB1100C

1130 mm

155 mm

110 mm

1145 mm

170 mm

SB1400C

1430 mm

155 mm

110 mm

1445 mm

170 mm

Standard Mount Plate - Clearances

Model

No.

Distance

to Non -

Combusti

ble Items

- D

(Front)

Distance

to Non -

Combustib

le Items - F

(Back)

Distance to

Non

Combustib

le Items - G

Height

Above Cut

out to Non

Combustib

le Items

Distance

Combustib

le Items - E

(Front)

Distance

Combustib

le Items - H

(Back)

Distance

Combustib

le Items - I

Height

Above Cut

out to

Combustib

le Items

SB500C

50 mm

500 mm

1550 mm

SB800C

50 mm

500 mm

1550 mm

SB1100C

50 mm

500 mm

1550 mm

SB1400C

50 mm

500 mm

1550 mm

NOTE: all clearances given are from the cut out in the surface where the Burner will

be placed.

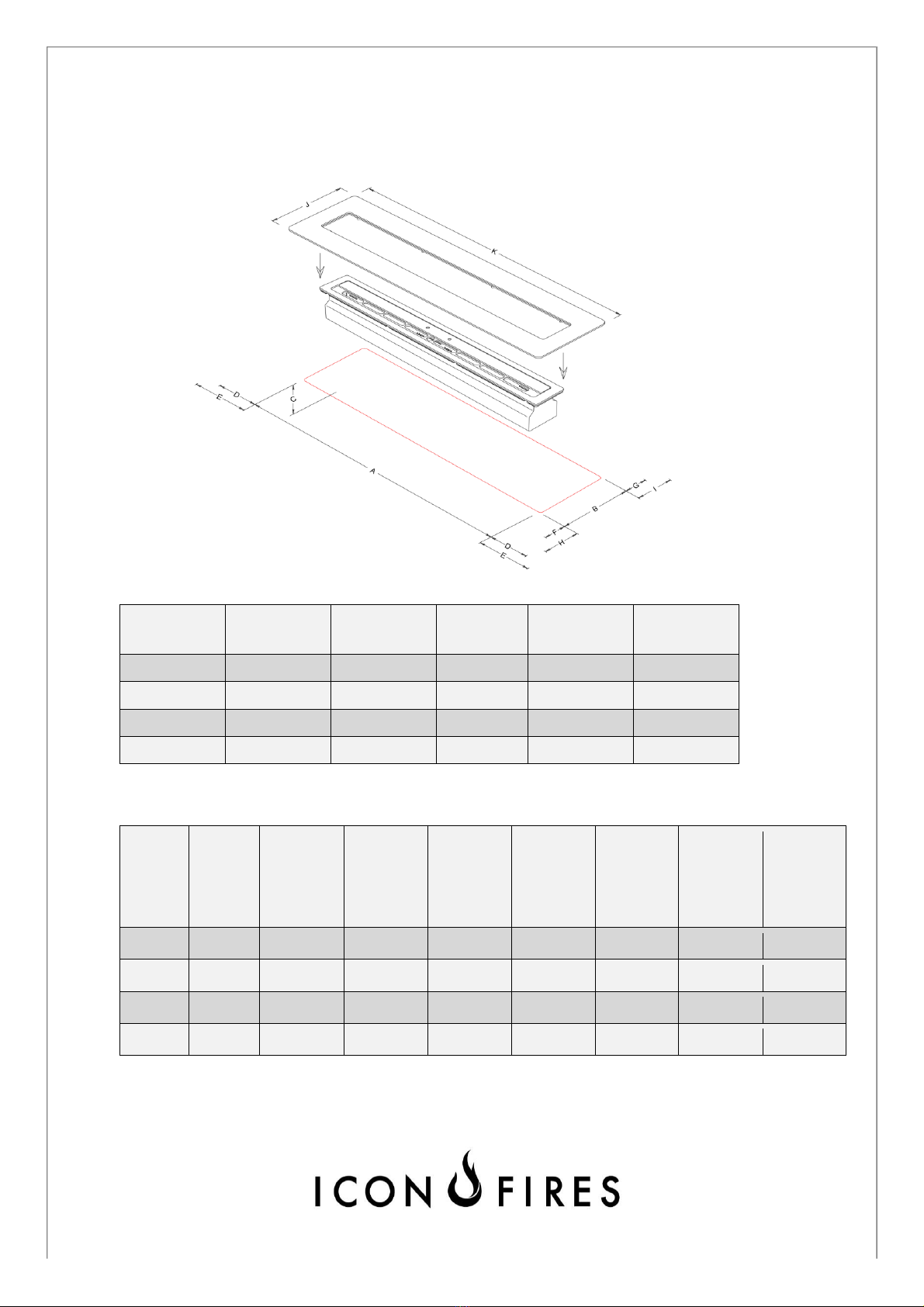

Installation - Adapter Mount Plate

Adapter Mount Plate - Sizes

Model No.

Cut out Length -

Cut out Width -

Cut out

Depth - C

Mount Plate

Length - K

Mount Plate

Width - J

SB500C

598 mm

233 mm

110 mm

610 mm

245 mm

SB800C

898 mm

233 mm

110 mm

910 mm

245 mm

SB1100C

n/a

SB1400C

n/a

Adapter Mount Plate - Clearances

Model

No.

Distance

to Non -

Combusti

ble Items

- D

(Front)

Distance to

Non -

Combustible

Items - F

(Back)

Distance to

Non -

Combustible

Items - G

Height

Above Cut

out to Non -

Combustible

Items

Distance to

Combustible

Items - E

(Front)

Distance to

Combustible

Items - H

(Back)

Distance to

Combustible

Items - I

Height

Above Cut

out to

Combustible

Items

SB500C

50 mm

500 mm

1550 mm

SB800C

50 mm

500 mm

1550 mm

SB1100C

50 mm

500mm

500 mm

1550 mm

SB1400C

50 mm

500 mm

1550 mm

NOTE: all clearances given are from the cut out in the surface where the Burner will

be placed.

1 - Filling the Slimline Burner

Fill the Slimline Burner Fuel Tank to the Fill Line until the fuel becomes visible at the bottom of

the Burner Vent. Fill using the Fuel Pump supplied or a funnel that fits in the centre hole of the

Vent Plate. DO NOT OVERFILL

Please wipe any spillage or excess fuel before proceeding to Step 2.

2 - Igniting the Slimline Burner

Seal the fuel canister used to fill the Burner and move to a safe distance away from the

Burner. While standing at arm's length away from the Burner, use a long arm lighter as per the

image above to introduce a flame to the openings in the Vent Plate.

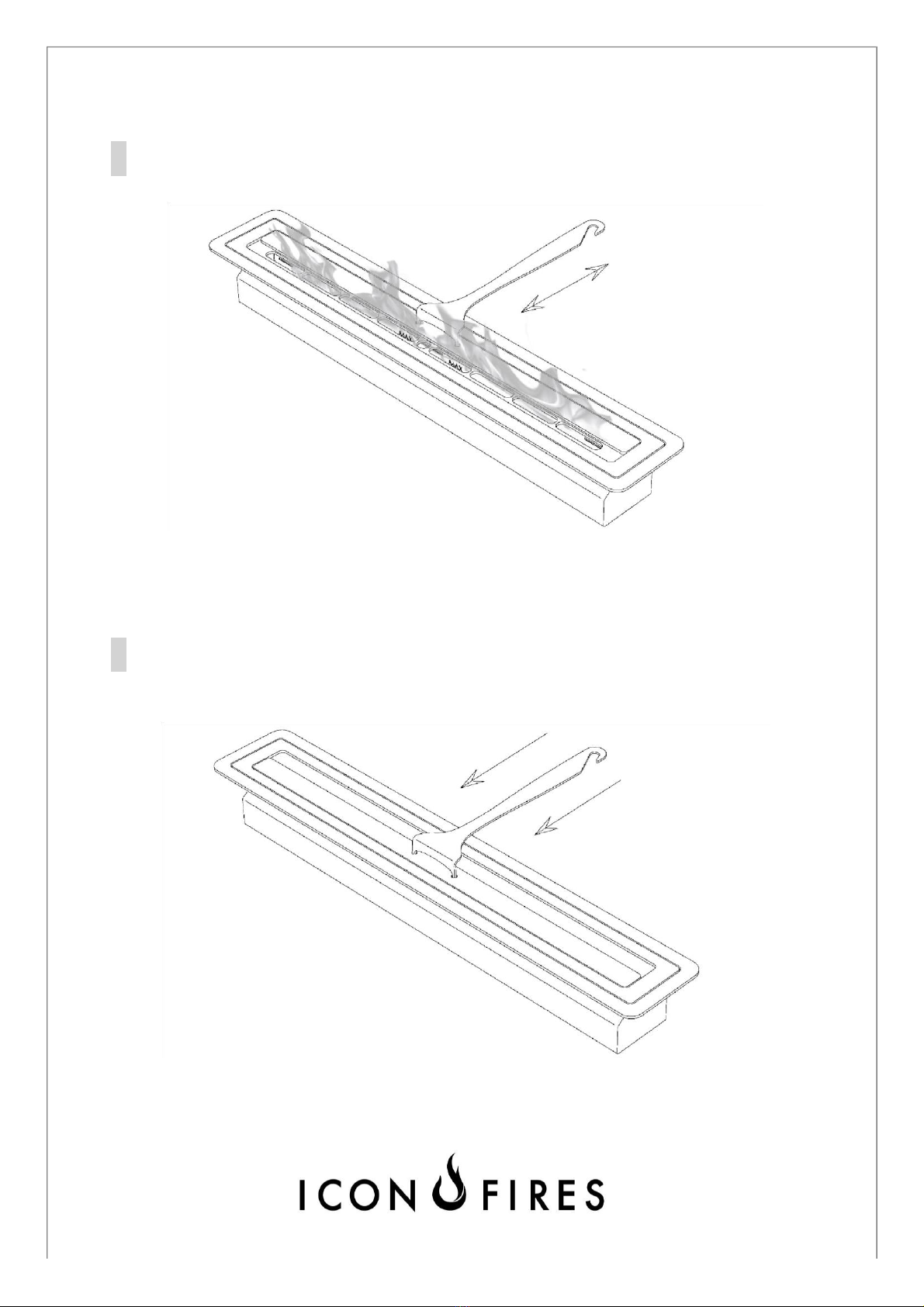

3 - Adjusting the Flame Size

The flame intensity is adjusted by inserting the Sliding Lid Handle’s tip into the corresponding

holes in the Top Plate Sliding Lid as indicated above. Note the flame intensity takes a few

minutes to change after an adjustment has been made.

4 - Extinguishing the Flame

Using the Sliding Lid Handle, pull the Sliding Lid to the front / closed position. Should the flame

not extinguish with the first try please repeat until extinguished. It should be a swift action

coupled with downward pressure.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ICON FIRES Brenner Handbücher

ICON FIRES

ICON FIRES Slimline B800 Bedienungsanleitung

Beliebte Brenner Handbücher anderer Marken

Riello

Riello RS 28/M Kurzanleitung

True Induction

True Induction TI4B Bedienungsanleitung

Weishaupt

Weishaupt WG20 Series Bedienungsanleitung

Carolina Cooker

Carolina Cooker M116672 Bedienungsanleitung

Riello

Riello RX 500 S/PV Bedienungsanleitung

Unigas

Unigas HTP2000 Bedienungsanleitung

baltur

baltur BT 250 DSG 4T Bedienungsanleitung

muenkel design

muenkel design round burner Bedienungsanleitung

Ecoflam

Ecoflam Multicalor 170.1 Bedienungsanleitung

baltur

baltur BT 14 DSGW Bedienungsanleitung

artisan

artisan Art-SB1 Leitfaden

Riello

Riello P 140 T/G Kurzanleitung

AESYS

AESYS TurboFire II Bedienungsanleitung

Riello

Riello RG1RKD Kurzanleitung

IKEA

IKEA GRILLSKÄR Bedienungsanleitung

RUSTA

RUSTA SAREK Bedienungsanleitung

PROPOINT

PROPOINT 8933657 Bedienungsanleitung

baltur

baltur TBL 1000 ME Referenzhandbuch
