ICON Aio 6 Bedienungsanleitung

N1630

USBMIDI/Audiocontrolsurface

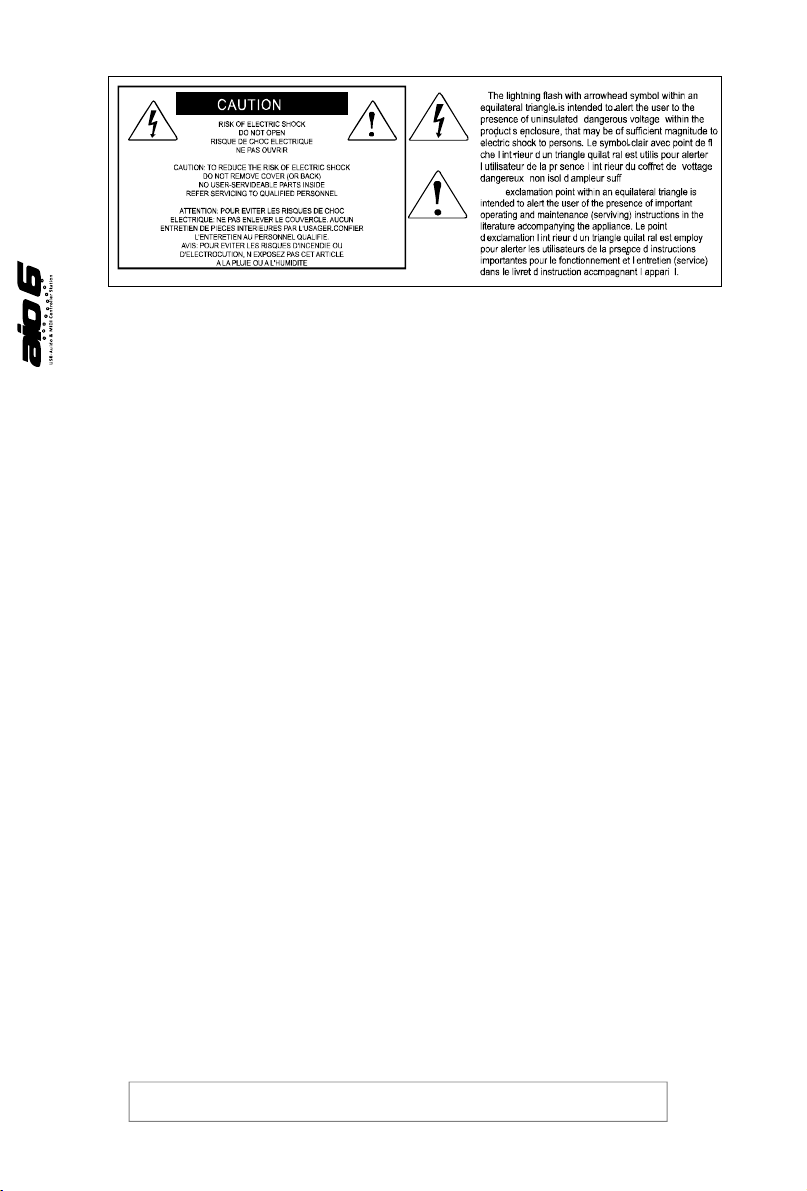

ARNING: To reduce the risk of fire or electric shock, do not expose this unit to

rain or moisture

Important SafetyInstructions

. Read this manual thoroughly before using this unit.

2. Keep this manual for future reference.

3. Take notice of and comply with all warnings included in the user's manual or indicated

on the appliance.

4. Follow all instructions included in this manual.

5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled

on this unit.

6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly

damp soft cloth.

7. Do not block any ventilation openings or interfere with the proper ventilation of this unit.

Install in accordance with the manufacturer's instructions.

8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or

other heat-producing appliances.

9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding-type plug h

as two blades and a third grounding prong. These are designated for your safety. If the

provided plug does not fit into your outlet, consult an electrician.

0. Protect the power cord from being walked on or otherwise damaged by items placed

on or against them. Particular attention should be given to the plugs, receptacles, and

the point where the cord exits the appliance.

. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is

in operation.

2. Only use attachments/accessories specified by the manufacturer.

3. Unplug this unit and all connected electrical equipment during lightning storms or when

left unused a long period of time.

4. Refer all servicing to qualified service personnel. Servicing is required when the

appliance has been damaged in any way or fails to operate normally.

Contents

Introduction

Features

Top Panel Layout

Getting Started

What's in the package

Connecting your aio6 controller

Left Side Panel Layout

Right Side Panel Layout

Rear Panel Layout

Mac driver installation

Software control panel

indows driver installation

Software control panel

Software control panel (continued)

Map Software for Mac OS X

Installing iMap Software for indows

iMapaio software panel

Firmware upgrade

Restore the factory default settings

Hardware Connections

Minimum System Requirements

Specification

Services

iTM

3-5

9-10

14-15

15-17

12-14

18-19

20-21

24-25

Introduction

Please write your serial number here for future reference:

Purchased at:

Date of purchase:

Thank you for purchasing the ICON aio6 Midi/Audio control surface. We sincerely

trust this product will provide years of satisfactory service, but if anything is not

to your complete satisfaction, we will endeavor to make things right.

In these pages, you'll find a detailed description of the features of the aio6, as well

as a guided tour through its front and side panels, step-by-step instructions for its

setup and use, and full specifications.

You'll also find a warranty card enclosed - please don't forget to fill it out and mail

it so that you can receive online technical support at: www.icon-global.com. And

so we can send you updated information about these and other ICON products in

the future. As with most electronic devices, we strongly recommend you retain the

original packaging. In the unlikely event the product must be returned for servicing,

the original packaging (or reasonable equivalent) is required.

With proper care and adequate air circulation, your aio6 will operate without any

trouble for many years. We recommend that you record your serial number in the

space provided below for future reference.

What's inthe package?

aio6 MIDI/Audio control surface music production

Driver Software CD / Manual / Quick Start Guide

USB 2.0 cable

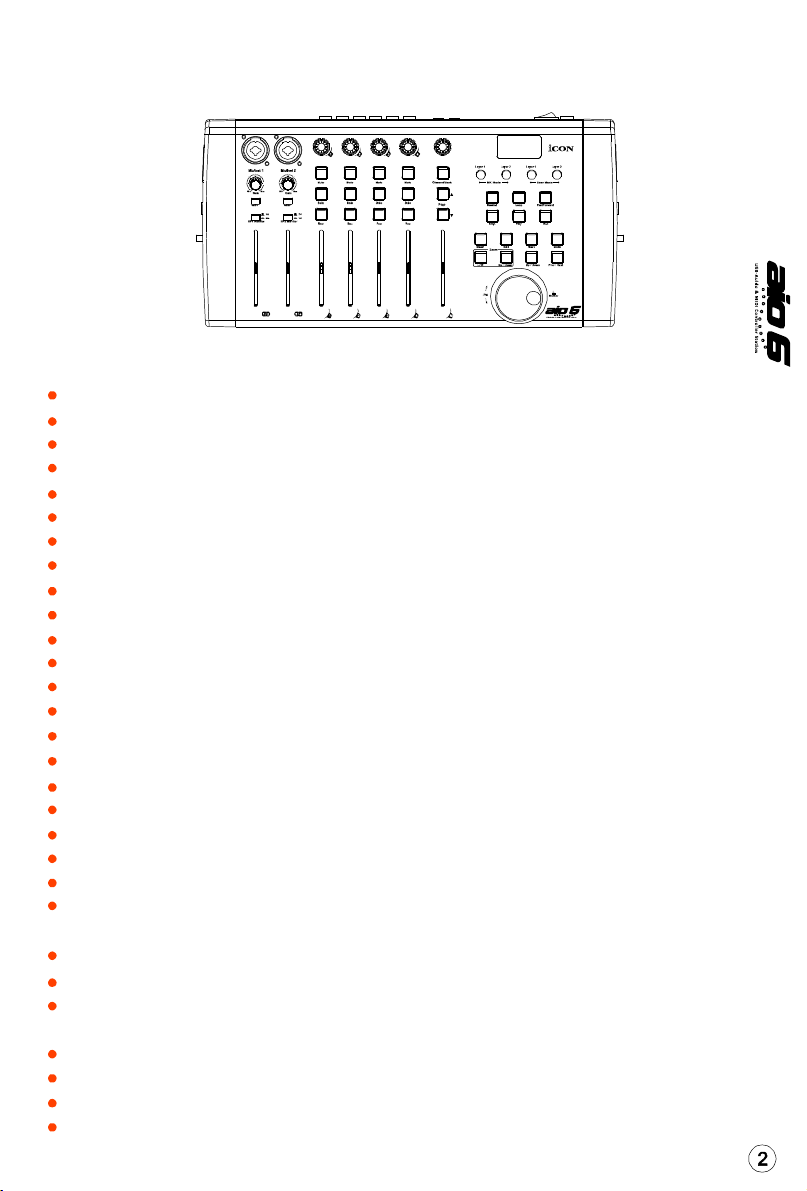

Features

24-Bit 96/ 92KHz 6-In/6-Out USB Recording Interface

4x4 analog I/O full duplex recording and playback

Dual MIC/Instrument preamps with individual gain control and phantom power switch

2 analogue line inputs on /4” TRS jacks

4 analog outputs on /4” TRS jacks

S/PDIF I/O on RCA coaxial connectors

x – 6 channel MIDI I/O

2- faders volume controls on the front panel

2 headphone output with channel /2 & 3/4 selectable switches and individual volume control

Flexible channel routing via the software control panel

4-channel faders plus one master channel fader

5 encoder knobs

Jog wheel shuttle for fast search and control

Illuminated buttons for each channel including Rec-enable, Solo and Mute

Illuminated “Channel/Bank” with “Up/Down” buttons for shifting channel by track or page

6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop

2-Illuminated Zoom keys for L/R & Up/Down

2-Illuminated Marker keys for Prev/Next & Up/Down

4-illuminated keys for Mixer, Edit, Save and Undo functions

2-illuminated “MK mode” buttons for shifting layer & 2 in Mackie Control mode

2-illuminated “User mode” buttons for shifting layer & 2 in user self define mode

Ex-Control connector for connecting up to 3 external control pedals (Optional

EC-3 splitter cable and SPD-0 pedal are needed)

USB 2.0 high speed connectivity

Supports DirectSound, WDM and ASIO2.0

Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit),

and Mac OS X (IntelMac)

Full duplex, simultaneous record/playback

Mackie control build-in for Cubase, Nuendo, Samplitude, Logic Pro and Abelton Live.

Mackie HUI protocol build-in for Pro Tool.

Robust aluminum and metal casing with Kensington lock port

3-segment LED display

“Mic/Inst” inputs 1/2

Input gain level controls 1/2

48V phantom power switch

Channel 1/2 & 3/4 switch for HP monitor 1

Channel 1/2 & 3/4 switch for HP monitor 2

The 3-segment LED display shows the parameter values as you adjust them and

also provides feedback about channel selections, operating modes, and more.

Unbalanced instrument and mic level inputs. These hybrid connectors will accept

a standard 3-pin XLR plug or a /4” TS connector.

These potentiometers control the input level of their associated analog Mic/Inst

/Line input.

Press to supply +48V phantom power to the associated XLR input. This phantom

power circuit is suitable for most condenser microphones.

Switch to select output channel /2 or 3/4 to be listened on HP monitor .

Switch to select output channel /2 or 3/4 to be listened on HP monitor 2.

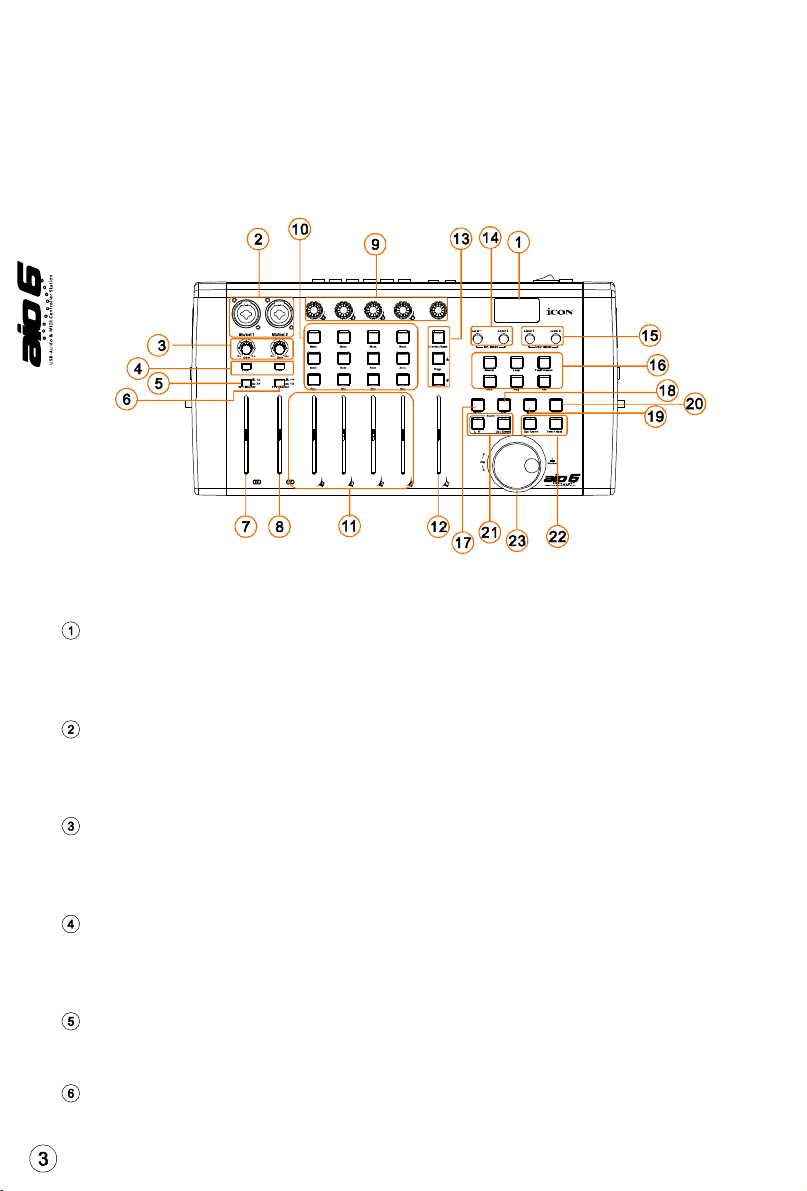

Top Panel Layout

Note:ThefunctionoperatesslightlydifferentlybetweenDAWs.Pleaserefertoyour

DAWmanualforeachfunction.Thefollowing descriptionisbasedon thefunctions

thatoperateinSteinbergCubase.

Output channel 1/2 volume fader

Output channel 3/4 volume fader

Slide to adjust the output level of output channel /2.

Slide to adjust the output level of output channel 3/4.

Knobs

Control buttons

REC buttons -

SOLO buttons -

MUTE buttons -

SEL buttons -

Channel faders

Master fader

Channel/Bank and Up/Down buttons

The five rotary encoder knobs are generally used for controlling the track pan

position, aux send levels and EQ of your DAW. You may also preset them to

adjust specific parameters within plug-ins and virtual instruments.

Activate and deactivate the recording state of the associated

channel. The switch will light red when the channel is armed.

Turn On and Off the solo state of the associated channel. The

switch will light green when the channel solo state is on and other channels

will be muted. You could solo multiple channel by pressing SOLO buttons on

additional channels.

Activate and deactivate the mute state of the associated

channel. The switch will light blue when the channel is muted.Mute the channel.

The SEL buttons activate the associated channels in the DAW

software in order to perform a specific operation (for example, when adjusting

EQ with the ASSIGNABLE ENCODERS, the SEL switch will be used to choose the

channel you want to adjust). When a channel is selected, the associated SEL

switch's red LED will light up.

These four programmable faders slide up and down to adjust linear MIDI

parameters such as volume.

This 60mm fader operates the same as the other 4 faders. It controls your DAW

software's master channel fader.

Activate the “Channel/Bank” button (red light) to shift channel by page or

deactivate it to shift by track. The “Up” and “Down” buttons are used for

shifting up and down.

Recording channelcontrolbuttonssection

In Mackie mode, press these two buttons to toggle between layers & 2.

In user-defined mode setting, press these two buttons to toggle between

layers & 2.

Activate the play function of the DAW.

Activate the stop function of the DAW.

Activate the record function of the DAW.

Activate the rewind function of the DAW.

Activate the fast forward function of the DAW.

Activate the loop function of the DAW.

Press this button to launch the mixer window of the DAW.

Press the Edit button to activate the edit function of the DAW to edit your project.

Press the Save button to activate the save function of the DAW to save your project.

Press the Undo button to activate the undo function of the DAW.

Activate “L/R” button and rotate the jog wheel to zoom left and right. Activate

“Up/Down” button and rotate jog wheel to zoom up and down at your DAW.

Activate “Up/Down” button and rotate the jog wheel to browse and select the

tracks. Activate Prev/Next button and rotate the jog wheel to scroll between

the marked points.

The jog wheel is used for various purposes specific to the DAW application,

including shuttle and scrubbing functions.

MK mode layer buttons

User mode

Transport control buttons section

PLAY button -

STOP button -

REC button -

REIND button -

FAST FORARD button -

LOOP button -

Mixer button

Edit button

Save button

Undo button

Zoom L/R & Up/Down buttons

Marker Up/Down & Prev/Next buttons

Jog wheel

Note:Youmustsetup yourownmidimappingforall thecontrolbuttonsand fadersetc.in

Usermode.

Left Side Panel Layout

HP Monitor 1 output

HP Monitor 1 volume control

This output jack accepts a standard /4" stereo TRS headphone connector.

This potentiometer controls the output level of HP Monitor .

Right Side Panel Layout

HP Monitor 2 output

HP Monitor 2 volume control

This output jack accepts a standard /4" stereo TRS headphone connector.

This potentiometer controls the output level of HP Monitor 2.

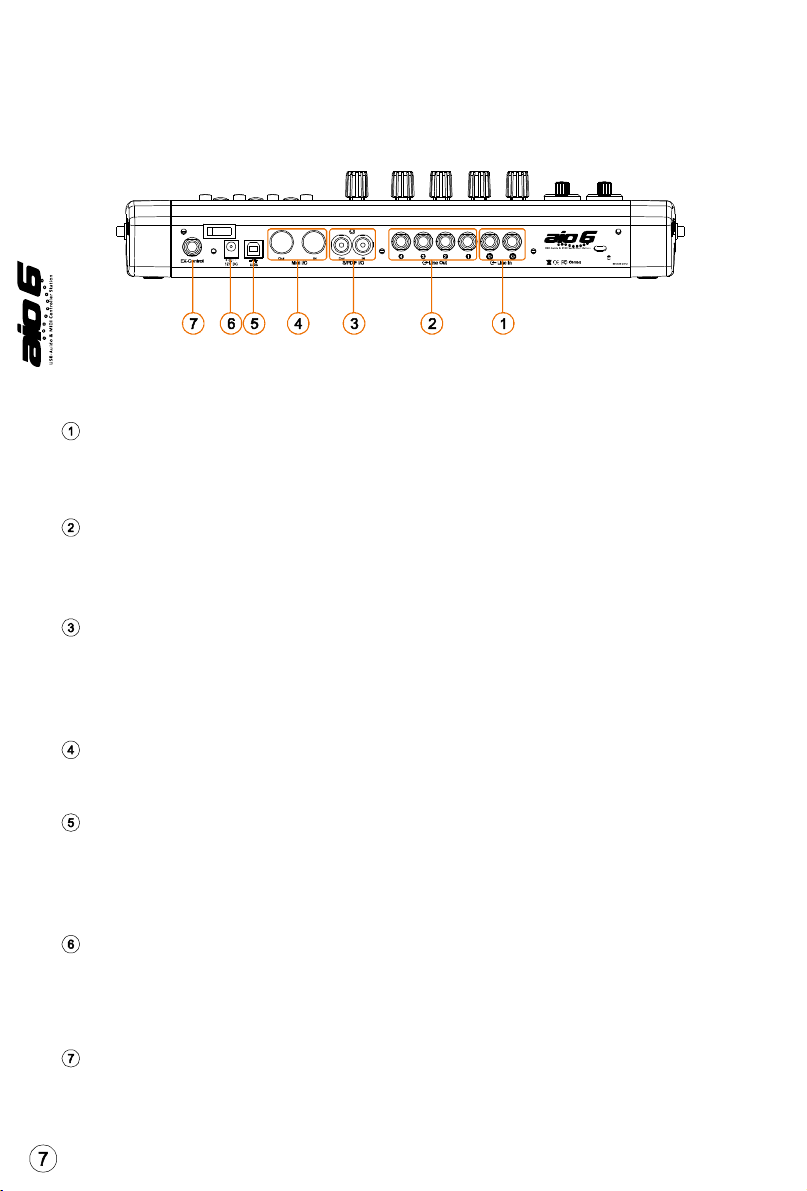

Rear Panel Layout

Line inputs 3/4

Line outputs 1-4

S/PDIF coaxial I/O connectors

MIDI I/O connectors

USB 2.0 Connector

12V/5A power adaptor

EX-Control pedal connector

These are unbalanced analog inputs on standard /4 TS connectors at

–0dB line level.

These are unbalanced analog outputs on standard /4 TS connectors at

+6dBU line level.

S/PDIF digital input and output on coaxial RCA connectors. The digital input

is selected via the aio6's software control panel, while the digital output

will be sent to the coaxial.

MIDI input and output on standard 5-pin DIN connectors

Connect it with the provided USB cable to your Mac/PC's USB connector.

Your Mac/PC must have a USB2.0 connector in order to run the full speed

of aio6.

Connect the provided power adaptor here.

This jack is able to connect up to 3- ICON foot pedals SPD-0 to activate

your selected functions.

Optional EC-3 splitter cable is needed if 3 pedals are using)

(Note:aio6isnotabletoworkwithouttheprovidedpoweradaptorconnected.

TheUSBbuspowerisnotabletoprovidesufficientpowersupplyforaio6.)

(

Inhaltsverzeichnis

Andere ICON Musikmixer Handbücher

ICON

ICON QCON LITE Bedienungsanleitung

Beliebte Musikmixer Handbücher anderer Marken

Neve

Neve 8816 Bedienungsanleitung

Mackie

Mackie Onyx Analogue Mixer Bedienungsanleitung

Behringer

Behringer EUROPOWER PMP518M Bedienungsanleitung

Peavey

Peavey S-32 Sanctuary Series Bedienungsanleitung

Rane

Rane MP 4 Bedienungsanleitung

True

True T9 Touchscreen Console Bedienungsanleitung

Studiomaster

Studiomaster Air Pro 24 Bedienungsanleitung

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Bedienungsanleitung

Roland

Roland M-160 Bedienungsanleitung

Yamaha

Yamaha MR1642 Bedienungsanleitung

Ecler

Ecler MAC40v Bedienungsanleitung

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Bedienungsanleitung

Veeder-Root

Veeder-Root TLS-350 Series Bedienungsanleitung

Alto

Alto APM80.QUAD Bedienungsanleitung

Omnitronic

Omnitronic PM-211 Bedienungsanleitung

SoundCraft

SoundCraft B400 Bedienungsanleitung

Roland

Roland SoundCanvas SC-8820 Bedienungsanleitung

CARVIN

CARVIN RX 1200 Bedienungsanleitung

ICON aio 6 Bedienungsanleitung

Beliebte Musikmixer Handbücher anderer Marken
