Thank you for purchasing the ICON iCreativ USB MIDI controller. We sincerely trust this

product will provide years of satisfactory service, but if anything is not to your complete

satisfaction, we will endeavor to make things right.

In these pages, you'll find a detailed description of the features of the iCreativ, as well as

a guided tour through its front and side panels, step-by-step instructions for its setup and

use, and full specifications.

You'll also find a warranty card enclosed---please don't forget to fill it out and mail it so

that you can receive online technical support at: www.icon-global.com. And so we can

send you updated information about these and other ICON products in the future. As

with most electronic devices, we strongly recommend you retain the original packaging.

In the unlikely event the product must be returned for servicing, the original packaging

(or reasonable equivalent) is required.

With proper care and adequate air circulation, your iCreativ will operate without any

trouble for many years. We recommend that you record your serial number in the space

provided below for future reference.

What's inthepackage?

iCreativ USB MIDI controller x

Software CD x

Quick Start Guide

USB2.0 Cable

Quick Start Guide USB2.0 Cable

Software CDiCreativ

Features

Large sensitive touch screen

8 x 6 LED embedded layout on X and Y axes under the touch screen

6 selectable modes for different applications

The X-axis works as the keyboard's white key and the Y-axis as 8

steps of expressive values (Factory default that may change via iMap) with

8 Octave buttons

The touch screen is divided into 8 lit drum pads with 2 layers

(total 6 pads)

The touch screen is divided into 8 vertical sliders with 2 layers

(total 6 faders)

Use as a X/Y touch pad with 8 layers

8 lit clip buttons with 2 layers (total 6 clips)

8 arpeggio memory slots with 8 groups (total of 64 memory slots)

for the user to store their desired arpeggio sequence (by importing MIDI file

with software provided)

3D effector built in with encoder knob to control different functions

4-assignable encoders

-assignable fader

3-digi LED display

midi mapping software included for reassigning midi mapping and

importing MIDI files for arpeggio memory slots

Firmware upgrade via USB cable

Extremely compact and perfectly match with

Class-compliant with Windows XP, Vista (32 bit / 64 bit), and Mac OS X

USB bus-powered

2xUSB Connectors for daisy chain with other i-series controller

Available in Black and White

Difference colors aluminum cover is available (optional)

Custom laser-engraving service for aluminum cover is available at on-line

purchase (optional)

1. Piano:

2. Pad:

3. Controls:

4. X/Y Pad:

5. Clip:

6. Arpeggio:

iMap

AirLight

iMap

MacBook

Front Panel Layout

Mode Selector buttons

Touch sensitive screen with 8x16 LED backlight

Piano mode

Pad mode

Control mode

X/Y mode

Clip mode

Arpeggio mode

6-different modes including Piano, Pad, Controls, X/Y, Clip and Arpeggio

for different applications

The touch screen will switch to different functions according to the mode

selected as described below:

The touch screen is divided into x and y axes which represent 6 white

horizontal keys and 8 vertical steps of expressive value. The Y-axis midi

control message could change via provided software (Factory

default is CC : Expressive).

The 8-buttons are used for Octave shift as button 5 represents the

unshifted octave.

The touch screen is divided into 8 lit drum pads with 2 layers. Each drum

pad could be set to its CH/Note with software)

The touch screen is divided into 8 vertical sliders with 2 layers. Each

vertical slider could be set to its CH/CC value with software)

X/Y touch pad with 8 layer button switches. Each layer X/Y midi message

value (CH/CC) could be set with software.

The touch screen is divided into 8 clip buttons with 2 layers. Each clip

buttons could be assigned a note value and channel with software.

The touch screen is divided into 8 arpeggio activation trigger buttons and

each represent a memory slot for storing your created arpeggio midi file.

With software provided, you may import 64 (8 layers in total)

desired midi files into your iCreativ.

iMapTM

iMap

Note:EachMIDIfilesize shouldnotbelargerthan256-bytes,otherwisethe

filemaynotbeimportedsuccessfully.

Control buttons

1.Piano mode:

2.Pad mode:

3.Control mode:

4.X/Y mode:

5.Clip mode:

6.Arpeggio mode:

3D effector

effect selector and Arpeggio tempo knob

Effect selector

Arpeggio tempo knob

3-digi LED

Knobs

Fader

Dependant on the mode selected, these buttons activate the following

functions:

Octave shift, button 5 represents unshifted octave

Shifting between 2 layers

Shifting between 8 layers of X/Y pads

Shifting between 2 layers of clip buttons

Selects the 8 groups of pre-stored arpeggio sequence.

Wave your palm above the (no more than 9cm away) to

create an effect. The software allows the CC value for the 0

effects (layers) of the to be set

Rotate the knob to switch between the 0 effectors (layers).

Press down the knob, the red light will illuminate. Rotate the knob

to adjust the tempo from 40-300 for your arpeggio.

Shows the information of a particular control

These four programmable encoder knobs allow MIDI parameters to be

adjust. Set their midi message via software

Programmable fader slide to adjust linear MIDI parameters such as

volume or change the midi message with software.

(Note:Arpeggiomodemustbeenabled)

AirLight

AirLightAirLight

TMTM

AirLightTM

iMap

AirLight

iMap

Note:Asisaninfra-reddevice,itsperformancewillaffectby

sunlightorspotlights.Trytoavoidlightthataffectsitsperformance

AirLightTM

Side Panel Layout (Image)

USB port (B-Type)

Functions as a MIDI port to your notebook (or computer) and compatible

software. Also provides power to your

USB port

Use to daisy chain with the second unit of iCreativ or any i-series

controllers such as iDJ.

iCreativ

Getting Started

Connecting your iCreativ controller

Note:Duetothelimitationof powersupplyviaUSBport,yourconnecteddevices

chainmightexcess thepowersupplylimitoftheUSBportand causemalfunction.

Forrecommendationsonthecombination and daisychainsequence ofdifferent

i-seriescontrollers,pleasevisittheICONwebsiteatthefollowinglink:

www.icon-global.com

Choose a USB port on your Mac/PC and insert the wide (flat) end of the USB

cable. Connect the cable's small jack end to the . Your Mac/PC should

automatically “detect” the new hardware and notify you that it is ready to

use

iCreativ

Assign the MD messages to iCreativ

Refer to page.8 for “Assign the MIDI messages with “iMap” software”.

Connect the to your Mac/PC via the USB portiCreativ

Diagram 1Diagram 2

iconnet

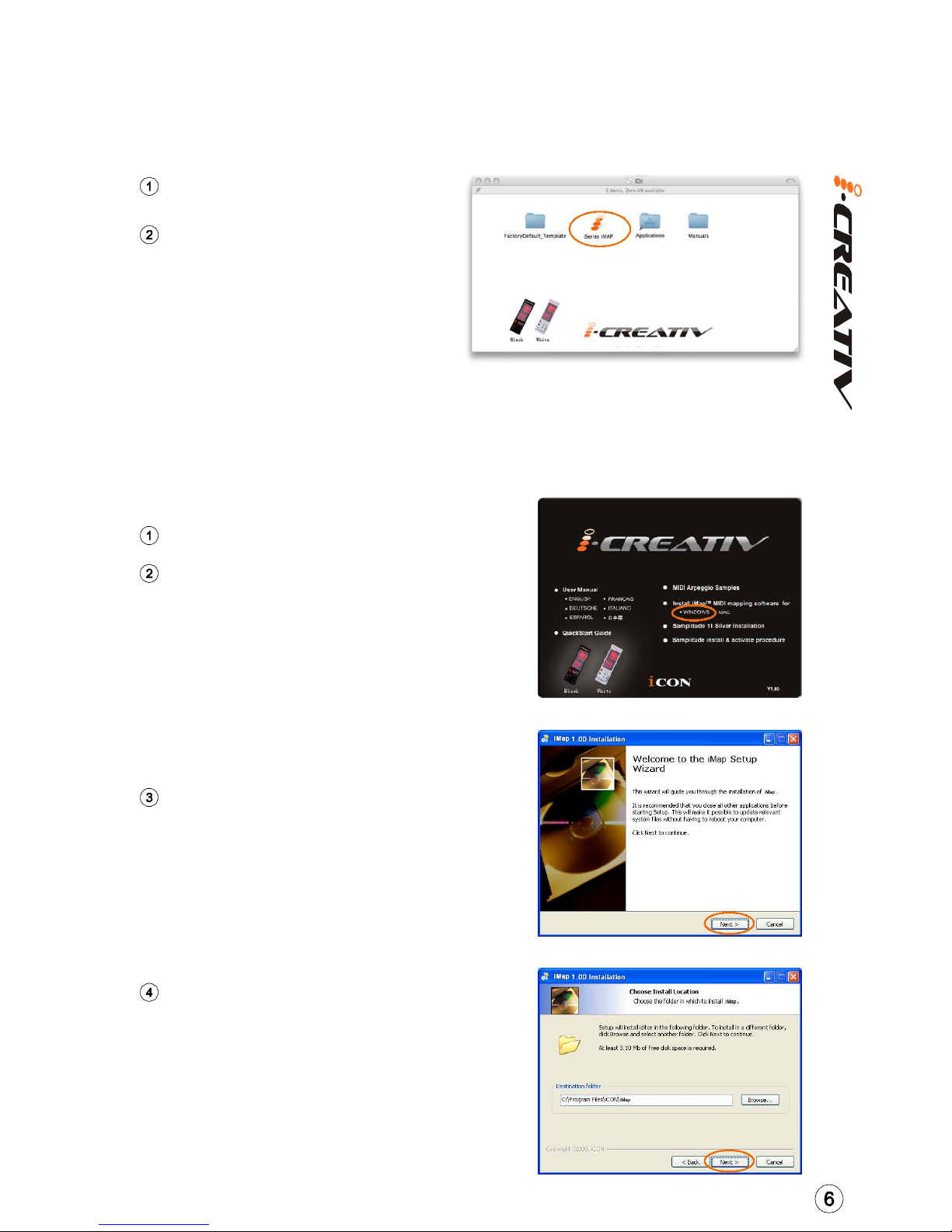

Installing iMapSoftware for MAC OSX

Please follow the procedures below step-by-step to install your iMap

software to Mac OS X

nsert the Utility CD in your

CD-Rom and double click

“iSeries iMap” icon.

Turn on your MAC.

Tips:By drag anddrop”the iseries

iMap”iconintothe Applications”

folder,you couldcreatea iMap”

shortcutonyourMac'sdesktop.

Please follow the procedures below step-by-step to install your iMap

software.

Installing iMapSoftware for Windows

Turn on your PC.

Diagram 1

nsert the Utility CD in your CD-Rom

After you have inserted the CD into

your CD-Rom, an installation screen

should appear as shown in diagram

(Note:Iftheinstallation screennot

appearautomaticallygotothe CD

folderand doubleclickon "Setup")

xx; click “Install”.

Diagram 1

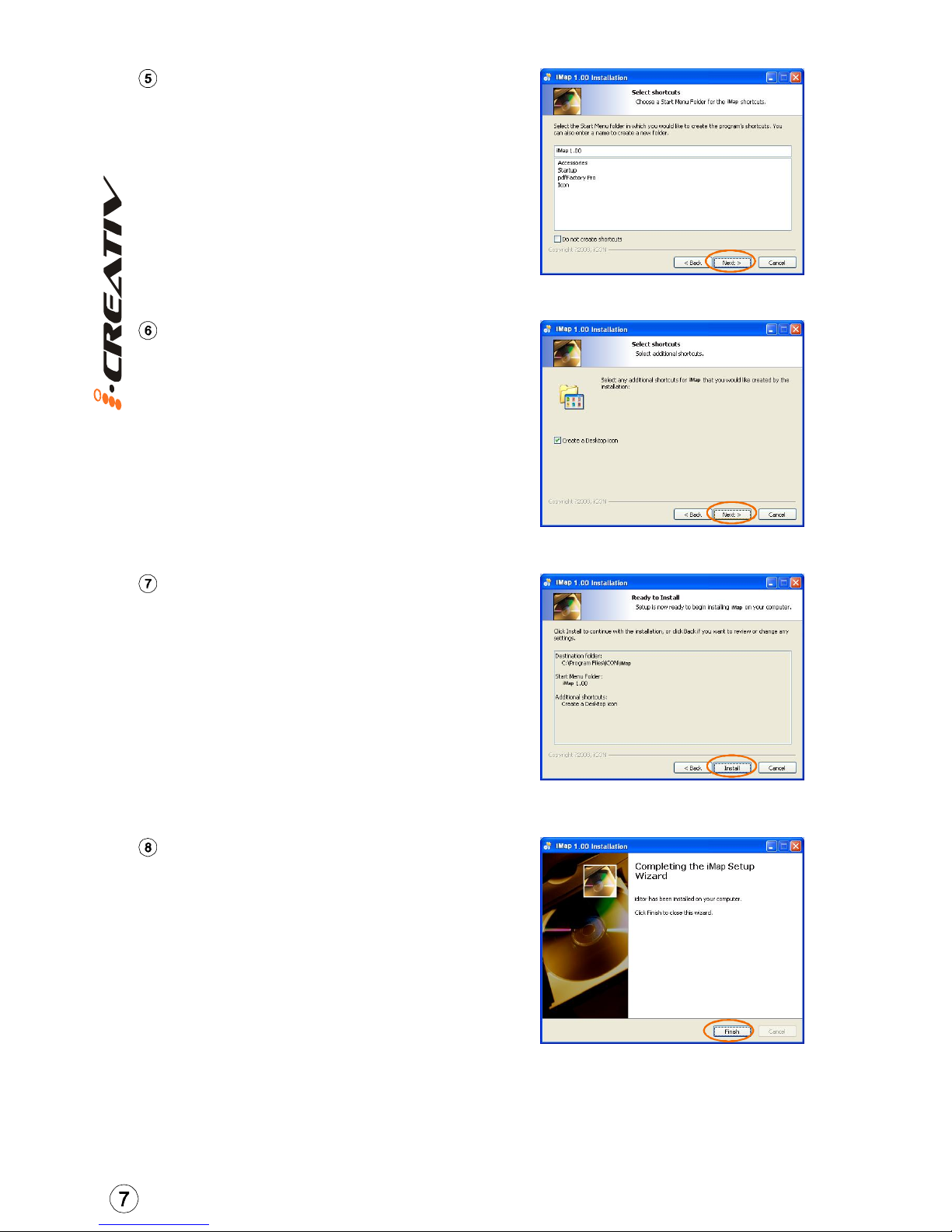

Setup Wizard appear

Setup wizard appears, please click

"Next"

Diagram 2

Choose nstall Location

Choose your preferred install

location for iMap or use the

default location and click "Next"

Diagram 3

Select shortcut

Select the start menu folder in

which you would like to create

the iMap shortcut. Then click

"Next"

Diagram 4

Create a shortcut on your desktop

Please untick the box if you do

not want to place a shortcut icon

on your desktop for iMap,

otherwise click "Next"

iMap started to install

The iMap installation has now

started, wait for it to finish. Then

click "Finish"

nstallation finished

Click "Finish" to complete the

iMap software installation.

Diagram 5

Diagram 6

Diagram 7
