1. Safety instructions

When using electrical products, especially when children are present, basic safety

precautions should always be followed, including the following:

1. This product is not intended for children (without proper adult supervision).

2. This product is not intended for individuals with reduced physical, sensory,

or mental capabilities.

READ ALL INSTRUCTIONS BEFORE USING

DANGER

• Do not place or store product where it can fall or be pulled into a tub or sink.

• Do not place in or drop into water or other liquid.

• Do not reach for a product that has fallen into water. Unplug immediately.

• Do not wash the main unit or electrical plug with water or detergent.

• Do not handle the electrical plug with wet hands.

• Never block the outlet of the air dryer.

• Never disassemble, repair or modify this product.

• Ensure Power Cable is unplugged during the installation and maintenance of the appliance.

WARNING

• Close supervision is necessary when this product is used by, on, or near children or

individuals with disabilities.

• Use this product only for its intended use as described in this manual. Do not use

attachments not recommended by the manufacturer.

• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it

has been dropped or damaged, or dropped into water.

• If the electric cord is damaged, it must be replaced by the manufacturer, its service center

or equivalent specialist.

• Keep the cord away from heated surfaces.

• Never use while sleepy or drowsy.

• Never drop or insert any object into any opening or hose.

• This appliance MUST be plugged directly into a properly grounded electrical outlet.

Extension cords are NOT permitted. (See Grounding Instructions)

• Do not throw cigarettes and/or other ignited materials into toilet.

• This product is an electric appliance, avoid direct contact with water or other liquids.

• Do not position the product on its side or upside down while making electrical connections.

• It is not recommended to use other electric appliances in the same outlet.

• Do NOT reuse any existing water supply hoses, otherwise it might cause leakage, ire or

electrical shock. Installation of the bidet seat should include speciied components and new

water supply hose.

- To reduce the risk of burns, electrocution, ire, or injury to persons.

- To reduce the risk of electrocution:

www.iconico.es User manual WC3

CAUTION

2. Grounding instructions

This product should be connected to ground. In the event of an electrical short

circuit, rounding reduces the risk of electric shock by providing an escape wire for the

electricalcurrent. The plug must be connected to an outlet, properly installed and grounded.

DANGER

If repair or replacement of the cord or plug is necessary, do not connect the grounding wire

to either lat-head terminal.

Check with a qualiied electrician or serviceman if the grounding wire instructions are not

completely understood, or if in doubt as to whether the product is properly grounded.

This product is factory equipped with a speciic electric cord and plug to permit connection

to a proper electric circuit. Make sure that the product is connected to an outlet having the

same coniguration as the plug.

No adapter should be used with this product. Do not modify the plug provided — if it will not

it the outlet, have the proper outlet installed by a qualiied electrician.

If the product must be reconnected for use on a dierent type of electric circuit, the

reconnection should be made by qualiied service personnel.

- Improper use of the grounding plug can result in a risk of electric shock.

• Do not install or use the product in wet or damp locations such as a steam room.

• Ensure the electrical outlet is positioned where it will not come in contact with water.

• This product is to be used with an electrical system rated at 220V240V, 50/60Hz. The

circuit must be capable of supporting a minimum of 10A.

• It is recommended to unplug the unit during thunderstorms to prevent electrical damage.

• Do not stand on product, seat or seat cover.

• Do not lean against the seat cover when using the product.

• This product is equipped with a soft-closing seat cover. Do not push the toilet seat closed,

or damage may occur.

• Do not use any caustic chemicals to clean this product.

• Exposure to direct sunlight is not recommended.

• Only use tap water or portable water, otherwise it may cause irritation to the skin or

malfunction.

• Do not connect water supply to a HOT water supply. Make sure inlet water temperature is

between 3~35ºC.

• Do NOT expose the Bidet Seat or Toilet to freezing conditions.

• If the unit will not be used for an extended period of time (over 3 days), it is recommended

to unplug the electrical connection, turn of water supplies, and drain any water present in the

product.

• If the unit is malfunctioning, unplug from electrical connections, and turn OFF water supply.

• The product itself is not equipped with an emergency power circuit breaker, a power circuit

breaker should be connected in series in the power input loop of the same room where the

product is installed before safe use; Otherwise, the accidental failure of this product may

cause bodily injury or property damage.

• If this product is installed without a power cord plug, a switch device capable of

disconnecting the power supply of this product must be installed at the front end of the ixed

wiring.

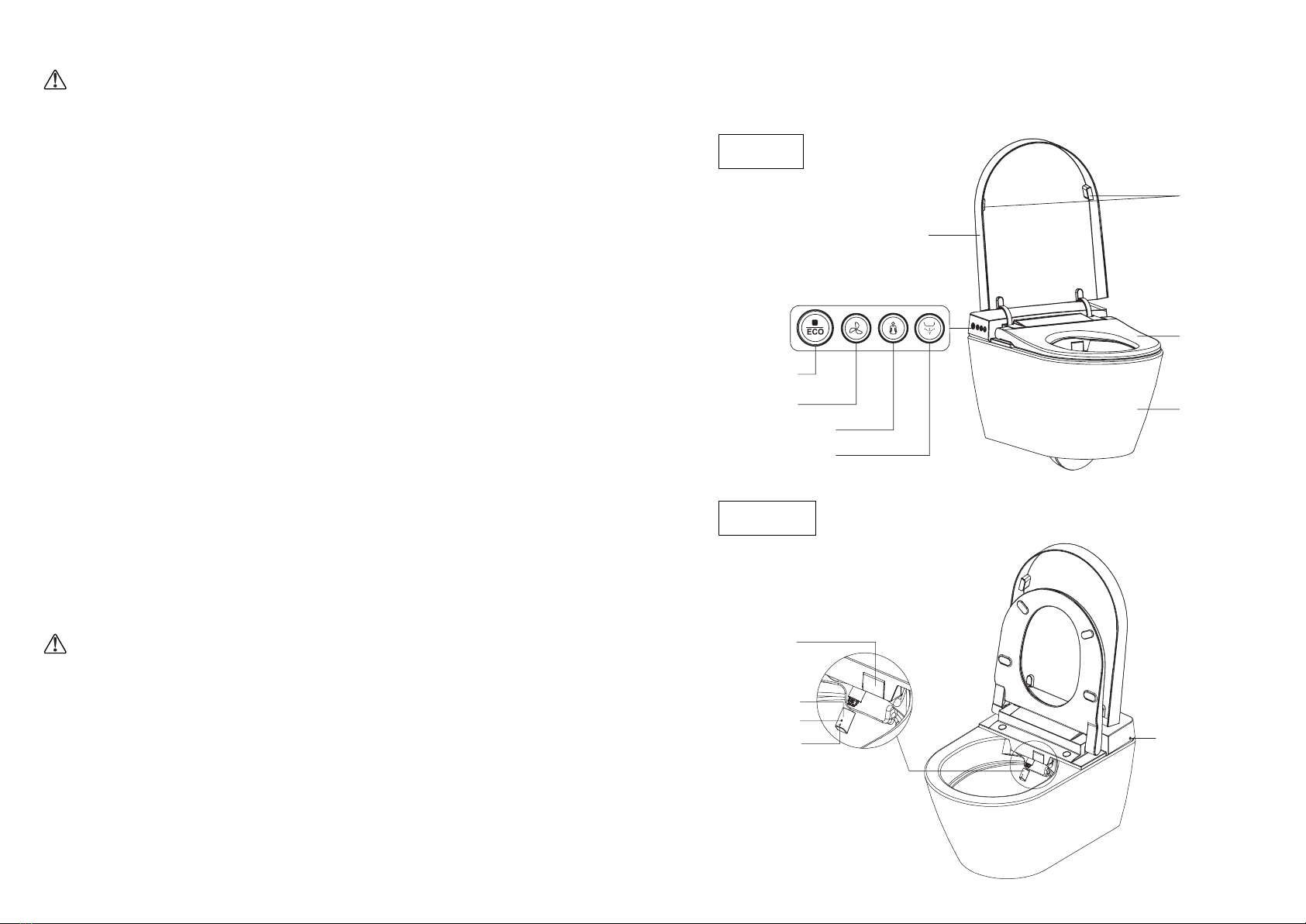

3. Parts identiication

Bumper

Seat

Ceramic toilet

Rear cleaning button

Drying bale

Spray nozzle

Rear cleaning

Front cleaning

Night light

sensitive window

Front cleaning button

Drying button

Stop

Lid

Left side

Right side

1110

www.iconico.es User manual WC3

Operation instructions of main unit buttons

1. Long press the [Stop] button (for about 3s), the main unit will

enter power-o mode (red light will turn o). Long press the [Stop]

button again, the main unit will return to working mode (red light will

turn on). In power-o mode, the buttons cannot be used except the

[Stop] button.

2. While sitting on the unit, a short press to the [Stop] button can

stop the ongoing front/rear cleaning or drying function. While

not sitting on the unit, a short press to the [Stop] button switches

between working mode(red light) and energy saver (blue light).

While sitting on the unit, press [Dry] button to activate the drying

function. Press [Stop] button to stop drying. It will stop automatically

after one cycle if the [Stop] button is not pressed.

While sitting on the unit, press [Front/Move] button to activate

front cleaning. During the front cleaning process, press [Front/

Move] button to activatethe front massage cleaning function.

Press [Stop] button to stop cleaning.

1. While sitting on the unit, press [Rear/Move] button to activate rear

cleaning. During the rear cleaning process, press [Rear/Move] button

to activate the rear massage cleaning function.

Press [Stop] button to stop cleaning.

2. While not sitting on the unit, short press [Rear/Move] button, the

wand will extend outwards to allow access for maintenance cleaning.

After cleaning is completed, short press [Stop] button to retract

wand.

Note:

1. In working mode, the power light is on and Energy Saver light is o. In Energy Saver mode, the power

light is o and Energy Saver light is on. In standby mode, all lights are o.

2. All function settings are set to the middle level by default. Once the settings are changed by remote

control or main unit buttons, these settings will be saved and stay unchanged for the next use..

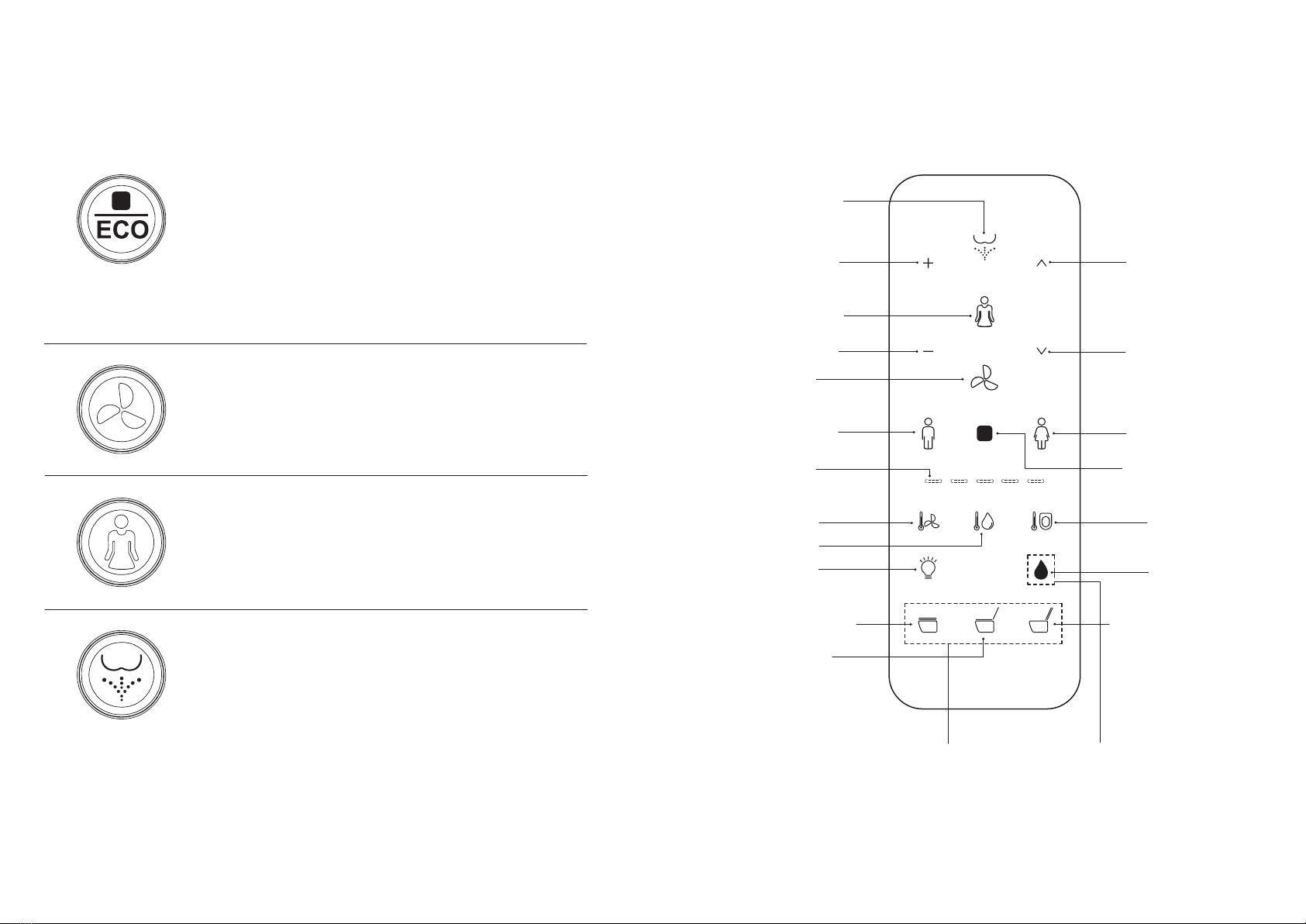

4. Function description of main unit buttons 5. Remote

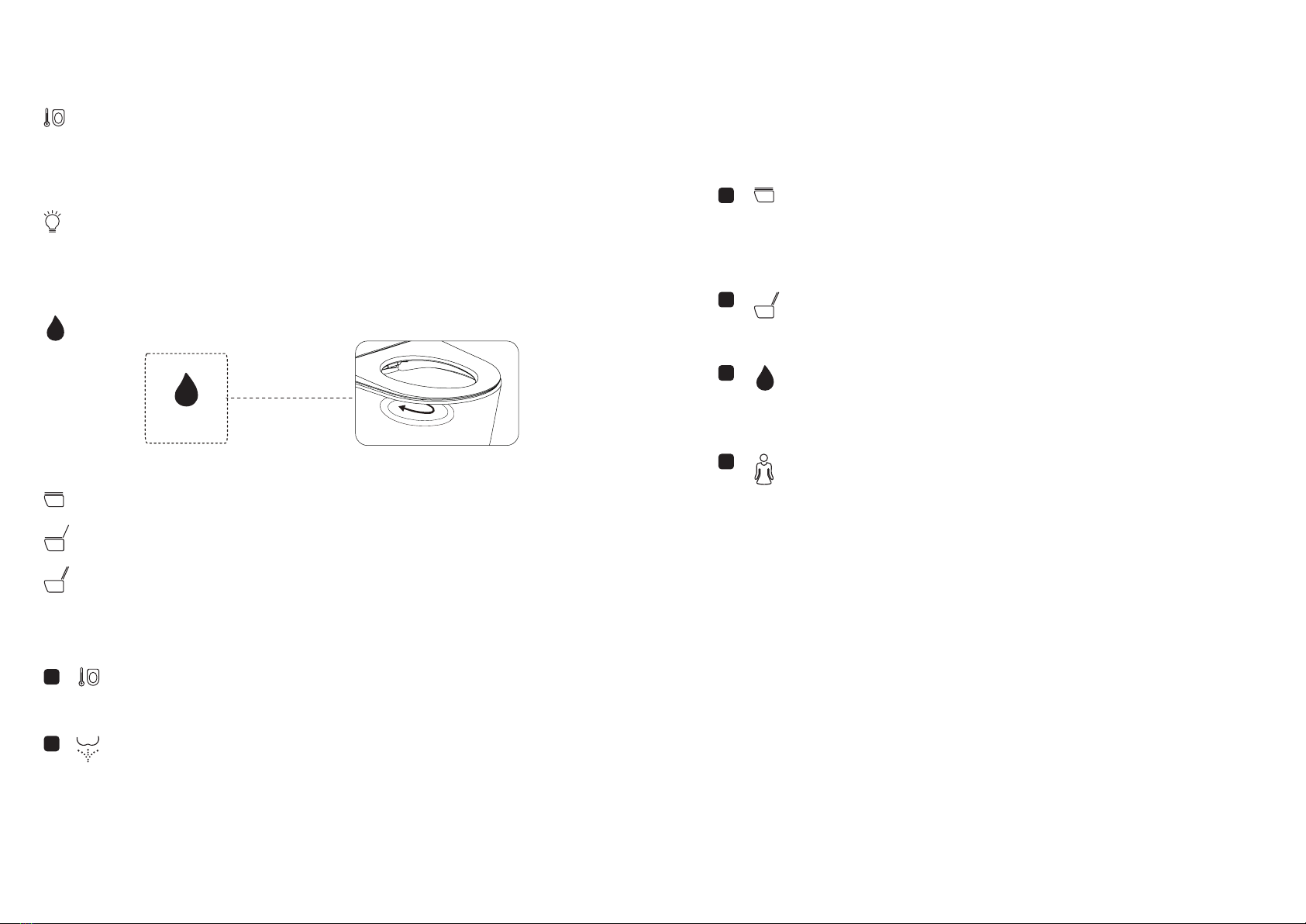

PRESSURE POSITION

REAR/MOVE

FRONT/MOVE

STOP

HOLD TO ECO

DRY

Rear cleaning/massage

Water increasing Nozzle moving forward

Nozzle moving backwards

Auto front cleaning

Stop/Energy saver

Seat temperature

Flush

Lid open/seat open

This button doesn’t

work for toilet without

auto lushing function

Toilet without function of

lid auto open and close

don’t have these three

buttons

Front cleaning/massage

Water reducing

Drying

Auto rear cleaning

Air temperature

Level indicator light

Water temperature

Night light

Lid close/seat close

Lid open/seat close

1312

www.iconico.es User manual WC3

5.1 Remote control installation

Remote control hanger installation (drilling)

2. Put the expansion tube into the wall hole

and the hanger is tight against the wall.

Align the hole in the hanger with the

expansion tube and tighten the screw, and

then cover with the silicone cap.

Note: Please do not install and use the product in a moist place, such as a steam room, and never place it

in a place where it could easily get wet.

1. Clean and dry the pre-installed area of

the remote control rack on the wall. (When

determining the installation location, make

sure that the user can reach the remote

while seating on the toilet.

Installation area

2. Remove the adhesive tape on the back of

the hanger and place it tightly against the

wall, then cover with the silicone cap.

Remote control hanger installation (adhesive)

1. Place the remote control hanger

upright on the pre-installed area of

the wall and mark the location of the

two mounting holes on the wall with a

marker.

Drill a hole in the marked position

on the wall with a drill bit of 6 mm in

diameter, with a depth of 35 mm.

When determining the installation

location, note that when the person can

reach the remote while seating on the

toilet.

1. Put the batteries into the remote control

and cover it.

2. Place the remote control into the hanger.

PRESSURE

POSITION

REAR/MOVE

FRONT/MOVE

STOP

HOLDTOECO

DRY

5.2 Remote battery installation

6. Remote operation procedures

Rear cleaning

Front cleaning

Dry operation

• Press [Rear cleaning/massage] button, the indicator light is on showing current water

temperature level, it starts rear cleaning.

• Press again [Rear cleaning/massage] button to shift to massage cleaning (nozzle

moves forward and backward to expand cleaning area).

The cleaning will last for a complete cicle and stop automatically, while it will stop

immediately if the user presses [Stop] button.

• Press [Front cleaning/massage] button, the indicator light is on showing the current

water temperature level, it starts front cleaning.

• Press again [Front cleaning/massage] button to shift to massage cleaning (nozzle

moves forward and backward to expand cleaing area). The cleaning will last for a

complete cicle and stop automatically, while it will stop immediately if the user presses

[Stop] button.

• Press [Dry] button, the indicator

light is on showing the current water

temperature level, it starts drying; it will

stop drying automatically after a cicle or

when the user leaves the seat. PRESSURE POSITION

REAR/MOVE

FRONT/MOVE

STOP

HOLD TO ECO

DRY

Rear

Front

Dry

1514

www.iconico.es User manual WC3

Water pressure adjustment Auto function

Auto cleaning sequence

Temperature adjustments

Spray nozzle position adjustment

Energy saver

• Press [+] or [-] button when it is under function of rear cleaning or front cleaning, the

indicator light will be on showing current the water temperature level, adjust the water

pressure by 3 levels.

• The automatic default setting is middle level for water volume, nozzle position, water

temperature, air temperature, seat temperature; is turned o for the massage function.

• Short press [Auto rear cleaning] or [Auto front cleaning] button to start rear or front

cleaning automatically. The user can adjust the water pressure, nozzle position and

temperature level as per requirement, the memory keep the last setting when the user

presses the Auto button, cleaning and drying function is activated automatically.

• The Auto function mode will be o if the user presses other buttons during the

operation and will shift to the pressed function.

• Press [Air temperature] button, the indicator light will light up the displayed air

temperature level, continue to press the [Air temperature] button to adjust the air

temperature. It will be neutral level when the indicator light is o.

Auto rear cleaning

Rear cleaning 40s

Auto front cleaning

Front cleaning 40s

Dry 180s

Front cleaning 20s

Dry 180s

Automatic stop

Massage cleaning 30s

Automatic stop

• Press [ ] or [ ] button when it is under function of rear cleaning or front cleaning, the

indicator light will be on showing the current nozzle position, adjust the nozzle position

by 3 levels.

Keep pressing [Stop] button for more than 3s to enter the energy saving mode, the

indicator light will be o and the energy saving light will be on. Keep pressing [Stop]

button again for more than 3s to exit energy saving mode, the indicator light will be on

and the energy saving light will be o.

Under the energy saving mode, seat temperature is low (level 1) .

Note: If the seat temperature before energy saving is neutral it will continue as neutral during the

energy saving mode.

• Energy saving mode will be suspended and go to function mode if someone uses the

seat. The seat will start to heat immediately. The energy saving mode will be restored

after the person leaves the seat.

PRESSURE POSITION

REAR/MOVE

FRONT/MOVE

DRY

Nozzle

STOP

HOLD TO ECO

Rear cleaning 20s Massage cleaning 30s

Air temperature adjustment:

Water temperature adjustment:

• Press the [Water temperature] button, the indicator light will light up the displayed

water temperature position, continue to press the [Water temperature] button to adjust

the water temperature. The indicator light will be neutral when the indicator light is o.

Note: when the neutral level is selected, the temperature is 10±2.5°C. When the water temperature

is higher than 10 °C, it will not be heated; when it is lower than 10 °C, it will heated; and the

temperature of the outlet water will be controlled around 10 °C.

- Only for the toilet with auto lush function

Energy saving:

Remark:

1716

www.iconico.es User manual WC3

• Press the [Seat temperature] button and continue pressing the [Seat temperature]

button to adjust the seat temperature, the setting will be neutral when the indicator

light is o.

Seat temperature adjustment:

Night light

Full Flush

Auto lid open/close

• Short press [Night light] button to turn on/turn o the night light, long press [Night

light] button to enter into intelligent mode (Night light will be on or o by detecting

the lightness of surroundings). If the product is on intelligent mode, short press [Night

light] button to exit intelligent mode.

Quiet mode

User code

• Press [Flush] button to activate full lushing.

• Press [Lid close/seat close] button to close seat cover.

• Press [Lid open/seat close] button to open lid and close seat.

• Press [Lid open/seat open] button to open lid and seat.

- Only for the toilet with auto lush function

- Only for the toilet with this function

FLUSH

• Press [Stop] button, and then press [Lid close/seat close] button, it is the mode

of auto open/close. Repeat above action to stop this function.

(This key combination is only for toilet seat with auto open/close function.

The default setting of auto open/close is in the o state, so it needs to be turned

on at the irst-use.

Lid initializing

• Press [Stop] button irst and meanwhile press [Lid open/seat open] to send lid

initializing order to main unit.

Combination button

Auto open/close

• Press [Stop] button and then the [Flush] button to turn on or o the automatic

lushing function. When the automatic lushing function is turned on, the toilet

will automatically lush after 3.5s once the user leaves the seat, only if the user

has been seating for more than 6s.

Automatic lush button

Auto deodorizing button

• Press [Stop] button irst and meanwhile press [Front] button to turn on or o

the auto deodorizing function. The deodorizing function will be activated when it

detects the user sitting on the seat, the function will stop 3s after the user leaves.

The deodorizing function will be o during drying operation.

(Only for the toilets with auto deodoriing function, this function is the default

when the toilet is power on).

Remark:

• With quite mode o, the buzzer will “beep” when the user presses one button which means

the main unit receives the signal and conduct the operation accordingly. If the buzzer doesn’t

sound, it means the main unit doesn’t receive the signal, please adjust the remote control

direction and press the button again.

• In case of a black out during cleaning operation, the cleaning nozzle cannot go back to

place, please wait until the power is restored. In case of a black out for a long period, please

push the nozzle softly back by hand.

Do not push hard, to avoid damage to the cleaning system.

• While the user is seating, a “click” noise will indicate the start of the cleaning or drying

functions. During the cleaning function, the system has a 1 or 2 seconds reaction time after

the user stands so, we recommend to wait until the end of the cleaning function to avoid

water sprinkling outside the toilet.

• (Radio frequency) After power o or battery replacement, the coding data will

remain as set by the user so, there is no need to repeat the operation.

• Remote control will exit user code setting mode and go back to previous mode if

there is no action for 10s.

• Press [Stop] button and then [Seat temperature] button to turn o buzzer to

avoid noise in the night; Repeat the process to start buzzer function.

The user code needs to be set to avoid disturbances from remote controls when

more than one toilets are used in the house. Turn on the toilet for setting while

turn o others.

• Press User code buttons (Press [Stop] button irst and then press [Rear] button)

to enter into user code setting mode, the indicator lights will be on and keep

lashing.

• (Radio frequency) remote control will create relative code, press user code

buttons again to exit user code setting mode which means the user code setting

is completed.

- Only for the toilet with this function

1918

www.iconico.es User manual WC3

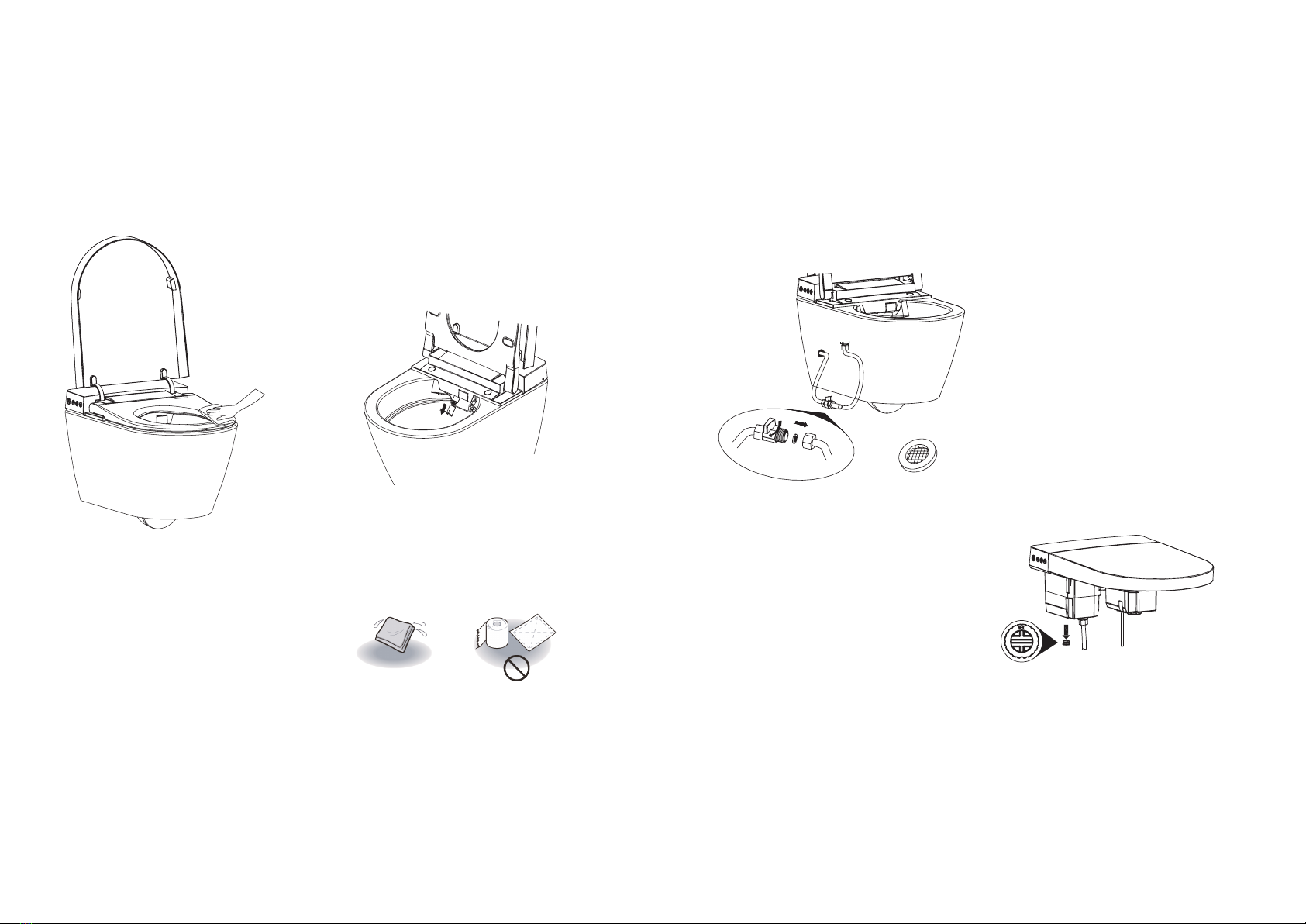

7. Daily maintenance

Main unit maintenance Spray nozzle maintenance

3. Use only a soft, damp cloth to clean.

Avoid using harsh chemicals.

DO NOT pull the nozzle housing outward or

inward to prevent damage of the nozzle and

motor.

4. Once cleaning is completed, re-install

the nozzle to the nozzle housing. Press

the [Stop] button on the main unit/remote

control to return the nozzle rod to its normal

position.

Note: In this state, the nozzle rod will return

to its normal position if sitting on the unit or

no operation for 10 minutes.

3. Safety self-inspection

• After cleaning, re-connect the toilet with

the power supply.

1. While not sitting on the unit, short

press the [Rear/Move] Button on the

main unit, the spray nozzle will extend

outward and water will low out.

2. The spray nozzle can be removed

and cleaned separately. After the spray

nozzle extends outward, hold the nozzle

housing with one hand, remove the

nozzle itself by gently pulling it with the

other hand.

1. Disconnect the power before

maintenance.

2. Use only a soft, damp cloth to clean.

Avoid using harsh chemicals.

Filter maintenance

If the spray performance is poor

under normal conditions:

1. Turn o the water supply at the ball valve

switch and disconnect water inlet hose.

General maintenance

When the electronic bidet is working

abnormally and needs to be repaired, the

following steps must be taken irst.

1. Drain the water inside the bidet:

• Hold the [Stop] button and press

the [Water temperature] button on the

remote control.

2. Turn o water and power supply:

• Turn o ball valve switch and disconnect

power.

3. Empty residual water in the tank:

• Remove ixing screws of bidet and

then lift the bidet up (refer to installation

manual), remove the drain plug and

ensure water in the tank is completely

emptied.

2. Remove the ilter.

3. Clean out ilter under running water.

4. Re-install the ilter, re-connect water inlet

hose and then turn on water supply.

Note:

DO NOT put the bidet upside down or on its

sides before emptying all water in the tank.

Once water is emptied, reinstall the drain

plug.

Unscrew the drain plug with slotted screwdriver

4. Disconnect water inlet hose and coupler

before the next step of maintenance

Inhaltsverzeichnis

Andere ICONICO Toilette Handbücher

ICONICO

ICONICO WC 2 Bedienungsanleitung

Beliebte Toilette Handbücher anderer Marken

Toto

Toto Washlet TCF4911 Series Bedienungsanleitung

Kohler

Kohler K-6419 Bedienungsanleitung

Grohe

Grohe Sensia ARENA Bedienungsanleitung

Kohler

Kohler K-5171K Montageanleitung

Geberit

Geberit AQUACLEAN MERA CLASSIC Bedienungsanleitung

Kohler

Kohler K-24097X Montageanleitung

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Bedienungsanleitung

American Standard

American Standard CONCEPT Cube TF-2704 Bedienungsanleitung

BIOLAN

BIOLAN ECO Stücklistenhandbuch

Thetford

Thetford C260 Series Bedienungsanleitung

KELISS

KELISS T162A Series Bedienungsanleitung

Kohler

Kohler K-22241K Montageanleitung

Kohler

Kohler ESCALE K-32771T-NS Bedienungsanleitung

BIOLAN

BIOLAN GARDEN TOILET Stücklistenhandbuch

washloo

washloo Prestige Bedienungsanleitung

JABSCO

JABSCO 37010 Series Bedienungsanleitung

Drive

Drive TSE 150 Bedienungsanleitung

Olympia

Olympia EPOQUE 69209 Bedienungsanleitung
