ICOP Technology VDX2-6554 Bedienungsanleitung

VDX2-6554

DM&P Vortex86DX2 800MHz

PC/104 CPU Module

with 4S/2USB/VGA/LCD/LVDS/AUDIO/

LAN/GPIO/PWMx16

512MB/1GB DDR2 Onboard

User’s Manual

(Revision 1.4A)

The information in this manual is subject to change without notice for continuous improvement in

the product. All rights are reserved. The manufacturer assumes no responsibility for any

inaccuracies that may be contained in this document and makes no commitment to update or to

keep current information contained in this manual.

No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,

in any form or by any means without the prior written permission of the IC P Technology Inc.

Manual No. IUM6554000-01 Ver.1.0A August, 2013

Manual No. IUM6554000-01 Ver.1.1A ctober, 2013

Manual No. IUM6554000-01 Ver.1.2A December, 2013

Manual No. IUM6554000-01 Ver.1.3A July, 2014

Manual No. IUM6554000-01 Ver.1.4A January, 2015

Trademarks Acknowledgment

Vortex86DX2 is the registered trademark of DM&P Technology Inc.

ther brand names and product names that appear in this document are the

properties and registered trademarks of their respective owners. All names

mentioned herewith are served for identification purpose only.

T a b l e o f C o n t e n t s

T a b l e o f C o n t e n t s ............................................................. iii

C h a p t e r 1 Introduction……………………………………………1

1.1 Packing List ............................................................ 1

1.2 rdering Information .............................................. 1

1.3 Product Description ................................................ 2

1.4 Specifications ......................................................... 3

1.5 Board Dimension .................................................... 5

C h a p t e r 2 Installation……………………………………………..6

2.1 Board utline ......................................................... 6

2.2 Connectors Location ...................................... ........7

2.3 Connectors & Jumpers Summary ........................... 8

2.4 Pin Assignments & Jumper Settings ....................... 9

2.5 System Mapping ................................................... 17

2.6 Watchdog Timer ................................................... 21

2.7 GPI .................................................................... 21

2.8 SPI flash ............................................................... 22

2.9 PWM .................................................................... 22

C h a p t e r 3 Driver Installation……………………………………23

Appendix ………………………………………………………………..24

A. TFT Flat Panel Data utput ...................................... 24

B. TFT Flat Panel Support List ....................................... 25

C. LVDS Flat Panel Support List .................................... 26

D. Flat Panel Wiring and Lighting .................................. 27

E. TCP/IP library for D S real mode ............................. 28

F. BI S Default Setting .................................................. 29

Warranty ............................................................................................ 30

This page is blank

VDX2-6554 Vortex86DX2 PC/104 CPU Module

C h a p t e r 1

Introduction

1.1 Packing List

Product Name Package

VDX2-6554

Embedded Vortex 6DX2 CPU All-in-One Board

RS232 cable x 4

PRINTER cable x1

USB cable x 1 (USB port x 2)

VGA cable x 1

LAN cable x 1

GPIO cable x 1

AUDIO Line x2

PS/2 Mouse cable x 1

PS/2 Keyboard cable x 1

Screw Kit x 1

1.2 Ordering Information

VDX2-6554-512 Vortex86DX2 CPU Module with 512MMB DDR2

VDX2-6554-1G Vortex86DX2 CPU Module with 1GB DDR2

VDX2-6554-512-T Vortex86DX2 CPU Module with 512MMB DDR2 and Touchscreen

support

VDX2-6554-1G-T Vortex86DX2 CPU Module with 1GB DDR2 and Touchscreen support

VDX2-6554 Vortex86DX2 PC/104 CPU Module 2

1.3 Product Description

The VDX2-6554 family of low-power x86 embedded controller is designed to meet PC/104

specification, and integrated with the following features.

800 MHz Vortex86DX2 SoC

VGA, TTL/ LVDS LCD support up to

1280x1024 resolution

512MB/ 1GB DDR2 system memory

10/100Mbps Ethernet

2 USB 2.0 (host)

Up to 4 serial ports

Parallel port

16-bit GPI s

Audio

nboard 4MB SPI Flash

Meet PC/104 stacking spec.

2 watchdog timer

PWM 16~24 channels

JTAG interface

AMI BI S

Single voltage +5V DC

Support extended operating

temperature range of -20°C to +70°C

The VDX2-6554 PC/104 family of embedded controller is designed with backward compatibility

in mind, to provide migration path for projects facing end-of-life challenges with their existing x86

based PC/104 controller. The VDX2-6554 family of controller is designed as a plug in

replacement, with backward compatibility to support legacy software to help extend existing

product life cycle without heavy re-engineering.

VDX2-6554 is suitable for broad range of data-acquisition, Industrial automation, Process

control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device,

Human machine interface, Robotics, machinery control and more…application that required s

mall footprint, low-power and low-cost hardware with open industry standard such as PC/104.

VDX2-6554 Vortex86DX2 PC/104 CPU Module 3

1.4 Specifications

Features VDX2-6554

CPU

DM&P SoC CPU Vortex86

00MHz

Real Time Clock with Lithium Battery Backup

Cache L1:16K I-Cache, 16K D-Cache L2:256KB Cache

BI S AMI BI S

Bus Interface PC/104 Standard Compliant

System Memory 512MB/ 1 GB DDR2 nboard

Watchdog Timer

Software programmable from 30.5

to 512 seconds x2

sets(Watchdog 1 fully compatible with M6117D)

VGA

Integrated

2D VGA chip

with dual display support (VGA + TTL /

VGA + LVDS)

VGA: Maximum resolution up to 1280x1024 @ 60Hz

LVDS: Maximum resolution up to 1024x768 @ 60Hz

Single channel 18-bit LVDS

LAN Integrated 10/100M Ethernet

AUDI ALC 262 (HD Audio)

Touch Controller PS/2 interface ( ptional)

I / Interface

SATA 7P Connector x 1

RS-232/485 port x4

Parallel port x1

USB port x2 (USB 2.0 version)

USB hot SWAP x 1 ( ptional)

16-bit GPI port x1

10/100Mbps Ethernet port x1

Connectors

SATA 7P for SATA x 1

2.00 mm ∅ 44-pin box header for LCD x 1

2.00 mm ∅ 26-pin box header for Printer x1

2.00 mm ∅ 20-pin box header for 16-bit GPI x1

2.00 mm ∅ 16-pin header for LVDS x 1

2.00 mm ∅ 10-pin box header for VGA x1

2.00 mm ∅ 10-pin box header for USB x1

2.00 mm ∅ 10-pin box header for RS-232 x4

2.00 mm ∅ 8-pin header for Ethernet x 1

2.54 mm ∅ 5-pin box header for Keyboard x1

2.54 mm ∅ 5-pin header for Mouse x1

2.54 mm ∅ 4-pin header for DC-in x1

2.54 mm ∅ 2-pin header for Reset x1

1.25 mm ∅ 6-pin Wafer for JTAG x1

1.25 mm ∅ 4-pin Wafer for Line-out/MIC-in x2

1.25 mm ∅ 4-pin Wafer for Touch screen x1( ptional)

VDX2-6554 Vortex86DX2 PC/104 CPU Module 4

Flash Disk Support

nboard 4MB SPI Flash Disk (Driver: A)

PWM 16 channels

Power Requirement Single Voltage +5V @900mA

Dimension 90 X 96mm (3.54 x 3.77 inches)

Weight 100g

perating

Temperature

-20oC ~ +70oC

-40oC ~ +85oC ( ptional)

perating System

Support

Free D S, D S 6.22, PCD S 7.1, DR

D S, x

D S, D/2, CE6.0,

CE7.0, Windows XP Professional, Windows Embedded Standard

(XPE), P S Ready(WeP S), Embedded Linux, X-linux, QNX,

Vxworks and FreeBSD.

VDX2-6554 Vortex86DX2 PC/104 CPU Module 5

1.5 Board Dimension

VDX2-6554 Vortex86DX2 PC/104 CPU Module 6

C h a p t e r 2

Installation

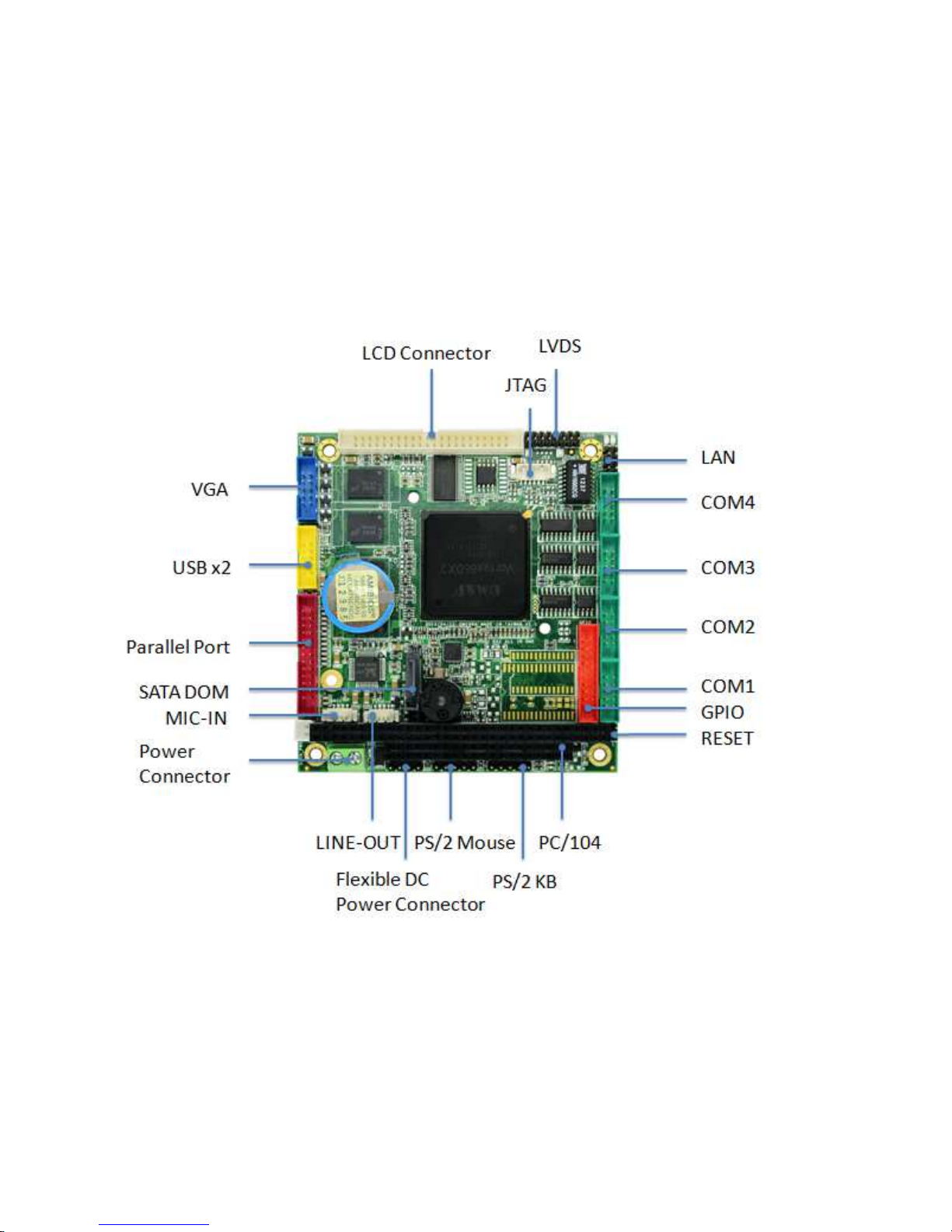

2.1 Board Outline

Note:

1. C M RS232/485 is selected in BI S setting.

2.Touchscreen is optional. No onboard SPI R M and PS/2 mouse

function if Touchscreen function is selected.
