ET-M8194H

Motion Control Module

Quick Start Manual

(Version 2.0)

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

Contents

1. ET-M8194H Features ............................................................2

2. Hardware Wiring...................................................................3

3. Install ET_M8194H Toolkit ...................................................4

4. Network Settings..................................................................5

5. ET-M8194H LED Description .............................................11

6. Using the EzMove to write macro programs ...................12

6.1 How to write macro programs.................................................14

6.2 Establish a connection with the ET-M8194H .........................17

6.3 Download and run the macro program..................................18

6.4 MODBUS message window.....................................................21

6.5 Initialization table.....................................................................22

6.6 FRnet DI table...........................................................................23

6.7 IO Status table ..........................................................................25

6.8 MACRO State table...................................................................26

7. Use VB to write macro programs......................................27

1. ET-M8194H Features

ET-M8194H is a product of ICP DAS to implement the Ethernet remote

motion controller for the remote motion solution. It includes an i-8094H module

(a 4-axis stepping/pulse-type servo motor control module). By using the

intelligent function of ET-M8194H, we can do the remote motion control for

various motion applications via MODBUS/TCP.

Also, ET-M8194H can be applied in many platforms with MODBUS/TCP

protocol (for example: PC, PAC, PLC, HMI). Additionally, it is easy and simple to

use many ET-M8194Hs at the same time to implement the multi-axis motion

control by the serial connection of ET-M8194H. ICP DAS also provides EzMove

Utility and API Library for users to quickly configure ET-M8194H and develop

their own control applications easily.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

2. Hardware Wiring

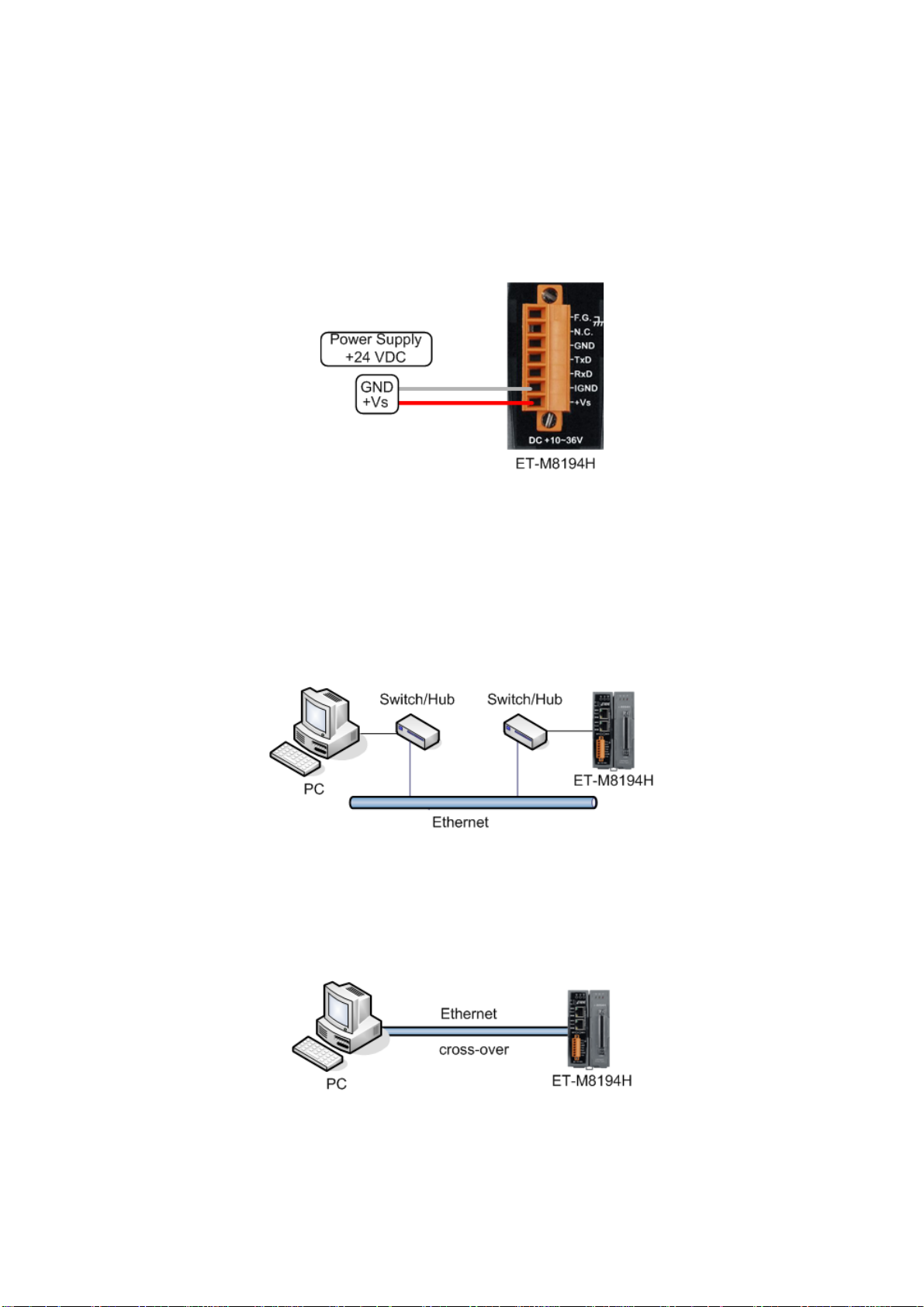

Power Connection

Connect power supply +Vs (24 VDC) and GND pin to the ET-M8194H +Vs

and IGND pin.

Methods of connecting PC to ET-M8194H

There are two ways to establish a connection between PC and ET-M8194H:

a. LAN:

Connect the ET-M8194H and PC through local area network (LAN) by

Hub/Switch. Install EzMove on the PC and use this utility to test the connection.

b. Direct link:

Connect the PC directly to ET-M8194H. The Ethernet cable does not have to

be a cross-over cable; the controller can detect the connection and do the

suitable configuration automatically.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

3. Install ET_M8194H Toolkit

Please execute ET_M8194H_V2_0.exe in the shipping disc. Follow the

prompts to complete the installation process. The default installation path is

C:\ICPDAS\ET_M8194H\.

Installation folder \ICPDAS\ET-M8194H\ description

\API_Lib_Demo \Demo VC6、VB6 and BCB example

\Lib VC、VB and BCB lib

\Include VC and BCB header file

\EzMove_Utility \Demo MP example

EzMove_Utility_V2.0.exe EzMove Utility

EM94H_XY.EXE ET-M8194H firmware；XYrepresent

Ver. X.Y

autoexec.bat ET-M8194H autoexec.bat

ET_M8194H_API.dll DLL

\Manual ET-M8194H_Manual_v2.0.pdf ET-M8194H instruction manual

ET-M8194H_QuickStart_v2.0.pdf ET-M8194H quick start

EzMove Utility_v1.0.pdf EzMove instruction manual

\Other \OCX ET-M8194H OCX

FAQ FAQ

Readme.txt Readme

WhatsNew.txt New version information

After the installation you can find the following items in the [Start]–>

[Programs] –> [ET-M8194H] –> [Sources] folder.

[Start]– [Programs]– [ET-M8194H] –[Sources] description

\API_Lib_Demo \Demo VC6、VB6 and BCB example

\Lib VC、VB and BCB lib

\Include VC and BCB header file

\EzMove_Utility \Demo MP example

EzMove_Utility_V2.0.exe EzMove Utility

EM94H_XY.EXE ET-M8194H firmware；XYrepresent

Ver. X.Y

autoexec.bat ET-M8194H autoexec.bat

ET_M8194H_API.dll DLL

\Manual ET-M8194H_Manual_v2.0.pdf ET-M8194H instruction manual

ET-M8194H_QuickStart_v2.0.pdf ET-M8194H quick start

EzMove Utility_v1.0.pdf EzMove instruction manual

\Other \OCX ET-M8194H OCX

FAQ FAQ

Readme.txt Readme

WhatsNew.txt New version information

4. Network Settings

Method 1 – Setting via RS-232

Execute the EzMove Utility and start the “Network Settings by COM Port”

dialog. ([Setting] –> [ET-M8194H Setting] –> [By COM Port] –> [Network])

Click Default to show the default IP configuration of ET-M8194H:

IP: 192.168.0.16

Mask: 255.255.255.0

Gateway: 192.168.0.254

The procedures to read/modify the IP configuration are:

1. Shut down the ET-M8194H.

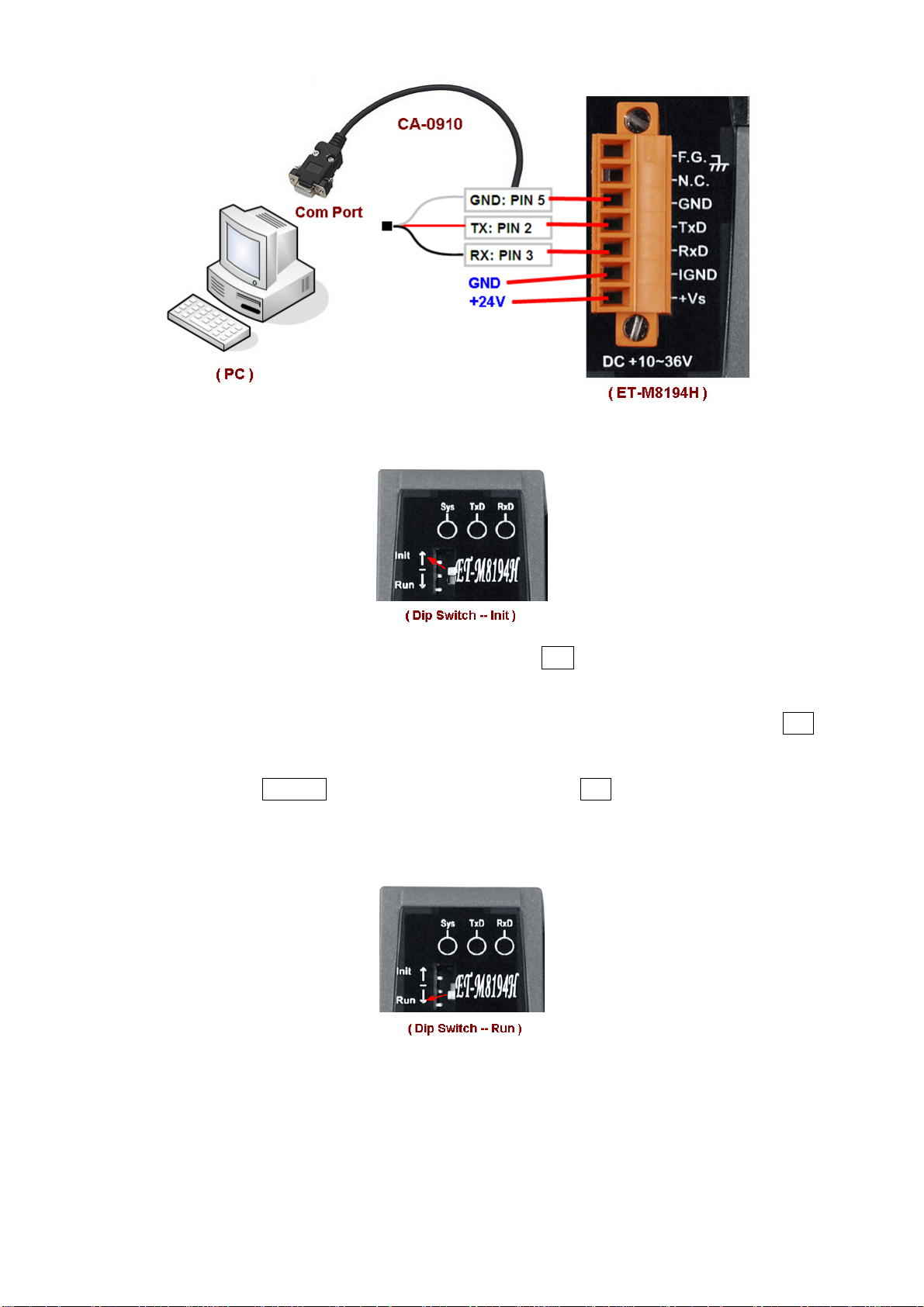

2. Connect to ET-M8194H with the associated RS-232 cable (CA-0910). The

Tx, Rx and GND pins of CA-0910 are connected to the Rx, Tx and GND

ports of ET-M8194H. Please connect the other end (9-pin, D-sub

connector) to the normal COM port of desktop/laptop.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

3. Set the DIP-switch to “Init”, then power up the ET-M8194H.

4. Choose the COM Port, and then click the Get button to read back the IP

configuration.

5. Fill the settings in IP, Mask and Gateway fields, and then click the Set

button to change the IP configuration.

6. Click the Default button and then click the Set button to restore the

default IP configuration.

7. Shut down the ET-M8194H, and set the DIP-switch to “Run”.

8. Power up the ET-M8194H.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

Method 2 – Setting via Ethernet

Execute the EzMove Utility and connect to ET-M8194H with Ethernet. Start

the “ET-M8194H Setting by Ethernet” dialog. ([Setting] –> [ET-M8194H

Setting] –> [By Ethernet] –> [Network Tab])

Get Setting : Read the current IP configuration from ET-M8194H.

Set : Fill the new settings in IP, Mask and Gateway fields. Click this button to

start IP configuration. The configuration will be completed in 10 seconds,

and the EzMove Utility will re-connect to ET-M814H with updated IP

address.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

Method 3 – Setting via MiniOS7 Utility

The steps for using MiniOS7 Utility to setting up a network:

1. Shut down the ET-M8194H.

2. Set the DIP-switch to “Init”, then power up the ET-M8194H.

3. Click the triangle arrow symbol beside "Connection" and then press "Search"

as shown below.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12

4. Click the Search button to read the current IP address as shown below.

5. Click IP setting button and then enter IP and other settings. Press Set

button to complete the change IP.

ICP DAS ET-M8194H 快速入門指南

Version 2.0, 2012/10/12
