ICP DAS USA DGW-521 Bedienungsanleitung

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

DGW-521

RS-232/RS-485/USB to DALI Gateway

Quick Start Guide

https://icpdas-usa.com/dgw_521.html

Congratulations on purchasing the DGW-521 the most popular automation

solution for remote monitoring and control applications. This Quick Start Guide

will provide information needed to get started with the DGW-521. Please also

consult the User Manual for detailed information on the setup and use of the

DGW-521.

In addition to this guide, the shipping box includes the following items:

DGW-521 Software Utility CD Quick Start

DGW-521 Quick Start Guide

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2

1 Understanding the Hardware Specifications

Before installing the hardware, you should have a basic understanding of

hardware specification and the wiring diagrams.

Specifications：

Interface

Connector

2-pin Terminal Block

Baud Rate (bps)

1200

DALI

Isolation

1500

VDC

Build-in DALI power

DC 16

VDC

± 5%, max. current 250 mA

(Enabled/Disabled via a switch)

COM Port

RS-485/RS-232

Connector

3-pin Terminal Block (D+, D-, GND/TxD, RxD, GND),

UART

Jumper Selectable

Transmission Distance (m)

Depends on Baud Rate

Baud Rate (bps)

1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

Protocol

DCON, Modbus RTU

Connector

USB Type B

Transmission Speed

12M bps

USB

Specification

USB 1.1 and USB 2.0 standard compatible

OS Support

Windows XP (32/64 bit), Windows 7 (32/64 bit)

Protocol

DCON and Modbus RTU via Virtual COM port

LED Indicators

System LED Indicators

PWR/RUN/ERR LED

EMS Protection

ESD (IEC 61000-4-2)

±4 kV contact for Each Terminal, ±8 kV Air for Random

Point

EFT (IEC 61000-4-4)

±4 kV for Power Line

Surge (IEC 61000-4-5)

±2 kV for Power Line

Power

Power Supply

Unregulated +10 VDC ~ +30 VDC

Connector

3-pin Terminal Block

DGW-521 Quick Start Guide

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

Brown-out Protection

Consumption

6 W.

Mechanical

Casing

Plastic

Flammability

Fire-Retardant Materials (UL94-V0 Level)

Dimensions (L x W x H)

107 mm x 72 mm x 57 mm

Installation

DIN-Rail Mounting

Environment

Operating Temperature

-25 °C ~ +75 °C

Storage Temperature

-30 ~°C +80 °C

Humidity

10 %~ 95% RH, Non-condensing

Pin Assignment：

--------------------------------------------

2 Booting the DGW-521 in

Init Mode

Make sure the INIT switch placed in

the “ON” position.

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4

---------------------------------------------------------------------------------

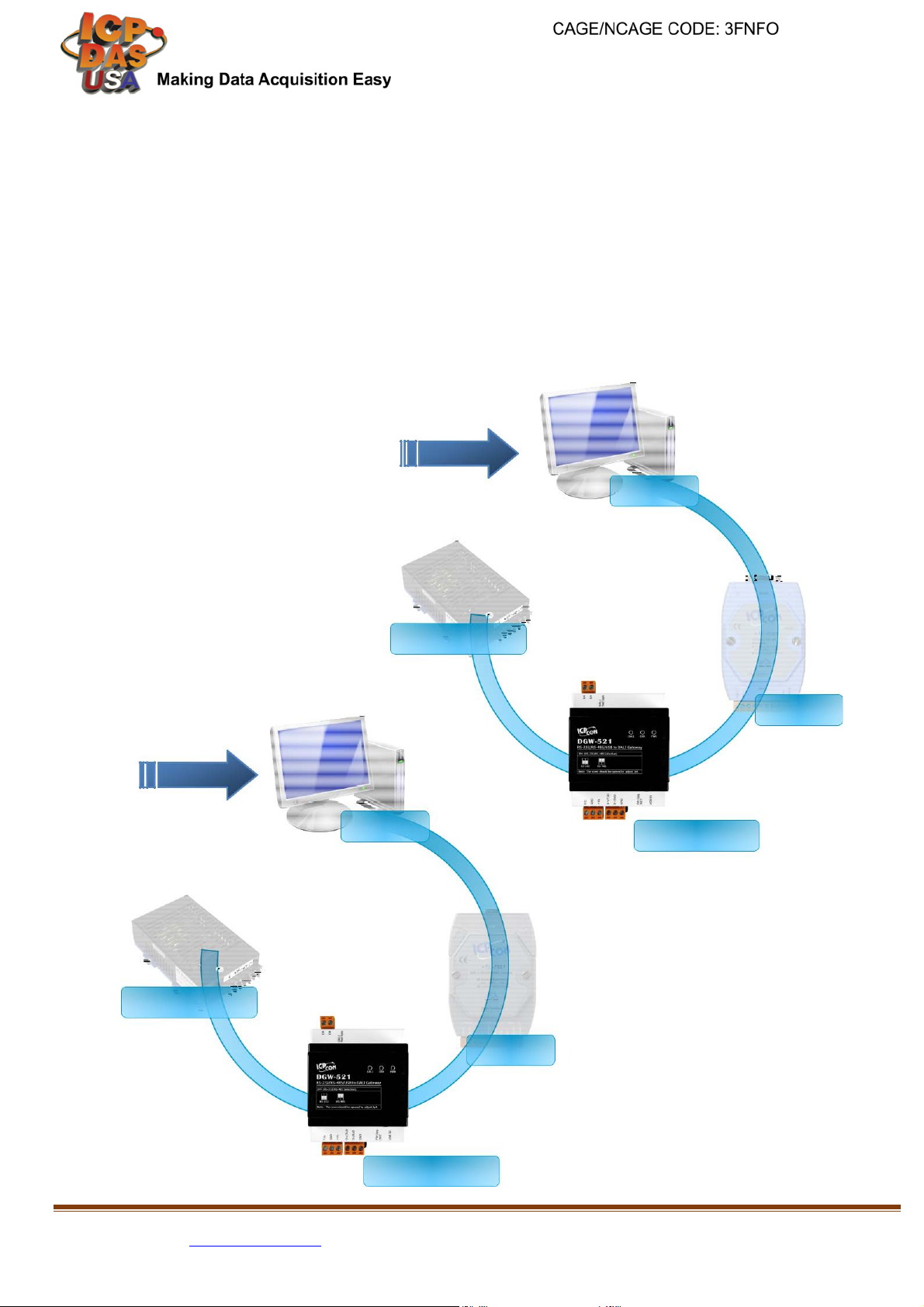

3 Connecting to the PC and the Power Supply

The DGW-521 series is equipped with an RS-485 port for connection to a

232/USB converter to PC

Connect to the PC

using an RS-485 Converter

Power Supply

Connect to PC

using a USB Converter

USB

Power Supply

I-7561

RS-485

DGW-521

RS-232

I-7520

RS-485

DGW-521

DGW-521 Quick Start Guide

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

---------------------------------------------------------------------------------

4 Installing the DCON Utility

The DCON Utility is an easy-to-use tool designed to enable simple configuration of I/O

modules that use the DCON protocol.

Step 1: Locate the DCON Utility

The DCON Utility can be obtained from the companion CD or from the

ICPDAS FTP site: CD:\Usb_tM\NAPDOS\DGW-521\

ftp://ftp.icpdas.com.tw/pub/cd/usb_tm/napdos/

Step 2: Follow the prompts to complete the installation

After the installation has

been completed, there will be a new

shortcut to the DCON Utility on the desktop.

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 6

5 Using the DCON Utility to Initialize the DGW-521

Module

The DGW-521 based on the DCON protocol, meaning that you can use the DCON Utility

to easily initialize it.

Step 1: Run the DCON Utility

Double-click the DCON Utility

shortcut on your desktop.

Step 2: Use the COM1 port to communicate with the DGW- 521

Click the “COM Port” option from the menu and a dialog box will be displayed that will

allow you to set the communication parameters as described in the table below.

Communication

Init

parameter

mode value

Address

Baud Rate

9600

Protocol

DCON

Checksum

Disabled

Parity

N,8,1

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 7

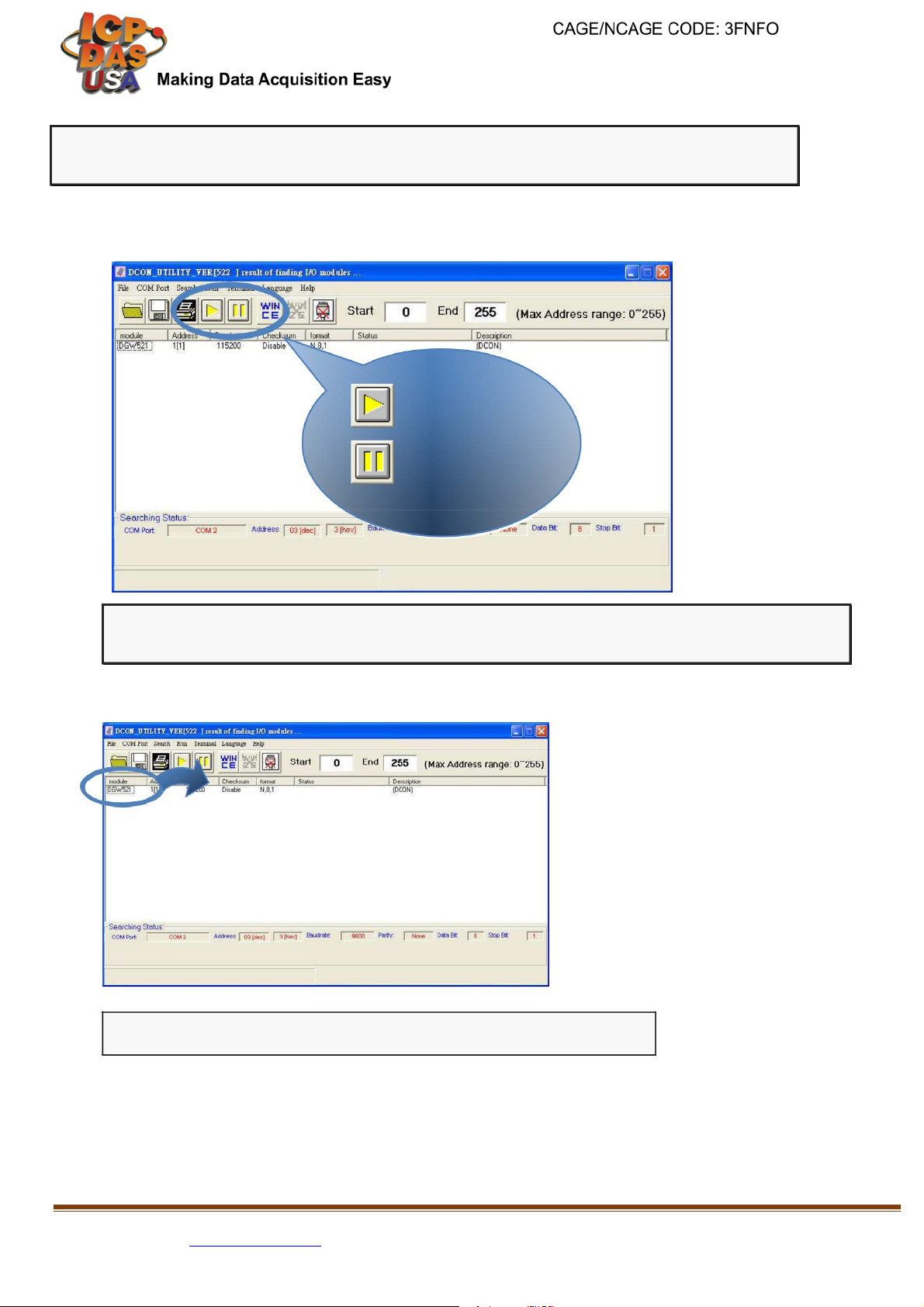

Step 3: Search for the DGW-521 module

Click “Start Search” button from the toolbox to search for the DGW-521 module.

After the DGW-521 module is displayed in the list, click “Stop Search” button.

Start Search

Stop Search

Step 4: Connect to the DGW-521

After clicking on the name of the module in the list, a dialog box will be displayed.

Step 5: Initialize the DGW-521 module

DGW-521 Quick Start Guide

DGW-521 RS-232/RS-485/USB to DALI Gateway - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 8

Set the “Address” field in the dialog box to 1 and then click “Setting” button to

save the settings.

6 Rebooting the DGW-521 Module in Normal Mode

Make sure the INIT switch is placed in the“OFF”

position

----------------------------------------------------------------------------------

7 Starting the Module Operation

After rebooting the DGW-521 module, search for the module to make sure the settings

have been changed. You can double click on the name of the module in the list to

open the configuration dialog box.
