INSTALLATION INSTRUCTIONS

For Vent Drain Kit NAHAOOIDK

used on N9MP1, N9MP2, *9MPD, *9MPT & *9MPV Multi Position Gas Furnaces.

Denotes Brand (T, H or C)

Please read these instructions completely before attempting installation.

Parts List for Plastic Bag

Description

Coupling, Discharge

Clamp, Hose

Gasket, Trap

SMS, #8 X 1/2" Conical

Clamp, 5/8" ID

Clamp, 3/4" ID

Parts List for Carton

Yellow or Black Cap (for #1014003) 1170893

USE THE PARTS IN THIS KIT. EQUIVALENT PARTS IN THE

FURNACE MAY BE DISCARDED.

Part# Qty.

1002522 1 Description Part# Qty.

1013830 2 Plastic, Bag 1013402 1

1013701 1 Tube, Rubber 3/16" ID 1009238 1

1012537 2 Drain Tee 1171915 1

1012975 2 Drain Tee Trap 1171916 1

1012976 2 Trap, Condensate 1171917 1

2 Timprene Drain Hose 1/2" ID 1014358 1

Timprene Drain Hose 518" ID 1014359 1

Instructions, Drain Kit 441 06 1043 O0 1

Drain, Vent 1014003 1

These instructions are a supplement to the Installation Instructions shipped with each furnace. Refer to these instructions

for details on vent pipe sizing, maximum vent lengths, assembling the vent system and starting up the furnace.

Upflow Top Vent (*9MPD, *9MPT &*9MPV)

Yellow or black Plastic TOP Venting

aps(Z)

Dual Pressure

_ Switch Detail _ _

VentDrain _ // _ I

(optional) E

F _:_q Drain

/ Tee\

L_ _ Hose& Clamps_

& Clamps

_1 SiwnigtI& PrDeetaS_lre

Representive drawing, some views will vary,

Trap Connection "Clamp ears"

Pointed OUT

Preassemble &

insert into furnace

3/16" I,D.

Rubber tube

25-24-41

UpflowTopVent (See Figure 1)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the bottom of the drain tee to the

condensate trap and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach a Yellow or black cap to bottom port of vent drain and secure

with clamp.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp. 441 06 1043 O0 (2/2003)

Upflow Left Side Vent & Trap

Vent Drain

& Clamps

YelloworblackPlastic _

Cap _ _'_'_

Dual Pressure

Switch Detail

See

,ee

1/2" LD, Drain

Hose & Clamps --

Single Pressure

Switch Detail

Coupling

&Clamps

j (optional)

3/16" I.D.

Rubber tube

Trap Connection

"Clamp ears"

Pointed OUT

Preassemble &

insert into furnace

25-24-41_

Upflow Left Side Vent (See Figure2)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

IMPORTANT

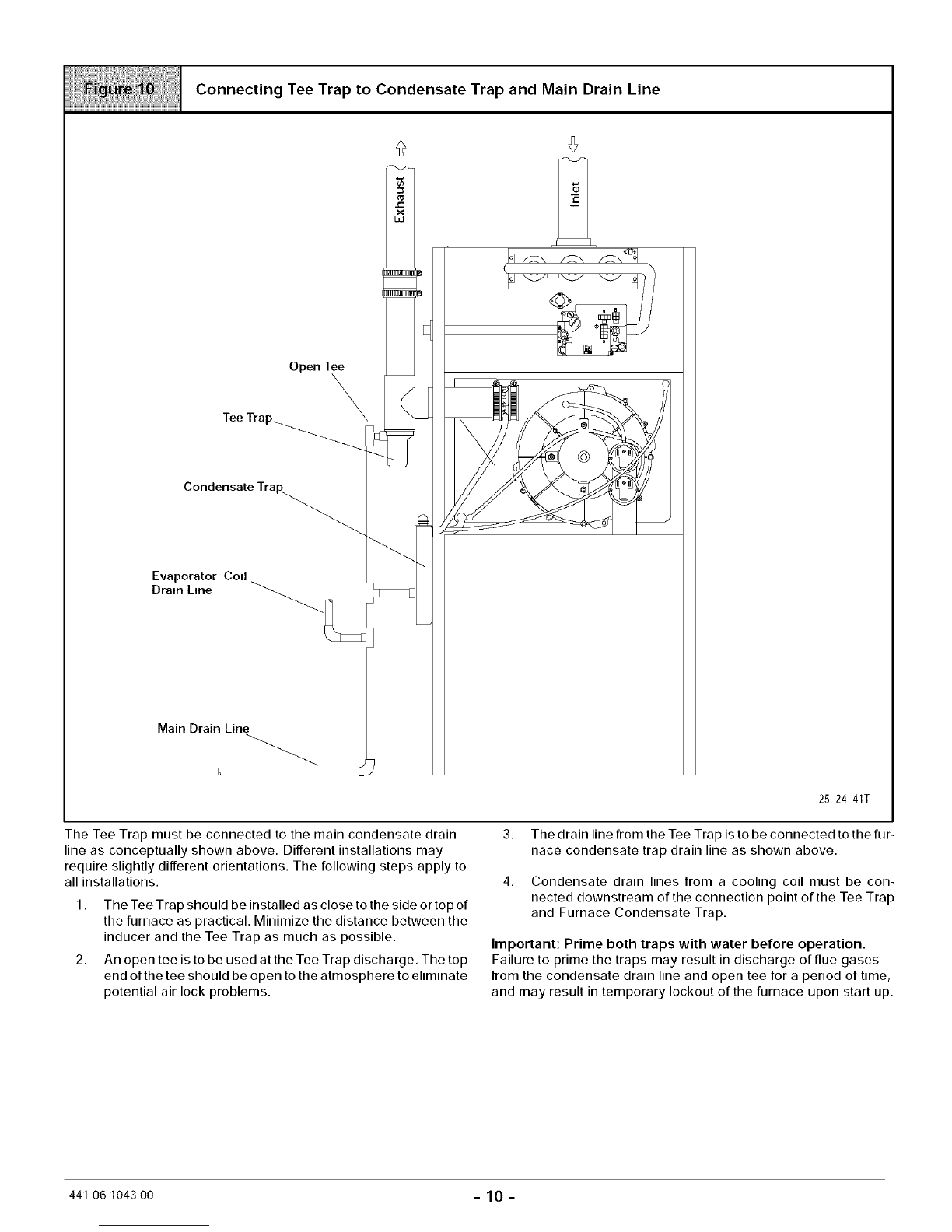

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06104300 - 2-

Upflow Right Side Vent & Trap

(} Dual Pressure

Switch Detail

518" I,D. Hose

& Clamps

112"I.D, Drain

Hose & Clamps

3/16" I,D.

Rubber tube

Coupling

(optional)

See Note 1 Single Pressure

Switch Detail

Tee Trap

25-24-41b

Upflow Right Side Vent (See Figure3)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06 1043 OO 3

Downflow Left Side Vent & Trap

Dual Pressure

Switch Detail

llz" I.D. Drain

Hose & Clamps

Coupling

/&Clamps

(optional)

3/16" I.D, Rubber tube

518" I.D. Hose

& Clamps

25-24-45

Downflow Left Side Vent (See Figure4)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06 1043 O0 - 4 -

Downflow Right Side Vent & Trap

3/16" I.D. Rubber tube

5/8" I,D. Hose 112"I.D. Drain

& Cla_ie & Clamps

Trap Connection "Clamp ears"

Pointed OUT

Preassemble&

insertimofurnace

25-24-46

Downflow Right Side Vent (See Figure5)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06 1043 O0 5

Horizontal Left-Thru Top

Coupling

&Clamps

(optional)

3/16" I.D,

Rubber tube

Single Pressure

Switch Detail

Note 1

Alternate Orientation Yellow or

black Cap

& Clamp

llz" I,D. Drain

Hose & Clamps

518" I.D. Hose

TrapConnection

Preassemble &

insert into furnace

"Clamp ears"

Pointed OUT

25-24-47

Horizontal Left-Thru Top(See Figure6)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

Attach a Yellow or black ca p to bottom port of vent drain and secure

with clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06104300 - 6 -

TeeTrap

Horizontal Left Side Vent

See Note 1

Sin le Pressure

Switch Detail

]

Alternate Orientation

Hose & Clamps

Trap Connection

3/16" I.D, Rubber tube 5/8" I.D. Hose

& Clamps "Clamp ears"

Pointed OUT

Preassemble& 25-24-48

insertinto furnace

Horizontal Left Side Vent (See Figure 7)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06 1043 O0 7

Horizontal Right-Thru Top

Single Pressure

Switch Detail

Yellow or

1/2" I,D. Drain black Cap

Hose &Clamps &

Alternate Orientation

I I

Coupling

&Clamps

[optional) See Note

oLo

3/16" I,D. Rubber tube

[

Tee Trap

GI.D, Hose Trap Connection

& Clamps

"Clampears"

PointedOUT

Preassemble &

insert into furnace 25-24-49

Horizontal Right- Thru Top(See Figure 8)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

Plug the end of the drain tee with a Yellow or black cap and fasten

with a clamp.

Attach a yellow cap to bottom port of vent drain and secure with

clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06 1043 O0 - 8 -

Horizontal Right-Side Vent

Single Pressure

Switch Detail

11z"I,D. Drain

Hose & Clamps

Couplings.

&Clamps_.

_ee Note

3/16" I.D. Rubber tube _"

C\\

518" I.D, Hose

&Clamps

TrapConnection

_HnHnlfl_E

_HnHnlfl_C

Tee Trap

"Clamp ears"

Pointed OUT

Preassemble &

insert into furnace 25-24-50

Horizontal Right- Side Vent (See Figure 9)

Replace and discard the Vent Drain shipped with the furnace if it

is the black Fasco coupling. Replace with the gray Vent Drain

shipped with the kit.

Attach the 1/2" ID drain hose from the vent fitting to the drain trap

and securely clamp.

Attach the 3/16" ID rubber tube from the top of the transition box to

the drain trap.

Attach the 5/8" ID hose from the bottom of the transition box to the

drain trap and securely clamp.

IMPORTANT

Refer to Figure 10 for details of connecting the tee trap to the

condensate trap and details for the main drain line.

NOTE 1: The Tee as shown connected to Tee Trap is field sup-

plied, and not included in this kit. The Drain Tee supplied with

the kit may be used as the Tee with Tee Trap glued into the bot-

tom (section with 1/2" OD drain port). If the Drain Tee is used, a

field supplied 2" PVC Coupling is required on the inlet leg that is

connected to the inducer.

441 06 1043 O0 - 9 -

Connecting Tee Trap to Condensate Trap and Main Drain Line

Open Tee

Evaporator Coil

Drain Line

Main Drain Line

25-24-41T

The Tee Trap must be connected to the main condensate drain

line as conceptually shown above. Different installations may

require slightly different orientations. The following steps apply to

all installations,

1. TheTeeTrapshouldbeinstalledasclosetothesideortopof

the furnace as practical. Minimize the distance between the

inducer and the Tee Trap as much as possible.

2. An open tee is to be used at the Tee Trap discharge. The top

end of the tee should be open to the atmosphere to eliminate

potential air lock problems.

3. The drain line from the Tee Trap is to be connected to the fur-

nace condensate trap drain line as shown above.

4. Condensate drain lines from acooling coil must be con-

nected downstream of the connection point of the Tee Trap

and Furnace Condensate Trap.

Important: Prime both traps with water before operation.

Failure to prime the traps may result in discharge of flue gases

from the condensate drain line and open tee for a period of time,

and may result in temporary lockout of the furnace upon start up.

441 06104300 - 10 -

Dieses Handbuch passt für folgende Modelle

Andere ICP Ofen Handbücher

ICP

ICP NTGM/GNK Series Bedienungsanleitung

ICP

ICP OCF105A12C Fehlerbehebungshandbuch

ICP

ICP SUPREME FEM10-M2401AM-A Montageanleitung

ICP

ICP NTC7/GNL Series Bedienungsanleitung

ICP

ICP fbf050b12a4 Montageanleitung

ICP

ICP F9MXT0401410A Montageanleitung

ICP

ICP 9MPD050F12B1 Bedienungsanleitung

ICP

ICP F9MVE0401410A Montageanleitung

ICP

ICP 9MPD Series Bedienungsanleitung

ICP

ICP N9MP2125J20A1 Bedienungsanleitung

ICP

ICP N8MPN Bedienungsanleitung

ICP

ICP 9MPT Series Bedienungsanleitung

ICP

ICP H9MPT050F12B1 Bedienungsanleitung

ICP

ICP NTC6/GNE Series Bedienungsanleitung

ICP

ICP G9MAE0601714A Montageanleitung

ICP

ICP FLO115DABR-A Produktinformationsblatt

ICP

ICP N9MSB0401410C Montageanleitung

ICP

ICP NTC5100BFE1 Bedienungsanleitung

ICP

ICP OLR105A12B Kurzanleitung

ICP

ICP OLR105A12D Bedienungsanleitung

ICP

ICP N9MSE0401712A Montageanleitung

ICP

ICP F8MTL Kurzanleitung

ICP

ICP N8MPN Bedienungsanleitung

ICP

ICP GAS FURNACE Technisches Handbuch

Beliebte Ofen Handbücher anderer Marken

Armstrong

Armstrong EG7H SERIES Bedienungsanleitung

Payne

Payne PG92ESA Leitfaden

SUPREME

SUPREME FEM10-M2301CM-A Montageanleitung

Ingersoll-Rand

Ingersoll-Rand S9V2B080D4VSAC/D Montageanleitung

Johnson Controls

Johnson Controls TM9T Leitfaden

Fluke

Fluke 9118A Bedienungsanleitung

Lennox

Lennox EL195UHE Elite Series Installations- und Betriebshandbuch

Intertherm

Intertherm M7RL Series Bedienungsanleitung

HDG

HDG Pelletmaster 15 Bedienungsanleitung

Pinnacle

Pinnacle Aero Bella AB-716C-QH Handbuch

Nortek

Nortek MG2S Series Bedienungsanleitung

VERDER

VERDER CARBOLITE GERO ABF 8/28 Handbuch

Goodman

Goodman GMV9 Handbuch

SUPREME

SUPREME SUP10-M2301C Montageanleitung

Dettson

Dettson AMT400B34-SM1PMA Montageanleitung

Evcon

Evcon DGD 60 MBH Bedienungsanleitung

Trane

Trane S8B1A026M2PSAB Montageanleitung

Hart Sceintific

Hart Sceintific 9113 Bedienungsanleitung
