OPERATOR’S MANUAL



Questions?CallCesscoTollFree:18008824959

All manuals and user guides at all-guides.com

all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE

TABLE OF CONTENTS

SYMBOLS & LABELS

SAFETY 4

TECHNICAL SPECIFICATIONS 7

SET-UP 8

OPERATION 11

MAINTENANCE

TROUBLESHOOTING 23

REFERENCE 24

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE SYMBOLS & LABELS

THE FOLLOWING SYMBOLS & DEFINITIONS ARE FOUND THROUGHOUT THIS MANUAL AND

ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HA ARDS OR UNSAFE PRACTICES.

A potentially hazardous situation exists which, if not avoided,

could result in death or serious injury.

A potentially hazardous situation exists which, if not avoided,

may result in minor or moderate injury or property damage.

A potential situation exists which, if not avoided, may result in

product or property damage.

THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE SAW

Read the operator’s manual carefully and understand the

contents before you use this equipment.

Always use:

Wear hand protection

IMPORTANT

WARNING

CAUTION

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE

SAFETY

WARNING

THE FOLLOWING SYMBOL APPLIES TO ALL THE ITEMS LISTED ON THIS PAGE

A potentially hazardous situation exists which, if not avoided,

could result in death or serious injury.

Diamond chain breakage can result in high-speed ejection of parts, which can result in death

or serious personal injury to operators or bystanders. The items listed below are critical to

minimizing the risk of diamond chain breakage and injury.

cover, bottom guard, or guard flap. The side cover, bottom guard, and guard flap provides

protection against contact with moving parts, ejected debris, broken diamond chain,

thrown water and concrete slurry.

chain segments. Rapid pushback might occur. Reference: Most diamond segments

are .225 inches (5.72 mm) wide.

the operator’s face.

chain breakage may occur.

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE SAFETY

CAUTION

THE FOLLOWING SYMBOL APPLIES TO ALL ITEMS LISTED ON THIS PAGE

A potentially hazardous situation exists which, if not avoided,

may result in minor or moderate injury or property damage.

including diamond chain tensioning.

qualified service personnel.

ventilation when handling fuel. Move chain-based cut-off saw at least 10 feet (3 m) away

from refueling area before starting.

® diamond chains require a minimum water pressure of 20 psi (1.5 bar).

Insufficient water supply may result in excessive wear to the diamond chain, which

can lead to loss of strength and diamond chain breakage.

diamond chain and side cover are properly installed.

GENERAL SAFETY PRECAUTIONS

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE

SAFETY

IMPORTANT

THE FOLLOWING SYMBOL APPLIES TO ALL ITEMS LISTED ON THIS PAGE

A potential situation exists which, if not avoided, may result

in product or property damage.

Note: The chain-based cut-off saw is equipped with a two-stroke engine and must always be

run using a mixture of gasoline and ICS

® two-stroke engine oil. It is important to accurately

measure the amount of oil to be mixed to ensure that correct mixture is obtained. When

mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of

the mixture.

gasoline is used, engine temperature will increase which will result in a piston seizure

and damage to the engine.

of piston seizure.

® brand two-stroke engine oil.

outboard motor oil.

ENGINE BREAK-IN

piston rings.

5 to 10 minutes to prevent loading.

hour of operation making the initial cutting experience unsatisfactory.

bar and chain, especially at altitude, could result in severe loss of power output making

initial cutting experience unsatisfactory.

All manuals and user guides at all-guides.com

all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE TECHNICAL SPECIFICATIONS

Starter

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL TITLE

SET-UP

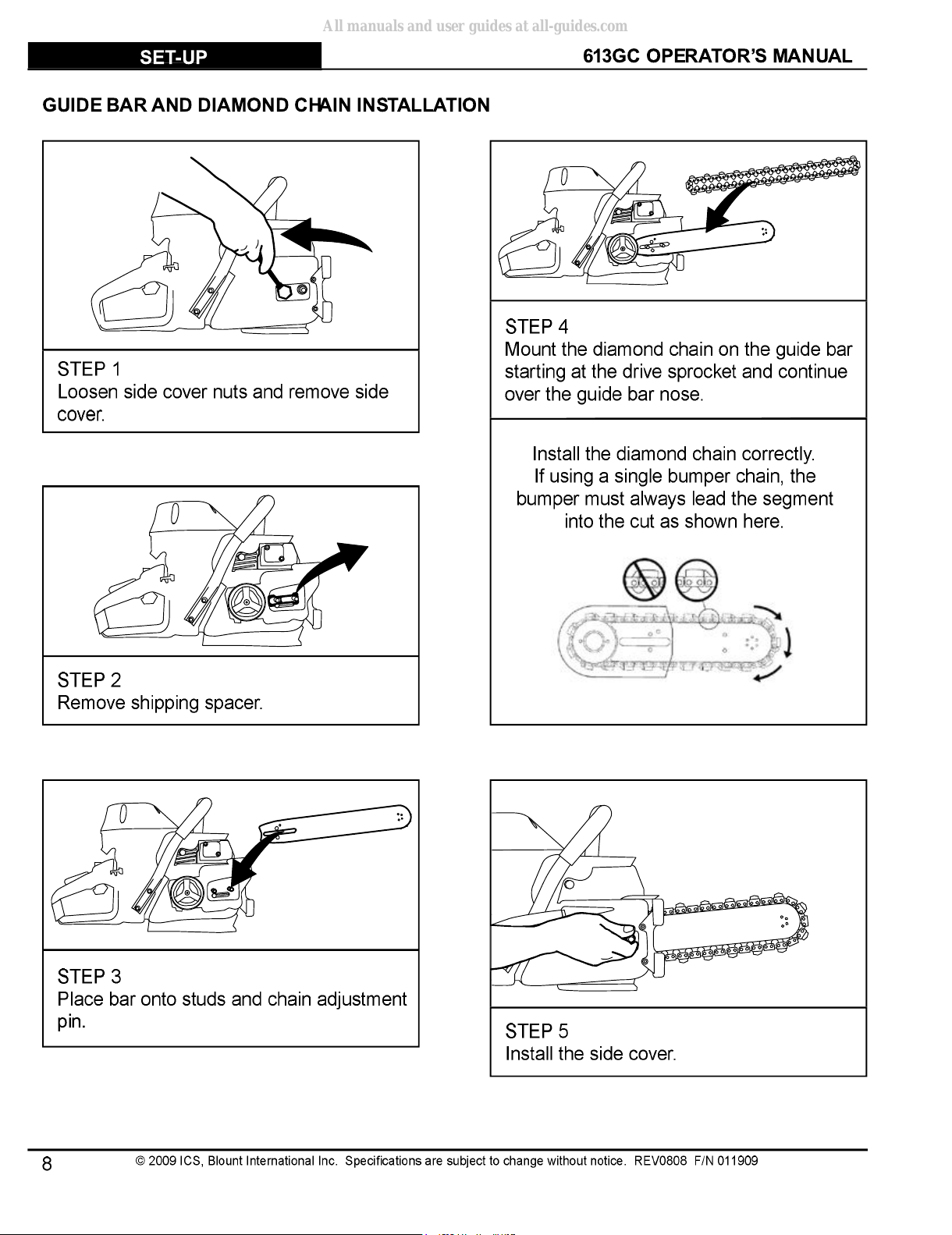

GUIDE BAR AND DIAMOND CHAIN INSTALLATION

pin.

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL

TITLE SET-UP

GUIDE BAR AND DIAMOND CHAIN INSTALLATION

öö ß ³»¿«®»¼ ©·¬¸±«¬ °«´´·²¹

¼±©²©¿®¼ ø»¹ò ¸¿²¹·²¹ ¾§ ¹®¿ª·¬§÷

íñìþ øïè ³³÷öö

All manuals and user guides at all-guides.com

TITLE 613GC OPERATOR’S MANUAL TITLE

SET-UP

GUIDE BAR AND DIAMOND CHAIN INSTALLATION

All manuals and user guides at all-guides.com
