SX5A AS-Interface (Communication Terminal and Repeater)

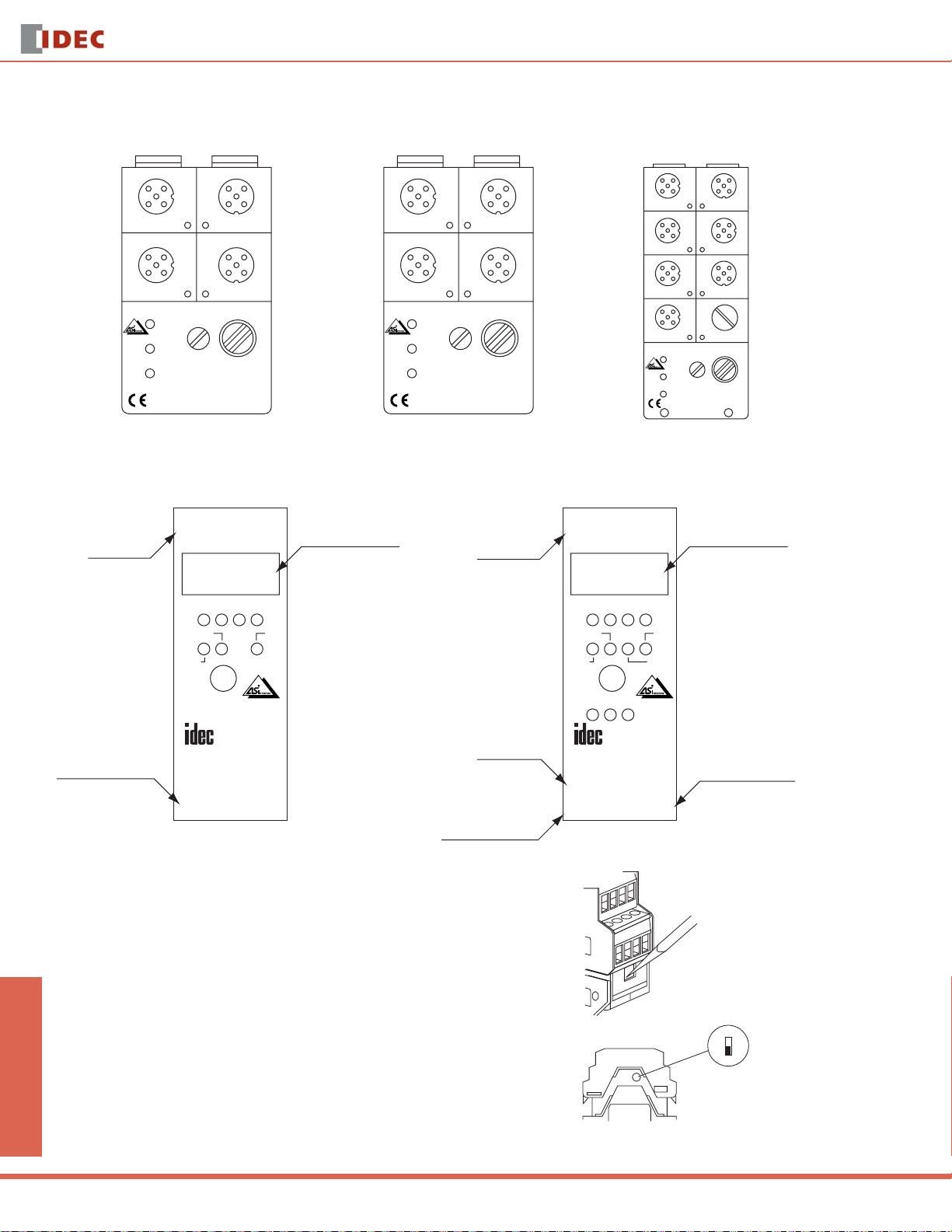

AS-Interface Communication Terminals (Slave Modules)
IP67 I/O Module
AS-Interface Ver. 2.1 compliant, capable of connecting 62 slaves
Compatible with 2- and 3-wire sensors
With AS-Interface power and input status indicators
Overload detection function on the sensor power supply
Output overload detection function (2 in/2 out model, 4 in/3 out model)
IP20 Terminal Block
AS-Interface Ver. 2.1 compliant, capable of connecting 62 slaves
Removable terminal blocks
Compatible with 2- and 3-wire sensors
AS-Interface power and input status indicators
IEC62026-2 compliant
Repeater
No address setting required.
The AS-Interface network can be extended up to 300 m.
IP65 protection
Easy connection to AS-Interface flat cables.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Part Numbers
SX5A AS-Interface Communication Terminals
Terminal I/O Specifications Part Numbers Applicable Base Module
(order separately)
Input Points Input Output Points Output
IP67 I/O
Module Connector
4 NPN — — SX5A-SWN40S02 SX5A-B3FF
4 PNP — — SX5A-SWN40K02N SX5A-B3FF
2 PNP 2 PNP SX5A-SWM22KS2N SX5A-B3FF
4 PNP 3 PNP SX5A-SWM43KS2N SX5A-B2FF
IP20 I/O
Module Terminal Block
4 NPN — — SX5A-SSN40S0N —
4 PNP — — SX5A-SSN40K0N —
4 PNP 3 PNP SX5A-SSM43KSN —
Base Modules
Applicable I/O Module Description Part Numbers
Base Module for IP67
I/O Module
4 in model
2 in/2 out model Substructure module to connect to AS-Interface
flat cables for AS-Interface bus and auxiliary power
SX5A-B3FF
4 in/3 out model SX5A-B2FF
Repeater
Description Part Number
A repeater can extend the AS-Interface Network up
to 300m. SX5A-RP1
