iFusion SmartStation Bedienungsanleitung
SmartStation
User Manual
For iFusion documentation in other languages and general support information, visit
http://www.thefusionphone.com
Copyright © 2011
All rights reserved. No part of this User’s Manual may be reproduced or copied by any
means without the consent of the manufacturer. The information and specification in this
document may change without prior notice.
Bluetooth trademarks are owned by Bluetooth SIG, Inc. and used under license.
FaceTime is a trademark of Apple, Inc.
i
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Bluetooth connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Preparing the iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Preparing the iFusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Pairing the devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Making and answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching a call to the iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching a call to the iFusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting the volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Playing music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Synchronizing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using iFusion with FaceTime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WEEE Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RoHS Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
iFusion End-user License Agreement . . . . . . . . . . . . . . . . . . . . . . . . 16
ii
iFusion User Manual 1
Introduction
Congratulations on your purchase of iFusion.
This manual shows you how to pair your iPhone with the iFusion, make and receive calls,
listen to music, charge your iPhone, and synchronize iPhone data with your computer.
Front view
1 Hook switch Handset on-hook, off-hook switch.
2
Bluetooth button – Touch and hold (for 5 seconds) to
enter pairing mode.
Rapid blinking light: Pairing
Slow blinking light: Reconnecting
Steady light: Connected
3
Mute button – Touch to mute the handset or speaker.
To unmute the call, touch it again.
Red light: Muted
2 iFusion User Manual
Back view
4
Speaker button – Touch to make a call using the
speaker.
Green light: Hands-free mode (speaker on)
5Volume Down button – Touch to lower the volume.
Rapid blinking: Minimum reached
6Volume Up button – Touch to raise the volume.
Rapid blinking: Maximum reached
7Docking
cradle
Where you connect the iPhone to the iFusion. While
docked, the iPhone charges.
1 Power port Connects the power cord.
2 Mini USB port Connects the iFusion to a computer. Use a mini
USB male to standard USB male cable.
3Stereo 3.5mm
audio jack Connects external speakers (for music).
iFusion User Manual 3
Bluetooth connection
You will need to pair your iPhone with the iFusion. iFusion is compatible with Bluetooth
2.1+EDR. The iFusion provides Bluetooth support for iPhones up to approximately 10
meters (33 feet) away. Direct line-of-sight provides a longer range.
Here is some general information about this Bluetooth connection:
• After the devices have been paired, the iFusion saves the connection details in
memory. Multiple iPhones can be paired with the iFusion, but only one iPhone can
be actively connected at a time.
• The connection is severed once you take the iPhone out of range of the iFusion.
When you bring the iPhone back within range, the devices automatically reconnect.
For optimal Bluetooth performance with the iFusion:
• Keep the iPhone docked in the iFusion.
• Position the iFusion away from radio frequency (RF) emission sources such as lap-
tops or other electronic equipment, because such devices can interfere with Blue-
tooth communications.
Note: If more than one Bluetooth device is connected to the iPhone, it may take several
seconds for the iPhone to connect the voice path to the iFusion for incoming calls.
For this reason, we recommend that you disconnect all other bluetooth devices
from the iPhone.
4 Handset port Connects the handset cord to the iFusion.
5 Cable guide Holds the handset cord in place, so that the
iFusion does not wobble on the desk.
4 iFusion User Manual

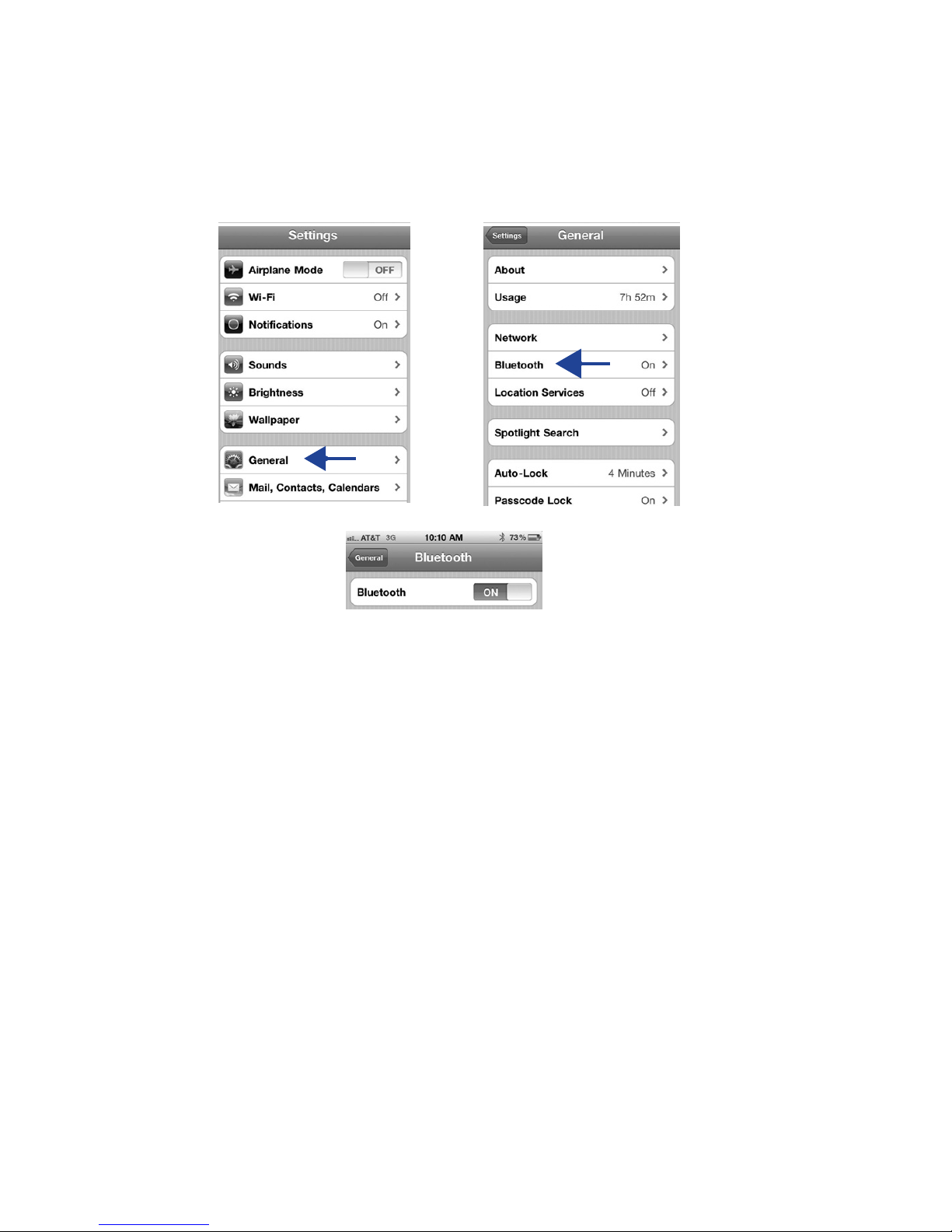

1. Preparing the iPhone
On the iPhone, go to Settings > General > Bluetooth.Turn on Bluetooth. The iPhone is
now discoverable, and it searches for other Bluetooth devices nearby.
2. Preparing the iFusion
Touch and hold the Bluetooth button on the iFusion for three to five seconds, until the but-
ton blinks rapidly. The iFusion is now in pairing mode.
Note: If the pairing process is not completed within 60 seconds, the Bluetooth button
blinks slowly again, indicating that the process was cancelled. Repeat step 2.

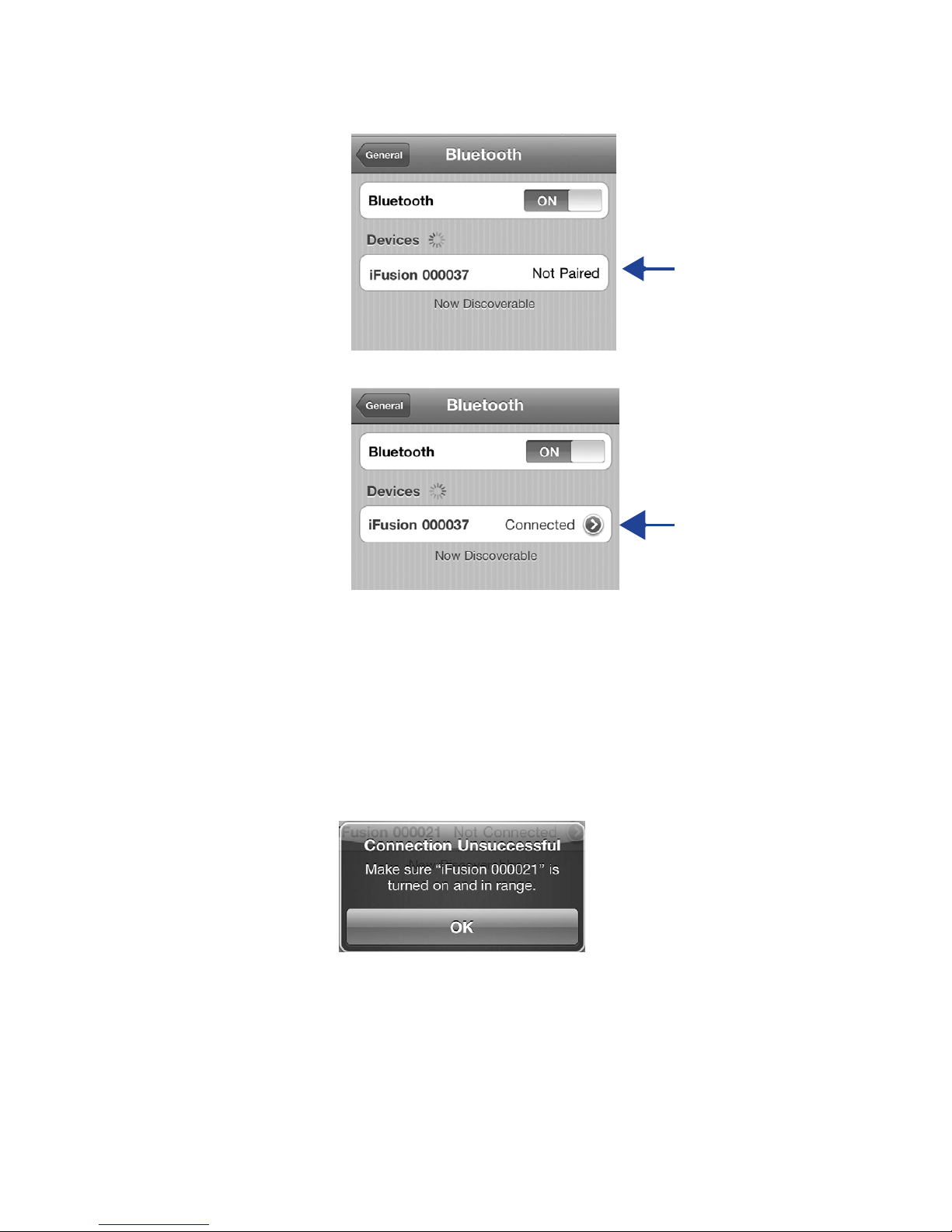

3. Pairing the devices
Once the iFusion is listed on the iPhone screen, tap iFusion xxxxxx to pair the two
devices. On the iPhone, the status changes from Not Paired to Connected when the
Bluetooth connection has been made.
iFusion User Manual 5
After the connection has been established, the Bluetooth button on the iFusion glows with
a steady blue light.
If the connection is lost, the button blinks slowly. When you bring the iPhone back into
range, the light glows a steady blue again after it reconnects.
If you try to connect an iPhone to the iFusion while another iPhone is already connected,
the connection request is refused and you see an error message.
6 iFusion User Manual
Making and answering calls
To use the iFusion, the iPhone does not have to be docked; it must be connected by Blue-
tooth and be within range of the iFusion.
When a call comes in, both the iPhone and the iFusion ring. To answer the call, either
pick up the handset or touch the Speaker button on the iFusion.
If the iPhone is docked when you make a call, the iFusion speaker automatically comes
on unless you pick up the handset. You can call a number from your iPhone’s Contacts
list, Call log, dial pad, or Favorites list.
To end a call, either touch the Speaker button on the iFusion (if you were on speaker) or
return the handset to its cradle.

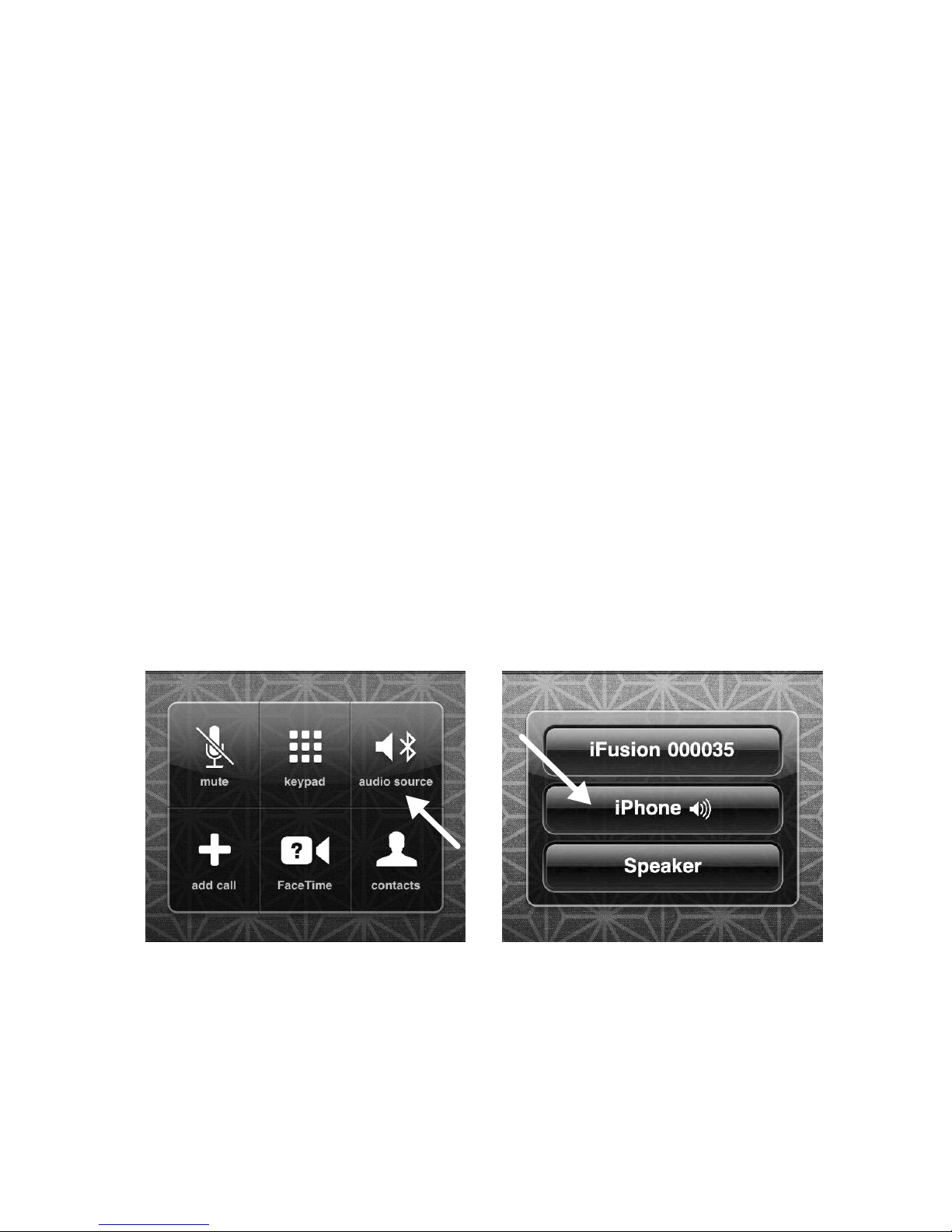

Switching a call to the iPhone
1. If the iPhone is docked, remove it from the cradle.
2. Tap the iPhone audio source button.
3. Select iPhone.
