IHome IP90 Bedienungsanleitung

Model iP90

The Home System

For Your iPhone®or iPod®

Table of Contents

Quick Start........................................................................................................................................................................1

Controls and Indicators...................................................................................................................................................2

iP90 Display......................................................................................................................................................................3

Setting Up the iP90...........................................................................................................................................................3

Using the iP90...................................................................................................................................................................5

Replacing iP90 Backup Batteries / Battery Warning.....................................................................................................6

A Consumer Guide to Product Safety ...........................................................................................................................7

Troubleshooting...............................................................................................................................................................8

Maintenance

•

Place the unit on a level surface away from sources of direct sunlight or excessive heat.

•

Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should

be placed between it and the furniture.

•

Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner

or similar materials can damage the surface of the unit.

This product bears the selective sorting symbol for waste electrical and electronic equipment

(WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in

order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous

for the environment and human health due to the presence of hazardous substances.

quick start

Attach AC adaptor cable to DC jack

on back of the iP90 and plug the

other end into a wall socket.

• Press & hold the 12h/24h button

to switch between 12 and 24 hour

time display

• Press & hold the Clock Adj Button

on back until the display flashes

• Press the + or - button to set the

time. Press Clock Adj again.

• Press the + or - button to set the

year. Press Clock Adj again.

• Press + or - button to adjust the

date. Press Clock Adj again to

complete clock setting.

4: time

Press the Radio button and

press again to select AM/FM

band. Press the + or - button to

tune in a station.See page 4 for

programming presets.

5: radio

2:iPhone/iPod

Gently insert your iPhone or iPod into the dock

(iPhone/iPod must not be in a skin or case). Turn the

dock adjustment knob until the iPhone/iPod is held

firmly inplace (do not overtighten). The iPhone/iPod will

charge while docked. Press the Button on the iP90

to play your iPhone/iPod.

Push plug head in

to change plugs

Push button to

release plug head

line-inamantenna

DC7.5V clockadj./time syncDST

-1 +1

12h/24h

line-inamantenna

DC7.5V clockadj./time syncDST

-1 +1

12h/24h

Snap AM antenna into provided

stand, then plug antenna cable

into socket on back of iP90.

Move antenna 12” away.

Extend FM antenna.

1: power

3: antennas

snooze/dimmer

sleepeq

Dock Adjust Knob

line-inam antennaDC 7.5V clock adj./time syncST

-1 +1

12h/24h

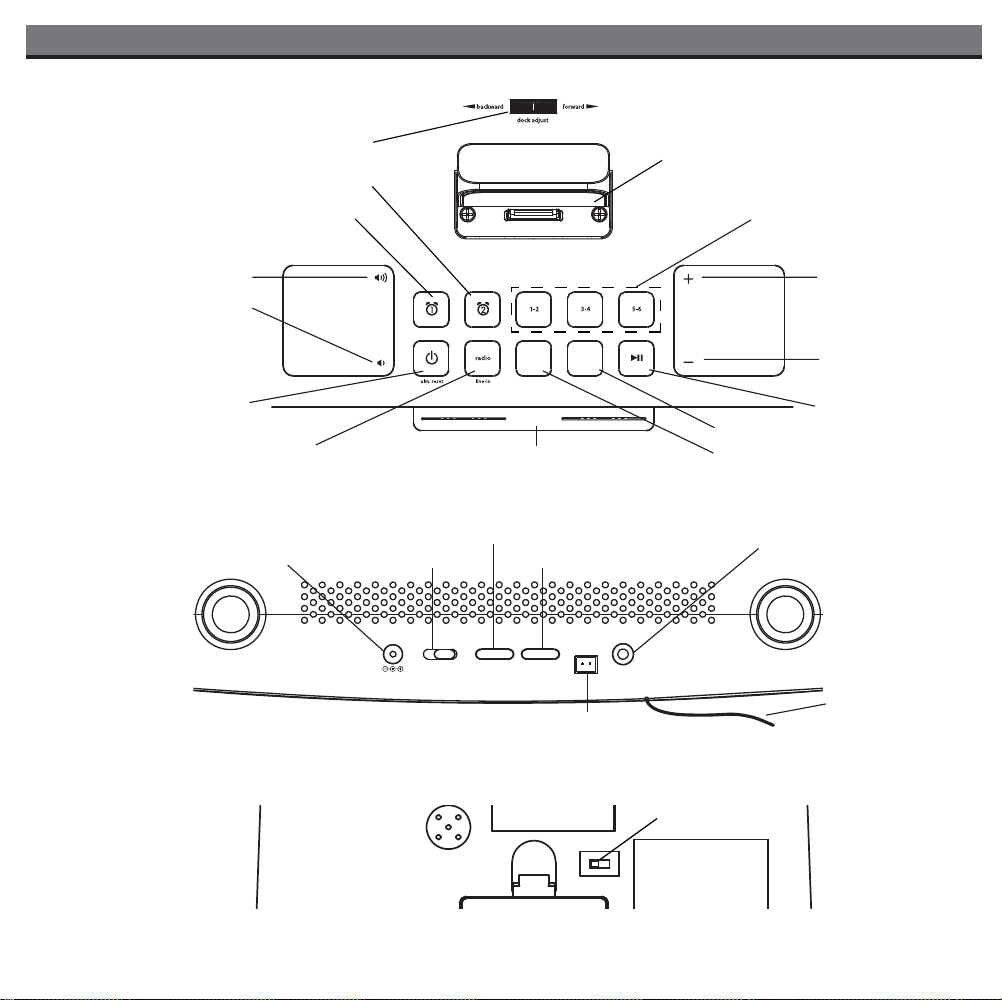

Controls and Indicators

AM Loop Antenna socket

AC Adaptor Jack 12h/24h Button

ST switch

Clock Adjust /Time Sync Button Line-in Jack

FM Antenna

Snooze/Dimmer Button

Alarm 1 Button

Volume + Button

Volume - Button

Radio/line-in Button

Preset Buttons 1-6

Sleep Button

Alarm Reset / Power Button

Set + Button,

skip/search FWD

Set - Button,

skip/search REV

EQ Button

Alarm 2 Button Dock

Rear Panel

Bottom Panel

Top Panel

Play/Pause Button

mode

Normal Hotel

Low

Hotel

Hotel Switch

Setting Up the iP90

iP90 Display

Alarm Indicators

Battery Low Indicator

Time Display

PM Indicator

AM Indicator

NOTE: AM/PM indicators will not appear

when clock is set to 24 hour display mode Radio / Alarm Time / iPod Display

Connect iP90 to Power Source

Plug the AC adaptor cable into the AC Adaptor Jack and the other end into a standard 100-240 VAC wall socket. Adaptor must be

plugged in to operate. The iP90 does not operate on batteries.

Using the Hotel Switch

The iP90 has a 3 position switch on the bottom of the unit. For regular home use, keep the switch in Normal position. Hotel Low lowers

the output of the unit and Hotel High maintains regular output. While in either Hotel mode:

a) Clock adjust and 12h/24h buttons are disabled

b) Radio presets can be accessed, but not programmed

c) Alarms operate as single day alarms (will not automatically come on the next day even ifAlarm Reset is pressed), 7-5-2 operation

is disabled, and wake to playlist is disabled

d) The remote control sensor is disabled

Setting the Clock Time

Time Display Options

Press and hold the 12H/24H Button at any time to toggle between displaying the time in 12 hour (AM and PM) mode or 24 hour

mode

Setting the Clock

a) Slide the ST switch to adjust for Summer Time (+1 for Summer time, -1 for Standard time).

b) Press and hold the Clock Adjust Button located on the back of the unit. The clock display will flash.

c) Press the + or - Button until the current time is displayed.

Press the Clock Adjust Button to accept the time. The year display will flash.

Press the + or - Button to adjust the year and press the Clock Adjust Button. The date display will flash.

f) Press the + or - Button to adjust the date and press the Clock Adjust Button. Two beeps will indicate clock setting is complete.

Setting Up the iP90

Setting Time Using iPhone/iPod Time Sync

The iP90 Time Sync feature allows you to sync the time setting on the iP90 to the time from your iPhone or recent model iPod (iPod

touch, iPod nano and iPod Classic; older iPod models such as iPod mini do not support this feature).

1. Press the Clock Adjust/Time Sync Button located at the back of the unit, “Time Sync” flashes on the lower part of the display.

2. Once sync is completed,“Time Updated” will appear on the display.

3. If sync was not successful, “Sync Failed” will appear on the display. If this happens, please try again, with a different iPhone/iPod if

needed. If sync still fails, please set time manually (see below).

NOTE: iPhone time is automatically updated to the correct time via cell phone towers. The time on your iPod is accurate only to the time

on the computer the last time the iPod was synced to it. It’s possible to have up to 59 seconds difference between the iP90 and synced

iPhone/iPod.

Setting Time and Calendar manually

1. Press and hold the Clock Adjust/Time Sync Button located at the back of the unit until the time flashes on the display.

2. Press the + or - Button to the correct time. Remember to set the correct AM or PM time. The AM/PM Indicators appear to the left of

the time display.

3. Press the Clock Adjust/Time Sync Button again. The year will flash. Press the + or - Button until the current year is displayed.

4. Press the Clock Adjust Button again. The month and date will flash. Press the + or - Button until the current month/date is displayed.

5. Press the Clock Adjust/Time Sync Button again (or no button within 10 seconds) to exit the time/calendar setting mode.

Using the Alarms

iP90 has a dual alarm system so you can set two separate alarms to different alarm times, wake-to sources and frequencies (daily,

weekdays or weekend).

Setting the Alarms

1. Press and hold the or Button until the alarm time flashes on the lower part of the display. Press the + or - Button to set the

alarm time. Remember to set the correct AM or PM time.

2. Press the Alarm Button again to confirm the desired alarm time and then press the + or - Button to set the alarm frequency (7 = the

whole week, 5 = weekdays, 2 = weekends only).

3. Press the Alarm Button again and then press the + or - Button to select an alarm source to wake to: iPod (includes iPhone), Radio,

Buzzer or Playlist. Note: to wake to playlist, you must create a playlist named “iHome”. The iP90 will play music randomly from within

the “iHome” playlist.

5. For wake to radio: after selecting Radio as wake to source, press the Alarm Button and then press the + or - Button to select AM

or FM band. Press the Alarm Button again and press the + or - Button to select a radio station or press one of the preset buttons to

wake to a preset radio station (see Using Radio on page 4 for details on setting radio stations and presets).

6. Press the Alarm button again (or no button within 10 seconds) to exit the alarm setting mode. The alarm will be armed once set and

the corresponding alarm icon will light up. The lower part of the display will show the earliest set alarm time.

7. If wake to source is set to iPod but no iPhone/iPod is docked at the set alarm time, the iP90 will default to buzzer alarm.

Using the iP90

Reviewing, Arming and Disarming Alarm (Turn Alarm Function On and Off)

1. Once an alarm is armed, the lower part of the display will show the alarm time. If more then one alarm is armed, the earliest alarm

time will show.

2. To review the alarm time, press an alarm button once. The related alarm time will show on the lower part of the display.

3. During alarm review, press the alarm button once to toggle it on or off. If the alarm is armed, the related alarm icon will light up.

Resetting the Alarm to Come on the Next Day

1. When the alarm is sounding, press the Button to stop alarm and reset it to come on the next set day. For example, if alarm is set

for 5 days and you press the alarm reset on Friday, the alarm will come on again on Monday, not Saturday.

Snooze Operation

1. Press and hold the Snooze/Dimmer Button for a few seconds until the snooze time flashes. Press the + or - Button to set the snooze

timer from 1 to 29 minutes.

2. Press the Snooze/Dimmer Button after an alarm sounds. The alarm will be silenced for the set snooze duration time then sound

again. Snooze can be pressed several times during the 1 hour alarm cycle.

Sure Alarm

The iP90 has a sure alarm feature. If backup batteries are installed, the buzzer alarm will still sound in the event of a power failure.

Charging your iPhone/iPod

Note: Please make sure you are using the correct insert for your iPhone/iPod and that it is properly docked into the iP90. Failure to do

so may damage your iPhone/iPod.

1. While an iPhone/iPod is docked in the unit and the unit is connected to AC power, it recharges (until fully charged).

Listening to iPhone/iPod

1. Dock the already playing iPhone/iPod in Dock. The iP90 will automatically turn on and you will hear the music playing from your

iPhone/iPod.

Note: If the playing song/music loudness is too low on the iPod itself, the iP90 may not detect iPod is in play mode. Press the Button

to play it.

2. When an iPhone/iPod is docked and in standby mode, press the Button to play it. The lower part of the display will showing “iPod”

of iPod playing mode.

4. Press the Button again to pause play; press again to resume it.

5. Press the + or - Button to skip to the next or previous track on your iPhone/iPod. Press and hold the + or - Button to search within a

track.

6. Press the or to adjust the system volume.

7. Press the EQ Button to select and press the + or - Button to set Treble, Bass,3D Sound on/off and Left/Right Balance.

8. To turn off the unit, press the Button. An iPhone/iPod will continue charging while docked.

Listening to Radio

Setting up Antenna

Extend FM wire antenna fully for best reception. Do not strip, alter or attach to other antennas.

For USA user, snap AM antenna cable into AM Loop Antenna Socket on back of unit. Move antenna 12” away from unit for best

reception.

Tuning and Playing the Radio

1. Press the Radio Button as needed to turn on iP90 and cycle through FM radio, AM radio and Line-in modes.

2. When the desired FM or AM mode is selected, press the + or - Button to tune the radio to a desired station.The current radio frequency

appears in the lower right of the display. Press and hold the + or - Button to scan for the next clear station.

3. To memorize a station as a preset, use the +or – Buttons to tune to the first station you wish to memorize. When the desired station

appears in the display, press and hold the Preset 1-2 button until PRE 1 begins flashing in the display. Press again to alternately

switch between Preset 1 and Preset 2 if desired, then release the button. After 5 seconds the PRE 1 or PRE 2 indicator disappears

and your station is saved in Preset Memory 1 or 2. Repeat this procedure to enter stations in Preset Memories 3 through 6. You may

then press the Radio Button to change bands and memorize up to 6 additional stations.

4. To access a preset station, press the desired Preset Button once (for odd number presets) or twice (for even number presets).

5. Press the or Button to adjust the system volume.

6. Press the EQ Button to select and press the + or - Button to set Treble, Bass,3D Sound on/off and Left/Right Balance.

7. To turn off the unit, press the Button. An iPhone/iPod will continue charging while docked.

Using the iP90

Using the Line-in Jack

You can play any iPod without a docking port or other MP3 player or portable audio device through the iP90 via the Line-in Jack.

1. Plug one end of a standard audio patch cord (not included) into the headphone or line-out jack on your device and the other end of

the patch cord into the iP90 Line-in Jack located on the back of the unit.

2. Press the Radio Button until “Line-in” appears in the lower part of the display.

3. Turn on and play your device.

4. Press the or to adjust the system volume. You may need to adjust the volume on your external device as well.

5. Press the EQ Button to select and press the + or - Button to set Treble, Bass,3D Sound on/off and Left/Right Balance.

6. To turn off the unit, press the Button. Please remember to turn off your device, too.

Sleep Operation

Sleep mode lets you sleep to your iPhone/Pod or radio, gradually lowering the volume until the unit shuts off at the selected time.

1. Press the Sleep Button to enter sleep mode. The sleep time will show in the lower display.

2. Press the Sleep Button again as needed to adjust the sleep timer from 120, 90, 60, 30 or 15 minutes.

3. When the display changes back to show the real time, press the Sleep Button once to show the sleep time remaining. Pressing it

again will change sleep time to next lowest increment.

4. iP90 has independent volume setting for sleep mode so you can adjust the sleeping volume without affecting the normal volume. The

sleep volume will remain at that level the next time you enter sleep mode until controls are changed.

5. To stop listening at any time, press the Button to turn unit off.

Dimmer Operation

During normal operation, press the Snooze/Dimmer Button to control the brightness of the LCD display.

Using the iP90 in Other Countries

Different regions of the world use different FM radio frequency steps and ranges. You will need to select the one that matches the

standards in your region (USA, UK, EUROPE, JAPAN, AUSTRALIA, or CHINA). The default setting is USA; if you live in the US, you

may skip this section.

1. Make sure the iP90 is OFF (not playing in any mode). Press and hold the Radio Button for about 5 seconds until “Radio xxx” appears

in the lower part of display. Press the + or - Button to set the “xxx” to your region.

2. Press the Radio Button again (or no button within 5 seconds) to exit the radio frequency setting mode.

Install/Replace Backup Battery

The iP90 uses a backup battery system to provide continuous alarm operation and clock settings in the

event of a power failure. If the Battery Low Icon located on the right of the display is flashing, it is time

to replace the backup batteries. Please make sure the AC adaptor is connected, otherwise all settings

may be lost during battery replacement.

Open the battery compartment cover located on the bottom of the unit. Insert 2 “AA” batteries as indicated.

We recommend the use of alkaline batteries for longer life.

Replacing iP90 Backup Batteries

Battery Warning

For models that require more than one battery

• Do not mix with used or other battery types/brands

• Replace all batteries at the same time

• Do not open batteries

• Do not dispose of in fire

• Do not heat above 75ºC (167ºF)

• Do not expose contents to water

• Do not charge or recharge

• Do not install backwards

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However,

improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions

carefully before installation and use, and keep these instructions handy for future reference. Take special note of all

warnings listed in these instructions and on the unit.

1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink,

laundry tub, swimming pool or in a wet basement.

2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation.

For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also,

it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air

through the ventilation openings.

3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances

(including amplifiers) that produce heat.

4. Power Sources – The unit should be connected to a power supply only of the type described in the operating

instructions or as marked on the appliance.

5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or

pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the

unit to where it is plugged into an AC socket.

6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for

cleaning instructions.

7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any

openings or vents located on the product.

8. Attachments – Do not use attachments not recommended by the product manufacturer.

9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable

system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent

damage to the product due to lightning and power-line surges.

10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result

in a risk of fire or electric shock.

11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:

A. the power supply cable or plug has been damaged.

B. objects have fallen into or liquid has been spilled into the enclosure.

C. the unit has been exposed to rain.

D. the unit has been dropped or the enclosure damaged.

E. the unit exhibits a marked change in performance or does not operate normally.

12. Antenna – Do not connect an external antenna to the unit (other than that provided).

13. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the

power cable should be unplugged from the unit to prevent damage or corrosion.

14. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating

instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Questions? Visit www.ihomeintl.com

A Consumer Guide to Product Safety

iP90 does not turn on AC adaptor isn't plugged into a working wall

socket or not plugged into the power supply

jack on back of the unit

Plug the AC adaptor into a working wall socket and plug the connector

into the supply jack on the unit

iP90 requires a reset If unit is plugged in and doesn't respond, try resetting the unit by

following these steps:

a) remove iPhone/iPod from dock

b) unplug unit from power source

c) remove back up batteries

d) wait a few minutes, then resume use

iPhone/iPod is not docked properly Remove your iPhone/iPod from the dock and check for obstruction on

the connectors in the dock and on your iPhone/iPod. Then reseat it in

the dock.

Battery Low icon

always flashing Batteries are weak Replace with new batteries

Batteries were not installed properly Check to make sure the polarity ( + and – ends) matches the diagram

in the battery compartment

iPhone/iPod does not

respond to the unit/iPod

is playing but no sound

comes out

iPhone/iPod is not docked properly Remove your iPhone/iPod from the dock and check for obstruction on

the connectors in the dock and on your iPhone/iPod. Then reseat it in

the dock.

Your iPhone/iPod software is too old Upgrade software on your iPhone/iPod via iTunes on your computer

iPhone/iPod is locked up/plays but no sound

comes out

Check the volume setting. Make sure your iPhone/iPod is working

properly before docking into the unit. Please refer to your

iPhone/iPod manual for details. See above for software upgrade

information.

You may need to reset your iPhone/iPod. Refer to your iPhone

or iPod user guide for details on how to perform a reset.

Using 1

or 2

generation iPod, iPod Shuffle or

other devices. iP90 cannot control those iPod models or other devices.

iPhone/iPod didn’t

charge up iPhone/iPod is not installed properly Remove your iPhone/iPod from the dock and check for obstruction on

the connectors in the dock and on your iPhone/iPod. Then reseat it in

the dock.

iPhone/iPod is locked up/ frozen

iPhone/iPod battery has problem Please make sure your iPhone/iPod is working properly before docking

into the unit. Please refer to your iPhone/iPod manual for details.

No AM band radio

sound but others OK AM loop antenna is not connected to the unit Plug the AM loop antenna connector to the jack on the back of the unit

AM band radio is very

noisy

Time sync didn’t work

AM loop antenna isn’t located properly

Older iPod models such as

iPod mini do

not

support time sync function

Move the AM loop antenna away from the main unit AC adaptor and

rotate it for best reception

Make sure you are using an iPhone or newer iPod such as touch,

nano or classic. If not available, set time manually (see page 3).

Troubleshooting

Solution

Symptom Possible Problem

No sound from iP90 Volume is set too low on iP90 Make sure volume is turned up

Move unit away from potential sources of external interference such as

computers, modems, wireless devices (routers) or fluorescent light.

iP90/iPhone/iPod

performance is erratic The iP90 is reacting to external interference

iP90 doesn’t respond

Andere Handbücher für iP90

Inhaltsverzeichnis

Andere iHome DJ-Equipment Handbücher

iHome

iHome iP9 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung

iHome iP90 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken
