WELCOME
1” Tweeters
iPod/iPhone Bumper
Bumper Adjust Knob
4” Woofers
Note: Avoid
touching these
speakers
Remote Control
Dock
Power Adaptor
Thank you for choosing the iHome Studio Series featuring
Bongiovi Acoustics DPS. This user guide will get you up and
running quickly and provide helpful hints to maximize enjoyment.
For more information about this and other iHome products, please
visit www.ihomeaudio.com
2
Place unit on a stable surface. Plug the power adaptor into the
AC jack on back of the unit and the other end into a wall socket.
Remove the remote control and other items from package.

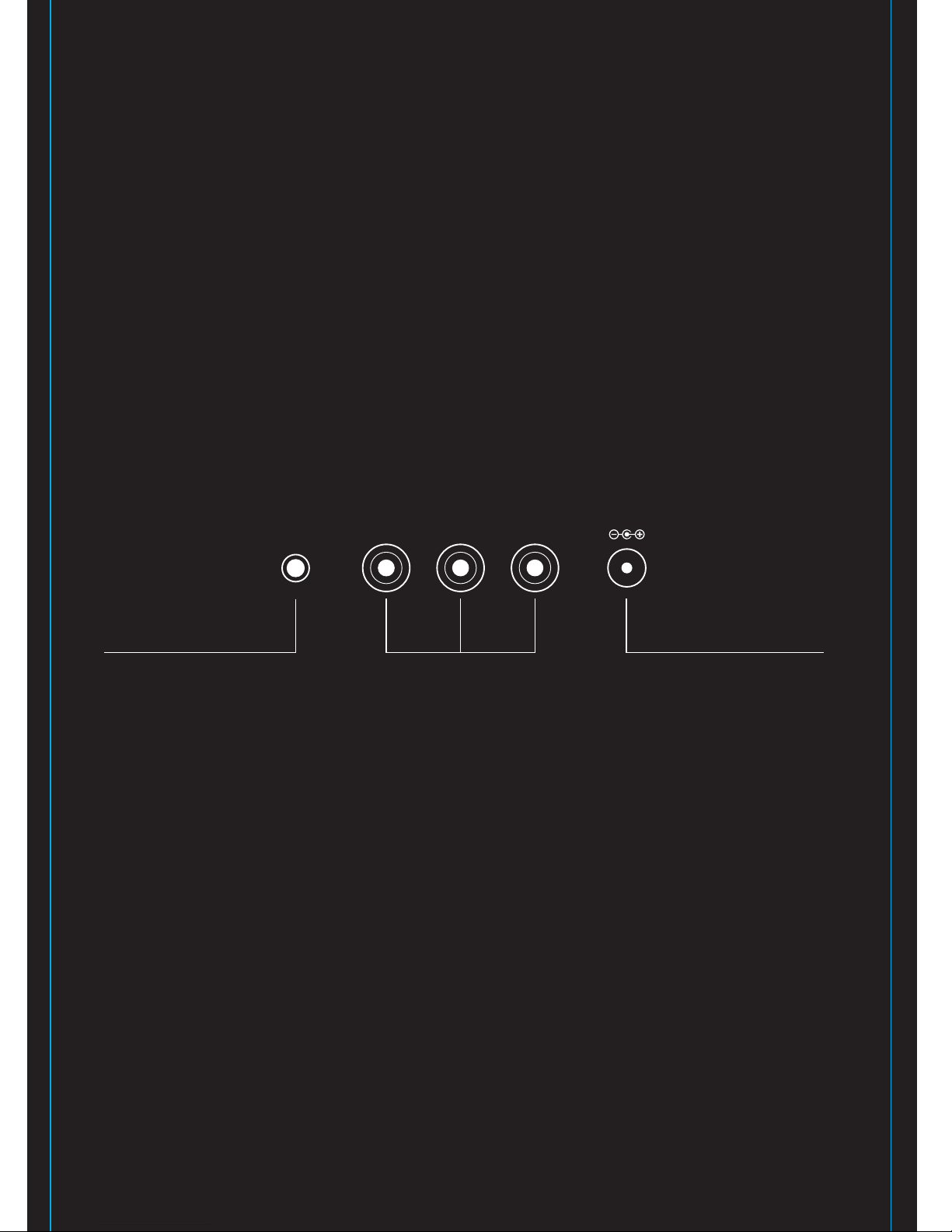

Component Video Out
Line-in YPBPR
Line-in for plugging in
other audio devices.
For details, see page 6.
Component video jacks
for displaying videos on
your iPod/iPhone to TV
(cord not included)
For details, see page 7.
AC adaptor jack for
powering unit.
GETTING STARTED
3
MAIN CONTROLS
BONGIOVI DPS
Power Button: Turn
unit on/off Bongiovi DPS: Turn
DPS audio enhancement on/off
Decrease volume Increase volume
The iHome Studio Series featuring Bongiovi Acoustics DPS
(Digital Power Station) represents a genuine breakthrough in
audio processing. This unique and powerful processor, years in
the making, was developed by a team of audio engineers that
have over 40 years of experience in the music and motion
picture recording industries. Audio is digitally restored in real
time, adding missing harmonics, improving clarity, presence,
and bass resonance. Your music comes alive in ways never
before possible.
iPHONE & iPOD
Docking & Charging your iPhone or iPod
Make sure your iPod/iPhone’s firmware is up to date via iTunes
before use. Remove your iPod/iPhone from case or skin before
docking. Carefully dock your iPod/iPhone onto the dock. Turn the
Bumper Adjust Knob on the back of the unit until the bumper
touches the back of your iPod/iPhone. Bumper should not push
your iPod/iPhone too far forward. Your iPhone or iPod will charge
while docked.
Listening to iPhone or iPod
Press the Power Button to turn the unit on. Press Play on iPhone
or iPod to listen to music. Adjust levels with - or + Buttons. Use
the Remote control for further adjustments. When unit is off,
docking an already playing iPhone or iPod will turn it on.
4
5
REMOTE CONTROL
Installing/Replacing the Remote Control Battery
The remote control battery is already installed at the factory. When the remote
control stops operating or its range seems reduced, replace the battery with a
new one. The battery door is located on the back of the remote. Slide the door to
remove it. Remove old battery. Replace with new CR2032 battery, making sure “+”
sign is facing out. Replace battery door. Dispose of battery properly.
entermenu
bass treble
reset
mute
Turn repeat on/off
Power on/off
Turn shuffle on/off
Turn Bongiovi DPS on/off
Reverse track/fast reverse
iPod navigate “menu”
Decrease volume
Play/pause
Forward track/fast forward
iPod navigate “up” & “down”
iPod navigate “enter”
Increase volume
Mute sound
Adjust treble level up/down
Reset treble and bass
Adjust bass level up/down
USING LINE-IN
6
LINE-IN JACK
Connect one end of a standard stereo 3.5mm audio cable (not
included) into the line-in jack on the back of your iHome and
the other into the headphone or output jack of your audio
device. Turn the device on and press play. Press the Power
Button on the unit to turn it on. Adjust volume on your audio
device and the unit as needed. Do not play an line-in audio
device and a docked iPhone or iPod at the same time or you
will hear both sources.
7
VIDEO-OUT
Your iHome is capable of outputting video stored on your
iPod/iPhone to your television via the jacks on the rear.
Depending on your model of iPod/iPhone, the supported
video-out characteristics vary. See below.
iPod classic, 3G iPod nano, 4G iPod nano, 2G iPod touch,
iPhone 3GS: These iPod models can output progressive scan
component video.
1G iPod touch, iPhone, iPhone 3G: These models can output
interlaced scan component video.
All iPod/iPhone models also output composite video. To switch to
composite video, turn your iHome on, hold Bongiovi DPS button (on
front) and press volume down (-) button. To switch back to component
video, hold Bongiovi DPS button and press volume up (+) button.
These steps will be necessary each time you dock your iPod/iPhone.
5G iPod: Only composite video is supported.
YPBPR
For component video,
use the three jacks on rear
YPBPR
For composite video,
use only the center jack
Changed Date: Jul. 6, 09.
TROUBLESHOOTING
Symptom Possible reason Solution
Unit won’t turn on
Unit won’t
respond
iPhone/iPod does
not respond to the
unit and/or
iPhone/iPod is
playing but no
sound comes out
AC adaptor isn't plugged into
a working wall socket or not
plugged into the power jack
on back of the unit
Unit may require a reset
iPhone/iPod is not docked
properly
iPhone/iPod is not docked
properly
Your iPhone/iPod software is
too old
iPhone/iPod is locked up or
plays but no sound comes out
Plug the AC adaptor into a working wall
socket and plug the connector into the
supply jack on the unit
If unit is plugged in and doesn't respond,
try resetting the unit by following these
steps:
a) remove iPhone/iPod from dock
b) unplug unit from power source
c) wait 3 minutes, then resume use
Remove your iPhone/iPod from the dock
and check for obstruction on the
connectors in the dock and on your
iPhone/iPod. Then reseat it in the dock.
Upgrade software on your iPhone/iPod via
iTunes on your computer
Check the volume setting. Make sure your
iPhone/iPod is working properly before
docking into the unit. Please refer to your
iPhone/iPod manual for details. See above
for software upgrade information.
You may need to reset your iPhone/iPod.
Refer to your iPhone or iPod user guide for
details on how to perform a reset.
8
TROUBLESHOOTING
Symptom Possible reason Solution
Remote control is
not working
Erratic
performance
No sound
Sound distorted
iPod/iPhone
doesn’t charge up
Remote battery is weak
Remote control is out of range
External interference
Volume is too low
Volume is too high
Sound source is distorted
Bongiovi DPS and/or eq
settings are set too high
iPhone/iPod is locked up/
frozen
iPhone/iPod battery has
problem
iPhone/iPod is not docked
properly
Replace battery with a new one. Battery
type: CR2032 pancake-type battery.
Use remote within 30 feet and point at front
of unit when using.
Move unit away from potential sources of
external interference such as computers,
modems, wireless devices (routers) or
fluorescent light.
Turn volume up, using main control or remote
Turn volume down
If the iPhone/iPod original sound file (MP3) is
old or of poor quality, distortion and noise are
easily noticed with high-power speakers. Try
a different audio source such as an audio
CD.
Press “reset” on remote to set bass and
treble back to 0. Turn Bongiovi DPS off if
necessary.
Please make sure your iPhone/iPod is
working properly before docking into the unit.
Please refer to your iPhone/iPod manual for
details.
Remove your iPhone/iPod from the dock and
check for obstruction on the connectors in
the dock and on your iPhone/iPod.
9
