Introduction

Thank you for purchasing this unit. This product is designed to provide high quality wireless sound

for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device. It will also charge

and play your docked iPhone or docking iPod and delight you with its varied color displays.

Along with the included Quick Bluetooth Connection Guide,this instruction booklet explains the

basic operation and care of the unit. Please read them carefully and keep for future reference.

Maintenance

• Place the unit on a stable level surface away from sources of direct sunlight or excessive heat.

• Protect your floor/furniture when placing your unit on a natural wood and lacquered

floor/finish. A cloth or other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning

agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

SRS WOW®, which feartures TruBass®, significantly improves the playback quality of audio, delivering a

dynamic 3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.

is a registered trademarks of SRS Labs, Inc. TruBass technology is incorporated under license from SRS Labs, Inc.

FCC Information

This device complies with Part 15 of the FCC Rules, operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

FCC ID:EMOIP76 IC:986B-IP76

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:

(1) This device may not cause interference and

(2) This device must accept any interference received, including interference that may cause undesired

operation

• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada

Information FCC

Cet appareil répond aux exigences du paragraphe 15 de la loi de la Commission Fédérale sur les Communications.

L’utilisation de cet appareil doit répondre aux deux conditions suivantes: (1) Cet appareil ne doit pas provoquer

d’interférences nuisibles, et (2) cet appareil doit accepter toutes les interférences reçues, y compris les interférences

pouvant provoquer un fonctionnement non désiré

FCC ID:EMOIP67 IC:986B-IP76

Déclaration FCC quant à l'exposition à la radiation

Cet équipement est conforme aux limites FCC relatives à l'exposition à la radiation par radiofréquences établies pour

les environnements non contrôlés. Cet émetteur ne doit pas être colocalisé ou utilisé en conjonction avec tout autre

émetteur ou antenne.

Cet appareil est conforme à la norme RSS-210 des règlements relatifs aux circuits intégrés. Le fonctionnement est

sujet aux deux conditions suivantes :

1) Cet appareil ne doit pas causer d'interférences; et

2) Cet appareil doit accepter toute interférence reçue y compris les interférences qui peuvent occasionner un fonctionnement

indésiré.

• Avertissement : Tout changement ou modification apporté à cet appareil sans le consentement expresse de la partie

responsable pour la conformité peut annuler le droit de l'utilisateur d'utiliser cet appareil.

• Remarque : Cet équipement a été testé et jugé conforme aux limitations pour un appareil numérique de Classe B,

selon la Section 15 de la règlementation FCC.

Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans une installation

résidentielle. Cet équipement génère, utilise et peut émettre des fréquences radio et, s'il n'est pas installé et utilisé selon

les instructions, peut causer des interférences nuisibles aux communications radio.

Cependant, il n'existe aucune garantie que des interférences ne se produiront pas dans une installation particulière. Si

cet équipement produit des interférences nuisibles sur la réception de la radio ou de la télévision, ce que vous pouvez

facilement constater en éteignant et en rallumant l'équipement, nous vous encourageons à prendre l'une ou plusieurs des

mesures correctives suivantes :

• Réorienter ou déplacer l’antenne réceptrice,

• Éloigner davantage l'appareil du récepteur.

• Branchez l’équipement sur une prise ou un circuit auquel le récepteur n’est pas branché.

• Consultez votre revendeur ou un technicien radio/télévision qualifié pour plus d’informations.

pareils digitaux de Classe B compatible avec l’ICES-003 Canadien.

Meet Your Glowtunes

Speaker Tower

Setup Your Unit

Included

• iP76 system (main unit)

• 100-240V AC universal adaptor

• Inserts for iPhone 4/4S, iPod touch 2G/3G

and iPod Touch 4G/6G nano

• Remote control

Connect the included 100-240V AC adaptor to the AC Adaptor Jack located

on the back of the unit and connect the other end into a working wall outlet.

If the outlet is controlled by a switch, turn the switch on.

Rz16

mute

light

mode

outlet

iPod touch 2G

insert 16

iPod touch 2G/3G

iPhone 4

insert 19

Use this insert

For this

iPhone / iPod

nano 6G/touch 4G

insert 20

nano 6G/

iPod touch 4G

iPhone 4/4S

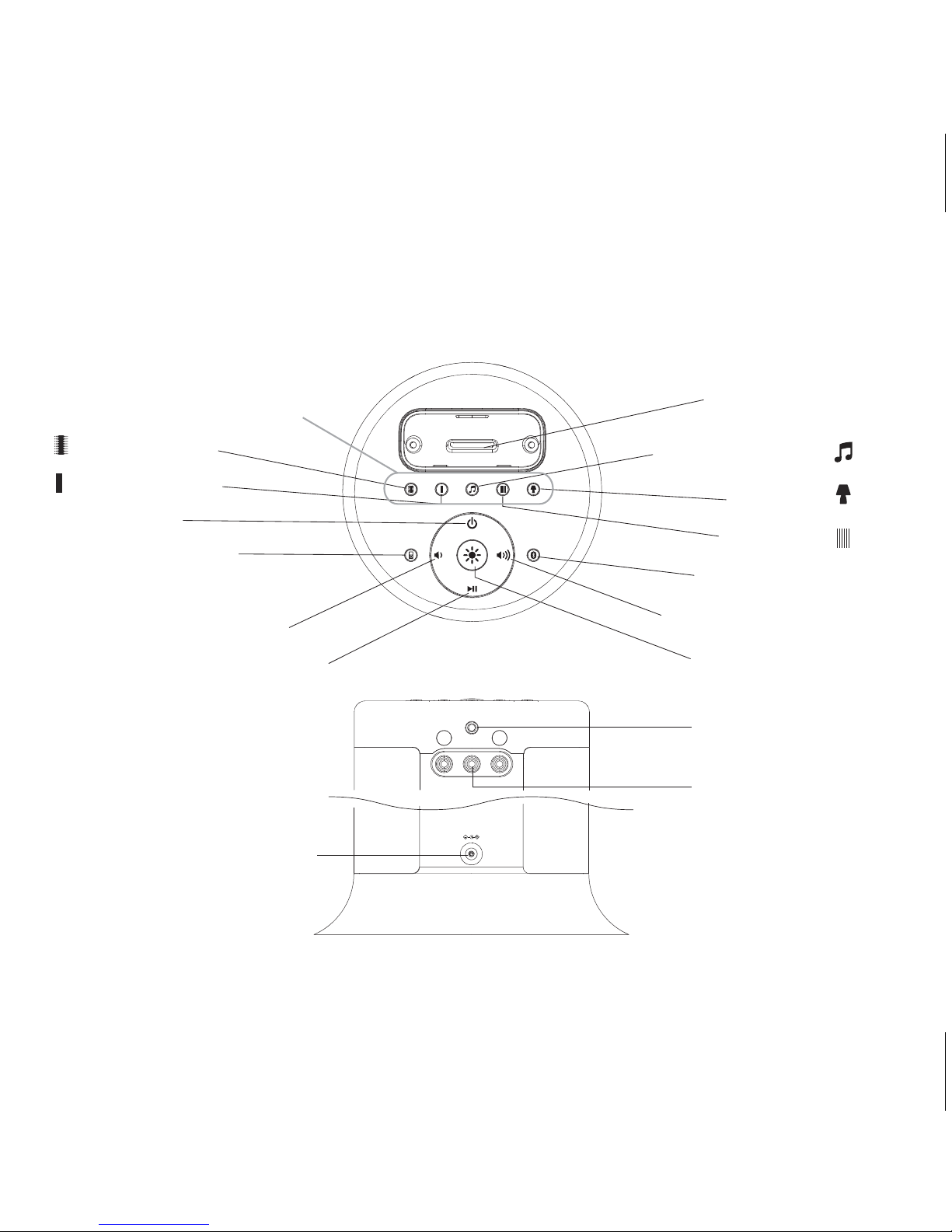

Meet Your Unit

Video Out Jacks

AC Adaptor Jack

Rear of Speaker

Top

Bottom

Top of Speaker

Aux Line-in Jack

Raise Volume Button

Bluetooth Button

Pulse to Music Button

Strobe Button

Lamp Button

Light On/Off Button

Audio Mode Button

Switch to iPhone/iPod/

Line-in mode

Lower Volume Button

Power Button

Slow Fade Button

Solid Color Button

Light Mode Buttons

Press to cycle colors/

settings for each mode Dock iPhone/iPod

Play/Pause iPhone/iPod

Component Video Out

Line-in

YPBPR

DC 12V 4A

Using Bluetooth: Pairing Your Device

NOTE: See the iP76 Bluetooth Connection Guide for complete pairing details.

1. Press the Button to turn on the unit (release when buttons light up). The Button will flash

slowly.

2. Turn on Bluetooth capability on your device and make it discoverable (see your device’s

instructions to add or setup a Bluetooth device).

3. Press and hold the Button on the unit until the button flashes blue and the unit beeps twice

to indicate pairing attempt. The Button will flash rapidly while the unit attempts to pair.

4. “iP76” should appear in your device’s list of Bluetooth devices; its status display may

indicate “not paired” or “not connected”. Select iP76 to connect. If your device asks for a

password, enter 1234 on the keyboard, keypad or display of your device. If no device is

paired within 3 minutes, the pairing attempt will stop. If this occurs, retry steps 2-4.

5. Once paired with a device, the Button light will glow steadily blue and one beep will

confirm that pairing is complete. There should also be an indication on your device that

pairing is complete. On some devices, you must then select “use as a stereo audio device”

or similar on the device’s Bluetooth menu. Once paired, your device should autolink to the

iP76 whenever within range.

Playing Audio Via Bluetooth

1. Press and release the Button to turn on the unit. The Button light will flash blue as the

unit searches for a previously paired device, and then turn solid blue when a previously

paired device is detected.

Press and release the Button on the unit to play or pause audio from your Bluetooth device.

3. Use the Volume Buttons on the unit to adjust volume.

4. When done listening, press the Button to turn the unit off.

Playing and Charging Your Docked iPhone or iPod

1. Press the Button to select iPod/Line-in mode.

2. Select the included insert for your iPhone or iPod model and press it gently into the dock.

(Inserts provide the best stability. However, if you have a different model iPhone

or iPod, you can still dock it, provided you always do so carefully and gently.If

you prefer to dock using an insert, please contact iHome at 1-800-288-2792

to purchase one.) To remove an insert, place a thumbnail in the slot, press in

and pull gently upwards.

3. Gently dock your playing iPhone or iPod into the dock on top of the unit. In a moment, the

unit will power on and you will hear the audio from your iPhone/iPod. While docked and

unit is connected to AC power source, your iPhone or iPod will charge until fully charged.

4. If your iPhone or iPod is not in play mode, press the Button to turn on the unit.

5. Press and release the Button to play or pause your iPhone/iPod. Use iPod transport

controls on your iPhone or iPod to skip tracks, advance, etc.

6. Use the Volume Buttons to adjust volume.

7. When done listening, press the Button to turn the unit off.

This unit features 3 video out jacks on the back of the unit to output

component or composite video from a docked iPhone or iPod.

Please see below to determine which video mode(s) your device

supports. Video cables are not included

• Composite (interlaced) - all iPod/iPhone models, 5G iPod ONLY

supports this mode

• Component (interlaced) - 1G iPod touch, iPhone

• Component (progressive) - iPod classic, 3G iPod nano, 4G iPod

nano, 2G iPod touch

The default video setting is Component.

• To switch into Composite Video Mode, hold down iPod Button and press Button.

• To switch back into Component Video Mode, hold down iPod Button and press Button

For Composite Video Mode, you must switch to it each time you dock your iPod/iPhone.

Using Video Out Jacks

1. Connect a 3.5 mm audio plug from a standard stereo audio cable (not included) to the Line-in jack in

the back of the unit and connect the other end to the headphone or line-out jack on your audio device.

2. Press the Button to turn on the unit (release when white light appears).

3. Press the Button to listen to audio via aux line-in. Make sure there is no playing iPhone or iPod

docked in the unit or you will hear audio from both devices.

4. Use the Volume Buttons to adjust volume. You may wish to adjust the volume on your audio

device, too.

5. When done listening, press and release the Button to turn the unit off. Remember to turn off

your audio device, too.

NOTE: the Button only works in Bluetooth or iPod modes. It does not control aux line-in devices.

Playing Audio via Aux

YPBPR

For component video,

use the three jacks on rear

YPBPR

For composite video,

use only the center jack

connect to component

video in jack on your TV

connect to composite

video in jack on your TV

P10

Using Color Modes

1. Press and release the Button as needed to turn the lamp on or off. You can also press any

color mode button to turn on the lamp in that mode. Press a color mode button repeatedly to

cycle through its settings.

2. Slow Fade - Press and release the Button as needed to cycle through color fade

effects such as fade from the bottom, fade from the top, fade from center out, etc.

3. Solid Color - Press and release the Button as needed to cycle through the seven colors

in the iP76 spectrum.

4. Pulse to Music - Press and release the Button as needed to cycle through pulse to

music modes such as pulse to solid color, pulse to all colors, etc.

5. Strobe - Press and release the Button as needed to cycle through strobing flash

effect speeds; strobe mode is white light only.

6. Lamp Mode - Press and release the Button as needed to turn lamp mode on and to

and cycle through brightness settings to the desired dimness/brightness.

When switching color modes, the unit will change to the last setting in a mode.

See the Light Mode Guide for more details on color mode settings.

Inhaltsverzeichnis

Andere iHome Lautsprechersystem Handbücher

iHome

iHome iW2 air series Bedienungsanleitung

iHome

iHome iHM10 Bedienungsanleitung

iHome

iHome iP71 Bedienungsanleitung

iHome

iHome SMARTDESIGN iC16 series Bedienungsanleitung

iHome

iHome Kineta iKN150 Bedienungsanleitung

iHome

iHome iHome iBT25 Bedienungsanleitung

iHome

iHome iW3 air series Bedienungsanleitung

iHome

iHome DF-M9 Bedienungsanleitung

iHome

iHome SMARTDESIGN series iC3 Bedienungsanleitung

iHome

iHome iW2 Leitfaden

iHome

iHome iH10 Bedienungsanleitung

iHome

iHome iHome iBT30 Bedienungsanleitung

iHome

iHome iBT297 Bedienungsanleitung

iHome

iHome iBTW39 Bedienungsanleitung

iHome

iHome IP56 Bedienungsanleitung

iHome

iHome iDN48 Bedienungsanleitung

iHome

iHome IHM18 Bedienungsanleitung

iHome

iHome IP48 Bedienungsanleitung

iHome

iHome iBN26 Bedienungsanleitung

iHome

iHome iBN6 Bedienungsanleitung

iHome

iHome iBN48 Bedienungsanleitung

iHome

iHome Kineta K3 Bedienungsanleitung

iHome

iHome iHome iBT88 Bedienungsanleitung

iHome

iHome iD48 Bedienungsanleitung

Beliebte Lautsprechersystem Handbücher anderer Marken

JVC

JVC CA-MXK5R Bedienungsanleitung

LG NB4532B Bedienungsanleitung

JVC

JVC CA-FSH100 Bedienungsanleitung

5Core

5Core Pro Series Bedienungsanleitung

EAW

EAW MQV1394e Bedienungsanleitung

Lynx

Lynx GXR-LA10A Bedienungsanleitung

iLive

iLive ITB066B Bedienungsanleitung

RDX

RDX QuickStation 4 Bedienungsanleitung

Electro-Voice

Electro-Voice S-122 Bedienungsanleitung

Sven

Sven SPS-619 GOLD Bedienungsanleitung

Pioneer

Pioneer CS-7070 Bedienungsanleitung

EAW

EAW UB82e Bedienungsanleitung

Sondpex

Sondpex Active Speaker System and Digital Music... Bedienungsanleitung

JVC

JVC NX-PN7 Bedienungsanleitung

Marshall Amplification

Marshall Amplification AR-DM61-BT Bedienungsanleitung

Yamaha

Yamaha NX-A01 - Speaker Sys Bedienungsanleitung

SE Audiotechnik

SE Audiotechnik I-LINE Bedienungsanleitung

Gemini

Gemini WRX-843 Series Bedienungsanleitung

iHome iP76 Bedienungsanleitung

Beliebte Lautsprechersystem Handbücher anderer Marken
