Ihse KVM-TEC ScalableLine Full HD Bedienerhandbuch
Misprints, errors and technical changes reserved
First
Aid
kvm-tec
Quickinstruction
ScalableLine
Full HD
Scalable
line
www.kvm-tec.com
move - zoom - cut it out - PIP
Multiview Systeme
ScalableLine - Full HD
V102022
Video error
(stripes in the
picture)
USB is not
working
No Power
(No LED)
Check the
powerplug
Is the power
supply ok? Try
another Unit.
Contact kvm-tec
support
Are the USB
Devices plugged
in correctly?
Is the USB cable
on the Local side
plugged into the
PC?
Are the USB
Devices working
directly on the
PC?
Check if local
and remote Unit
have the same
rmware
Replace the USB
cable from PC to
the Local
Extender
Check if the local
or the remote
Unit is causing
the problem by
swaping rst the
local and than the
remote Unit to
another Unit
Contact kvm-tec
support
Check if all
cables are plug-
ged in correctly
Check that the PC
is turned on, as
well as checking
the status LED
Check if the DDC is
set correctly (in menu
under point „O“)
Ist im im Switching
Manager Frontend
, „Video“ aktiv -
Video / no Video
Contact kvm-tec
support
Check if all
cables are plug-
ged in correctly
Check if local and re-
mote Unit have the
correct rmware
Check if the DDC
is set correctly (in
the menu under
point „o“)
Check if the
network switch
is setup correctly
and has enough
bandwidth
Contact kvm-tec
support
Check if other units
have the same
behaviour
kvm-tec Support
kvm-tec Support
Phone: +43 2253 81912 - 30
Phone: +43 2253 81912 - 30
No video
We are here for you to answer
your questions about installation?
Manual download www.kvm-tec.com
or
kvm-tec Installationchannel on our homepage
personally +43 2253 81912
Misprints, errors and technical changes reserved

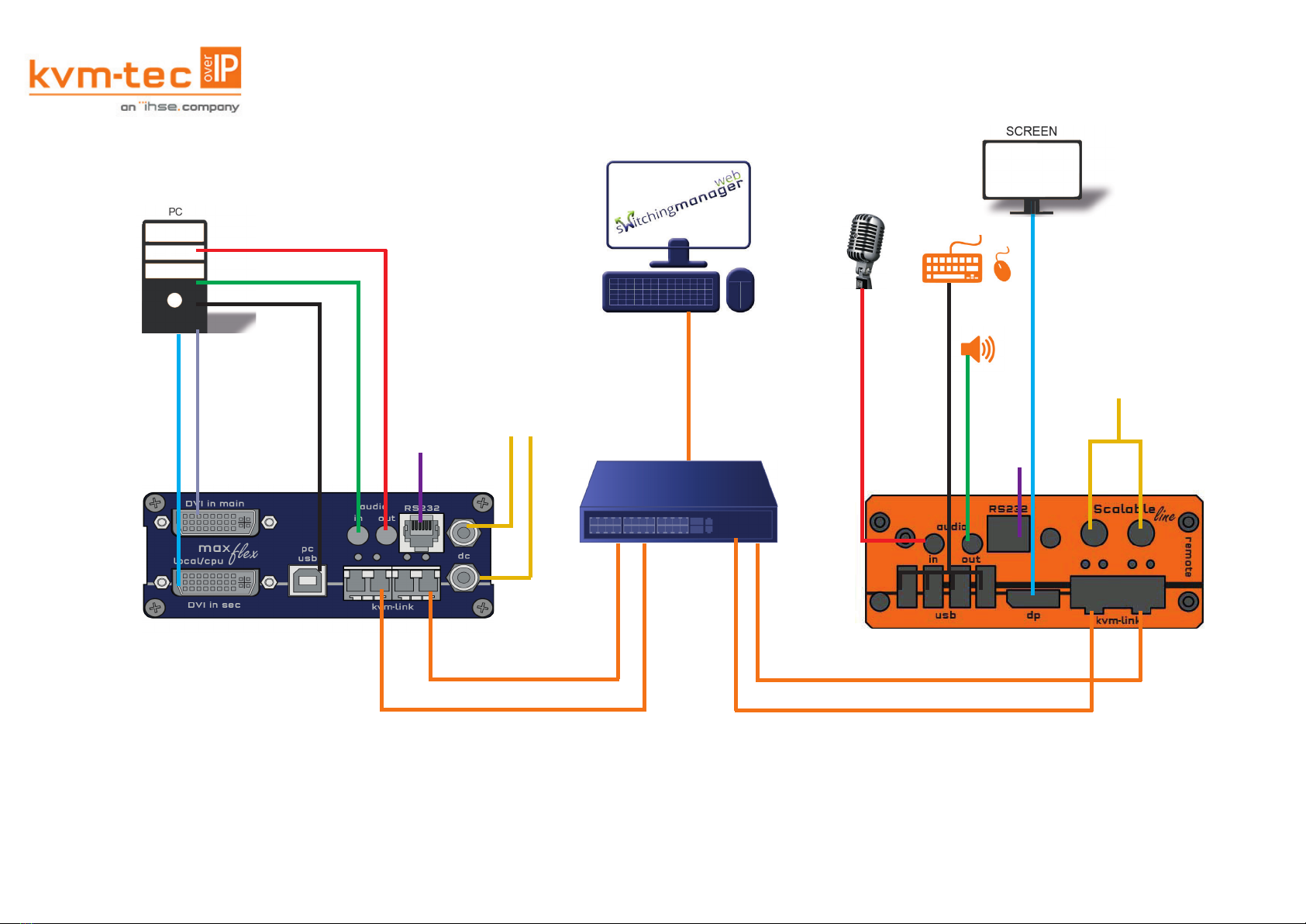

1. Connect the CON/Remote and the CPU/Local Unit with the supplied 12V 3A power supply.
2. Now connect the USB cable to a USB socket of your PC and connect the other end of the USB cable to the Local Unit.
Connect the keyboard and mouse to the Remote Unit.
3. Connect the Local and the Remote Unit with a network ber cable.
4.Connect the Local Unit with a DVI compatible cable to the PC and connect the monitor on the remote side with the DP
cable.
5. Connect the Audio cable from PC to Local Extender and connect the Audio cable from Remote Extender to Speaker
6. Connect the Audio Cable from Microphone to Remote Extender and connect the Audio cable from Local Extender to PC.
HAVE FUN - Your kvm-tec Extender is now in use for many years (MTBF approx. 10 years)!
DP out
to Monitor
USB from
keyboard and mouse
power supply
for 12V 3A
Audio out
to
loudspeaker
power supply
for 12V 3A
DVI in 1 to PC
USB to PC
Audio in from PC
Audio out
to PC
Audio in
from Microphon
RS232
plug RS232
plug
DVI in 2 to PC
DVI in 2 from PC -
not in use in this
version
Duplex multimode
OM4-fi bercable (LC)
up to 300m/984ft main link 1 Duplex multimode OM4-fi bercable (LC)
up to 300m(984ft main link 1
Duplex multimode OM4-fi bercablel (LC)
bis zu 300m main link 2
Duplex multimode OM4-fi bercable (LC)
up to 300m/984ft main link 2
10G Switch
IstheSwitchingManagerconguredcorrectly?
A test for the correct con guration of the network switch (Layer3)
is built into the Switching Manager.
You can nd this test under „General Settings
ACCESS TO MAIN MENU
Use the monitor and keyboard to access the main menu.
Access to the main menu
1. Make sure that the extenders, monitors and computer are turned on
2. Press the Scroll Lock button ve times one after the other. The main menu and the
overview of the submenus are displayed.
3. To access a submenu, press the corresponding key or navigate with the arrow keys up
and down to the corresponding line and then press Enter key.
SCREEN „OSD menu“
In the main menu you can make the following settings by selecting the corresponding letters:
Press
S System status menu system status/ current status
F Features Menu activated features
E Login login to use secure features
G Settings extender settings
SYSTEM STATUS
By pressing the „S“ key or by selecting the arrow keys, you access the status menu, where you will
nd information about hardware and software versions, as well as the activated upgrades
The menu displays information about the connection, the resolution of the video channel and the
USB status. The current Firmware version is displayed in the upper left corner.
The link status indicates whether a connection is possible.
Video and USB display data transfer status
SCREEN „System Status“
Misprints, errors and technical changes reserved
CREATE WINDOW
The following combination - Ctrl + Alt + Left mouse click - activates the rst „default“ window, which is
set to a resolution of 800x600 px.
The maximum number of windows you can activate on a scalable 4K device is 16.
You can decide later on the positioning, cropping and scaling of each window.
EDIT MODE WINDOW
By pressing the „Ctrl“ and „Alt“ keys at the same time, you activate the window editing mode, which
allows you to control the size, spacing and placement of each window.
How it works:
Our scalable devices emulate a computer mouse cursor over all windows. In this mode, you cannot
take control of any of the connected locales in any of the windows displayed on the screen. This
cursor is controlled by the mouse connected to the remote device
With this cursor you can only move and scale windows on the screen. 1.
1. stand in the window with the mouse and hold Ctrl+Alt+left mouse button to move it.
SCREEN Moving a scalable window using our KVM emulated cursor
2. Drag the corner of the window or move the mouse scroll wheel to resize it
SCREEN Scaling a scalable window using our KVM emulated cursor
EXITING WINDOW EDITING MODE
Editing Mode is automatically exited when Ctrl+Alt is released.
CONNECTING LOCALS TO WINDOWS WITHIN THE
WINDOW EDIT MODE
Connecting to locals is as easy as any other kvm-tec extender
How it works:
1- Point with the mouse to the window to which you want to connect
2- Press „Ctrl“ + „Alt“ + right mouse button
3- In the connection window that opens, select the local device that you want to connect to.
Either by arrow key + Enter or by
Mousewheel+Leftclickconnect.4-Press„Enter“toconrmyourselection
SCREEN Local Switching List
KVM-TEC
Gewerbepark
Mitterfeld 1 A
2523 Tattendorf
Austria
www.kvm-tec.com
IHSE USA LLC
1 Corp.Dr.Suite
Cranburry NJ 08512
USA
www.ihseusa.com
IHSE GMBH Asia
158Kallang
Way,#07-13A
349245 Singapore
www.ihse.com
IHSE China Co.,Ltd
Room 814
Building 3, Kezhu Road
Guangzhou PRC
www.ihse.com.cn
IHSE GmbH
Benzstr.1
88094 Oberteuringen
Germany
www.ihse.com
KVM-TEC ASIA
p +9173573 20204
KVM-TEC CHINA
P + 86 1360 122 8145
www.kvm-tec.com
