ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.
USER MANUAL
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per iiyama ProLite TF1515MC-B2
o cerca il tuo prodotto tra le migliori offerte di Monitor
ENGLISH
ENGLISH
We reserve the right to change specifi cations without notice.
All trademarks used in this user manual are the property of their respective owners.
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the
address: http://www.iiyama.com
You can access the Web page of diff erent countries from there.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC
Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
Model No. : PLF1015, PLF1515, PLF2215, PLF2415
ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY ............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS .........................................3
CUSTOMER SERVICE ...................................................................3
CLEANING ......................................................................................3
BEFORE YOU OPERATE THE MONITOR ..........................................4
FEATURES......................................................................................4
CHECKING THE CONTENTS OF THE PACKAGE ........................5
SPECIAL NOTES ON THE TOUCH PANEL ...................................5
INSTALLATION ...............................................................................6
CONTROLS AND CONNECTORS..................................................7
SPECIAL NOTES ...........................................................................8
CONNECTING YOUR MONITOR ................................................. 11
COMPUTER SETTING .................................................................13
OPERATING THE MONITOR .............................................................14
ADJUSTMENT MENU CONTENTS ..............................................16
SCREEN ADJUSTMENTS ............................................................20
POWER MANAGEMENT FEATURE .............................................23
TROUBLE SHOOTING ......................................................................24
RECYCLING INFORMATION .............................................................25
APPENDIX ........................................................................................26
SPECIFICATIONS : ProLite TF1015MC-B2 ..................................26
SPECIFICATIONS : ProLite TF1515MC-B2 ..................................27
SPECIFICATIONS : ProLite TF2215MC-B2 ..................................28
SPECIFICATIONS : ProLite TF2415MC-B2 ..................................29
DIMENSIONS : ProLite TF1015MC ..............................................30
DIMENSIONS : ProLite TF1515MC ..............................................30
DIMENSIONS : ProLite TF2215MC ..............................................31
DIMENSIONS : ProLite TF2415MC ..............................................31
DIMENSIONS : L-BRACKET.........................................................32
COMPLIANT TIMING : ProLite TF1015MC ...................................33
COMPLIANT TIMING :
ProLite TF1515MC / ProLite TF2215MC / ProLite TF2415MC .....33
ENGLISH
FOR YOUR SAFETY 1
FOR YOUR SAFETY
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fi re or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will
cause malfunction and may cause fi re or electric shock.
CORRECT USE OF THE AC ADAPTER
Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of
adapter may result in damage to the accessory and the monitor by fi re or electric shock.
DO NOT DISASSEMBLE THE AC ADAPTER
Disassembling the AC Adapter may expose you to the danger of fi re or electric shock.
PROTECT THE CABLES
Do not pull or bend the AC adapter, the power cable and signal cable. Do not place the monitor or
any other heavy objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
SAFETY PRECAUTIONS
ENGLISH
2 FOR YOUR SAFETY
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may
also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to
avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the AC adapter, the power cable or signal cable, always pull it by the plug. Never pull
on the cable itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
REMARK FOR 24/7 USAGE
This product is not specifi cally designed for 24/7 usage in all environments.
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
OTHERS
ENGLISH
FOR YOUR SAFETY 3
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE
When you fi rst turn on the LCD monitor, the picture may not fi t in the display area
because of the type of computer that is used. In this case, adjust the picture position
to the correct position.
You may fi nd slightly uneven brightness on the screen depending on the desktop
pattern you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may
remain after switching the image, when the same image is displayed for hours. In
this case, the screen is recovered slowly by changing the image or turning off the
Power Switch for some hours.
SPECIAL NOTES ON LCD MONITORS

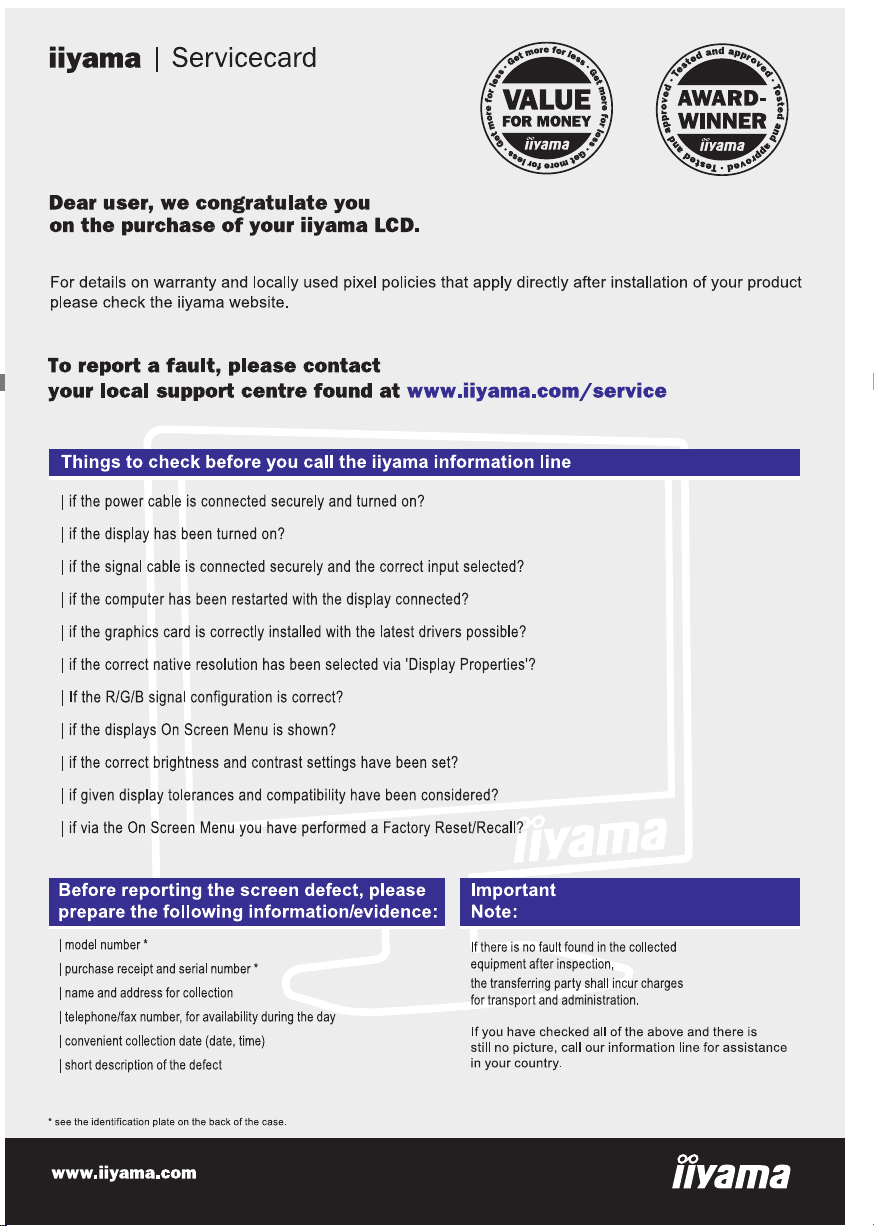

NOTE
If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.
WARNING
If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
NOTE
To protect the Touch screen surface, do not scratch or rub the screen with a hard
object.
Never use any of the following strong solvents. These will damage the cabinet and
the Touch screen surface.
Abrasive cleaner Wax Solvent
Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
TOUCH
SCREEN
Touch screen surface may be cleaned using a soft clean cloth moistened with mild
window glass commercial cleaners or 50/50 mixture of water and IPA(ISO-propyl-
alcohol). Don’t use acid or alkaline solvent to clean the surface of the panel (or
screen).
CUSTOMER SERVICE
CLEANING
ENGLISH
4 BEFORE YOU OPERATE THE MONITOR
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 1280 × 800 : ProLite TF1015MC
Supports Resolutions up to 1024 × 768 : ProLite TF1515MC
Supports Resolutions up to 1920 × 1080 : ProLite TF2215MC / ProLite TF2415MC
High Contrast 1300:1 (Typical) / Brightness 500cd/m2 (Typical: without Touch
panel) : ProLite TF1015MC
High Contrast 800:1 (Typical) / Brightness 350cd/m2 (Typical: without Touch
panel) : ProLite TF1515MC
High Contrast 1000:1 (Typical) / Brightness 350cd/m2 (Typical: without Touch
panel) : ProLite TF2215MC
High Contrast 3000:1 (Typical) / Brightness 350cd/m2 (Typical: without Touch
panel) : ProLite TF2415MC
Digital Character Smoothing
Automatic Set-up
Power Management (VESA DPMS Compliant)
VESA Mounting Standard (100mm×100mm) Compliant
IP65 Standard Compliant (Only front face)
Anti fi ngerprint fi nish
Windows8/8.1/10 touch environment
Basic touch operations can be performed under Windows 8/8.1/10.
However, please be informed that full touch functionality and normal operational performance are
not guaranteed.
ENGLISH
BEFORE YOU OPERATE THE MONITOR 5
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyama offi ce.
*1 1. TO USERS IN 120V AREA
The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/250V
must be used. However, all guarantees and warranties are void for any
problems or damage caused by a power cable or AC adapter not supplied by iiyama.
2. Applicable AC Adapter
AC Adapter Type Name : ADP-36PH B (DELTA ELECTRONICS, INC.)
3. An approved power cable greater or equal to H05VVF, 3G, 0.75mm2 must be
used.
*2 This CD-ROM contains the touch screen driver software.
Install the Touch Panel Driver Disk after connecting the computer to the monitor
with USB Cable. For the details, see Readme fi le in the Touch Panel Driver Disk.
Power Cable*1
AC Adapter*1 HDMI Cable
DisplayPort Cable
USB Cable External control pad
L-Bracket (2pairs: ProLite TF1015MC, 4pairs: ProLite TF1515MC / ProLite TF2215MC, 6pairs:
ProLite TF2415MC)
Bracket Screw (M4×6 8pcs: ProLite TF1015MC, M4×6 16pcs: ProLite TF1515MC / ProLite
TF2215MC, M4×6 24pcs: ProLite TF2415MC)
Touch Panel Driver Disk (CD-ROM)*2 Safety Guide
Quick Start Guide
CHECKING THE CONTENTS OF THE PACKAGE
CAUTION
Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch.
This could invalidate any remaining warranty.
We recommend you use a plastic stylus (tip R0.8 or over) or fi nger.
SPECIAL NOTES ON THE TOUCH PANEL
CAUTION
ENGLISH
6 BEFORE YOU OPERATE THE MONITOR
When you use with the wall mounting, in consideration of thickness of the mounting
stage, tighten the M4 Screw with washer which “L” length is 8mm to fasten the
monitor. Using the screw longer than this may cause electric shock or damage
because it may contact with the electrical parts inside the monitor.
WARNING
Screw
Chassis
Mounting Stage
L
This monitor is designed to be compatible in landscape, portrait and face-up modes.
A
Not Available
This product is not designed for the purpose of being used in high temperature
environment.
If the product is placed in an external cabinet, you need to design cooling fans
and vents to keep the temperature low enough to fit in the product temperature
specifi cation.
WARNING
INSTALLATION
< WALL MOUNTING >
Before installation, make sure the wall, ceiling or desktop arm is strong enough to
hold the necessary weight of the display and the mount.
< BUILT-IN EQUIPMENT >
< ROTATING THE MONITOR >
A
A
Landscape
Portrait
A
Portrait
Face-up
Available
WARNING
Dieses Handbuch passt für folgende Modelle
7
Inhaltsverzeichnis
Andere Iiyama Monitor Handbücher
Iiyama
Iiyama ProLite T2451MTS Bedienungsanleitung
Iiyama
Iiyama Vision Master Pro 514 HM204DT A Bedienungsanleitung
Iiyama
Iiyama G-Master G2760HSU Bedienungsanleitung
Iiyama
Iiyama ProLite E1702S Bedienungsanleitung
Iiyama
Iiyama PROLITE LH3246HS Bedienungsanleitung
Iiyama
Iiyama ProLite T1521MSC-B1 Bedienungsanleitung
Iiyama
Iiyama ProLite B2209HDSD Bedienungsanleitung
Iiyama
Iiyama ProLite B2280WSD Bedienungsanleitung
Iiyama
Iiyama ProLite B2206WS-B1 Bedienungsanleitung
Iiyama
Iiyama ProLite LH7542UHS Bedienungsanleitung
Iiyama
Iiyama ProLite E2271HDS-1 Bedienungsanleitung
Iiyama
Iiyama ProLite XUB2595WSU-B1 Bedienungsanleitung
Iiyama
Iiyama Pro Lite B1902S-1 Bedienungsanleitung
Iiyama
Iiyama Pro Lite E2403WS-1 Bedienungsanleitung
Iiyama
Iiyama ProLite XB2779QS Bedienungsanleitung
Iiyama
Iiyama ProLite TH8667MIS Bedienungsanleitung
Iiyama
Iiyama ProLite T5560MTS Bedienungsanleitung
Iiyama
Iiyama ProLite T2453MTS-B1 Bedienungsanleitung
Iiyama
Iiyama AS4314UT Bedienungsanleitung
Iiyama
Iiyama ProLite B2482HS Bedienungsanleitung
