Ikan OTTICA-4K Bedienungsanleitung

- 1 -

OTTICA-4K

Manual

OTTICA NDI HX PTZ Video Camera 12x Optical Zoom POE 4K 60p

www.ikancorp.com [email protected]

- 2 -

1. Getting Started 3

1.1 Camera Interface 3

1.2 Power-On Initial Conﬁguration 4

1.3 Video Output 4

1.4 Mounting Brackets 5

2. Product Overview 7

2.1 Product Introduction 7

2.1.1 Dimensions 7

2.1.2 Accessories 7

2.2 Main Features 8

2.3 Technical Speciﬁcations 9

2.4 Interface Instructions 12

2.4.1 External Interface 12

2.4.2 RS-232 Interface 12

3. Application Instructions 14

3.1 Video Output 14

3.2 Remote Control 14

3.2.1 Key Instructions 15

3.3 Menu Introduction 18

3.3.1 Main Menu 18

3.3.2 System Settings 18

3.3.3 Camera Settings 19

3.3.4 P/T/Z 21

3.3.5 Video Format 21

3.3.6 Version 22

3.3.7 Restore Default 22

4. Network Connection 23

4.1 Obtain Camera IP Address 23

4.2 IE Log In 24

4.2.1 Web Client 25

4.2.2 Preview 25

4.2.3 Conﬁguration 25

4.2.4 Audio Conﬁguration 25

4.2.5 Video Conﬁguration 25

4.2.6 Network Conﬁguration 29

4.2.7 System Conﬁguration 30

4.2.8 Logout 32

5. Serial Communication Control 32

5.1 VISCA Protocol List 32

5.1.1 VISCA Protocol Return Command 32

5.1.2 VISCA Protocol Control Command 33

Table of Contents

- 3 -

5.1.3 Inquiry Command 38

5.2 Pelco-D Protocol Command List 41

5.3 Pelco-P Protocol Command List 42

6. Camera Maintenance and Troubleshooting 43

6.1 Camera Maintenance 43

6.2 Troubleshooting 43

Table of Contents (cont.)

1. Getting Started

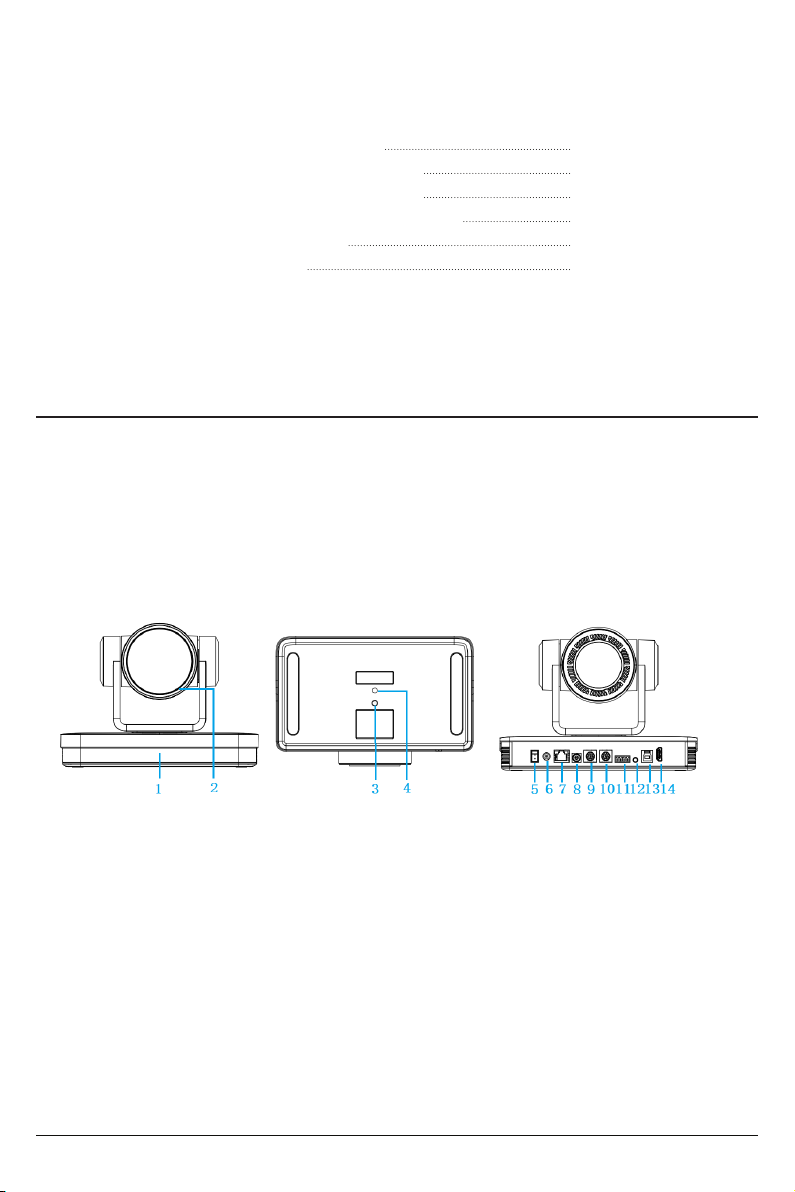

1.1 Camera Interface

1. Remote Control Receiving Indicator

2. Camera Lens

3. 1/4”-20 Screw Thread

4. 1/4”-20 Screw Thread

5. Power Switch

6. DC12V Input Power Supply Socket

7. LAN Port

8. Rotary DIP Switch

9. RS232 Control Interface (input)

10. RS232 Control Interface (output)

11. RS422/RS485 Input

12. Audio Input Interface

13. USB 3.0 Interface

14. HDMI Output Interface

Figure 1.1 Product Interface

- 4 -

1.2 Power-On Initial Conﬁguration

1.3 Video Output

1. Power-On: Connect the DC12V power supply adapter with the power supply socket.

2. Initial Conﬁguration: Upon powering on, the remote control receiver light will turn on and start

blinking red. The camera head will move and adjust into the HOME position (intermediate

position of both horizontal and vertical). When the remote control receiver light stops

blinking red, it will stay on and turn green; this means the self-checking is ﬁnished.

- Note: After the Power-On self-test is completed If you press “set preset” then “0”, the

camera head automatically moves to the preset HOME position any time you press “0”.

The OTTICA has a variety of video outputs including LAN, HDMI and 3G-SDI.

1. Video Output from LAN

2. HDMI Video Output

3. 3G-SDI Video Output

A. Network Cable Connection Port: No.12 in Figure1.1;

B. Webpage Login:

A. HDMI Video Cable Connection: Refer to No.11 in Figure1.1.

B. Connect the camera and monitor via HDMI video cable.

A. 3G-SDI video cable connection: Refer to No.10 in Figure1.1

B. Connect the camera and the monitor via 3G-SDI video cable

- The OTTICA-4K is set to auto DHCP so you’ll need to connect the camera to devices

that can automatically assign an IP address, such as routers and switches.

- Next, you’ll have to use an IP scanning software to ﬁnd the camera’s IP address (visit

the OTTICA-4K product page at www.ikancorp.com to ﬁnd a link to our recommended

software for IP scanning).

- Copy and paste the camera’s IP address and paste it into your web browser’s address

bar and press “Enter” to proceed into the login page.

- Enter the user name “admin” and password “admin” (factory default) and press ”Enter”

to proceed into the preview page.

- If you do not have the latest version of Flash installed, click on the button that says “Get

ADOBE Flash Player.”

- After you’ve installed the latest version of ﬂash, the camera feed should be visible and

you can now perform PTZ control, video recording, playback, conﬁguration, and other

operation.

- NOTE: See chapter 4.1 for more details.

- 5 -

1.4 Mounting Brackets

Note: The bracket can only be mounted on a wall or ceiling on either template or concrete wall,

but cannot be installed on plasterboard.

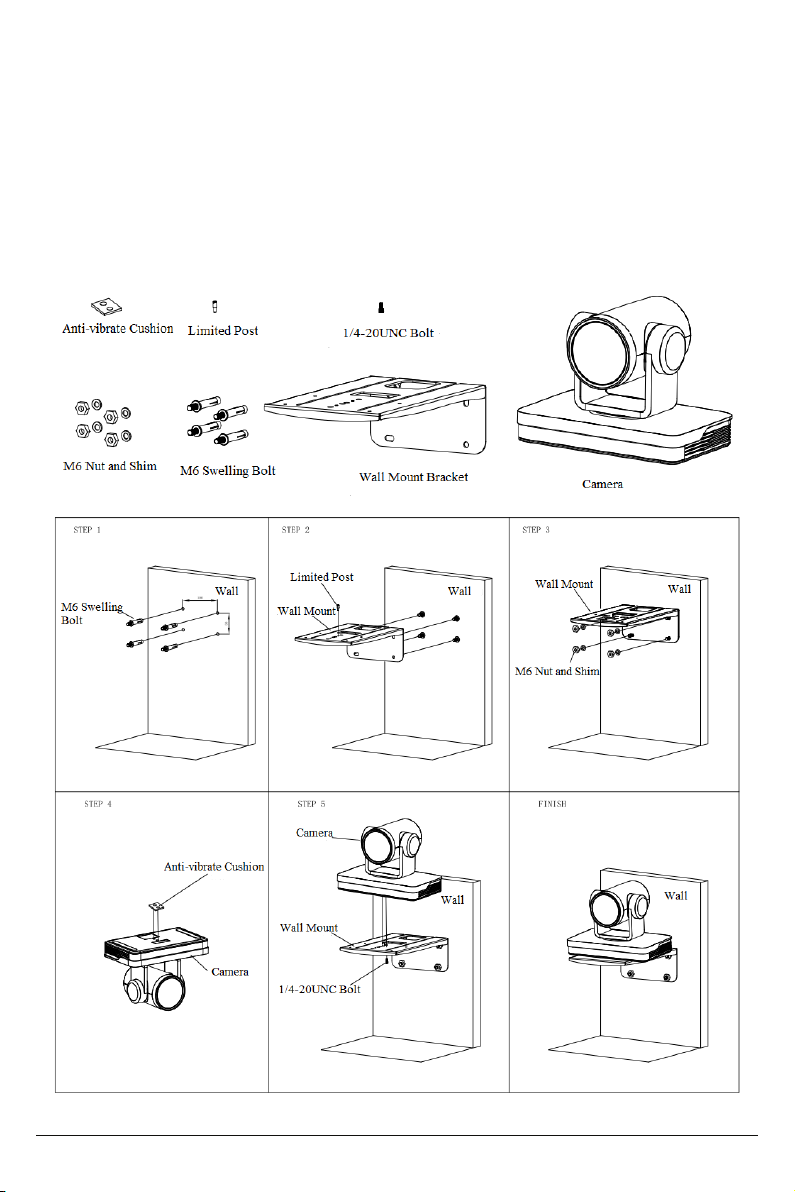

Wall Mount Steps

- 6 -

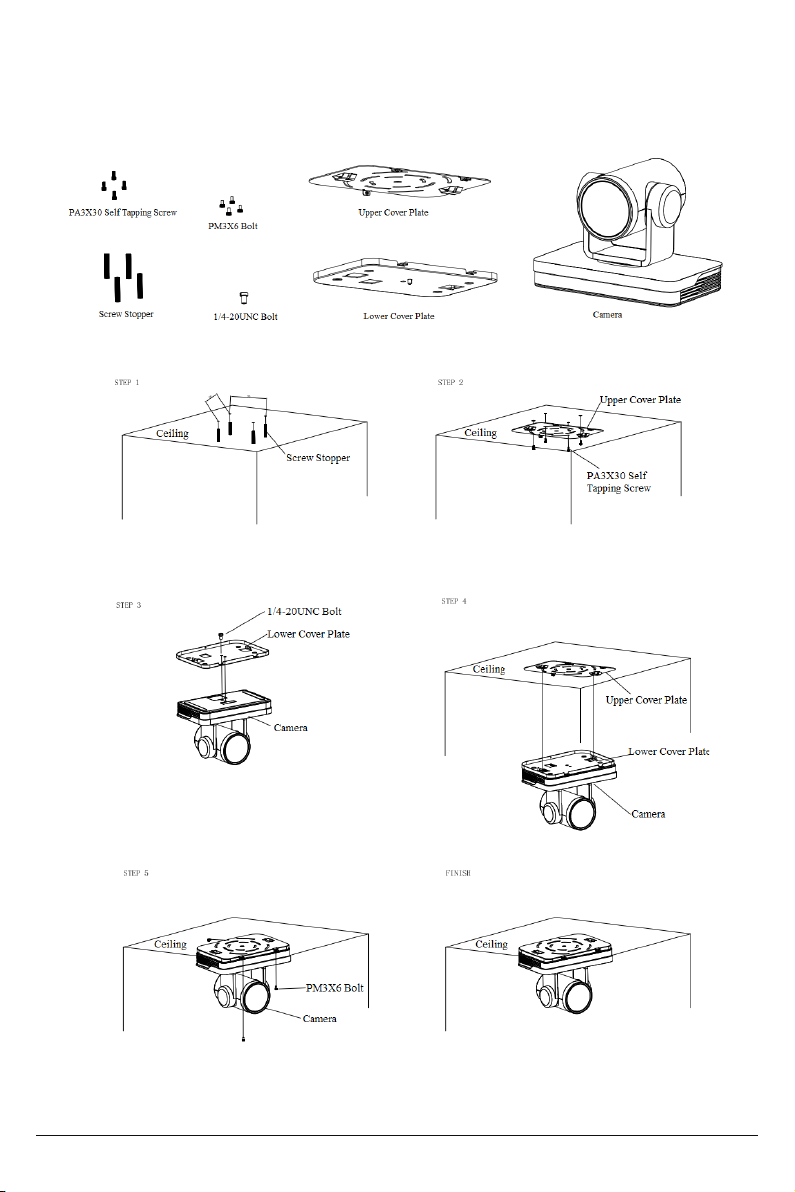

Ceiling Mount Steps

- 7 -

2.1 Product Introduction

2.1.1 Dimensions

2.1.2 Accessories

When unboxing, check that all the Standard Accessories are included:

Standard Accessories

1 x Power Adapter

1 x RS232 Cable

1 x IR Remote Controller

1 x Wall Mounting Bracket

1 x RS485 Connector

1 x Cascade Cable

Optional Accessories

OTTICA Controller

Ceiling Mount

Wireless Remote Control

2. Product Overview

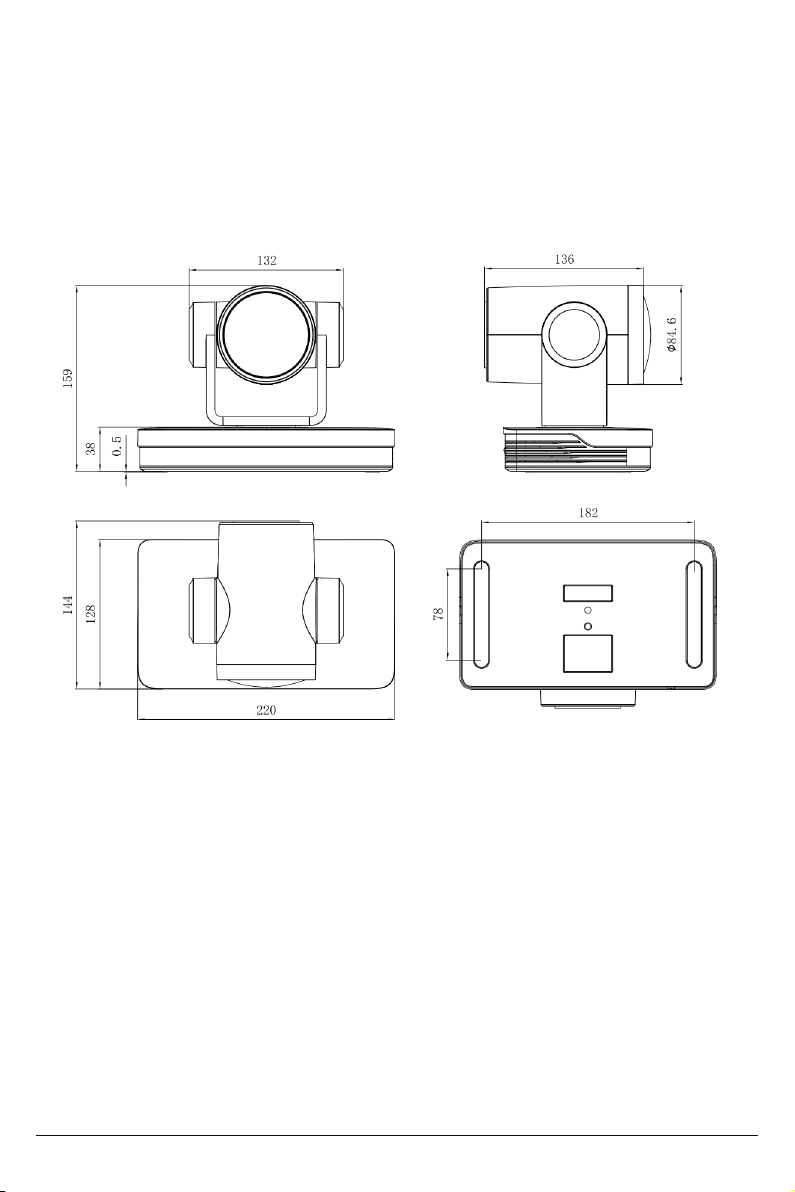

Figure 2.1 Camera Dimensions

- 8 -

2.2 Main Features

The OTTICA-4K camera is a new UHD 4K camera with 12X optical zoom and a 80.4° wide

angle lens. Featuring with advanced ISP processing algorithms, offering vivid and high

resolution video with a strong sense of depth and fantastic color rendition.

1. 4K UHD Resolution: 1/2.5” high quality SONY CMOS sensor. Up to 4K 60fps Resolution/

Frame rate.

2. Dual Stream Output: USB output can support main stream and sub stream output at the

same time, and can meet the needs of near-end and far-end.

3. Optical Zoom Lens: 12X optical zoom. Wide 80.4° ﬁeld of view.

4. Multi-format Video Outputs: Supports HDMI, USB 3.0, LAN, and outputs 4K audio and

video simultaneously.

5. Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.

6. Low Noise and High SNR: The Low Noise CMOS effectively ensures high SNR of the

camera video. Advanced 2D/3D noise reduction technology is also used to further reduce

the noise, while ensuring image sharpness.

7. Multiple Audio/Video Compression Standards: LAN interface supports H.264/H.265 video

compression, USB3.0 interface supports MJPG, H264, YUY2, NV12, H265; supports AAC,

MP3 and G.711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling

frequencies.

8. Multiple Network Protocol: Supports NDI, ONVIF, RTSP, RTMP protocols; Support RTMP

push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP

multicast mode; Support network full command VISCA control protocol.

9. Control Interface: RS422 input (compatible with RS485), RS232 input/output, RS232

(cascade connection)

10. Multiple Control Protocol: VISCA, PELCO-D, PELCO-P protocols; Automatic identiﬁcation

protocols.

11. Multiple presets: Up to 255 presets (10 presets via remote control).

12. Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing,

Tele-medicine, Uniﬁed Communication, Emergency command and control systems, etc.

- 9 -

2.3 Technical Speciﬁcations

Camera Parameters

Optical Zoom 12X; f=3.85 mm ~ 43.06 mm ±5%

View Angle Parallel: 7.59° (N) ~ 80.4° (W)

Vertical: 4.6° (N) ~ 50.0° (W)

AV F1.8 ~ F3.56±5%

Sensor 1/2.5inch SONY CMOS sensor

Effective Pixels 8.51M megapixel 16:9

Video Format

HDMI Video Format

4K@60fps/ 4K@50fps/ 4K@30fps/ 4K@25fps/

1080P@60fps/ 1080P@50fps/ 1080I@60fps/

1080I@50fps/ 1080P@30fps/ 1080P@25fps/

720P@60fps/ 720P@50fps

USB3.0 Interface Video Format

YUY2/NV12: 1920×1080@30/25fps/

1280×720@30/25fps/ 960×540@30/25fps/

640×360@30/25fps/ 640×480@30/25fps/

320×176@30/25fps

MJPEG/H.264/H.265: 3840×2160@30/25fps/

1920×1080@30/25fps/ 1280×720@30/25fps/

960×540@30/25fps/ 640×360@30/

25fps/640×480@30/25fps/ 320×176@30/25fps

USB3.0 is Compatible with USB2.0 Video Format

YUY2/NV12: 640×360@30/25fps/

640×480@30/25fps/ 320×176@30/25fps

MJPEG/H.264/H265: 3840×2160@30/25fps/

1920×1080@30/25fps/ 1280×720@30/25fps/

960×540@30/25fps/ 640×360@30/25fps/

640×480@30/25fps/ 320×176@30/25fps

Minimum Illumination 0.05Lux(F1.8, AGC ON)

DNR 2D﹠3D DNR

White Balance Auto / Manual / One Push/ Specify Color Temperature

Focus Auto / Manual / One Push Focus

- 10 -

Input / Output Interface

Video Interfaces

HDMI, LAN (POE), USB3.0 (Type-B compatible with

USB2.0, A-IN, RS232-IN,

RS232-OUT, RS422 (compatible with RS485), Rotary DIP

switch, DC12V Power Supply, Power Switch

Video Compression Format LAN Interface: H.264, H.265

USB 3.0 Interface: MJPG, H264, YUY2, NV12, H265

Audio Input Interface Double track 3.5mm linear input

Audio Output Interface HDMI, LAN, USB3.0

Audio Compression Format AAC, MP3, G.711A

Network Interface 10M/100M/1000M Adaptive Ethernet port, support POE

power supply, support audio and video output

Network Protocols NDI ,RTSP, RTMP, ONVIF; Network VISCA control protocol:

Support remote upgrade, reboot and reset

Control Interface RS232-IN,RS232-OUT, RS422 compatible with RS485

Serial Communication Protocol VISCA/PELCO-D/PELCO-P

Baud Rate: 115200/38400/9600/4800/2400

USB Communication Protocol UVC (Video), UAC (Audio)

Power Interface HEC3800 outlet (DC12V)

Supply Adapter AC110V~AC220V to DC12V/2.5A

Camera Parameters

Exposure Mode Auto/Manual / Shutter priority / Aperture Priority /

Brightness Priority

Aperture F1.8 - F11

Shutter Speed 1/25 - 1/10000

BLC ON/OFF

WDR OFF/ Dynamic Level Adjustment

Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W

Mode, Gamma Curve

SNR ≥50dB
