Ikan PT4500S-PEDESTAL Bedienungsanleitung
PT4500S-PEDESTAL
Quick Start Guide
15” SDI Teleprompter, Pedestal & Dolly Turnkey
OVERVIEW
Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 15” teleprompter,
pedestal, and dolly. All of our systems have been tested internally for payload compatibility.
The remaining payload capacity, after mounting the full 15” teleprompter system without the counterweight, can accommodate camera setups
up to 17 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 35.8 lbs. This solution also includes a hard
case for the teleprompter & carrying bag for the pedestal.
Teleprompter Assmebly Setup

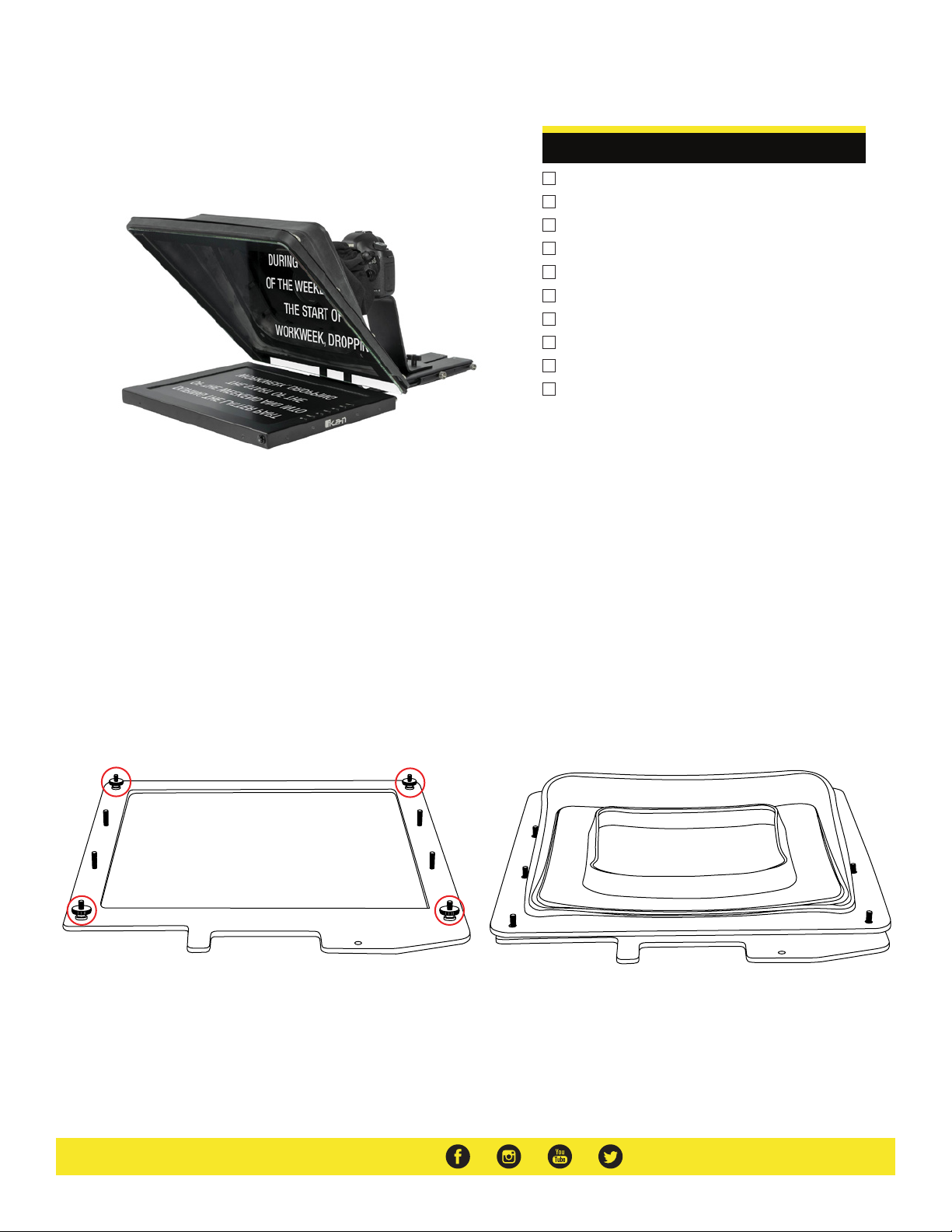

Step 1
Place the teleprompter glass frame on a flat surface and remove the four
screws as shown.
Step 2
Align and attach the teleprompter hood with the 8 screw pegs from the
teleprompter frame.
What’s Included
1 x Teleprompter Base
1 x Bracket with Glass
1 x Teleprompter Hood with Boot
1 x Monitor
1 x AC Adapter with Cord
1 x PrompterPro Software
1 x Counterweight Set (2 x 2.5 lbs)
2 x D-Ring ¼-20” Screws
2 x Hex Keys
3 x Different Height Risers
PT4500-SDI
15” SDI High Bright Beam Splitter Teleprompter

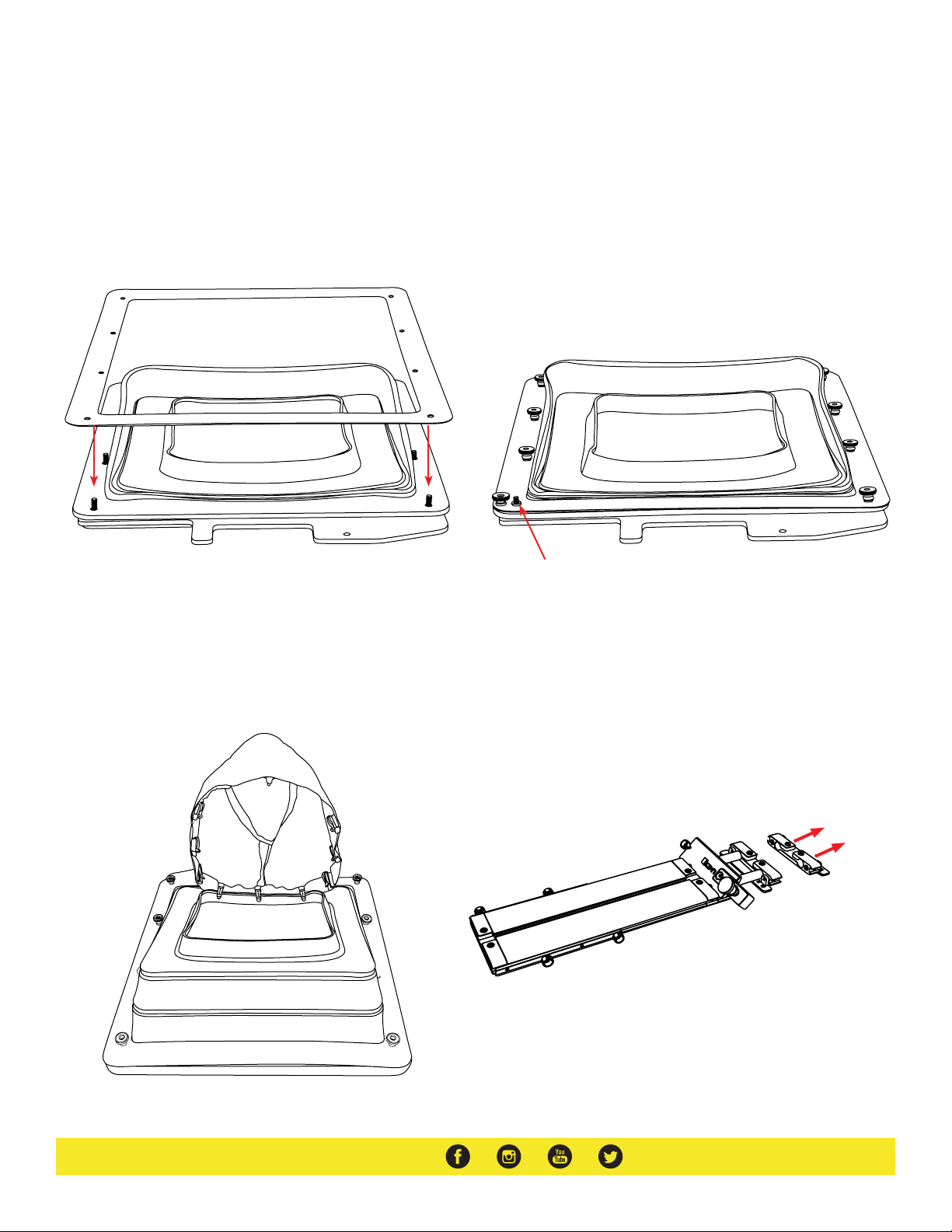

Step 3
The metal frame is directional. Make sure the thicker side is on top and
the slimmer side is on the bottom.
Step 4
Put the washers on before tightening the screws. The washers and 4
additional screws are inside a bag on the bottom foam.
Step 6

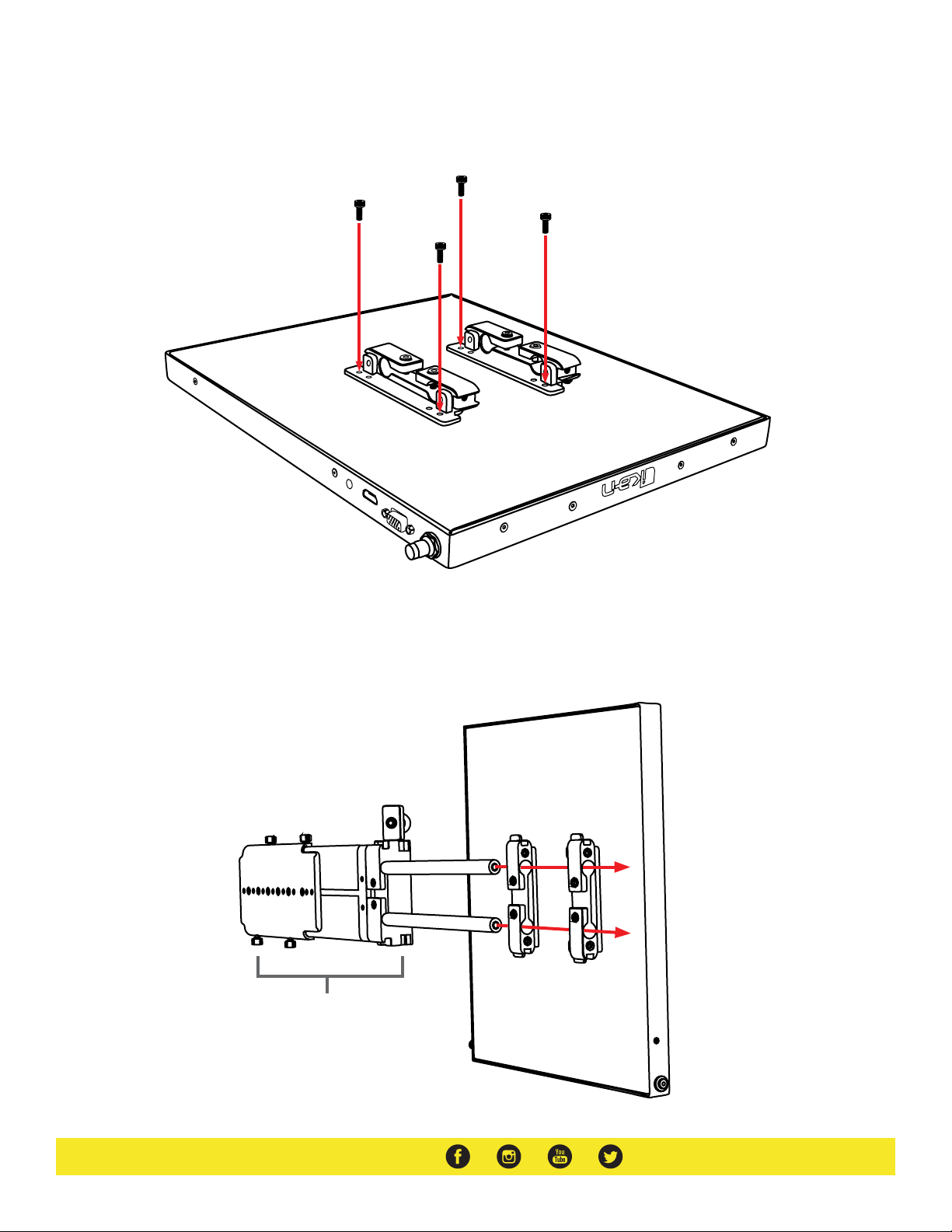

Remove the monitor mounts from the teleprompter base using the included
larger 4mm hex key to loosen from the 15mm rods.
Step 5
Extend the teleprompter hood open and attach teleprompter boot
using the clips. It is suggested to align the seam with the bottom of
the teleprompter hood.
Step 8
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
1
2
-
2
4
V
H
D
M
I
V
G
A
AV
Step 7
Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key.
Step 9

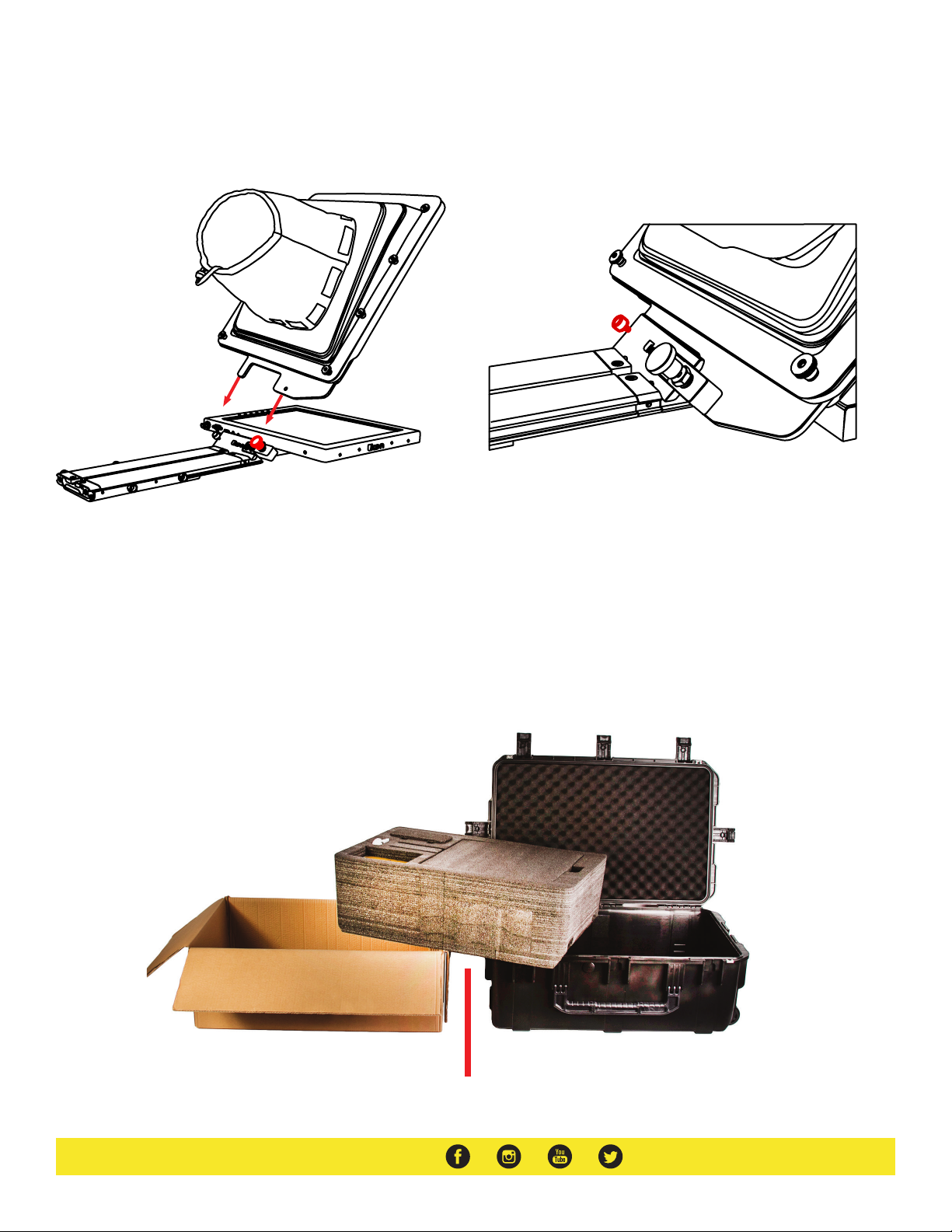

While sliding the teleprompter bracket into the slot of the teleprompter
base pull on the red knob to allow the bracket to fully slide in.
Step 10
Once the bracket is in place, tighten the side screw to lock in place. Double
check and make sure all the screws are tightened with the included hex
keys.
Step 11 (optional)
Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.
** DO NOT THROW AWAY FOAM CASE **
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.
Monitor Ports
3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
HDMI – Switch HDMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
H
D
M
I
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
Specifications
PT4500-SDI
Optional Accessories
PT4500-G
PT-CASE-V2
Replacement Glass for both PT4500-SDI / PT4700-SDI
Rolling Hard Case for PT4500-SDI / PT4700-SDI Teleprompter
Aspect Ratio 4:3
Backlight LED
Brightness 1000 nits
Build Material Aluminum
Diagonal 15”
Input Signal 3G-SDI, VGA, HDMI
Input Voltage DC 12v / 4A
Power Consumption 10W
Reading Range 17’
Resolution 1280 x 1024
Viewing Angle 160° (H) / 170° (V)
Weight 22 lb
Shipping Weight 28 lb
Shipping Dimensions 25 x 20 x 15.5 in
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters:
https://youtu.be/5TjIxzBc_Vc
Learn More
More dynamic information at official website: www.ikancorp.com
Support
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2018 ikan Corporation. All rights reserved

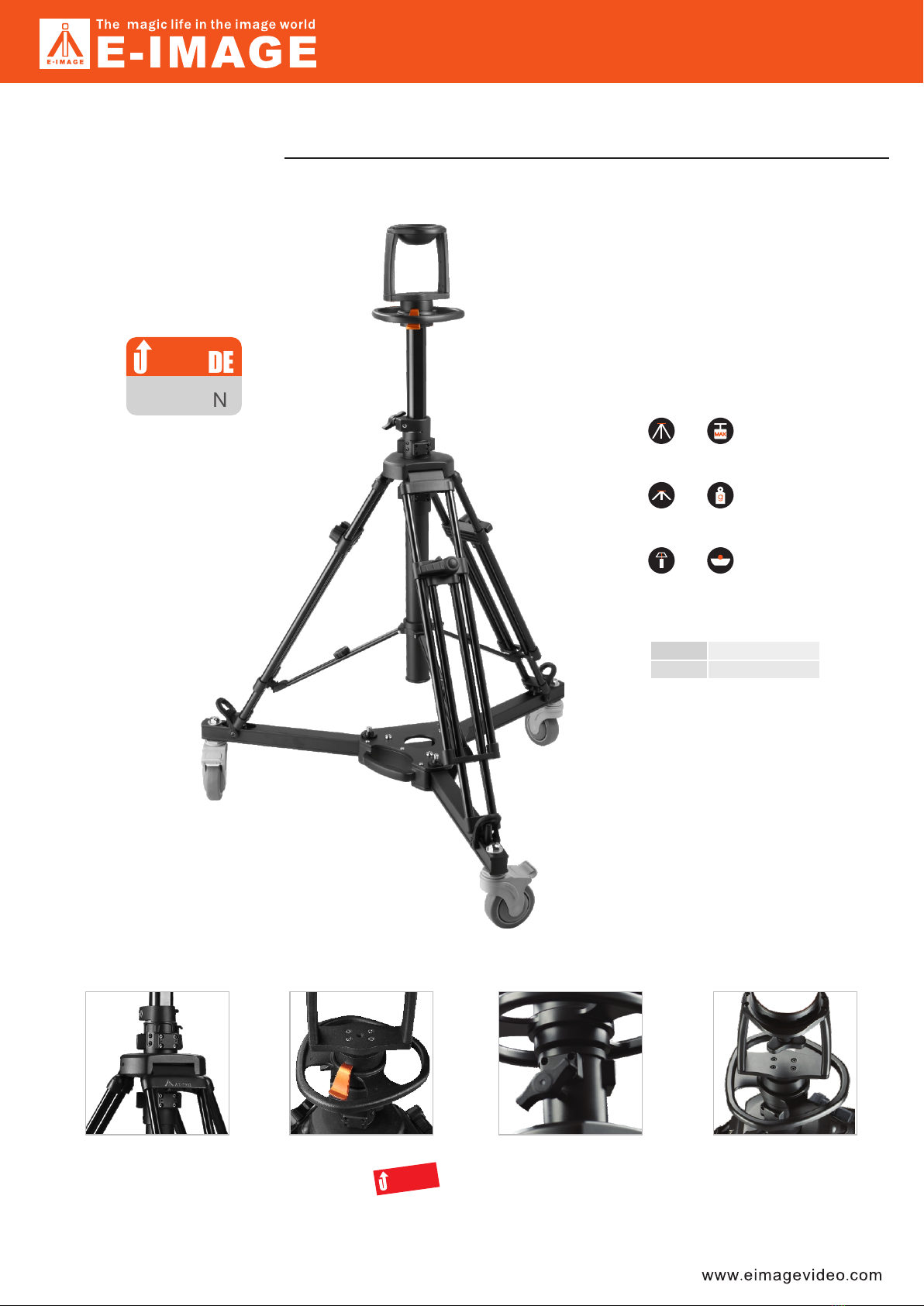

AT7903 Pedestal
184.5cm
72.6in
102.0cm
40.2in
32.0cm
12.6in
15.8kg
34.8lbs
20.0kg
44.1lbs
100mm
VERSION
PGRADE
Component:
Pneumatic assist center
column Easy height-adjustment
lever Quick locking Ergonomic hand wheel
PGRADE
AT7903
Dolly
EI-7005
Pedestal

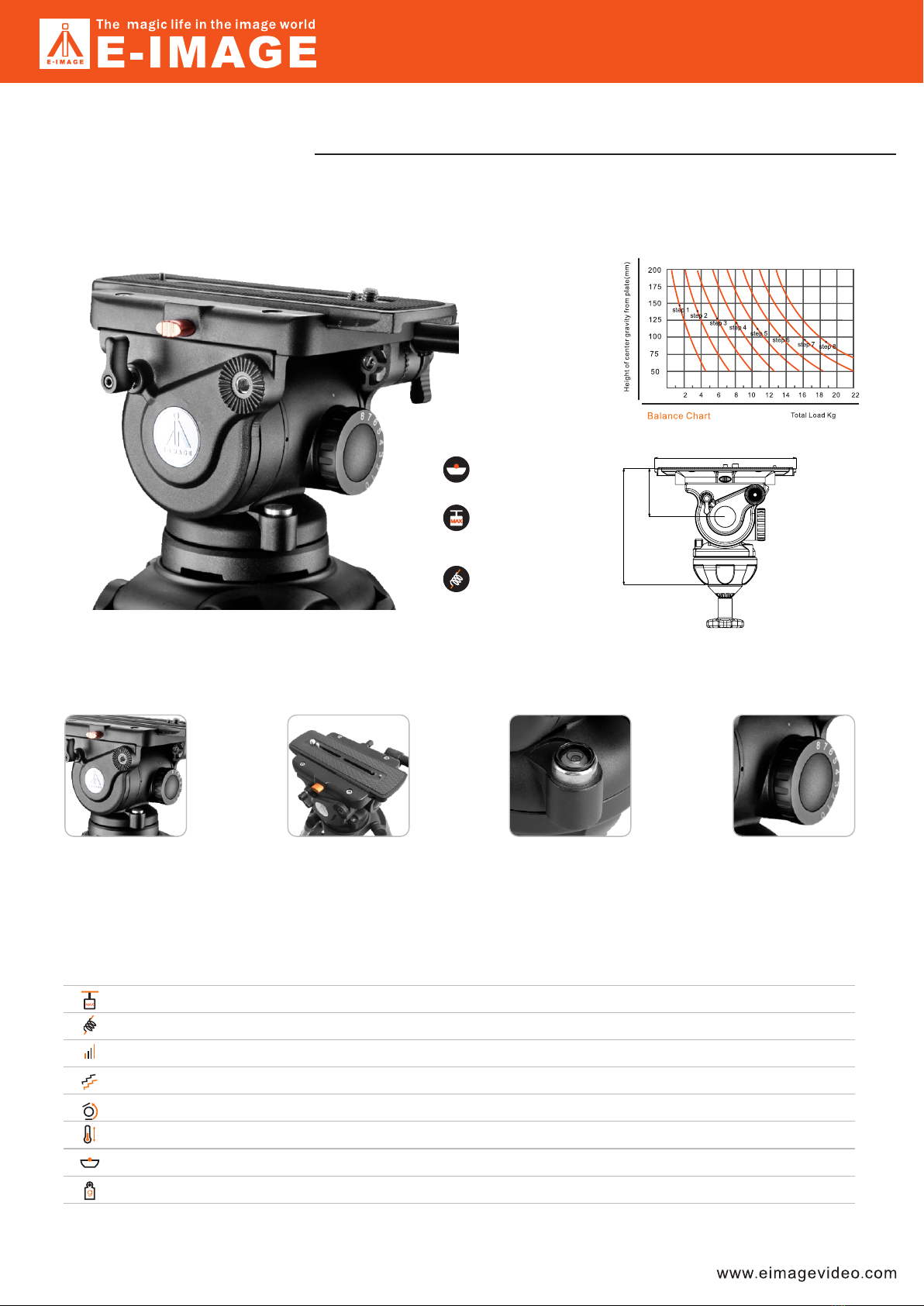

GH20 100mm Fluid Head
FEATURES
SPECIFICATIONS
Model
Payload Range
Counterbalance Range
Grades Of Pan Drag
Grades Of Tilt Drag
Tilt Range
Temperature Range
Bowl Size
Net Weight
GH20
-30℃~+60℃
100mm
3.5kg / 7.7lbs
20.0kg / 44.0lbs
0-8
-60°/+90°
0-8
100mm
20.0kg
44.0lbs
175mm/6.9in
212mm/8.3in
73mm/2.9in
Longer sliding plate
Fixed drag of pan & tilt
Leveling bubble
8 plus 0 steps of
counterbalance
Fixed
Fixed
