INTRODUCTION
Thank you for purchasing the ikan VH7e-DK Deluxe Kit. We know that you will be satisfied with our “V” series
monitors. Please visit www.ikancorp.com for more information on our current and future products including our award-
winning fluorescent studio lights and light accessories.
PACKAGE INCLUDES
VH7e Monitor
AC Power Adapter
Camera Shoe Mount
DV Battery Plate
DV Battery Charger
DV Battery
2 x Composite Female RCA Cable

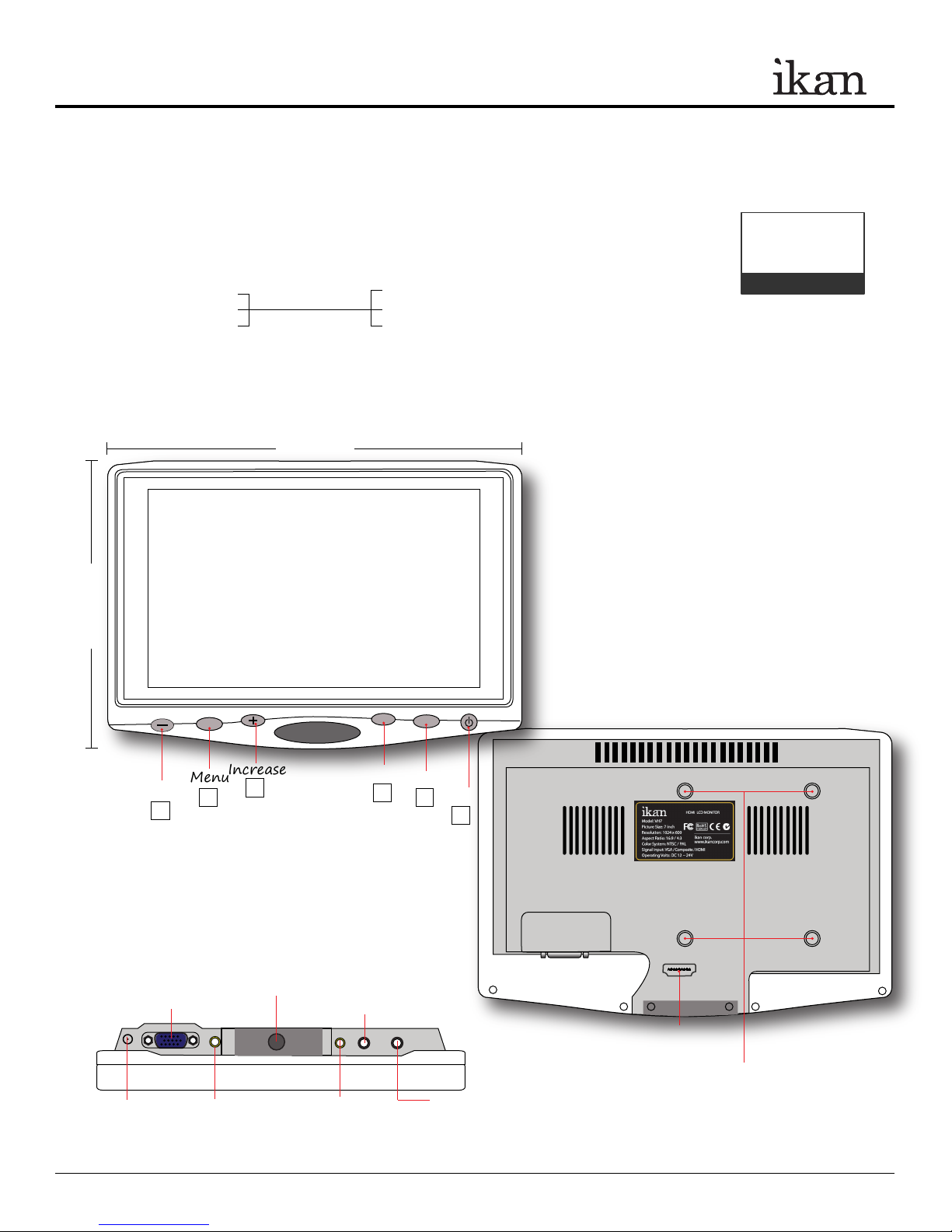

MONITOR DIAGRAMS
Checked by
BP2T-S Sony "L" Series
BP2T-C Canon "900" Series
BP2T-P Panasonic "D54" Series
1
1
234
5
(Check One)
QUICK START GUIDE / VH7e-DK Deluxe Kit
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. [email protected] © 2010 ikan Corporation. All right reserved. www.ikancorp.com
Bottom view
DC 5V-24V
VGA
Composite
VIDEO 1
Composite
VIDEO 2
¼-20 Threaded Hole
PC Audio
Audio input for headphones
Back view
Mounting Plate Holes
+++
+
+
+
VIDEO 2
VIDEO 1VGADC
5V-24V
PC
AUDIO
HDMI
HDMI
Front view
Decrease
MenuIncrease
MENU F
INPUT
InputFuction
Power
Resolution: 1024 x 600
7.5 inches
5.25 inches
CONFIGURATION OF SETTING MENUS
QUICK START GUIDE / VH7e-DK Deluxe Kit
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. [email protected] © 2010 ikan Corporation. All right reserved. www.ikancorp.com
GUIDES
Guides Full
Off
Mode 1
Mode 2
Mode 3
Guides 4:3
Off
Mode 1
Mode 2
G. Background (Changes the opacity of the areas outside the guides)
Normal
Half
Black
Crosshair (Places a crosshair in the center of the image)
On
Off
Return
VIDEO CONFIG.
Contrast [0 - 100]
Brightness [0 - 100]
Tint [0 - 100]
Chroma [0 - 100]
Sharpness [0 - 100]
RGB Setup (Allows you to individually Adjust Color Values)
User R [0 - 255]
User G [0 - 255]
User B [0 - 255]
Offset R [0 - 255]
Offset G [0 - 255]
Offset B [0 - 255]
Return
SYSTEM CONFIG.
Menu Duration [5 -60]
Menu Setup (Saves 5 User Menu Presets)
User 1
User 2
User 3
User 4
User 5
Reset
Return
PC SETUP ( These options for when using VGA input)
H – Positon [0 - 100]
V – Position [0 - 100]
Clock [0 - 100]
Phase [0 - 100]
Auto Adjust
Return
CONFIGURATION OF SETTING MENUS
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (** Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
QUICK START GUIDE / VH7e-DK Deluxe Kit
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. [email protected] © 2010 ikan Corporation. All right reserved. www.ikancorp.com
FUNCTION SETUP
Check Field (Allows you to view only certain color channels of the video signal.)
Off
Blue
Red
Green
Mono
Peaking Filter (A filter used to help you focus. It outlines the edges of items in focus with a red color.)
Off
On
Aspect
Full
Func. Set (Allows you to set one of the functions to the Function button on the front of the monitor)
Check Field
Peaking Filter
Aspect
Guides
Crosshair
Return
EXIT
1
Volume Buttons
Decreases and increases volume aswell as toggle through menu.
Menu Button
It is to display brightness, contrast, phase, clock, H position,
V position, language, auto, reset, volume, exit.
Input Button
Video selectionswitch AV1, AV2,VGA, HDMI
Function Button
Allows you to set one of the functions
to the Function button on the front of
the monitor
Power Button
Turns monitor on and off
2
3
4
5
BUTTON FUNCTIONS
