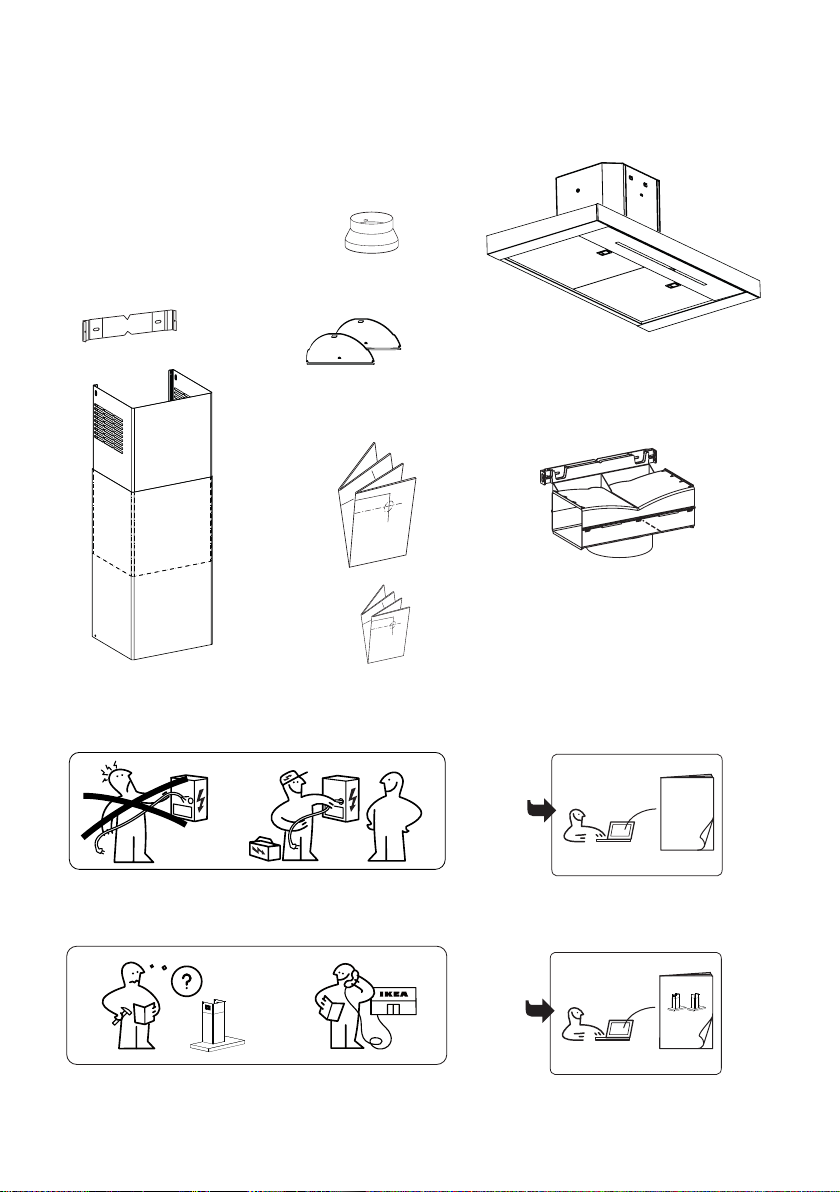

Warning Strips

Warning strips show that specialist should do the connecting water, gas and electricity:

The electricity installation

specialist.

The gas installation specialist.

The water installation

specialist.

MANUAL

www.ikea.com

KULINARISK

0$18$/

ZZZLNHDFRP

0$18$/

ZZZLNHDFRP

KULINARISK

H.2

I.1

8AA-725973-1

1x 3x 4x

D E

I.2

H.1

8AA-725973-1

1x 3x 4x

D E

ENGLISH

Filters Alarm.

When the filter alarm is activated, the following messages will appear over time:

Grease filter alarm must be cleaned: “A” key flashes once per second.

Anti-odour filter alarm must be cleaned: “A” key flashes twice per second.

Once the filters have been regenerated reset the alarm signal.

S0614 (170201)

backlight symbols

112

20 20 20 20

S0614 (170201)

backlight symbols

Speed

Turns the motor on/o at speed one.

Attention: the product is with the lter alarm disabled.

Press and hold the button for approximately 2 seconds, with all the loads turned o (Motor+Lights), to turn the grease lter alarm on. LED

(B) ashes twice to conrm.

To turn the alarm o, press the button again and hold for at least 2 seconds. The relevant LED (B) ashes once.

Speed

Turns the motor on at speed two / Activate charcoal lter alarm.

Attention: the product is with the lter alarm disabled.

Press and hold the button for approximately 2 seconds, with all the loads turned o (Motor+Lights), to turn the Activated Charcoal Filter

alarm on. LED (A) ashes twice to conrm.

To turn the alarm o, press the button again and hold for at least 2 seconds.The relevant LED ashes once (A). Only for recirculation mode.

Speed

Turns the Motor on at speed three / Reset alarm grease lter saturation.

Press and hold the button for approximately 2 seconds, with all the loads turned o (Motor+Lights), to reset the grease lter

saturation alarm or charcoal lter alarm. LED (A) ashes three times.

Speed

Turns the motor on at Booster speed.

This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is

activated with the motor turned o, it will switch to OFF at the end of the time. To deactivate it, press button D or press button A.

Light

Press briey: Turns the lighting system on and o at maximum intensity.

Press and hold to change the lighting intensity up or down.

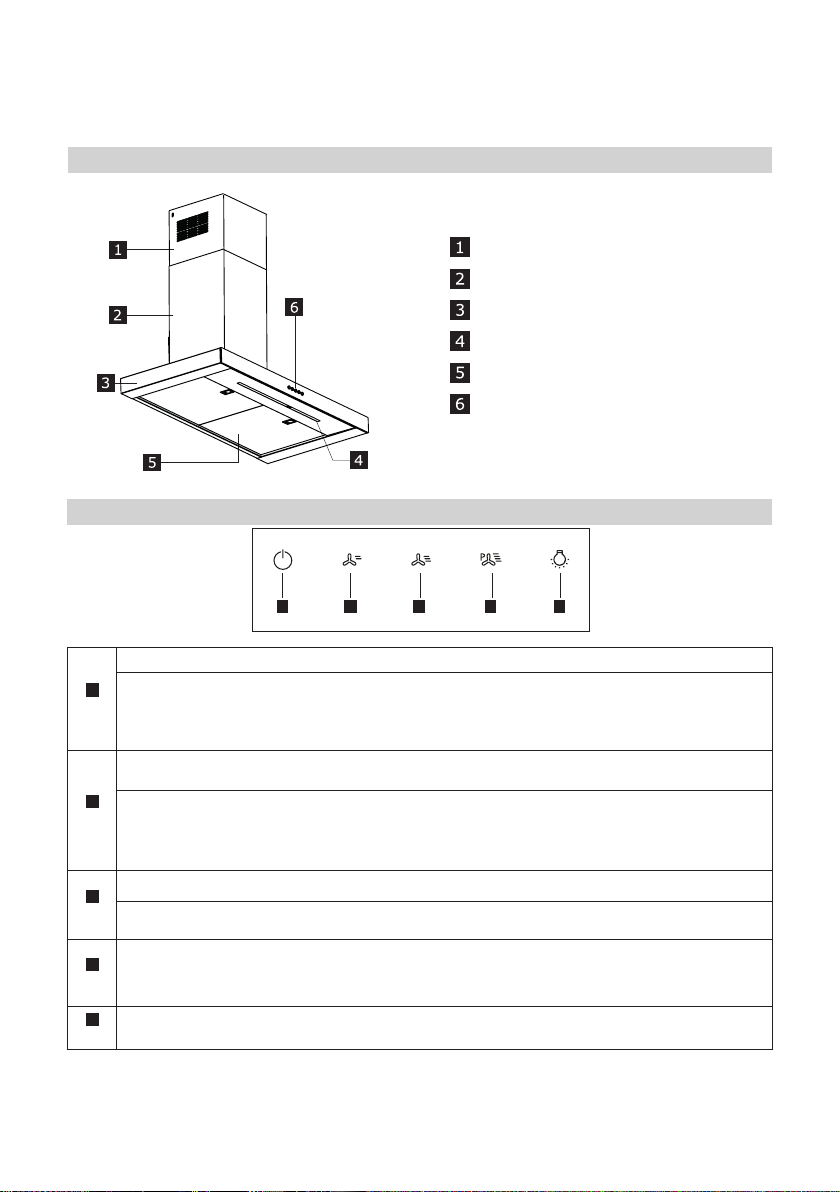

Product description

Control panel

Upper chimney

Lower chimney

Hood body

LED Lighting

Grease filter

Control panel

ENGLISH

To download the full version visit www.ikea.com

Energy efficiency

 

Unit Value

Supplier’s name IKEA

Model identier  

Annual Eciency Consumption kWh/a 34,8

Energy Eciency Class A++

Fluid Dynamic Eciency 37,6

Fluid Dynamic Eciency Class A

Lighting Eciency lux/Watt 58

Lighting Eciency Class A

Grease Filtering Eciency %85,1

Grease Filtering Eciency Class B

Air ow at minimum speed m3/h 250

Air ow at maximum speed m3/h 380

Air ow at boost speed m3/h 700

Airborne acoustical

A-weighted sound Power Emission at minimum speed dbA 51

Airborne acoustical

A-weighted sound Power Emission at maximum speed dbA 59

Airborne acoustical

A-weighted sound Power Emission at boost speed dbA 72

Power Consumption in o mode Watt 0,49

Power Consumption in standby mode Watt N/A

  

Time increase factor 0,6

Energy Eciency Index 36,6

Measured Air ow rate at best eciency point m3/h 406,0

Measured air pressure at best eciency point Pa 463

maximum air ow m3/h 700,0

Measured electric power input at best eciency point W139,0

Nominal power of the lighting system W6,0

Average illumination of the lighting system on the cooking surface lux 350

Sound power level at the highest setting dBA 59
