Ikelite 6241.26 Betriebsanleitung
Digital Housing
Supplemental Instructions
6241.26 C non A2600
Thank you for your purchase of Ikelite equipment. Please read the
“Instruction anual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.
Housing Specific tions
Controls ............................All camera functions except ? button
Width ................................5.9in (150mm) including controls
Height ..............................4.6in (117mm) including controls
Depth ................................3.8in (97mm) including controls
Weight ..............................1.2lb (544g)
Buoyancy..........................Slightly positive in freshwater
Depth Rating .................... 200ft (60m)
Built-in Flash ....................Yes
Strobe Connection............Slave
Tray ounting ..................12-24 thread with 3in spacing (76mm)
ain O-Ring ....................0132.45
Port O-Ring ......................0134.33
Port Outer Diameter ........3.0" (76mm)
Use 46mm Lenses............No
Use 67mm Lenses............Yes
Use Bayonet Lenses ........No
2
Supplied Accessories
- 0200 Vinyl Port Cover
- 0321.10 Safety Lanyard
- Flash Diffuser
- Flash Deflector
- 0184.1 Silicone Lubricant
- 0920.3 Control tips (3)
- 0920.1 Control Tip
- 5 Small Control Sleeves
4 5
6
3
2
1
8
7
ULTRAcompact
Made in USA
P rts of the Housing
B ck View
Power Button
1. ovie Button
2. Auto, Single Erase, Up Button
3. ECO Button
4. FUNC./SET Button
Lanyard
Latch
Tray ounts
5. Flash, Right Button
6. DISP., Down Button
7. Playback Button
8. MENU Button
Zoom Control
Front View Lens Port
Shutter Button
3
Initi l C mer Settings (before pl cing c mer in housing)
- Insert fully charged battery.
- Insert and format a SD or SDHC memory card.
- Set Date and Time.
- Set Lens Retract to “0 sec.”
- Power Saving: Set Auto Power Down to “Off” and Display Off to “3 min.”
- Set Rec. ode to “P” Program.
- Set Focus Range to “Normal.”
- Set Drive ode to “Single Shot.”
- Set Light etering to “Center Weighted.”
- Set White Balance to auto “AWB.” If more accurate colors are desired,
we recommend setting manual white balance underwater using a white
slate or white sandy bottom. anual white balance should be reset for
each working depth due to color absorption caused by the water. When
adding a UR-Pro color filter, reset manual white balance.
- Set ISO to “200.”
- Set Resolution to “L” 16 and ovie Quality to “1280.”
- Set AF Frame to “Center” and Digital Zoom to “Off.”
- Set AF Point Zoom to “Off” and Servo AF to “Off.”
A strobe focusing light is recommended to assist AF underwater.
- Set Continuous AF to “Off.”
- Set Lamp Setting to “Off” and Red-Eye Correction to “Off.”
- Set i-Contrast to “Off.”
- Set Review image after shooting to “8 Seconds.”
- Set Blink Detection and Grid Lines to “Off.”
- Set Flash to “On Flash always fires.”
Note: Enable acro mode when shooting close-up subjects. If
overexposure occurs, back away from the subject and zoom in slightly. If
overexposure continues, use “-” exposure compensation.
4
W-20 nd W-30 Wide-Angle Conversion Lenses
The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and
other 67mm threaded wide angle or macro lenses without the need for
an adapter. An external wide angle conversion lens increases angle of
coverage so you can get closer to the subject while still fitting everything
in the frame.
Slight to moderate vignetting will occur at widest angle camera lens
setting with these lenses. Zoom in to eliminate, or crop the image in
post processing. NOTE: The A2600 will not vignette at camera’s widest
angle setting underw ter when using the W-30 lens.
Bayonet mount lenses cannot be used with this housing.
Extern l Accessory Lenses
Ikelite 6430 W-30 Conversion Lens
Please visit www.ikelite.com for additional information.
5
6

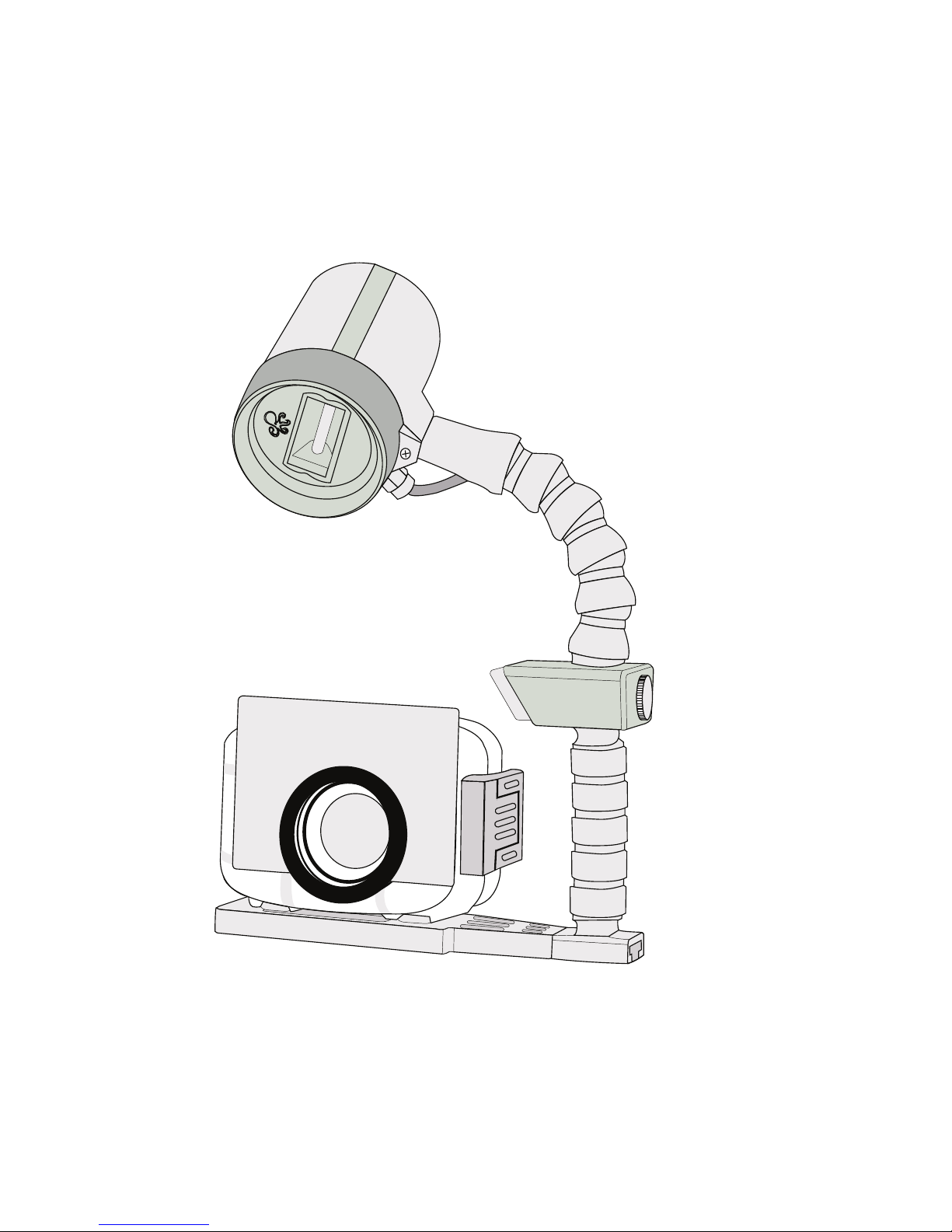

AF35 Strobe P ck ge 4035
The AutoFlash AF35 kit is a great compliment, and an effortless,
affordable way to add a flash to your new Ikelite point and shoot camera
system. Everything you need to get started is in the box. Just attach it to
the bottom of your housing and start taking pictures!
The AF35 Strobe Package is available to support your housing along
with a full range of accessories. Please visit www.ikelite.com to see the
most current information about recommended accessories for your
housing.
ikelite
35
AF
ikelite
AUTOFLASH
Limited W rr nty
This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
Ikelite product.
7
Customer Support
Please read the troubleshooting section of the “Instruction anual”
before contacting Ikelite.
6241.26_ Canon_A2600_Supplemental_1-0513
Ikelite Underw ter Systems
50 West 33rd Street
Indi n polis, IN 46208 USA
www.ikelite.com
© 2013 Ikelite Underwater Systems
