Ikelite 6812.61 Bedienungsanleitung

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please refer to the back page of this manual to

IKELITE

SLR-DC Housing

instruction manual

6812.61 for the Nikon D600, D610

Table of Contents

Specifications ..............................................................P. 3

Package Contents ........................................................P. 4

Preparation ..................................................................P. 4

Attach External “Tray with Handles” to Housing ............P. 4

Parts of the Housing - Front/Side View ..........................P. 5

Parts of the Housing - Back View ..................................P. 6

Initial Camera Setup........................................................P. 7

Opening the Housing ......................................................P. 7

Housing Conversion Circuitry..........................................P. 8

Setting the Conversion Circuitry Strobe ID Switch..........P. 8

Using the Conversion Circuitry........................................P. 9

Flash Mode and Compensation Dial ..............................P. 9

Using Non-Ikelite or Ikelite Non-DS Substrobes ............P. 9

DS50 and DS125 Substrobe Compatibility ....................P. 10

Attaching the Flash Connection for External Strobes ....P. 10

Attach Camera to Housing Tray......................................P. 11

Installing Camera in Housing ..........................................P. 11

Closing the Housing ........................................................P. 12

Final Check ....................................................................P. 12

Attaching a Sync Cord to the Housing ............................P. 13

Turn Camera On..............................................................P. 13

Zoom Clamp & ear Sleeve Installation ........................P. 14

Manual Focusing ............................................................P. 18

Installing the Port ............................................................P. 19

Lens Ports ......................................................................P. 20

Attaching an Ikelite Strobe Arm to the Housing Handle..P. 21

Table of Contents - continued

Usage ............................................................................P. 22

Pre-Dive Your System ....................................................P. 22

Lubricants ........................................................................P. 22

Troubleshooting ........................................................P. 23

Recommended Accessories ....................................P. 25

Accessory Mounting Points ............................................P. 25

EV-Controller Use............................................................P. 25

Maintenance..................................................................P. 26

Storing the Housing ........................................................P. 29

Spare Parts ..................................................................P. 29

Photo Tips ....................................................................P. 29

Customer Support ......................................................P. 30

Limited Warranty ........................................................P. 31

Returning Products for Service ................................P. 31

Product Registration ..................................................Back Cover

Specifications

- Controls ............All important camera functions are accessible.

Controls are not provided Diopter adjustment control and Depth-of-field

preview button.

- Width ................9.6 in (244 mm) including controls

- Height ..............6.9 in (175 mm) including controls

- Depth ................6.5 in (165 mm) including controls

- Weight ..............6.0 lb (2495 g) without tray & handles

- Buoyancy ..........Slightly negative in freshwater

- Depth Rating ....200 ft (60 m)

- Built-in Flash ....Not accessible

- Tray Mounting ..12-24 thread with 3 in. spacing (76 mm)

- SLR-DC Housing

- Envelope containing tray

installation hardware,

maintenance kit, and extra

control end tips.

Package Contents

- Aluminum Tray & Dual Handles

- Silicone Lubricant

- Standard Zoom Clamp & Sleeve Set

- #5509.28 Large Diameter Zoom

Clamp & Sleeve Set

This product has been water pressure tested at the factory and is depth

rated to 200 ft. (60m). Thoroughly inspect and immerse the empty

housing completely in water before installing a camera. If any fogging

occurs or droplets of water enter the housing, do not install a camera.

Clean the housing main o-ring and retest to make sure that it is

watertight. Refer to the Troubleshooting section, page 23.

We suggest that you read this instruction booklet thoroughly before use

to have a full understanding of where each camera control is located,

and what function each control provides. Please read your camera

manual thoroughly to have a full understanding of each camera function.

If you are new to underwater photography, be sure to read the Photo

Tips section.

Due to the power required to operate the camera and LCD screen start

each dive with a fully charged camera battery.

Preparation

Attach External “Tray with Handles” to Housing

Use hardware and instructions located in the clear Ikelite pouch to attach

the “Tray with Handles” to your Ikelite housing.

IKELITE

Parts of the Housing - Front View

Quick Release

Strobe Arm Mount

Handle

Port

pening

ear Sleeve

Drive ear

Shutter

Release

Power Switch

Lid

Snap

Side View

ear

Sleeve

Optional

Port

Port O-ring

Main Housing

O-ring

Camera Tray

Camera

Mounting Bolt

Aluminum Tray

Leveling Screw (Factory Pre-set)

Movie-record

AE-L/AF-L

Sub-command Dial

Lid

Snap

Fn (function) Button

Shutter Release

Metering Button

Button

713

11 17

22 23

TTL

-1

-2

-3

MAN

Back View

1. Quick Release Button

2. Mode Dial

3. Flash Mode/Compensation

4. Release Mode Dial Lock Release

5. Zoom Control

6. BKT Button

7. Lens Release Button

8. AF Mode Button

8a. Focus Mode Selector

9. External Strobe Connector & Cap

10. Release Mode Dial

11. Playback Button

12. MENU Button

13. Retouch/Picture Control

14. WB Button

15. P.back Zoom In/QUAL Button

16. P.back Zoom In/IS Button

17. Delete/Format Button

18. Super-eye Viewfinder

19. Main command Dial

20. Mover Cursor Up

21. Cancel, Return to Prev. Menu

22. K Button

23. Display Sub Menu/Select Item

24. Move Cursor Down

25. Lv Live View Button

26. Live View Selector

27. info Button

28. Flash Mode & Compensation Dial

pening the Housing

Lid Snaps have a Lock. To open, push Lid Snap

Lock forward and lift as shown. Keep pressure on

the Lid Snap so it does not fly open quickly.

Lid Snaps have a lot of spring tension once they

go over center, so have a firm grip on the Lid

Snap. Lid Snaps may be opened one at a time.

Lift

Push Forward

Lock

Initial Camera Setup

- Insert a fully charged battery and SD or SDHC memory cards.

- Set Time Zone and Date. Set the mode dial to “M” manual.

- Set shutter speed to 1/60th second, or 1/125th second for fast subjects.

- Set aperture to F8 for general photography or F22 for macro(close-ups).

- Set JPE compression to “Optimal Quality.”

- Set White Balance to “AUTO1” and Picture Control to “SD Standard.”

- Set Auto Distortion Control to “ON” and Active D-Lighting to “OFF.”

- Set HDR and Long Exposure NR to “OFF.”

- Set ISO Sensitivity to “100” and Metering to “Center-weighted.”

- Set Focus Mode to “AF-S.”

- Set AF-Area Mode: Viewfinder to “Single-point AF” and Live-view/movie

to “Normal-area AF.”

- Set Focus Point to the center and rotate focus selector to “L.”

In Custom Settings Menu:

- Set AF-S priority selection to “Release” & AF point illumination to “ON.”

- Set Built-in AF-assist illuminator to”Off.”

- Set Shutter-release button AE-L to “ON.”

-Set Release button to use dial to “ N.”

- Set LCD illumination to “ON.”

- Set Save user settings to “U1.”

Note: This housing is designed for use with an external strobe. The

camera’s internal flash cannot be used while in the housing. Make sure

Red-eye reduction is off when connected to a strobe.

On the bottom of the internal housing tray is a switch for setting the DS

Substrobe ID. Set the switch to the Model of DS Substrobe being used.

When using dual strobes of different models such as a DS51 and a

DS161, set the ID switch to DS51 or the smaller strobe.

Set

DS Substrobe

to TTL Mode

50-51

TIGHTEN HOLDOWN BOLT

WITH COIN

OR SCREWDRIVER

160-161

125-200

Setting the Conversion Circuitry Strobe ID Switch

Strobe ID

Switch

Housing Conversion Circuitry

This housing contains Ikelite designed Conversion Circuitry. Once

attached, turn the strobe on first before turning on the camera.

When used with Ikelite DS Substrobes the Conversion Circuitry provides

real Nikon iTTL flash exposure with over and underexposure

compensation from +1 1/3 to - 1 1/3 f-stops in 1/3 stop increments.

The Conversion Circuitry also offers Manual exposure control with 3 1/2

f-stops of underexposure control in 1/2 stop increments.

The Conversion Circuitry is powered by the Ikelite DS Substrobe when

connected to the housing with the 4103.51 single or 4103.52 dual sync

cord. When using two strobes with the dual sync cord, the primary

strobe connected to the cord without the red band, must be turned on to

power the Conversion Circuitry. Always keep both strobes connected to

your dual sync cord underwater. Do not exchange your secondary

strobe for a dust cap which may not be waterproof.

Using the Conversion Circuitry (Set DS Substrobe to TTL mode)

-Mode and Compensation Dial (see illustration below)

Note that the TTL compensation values are located in the yellow band.

Manual compensation values are located in the black band. Rotate the

Dial to switch between TTL and Manual Modes.

-TTL Mode compensation values are indicated in the yellow band. Place

the Setting Indicator to TTL for N Compensation. Rotate the Dial either

direction to select +/- compensation. Place the Setting Indicator to the

desired compensation value. Note that in TTL, compensation values are

in 1/3 f-stops.

-Manual Mode compensation values are indicated in the black band.

Rotate the Dial to place the Setting Indicator to the desired compensation

value. Note that in Manual Mode, compensation values are in 1/2 f-stops

from (F) full power to -3 f-stops.

Set DS Substrobe to TTL mode. This will allow the strobe power to

be varied in manual mode.

Setting Indicator

TTL

-1

-2

-3

MAN

TTL Flash Scale (yellow = 1/3 stops)

Manual Flash Scale (black = 1/2 stops)

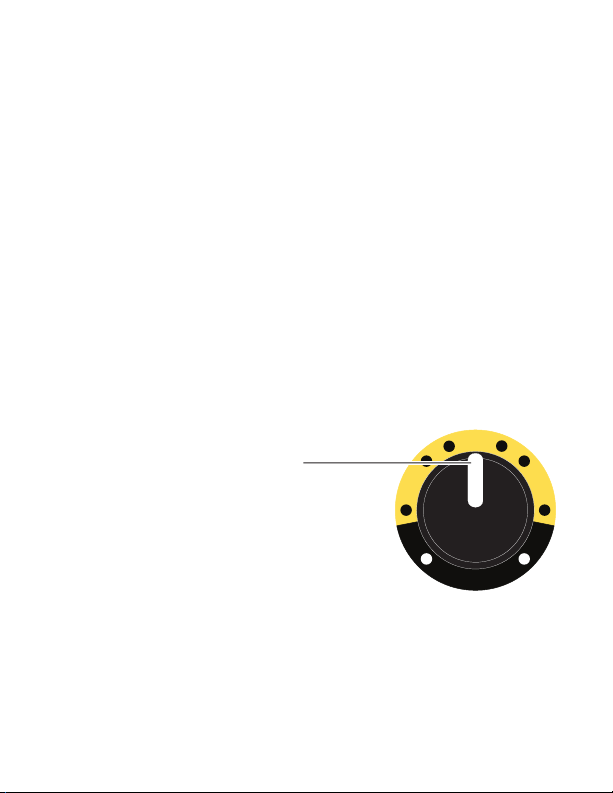

Flash Mode and Compensation Dial

Using Non-Ikelite or Ikelite Non-DS Substrobes

(Substrobe 50, 100A, 200, 400) with this Housing

The Conversion Circuitry is automatically disabled when used with a

Non-Ikelite or Non-DS Substrobe. These Substrobes can be used in their

manual mode utilizing any power settings provided on the Substrobe.

DS50 and DS125 Substrobe Compatibility

- Older DS50 Substrobes with Serial Number below 63,850 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS50 Substrobes with Serial Number between 63,850 and 69,999

require upgrade of electronics to operate. Cost of update depends on

strobe circuitry. Strobe must be returned to Ikelite for evaluation to

provide an estimate of upgrade cost.

- Older DS125 Substrobes with Serial Number below 2,500 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS125 SubStrobes with Serial Number between 2,500 and 4,999

require upgrade of electronics to operate. Cost of update depends on

strobe circuitry. Strobe must be returned to Ikelite for evaluation to

provide an estimate of upgrade cost.

Attaching the Flash Connection for External Strobes

When using an external

strobe, connect the

housing hotshoe connector.

Slide the connector into the

hotshoe mount on the

camera from the back of

the camera as shown.

Slide the connector forward

until it stops. Due to limited

clearance between the

camera hotshoe mount and

the housing back, the

hotshoe connector should

be attached before the

camera is secured with the

mounting bolt.

Front

External Strobe Connector

and Waterproof Cap

Housing Back

Hotshoe

Connector

Inhaltsverzeichnis

Andere Ikelite Kamerazubehör Handbücher

Ikelite

Ikelite 6430 W-30 Bedienungsanleitung

Ikelite

Ikelite pdf #4104.6 ..... Nikonos TTL Cord Film... Bedienungsanleitung

Ikelite

Ikelite 6270.06 Betriebsanleitung

Ikelite

Ikelite SLR-DC Housing Bedienungsanleitung

Ikelite

Ikelite 9304.53 Bedienungsanleitung

Ikelite

Ikelite 5509.20 Bedienungsanleitung

Ikelite

Ikelite 5509.32 Bedienungsanleitung

Ikelite

Ikelite 4067 Bedienungsanleitung

Ikelite

Ikelite SLR-DC Housing Bedienungsanleitung

Ikelite

Ikelite 6184.93 Bedienungsanleitung

Ikelite

Ikelite 6047 Betriebsanleitung

Ikelite

Ikelite 6146.07 Bedienungsanleitung

Ikelite

Ikelite 6910.61 Bedienungsanleitung

Ikelite

Ikelite 6870.70 Canon EOS 70D Bedienungsanleitung

Ikelite

Ikelite MG-HD3 Betriebsanleitung

Ikelite

Ikelite 200DLM Bedienungsanleitung

Ikelite

Ikelite 6805.1 Bedienungsanleitung

Ikelite

Ikelite ULTRAcompact TG-3 Bedienungsanleitung

Ikelite

Ikelite 6950.52 Bedienungsanleitung

Ikelite

Ikelite 6210.61 Betriebsanleitung

Ikelite

Ikelite DCR-SR190 Betriebsanleitung

Ikelite

Ikelite 6241.13 Betriebsanleitung

Ikelite

Ikelite Canon 6240.88 Betriebsanleitung

Ikelite

Ikelite Nikon 7600 Bedienungsanleitung

Beliebte Kamerazubehör Handbücher anderer Marken

Viltrox

Viltrox EF-NEX Montageanleitung

Calumet

Calumet 7100 Series CK7114 Bedienungsanleitung

Ropox

Ropox 4Single Series Bedienungsanleitung

Cambo

Cambo Wide DS Digital Series Betriebsanleitung

Samsung

Samsung SHG-120 Bedienungsanleitung

Ryobi

Ryobi BPL-1820 Bedienungsanleitung

Aegis

Aegis ABL-36020P Bedienungsanleitung

Pentax

Pentax Data Back Fc Bedienungsanleitung

Fantasea

Fantasea EyeGrabber F Series Bedienungsanleitung

Honeywell

Honeywell HDZ20HD Bedienungsanleitung

EGO

EGO BA1400T Bedienungsanleitung

Sima

Sima SRW-62 Bedienungsanleitung

Shape

Shape A7SSMKIT Bedienungsanleitung

Slide Kamera

Slide Kamera HST-2 Bedienungsanleitung

Power works

Power works 2902613 Bedienungsanleitung

SES

SES SE-2047-2 Bedienungsanleitung

Olympus

Olympus PT-EP05L Bedienungsanleitung

Starlite

Starlite OctoDome nxt Bedienungsanleitung
