Ikelite 6973.07 Bedienungsanleitung
Product Registration
Please register your product within 15 days of purchase. Our product
registration database is the quickest way for us to contact you in the
event of a product update.
To register, send a photo of the above registration label to us via
number.
200DLM/A Underwater Housing for Canon EOS M6
Mark II Mirrorless Camera
Product # 6973.07
2
Introduction
Thank you for your purchase of Ikelite products.
Our primary focus is to provide quality, professional grade products
for use in and under water. Our products are designed, manufactured,
and distributed from our sole facility in Indianapolis, USA where we
started in 1962.
We are available if you have any questions or want photo advice.
reply within 1 business day.
An electronic version of this instruction manual is available for
download via the product page on our website:
https://www.ikelite.com
In the Box
• Housing
• Rear o-ring # 0110 (installed)
• Front o-ring # 0132.36 (installed)
• Camera mount (installed)
• .050” hex key # 0945.11
• 1/16” hex key # 0945.16
• Silicone lubricant 1cc tube
3
Important Notices
»This housing requires a compatible DLM lens port for
waterproof operation. The housing is not waterproof without a
DLM lens port attached.
»Do not pull the shutter trigger without a camera installed. You
may accidentally detach or damage the control spring.
»Never leave a housing in a rinse tank, even if it is the only
system in the tank. Accidental damage may occur when the
user walks away from a housing while it is in the rinse tank.
»Do not use alcohol, cleaning agents, spray lubricants, Rain-X,
or other solvents on the housing or lens port. Use of an
incompatible chemical compound can damage the plastic and
o-rings, and may result in leaking.
»If you will be using the system in strong surf it is
recommended to draw a vacuum on the housing using the
optional vacuum kit (sold separately).
4
Contents
Product Registration 1
Introduction 2
In the Box 2
Important Notices 3
Getting to Know Your Housing 6
Tray Mounts 9
Accessory Ports 9
Setting Up Your Camera 9
Pre-Installation Checklist 9
Camera Settings 10
Exposure Settings 10
Power Save 10
Back Button Focus 10
Setting Up Your Housing 11
Opening the Housing 11
Installing the Camera 11
Closing the Housing 12
Attaching a Lens Port 13
Installing the Lens and Port 13
Setting Up An External Strobe 16
About Fiber Optic Cords 16
Attaching a Fiber Optic Cord 17
Getting in the Water 17
Final Check 17
Entering the Water 18
Shooting Underwater 18
Learning about Underwater Photography 19
Maintaining Your Housing 19
Post-Dive 19
5
Lens Port 20
Storage 20
Servicing Recommendations 21
Lubricating Controls 21
Lubricating Push Buttons 22
Lubricating Control Shafts 23
Troubleshooting 24
Spare Parts 26
Limited Warranty 27
Service and Repairs 27
Contact Us 28
6

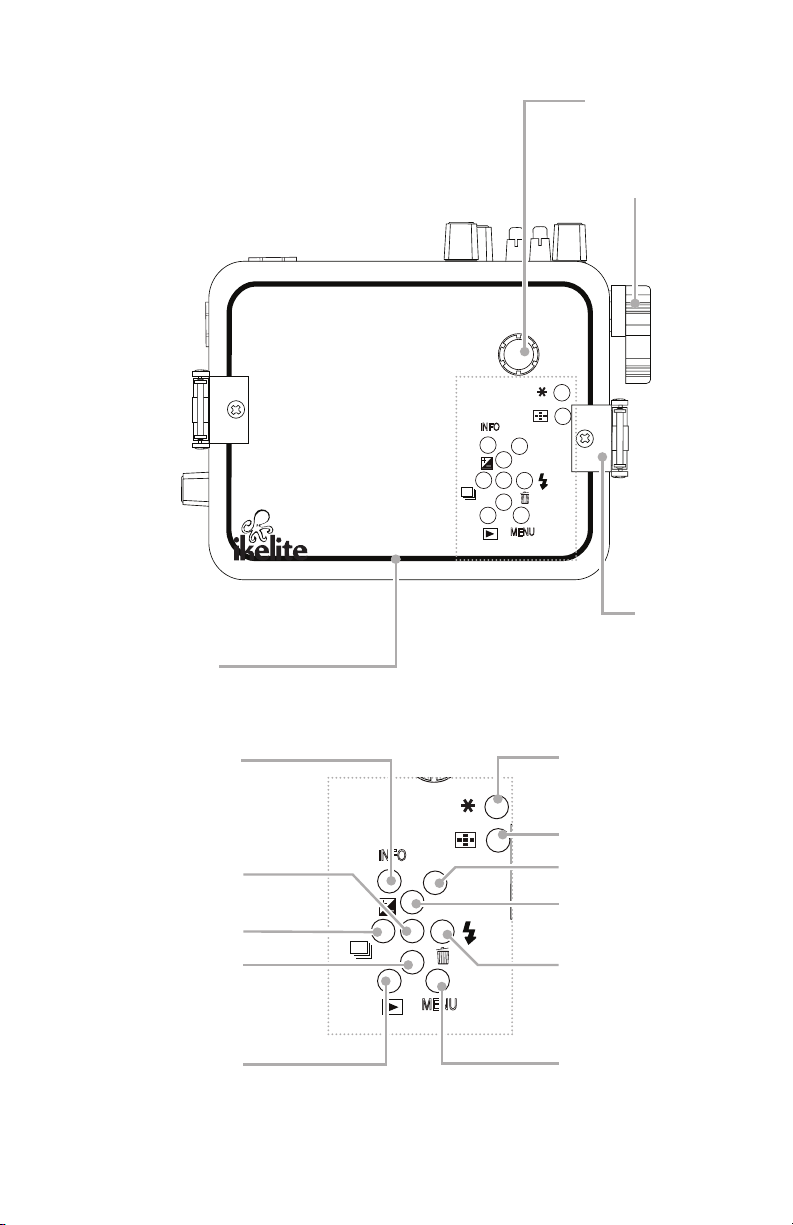

Getting to Know Your Housing
Shutter
Lid snap
Tray mounts
Lens
release
Port mount Fiber optic
ports
Accessory port
7
6973.07
MADE IN USA
MENU
INFO
Rear o-ring
6973.07
MADE IN USA
MENU
INFO
Left / drive mode
Info
Playback
Lid
snap
hook
Up / exposure
compensation
Menu
Right / ash
AF start
button
Quick control
/ setting
Quick
control dial
Down / erase
Movie shooting
AF point
AE lock / FE lock
8
Thumbscrew
groove
Main dial
Multi-function
Dial function
Front o-ring
On/off
Accessory
port
Mode dial
9
Tray Mounts
This housing features two 1/4-20 threaded tray mounts on the bottom
of the housing. The spacing between the tray mounts is 3” (76.2 mm).
Optional tray with handles and mounting hardware are sold separately.
It is recommended to detach and thoroughly rinse the tray mounts,
tray, and mounting hardware, with fresh water routinely during
continuous use and prior to storage.
Accessory Ports
This housing features two spare accessory ports which may be used
for the attachment of optional accessories. These ports accept ttings
designed for a 1/2” through or 1/2-20 threaded hole.
The optional B1A Bulkhead may be installed in place of the top
accessory port for the use of an optional Canon TTL Converter.
The optional Vacuum Kit # 47012 may be installed in place of the side
accessory port. A hand pump with gauge allows you to draw a vacuum
on the house to simulate water pressure and check for leaks prior to
entering the water.
Visit ikelite.com for an updated list of compatible products.
»Do not remove or loosen the accessory port plug unless you
are installing a compatible accessory.
Setting Up Your Camera
Pre-Installation Checklist
1. Insert a fully charged camera battery.
2. Insert a properly formatted memory card.
3. Remove any attached lanyard or neck strap.
10
Camera Settings
• Set Touch Operation to “Disable.”
• Set AF-assist beam to “Off.”
• Set Red-eye reduc. to “Off” when using an external strobe.
• Set ETTL II meter to “Evaluative” when using an external TTL
strobe.
Exposure Settings
Refer to the Cheat Sheets in the Photo School section of our website
for recommendations on exposure settings for a wide variety of
shooting situations:
https://www.ikelite.com/blogs/cheat-sheets
Power Save
It is recommended to set the Set Display Off and Auto Power Down
settings to the shortest intervals that makes sense for your shooting.
Instead of turning the camera off and on to conserve battery, the
camera will automatically sleep after the pre-set interval. To wake the
camera, simply perform an operation such as pressing the shutter
button halfway down.
Back Button Focus
Back button focus takes some adjustment to get used to but can be
very valuable in a variety of shooting scenarios.
The AF Start button is conveniently accessed by a thumb lever on the
side of the housing. Instead of half-pressing the shutter to obtain focus
and lock focus, press the AF Start button.
