Ikelite Digital Housing Betriebsanleitung

Thank you for your purchase of Ikelite equipment. Please read the

“Instruction Manual” and “Supplemental Instructions” completely before

attempting to operate or dive with this product.

Digital Housing

Supplemental Instructions

6210.83 Sony DSC- 830

Controls ............................All camera functions

Width ................................5.8 in (147 mm) including controls

Height ..............................4.6 in (117 mm) including controls

Depth ................................4.5 in (114 mm) including controls

Weight ..............................1.5 lb (680 g)

Buoyancy..........................Slightly positive in freshwater

Depth Rating ....................200 ft (60 m)

Built-in Flash ....................Yes

Strobe Connection............Fiber Optic or Slave

Tray Mounting ..................12-24 thread with 3 in spacing (76 mm)

Main O-Ring ....................0132.45

Port O-Ring ......................0103

Port Outer Diameter ........3.9 in (99 mm)

46mm Acc. Lenses .......... o

67mm Acc. Lenses ..........Macro lenses only with 9306.82 Macro Adapter

Bayonet Mount Lenses .... o

WD-4 Wide Angle Dome ..Yes

Housing

Port Cover 0200.08

Vinyl Break-away Safety Lanyard 0321.10

Silicone Lubricant 0184.1

Flash Diffuser

Flash Deflector

Extra Control Tips/Sleeves

Housing Specifications

hat’s in the Box

Shutter Button

Tray Mounts

Latch

Lens Port

O /OFF Button

Fiber Optic Ports

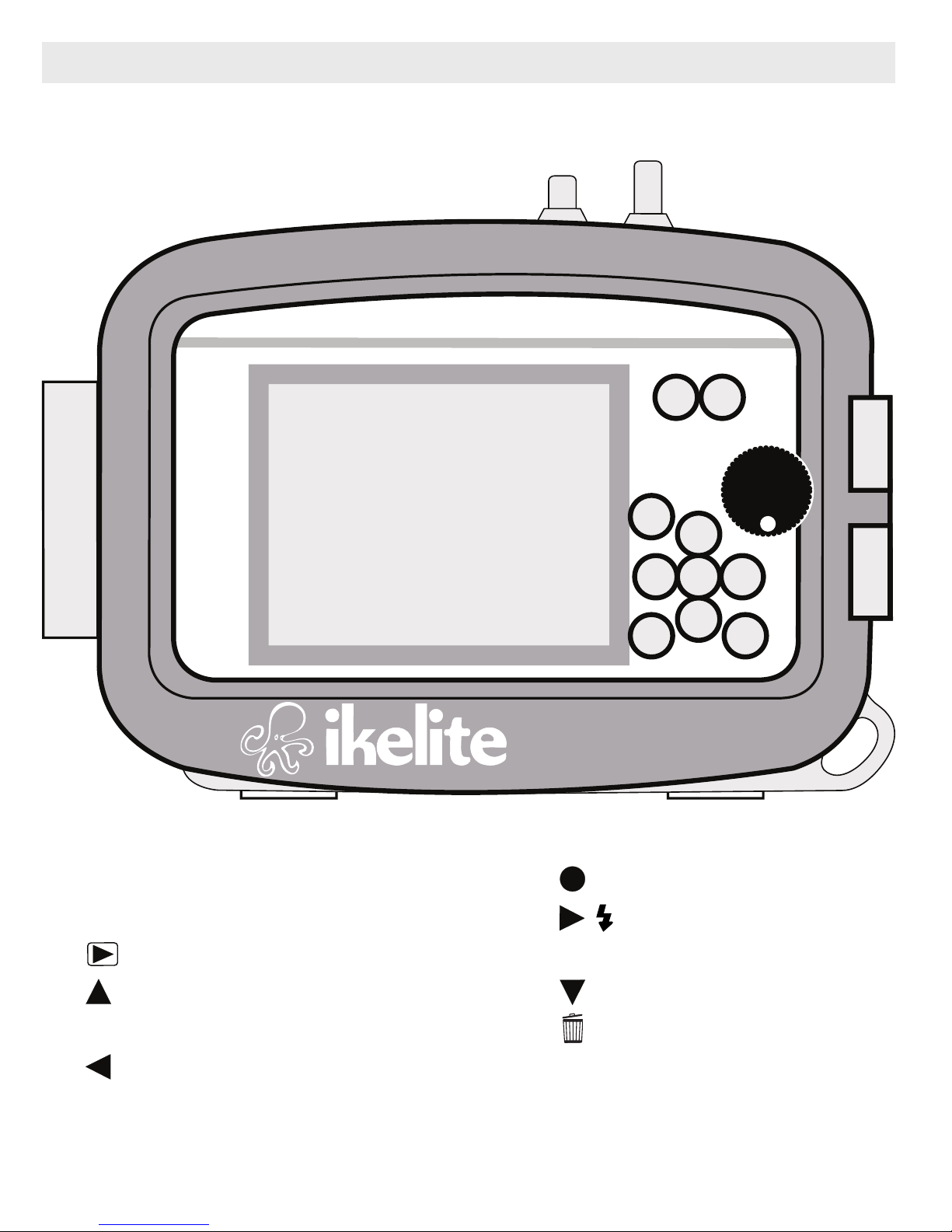

Parts of the Housing - Front View

1. W/T Zoom Button (Wide)

2. W/T Zoom Button (Telephoto)

3. Playback Button

4. Up / DISP Display Button

5. Mode Switch

6. Left / Smile Button

7. Set Button

8. Right / Flash Button

9. MENU Button

10. Down / Self-timer Button

11. Delete Button

910

ULTRA

compact

Made in USA

Parts of the Housing - Back View

- Insert fully charged camera battery and turn camera on.

- Set Mode Switch to .”

-In MENU:

Set Rec Mode to “P” Program Auto. The shutter speed will be locked at

1/30th second when the flash is activated.

Set Still Image Size to “4:3(20M).”

Set ISO to “200.”

Set White Balance to WB/Auto. For best results, manually set white

balance for each working depth using “One Push Set.”

Set Focus to “Center AF” and Metering Mode to “Center.”

Set Face Detection to “Off.”

Set DRO to DRO STD.”

-In MENU:

Set Movie Format to “AVCHD”.

Set AF Illuminator to “Off.”

Set Digital Zoom and Red Eye Reduction to “Off.”

Set Monitor Brightness to 5 “Bright.”

Set Disp. Resolution to “Standard.”

Set Power Save to “Off.”

Insert and format an SD memory card.

Set Area, Date and Time.

- Set flash function to “On” Always use flash.

* All menu functions not listed should be set to the user’s preference.

Initial Camera Settings (before placing camera in housing)

SET

External Macro Adaptor 9306.82

Allows attachment of 67mm threaded macro lenses from Inon and

Epoque. OT for use with 67mm threaded wide-angle lenses.

D-4 ide-Angle Conversion Dome 6430.4

The removeable WD-4 corrects light refraction underwater,

restoring the camera’s original angle of coverage. Approximately

3/4 of the camera's zoom range can be used with the dome in

place. Slight vignetting may occur at camera’s widest angle setting.

Note: Other wide angle conversion or accessory lenses cannot be used

with this housing.

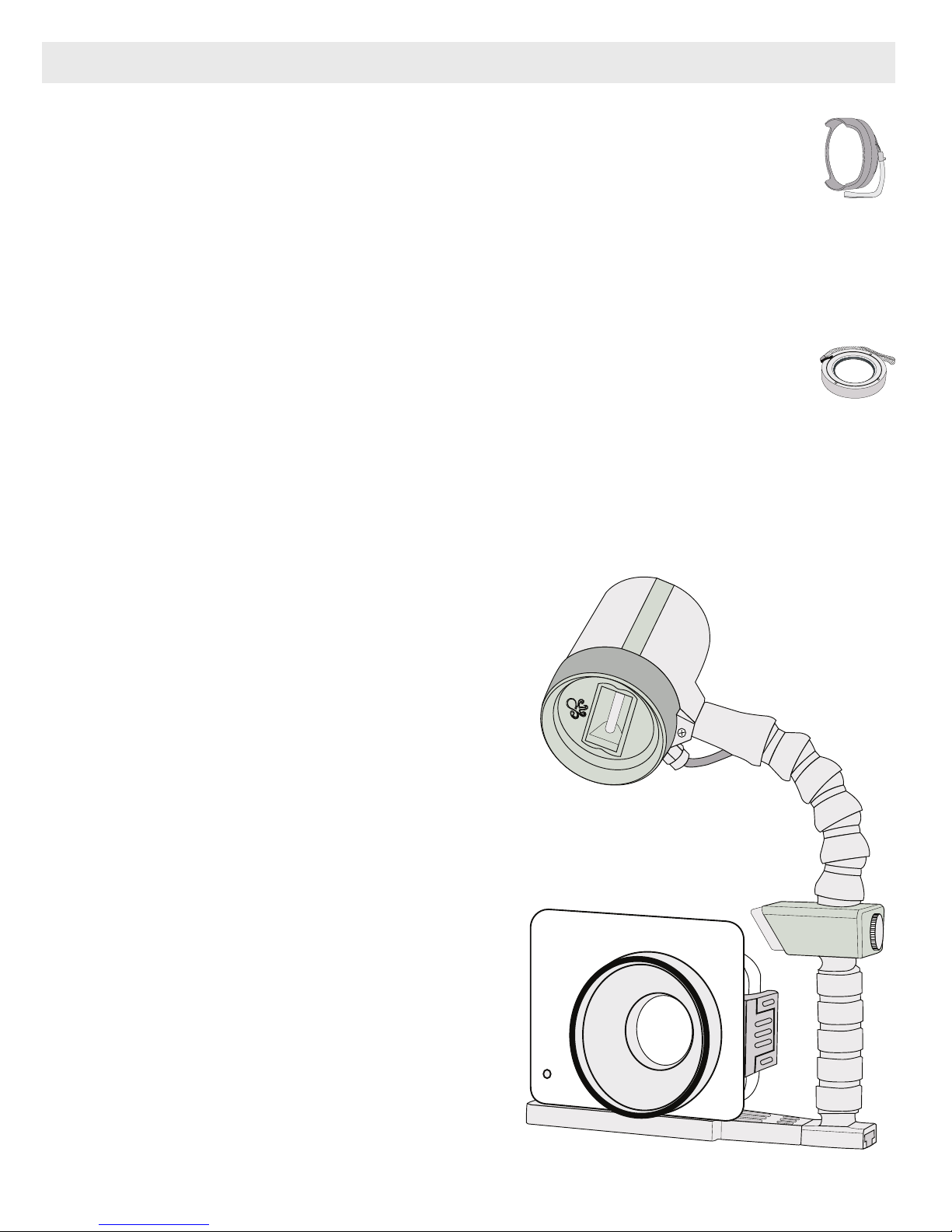

AF35 Strobe Package 4035

The AutoFlash AF35 kit is a great

compliment, and an effortless,

affordable way to add a flash to your

new Ikelite point and shoot camera

system. Everything you need to get

started is in the box. Just attach it to

the bottom of your housing and start

taking pictures!

The AF35 Strobe Package is available

to support your housing along with a

full range of accessories. Please visit

www.ikelite.com to see the most

current information about

recommended accessories for your

housing.

ikelite

AUTOFLASH

Housing Accessories

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Please read the troubleshooting section of the “Instruction Manual”

before contacting Ikelite.

Customer Support

Limited arranty

6210.83_Sony_W830_1-0814

Ikelite Underwater Systems

50 est 33rd Street

Indianapolis, IN 46208 USA

www.ikelite.com
