Ikelite SLR-DC Housing Bedienungsanleitung

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please refer to the back page of this manual to

IKELITE

SLR-DC Housing

Instruction Manual

6812.81 for the Nikon D810

Table of Contents

Specifications ..............................................................P. 3

Package Contents ........................................................P. 4

Preparation ..................................................................P. 4

Attach External “Tray with Handles” to Housing ............P. 4

Parts of the Housing - ront/Side View ..........................P. 5

Parts of the Housing - Back View ..................................P. 6

Initial Camera Setup........................................................P. 7

Opening the Housing ......................................................P. 7

Housing Conversion Circuitry..........................................P. 8

Setting the Conversion Circuitry Strobe ID Switch..........P. 8

Using the Conversion Circuitry........................................P. 9

lash Mode and Compensation Dial ..............................P. 9

Using Non-Ikelite or Ikelite Non-DS Strobes ..................P. 9

DS50 and DS125 Strobe Compatibility ..........................P. 10

Attaching the lash Connection for External Strobes ....P. 10

Attach Camera to Housing Tray ......................................P. 11

Installing Camera in Housing ..........................................P. 11

Closing the Housing ........................................................P. 12

inal Check ....................................................................P. 12

Attaching a Sync Cord to the Housing ............................P. 13

Turn Camera On..............................................................P. 13

Zoom Clamp & Gear Sleeve Installation ........................P. 14

Manual ocusing ............................................................P. 18

Installing the Port ............................................................P. 19

Lens Ports ......................................................................P. 20

Attaching an Ikelite Strobe Arm to the Housing Handle..P. 21

Table of Contents - continued

Usage ............................................................................P. 22

Pre-Dive Your System ....................................................P. 22

Lubricants ........................................................................P. 22

Troubleshooting ........................................................P. 23

Recommended Accessories ....................................P. 25

Accessory Mounting Points ............................................P. 25

EV-Controller Use............................................................P. 25

Maintenance..................................................................P. 26

Storing the Housing ........................................................P. 29

Spare Parts ..................................................................P. 29

Photo Tips ....................................................................P. 29

Customer Support........................................................P. 30

Limited Warranty ........................................................P. 31

Returning Products for Service ................................P. 31

Product Registration ..................................................Back Cover

Specifications

- Controls ............All important camera functions are accessible.

Controls are not provided for lash Compensation (provided in the

conversion circuitry only), Diopter Adjustment Control, Eyepiece Shutter

Lever, ocus Selector Lock.

- Width ................10 in (250 mm) including controls

- Height ..............6.9 in (175 mm) including controls

- Depth ................6.5 in (165 mm) including controls

- Weight ..............5.4 lb (2.4 kg) without tray & handles

- Buoyancy ..........Slightly negative in freshwater

- Depth Rating ....200 ft (60 m)

- Tray Mounting ..12-24 thread with 3 in spacing (76 mm)

- SLR-DC Housing

- Bag containing tray

installation hardware,

maintenance kit, and extra

control end tips.

- Aluminum Tray & Dual Handles

Package Contents

- Silicone Lubricant

- 5509.27 Standard Zoom Clamp &

Sleeve Set

- 5509.28 Large Diameter Zoom

Clamp & Sleeve Set

This product has been water pressure tested at the factory and is depth

rated to 200 ft. (60 m). Thoroughly inspect and immerse the empty

housing completely in water before installing a camera. If any fogging

occurs or droplets of water enter the housing, do not install a camera.

Clean the housing main o-ring and retest to make sure that it is

watertight. Refer to the Troubleshooting section, page 23.

We suggest that you read this instruction booklet thoroughly before use

to have a full understanding of where each camera control is located,

and what function each control provides. Please read your camera

manual thoroughly to have a full understanding of each camera function.

If you are new to underwater photography, be sure to read the Photo

Tips section.

Due to the power required to operate the camera and LCD screen, start

each dive with a fully charged camera battery.

Preparation

Attach External “Tray with Handles” to Housing

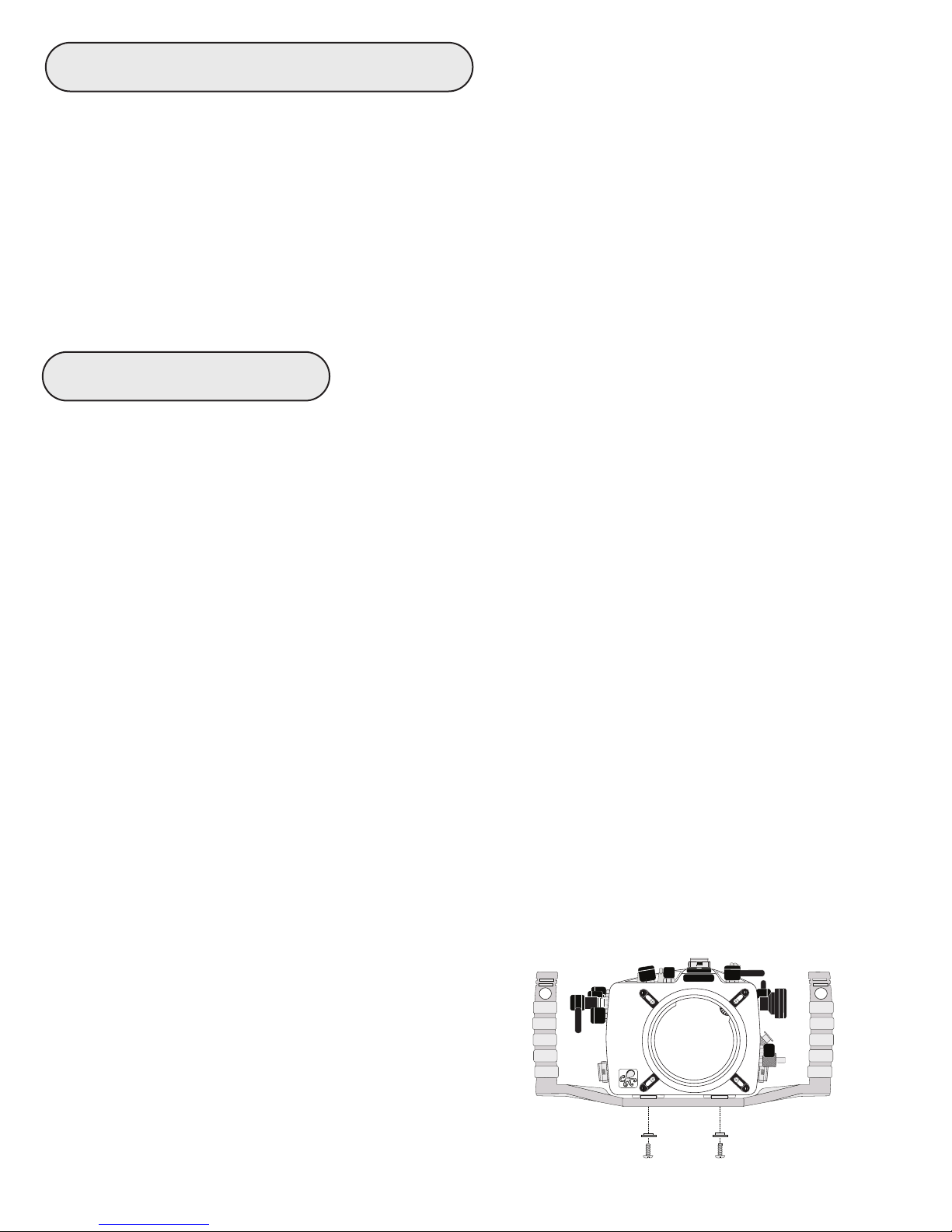

Use hardware and instructions

located in the clear Ikelite bag to

attach the “Tray with Handles” to

your Ikelite housing.

IKELITE

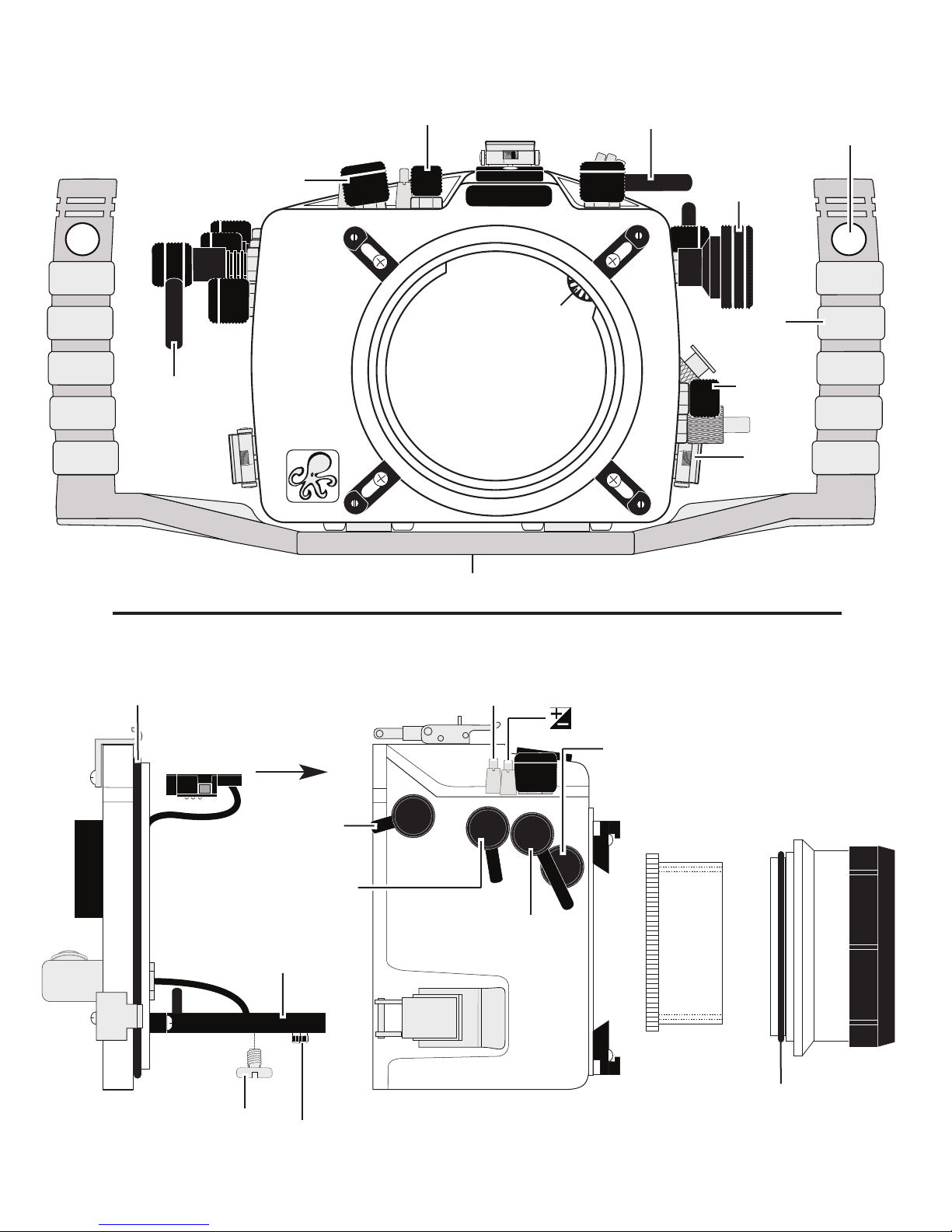

Parts of the Housing - ront View

Quick Release

Strobe Arm Mount

Handle

Port

pening

Gear Sleeve

Drive Gear

Shutter

Release

Power Switch

Lid

Snap

Aluminum Tray

Fn unction / Pv Button

Lens

Release

Zoom

Camera Mounting Bolt

Side View

Tray Adjustment Screw (factory set)

Bracket

Gear

Sleeve

Optional

Port

Port O-ring

Camera Tray

Movie-record

AE- /A -L

Lock

Sub-command

Dial

Lid

Snap

Shutter-release

Main Housing O-ring

Hotshoe (slide on

ca era ount)

Mode Button

7 8

19 20 21

TTL

-1

-2

-3

MAN

24 25

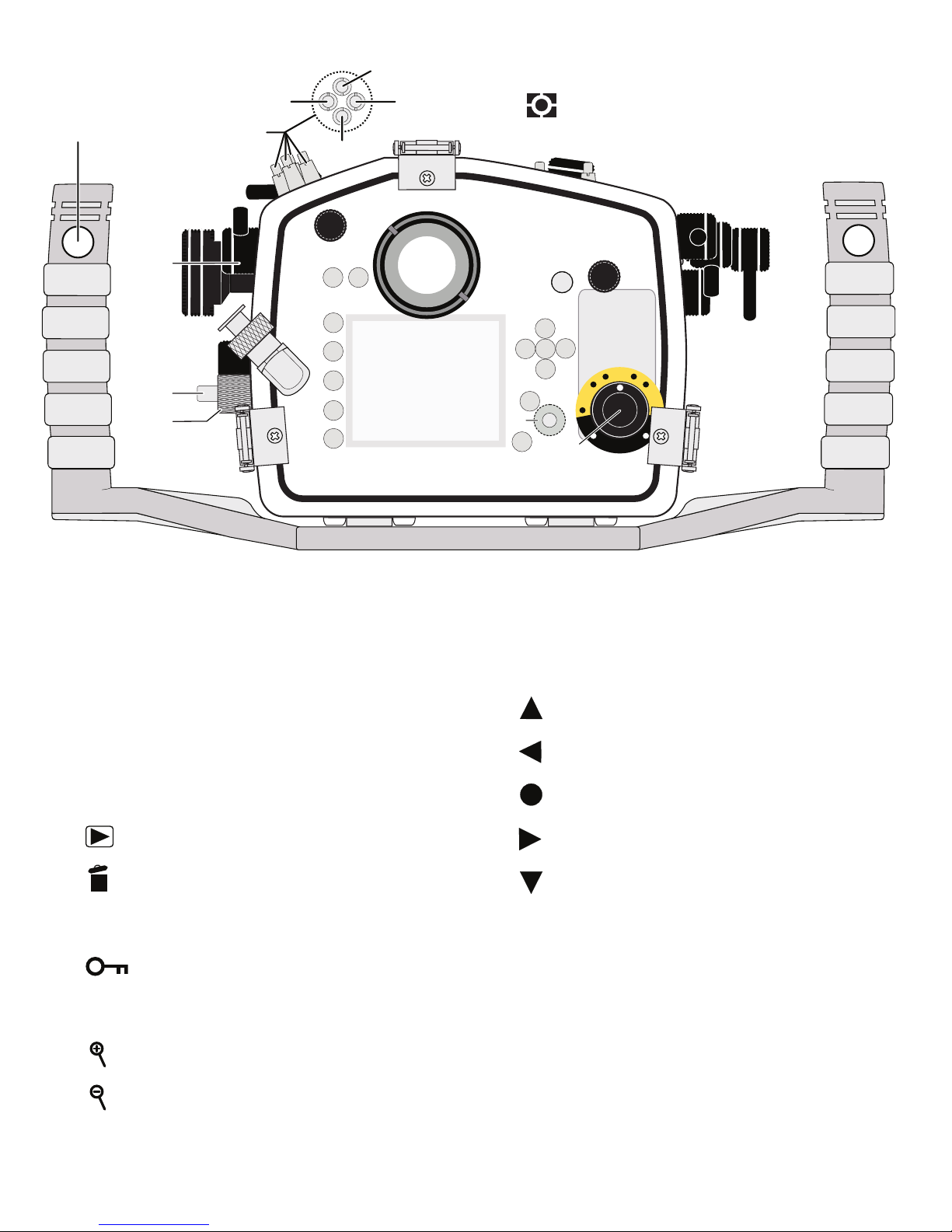

Back View

1. Quick Release Button

2. Top Push Button Cluster

3. Release Mode Dial Lock Release

4. A -mode Button

5. ocus-mode selector

6. Release Mode Dial

7. Playback Button

8. Delete/format button

9. MENU Button

10. / ?Button

11. External Strobe Connector & Cap

12. Playback/Zoom in

13. Playback/Zoom out

14. OK Button

15. Super-eye Optical Viewfinder

16. AF- N Button

17. Main command dial

18. Move Cursor Up

19. Cancel and return to previous

20. Select highlighted item

21. Display sub-menu

22. Move Cursor Down

23. i Button

24. Live View Selector

25. Live View Button

26. (info) Button

27. lash Mode & Compensation Dial

METERING

QUAL

pening the Housing

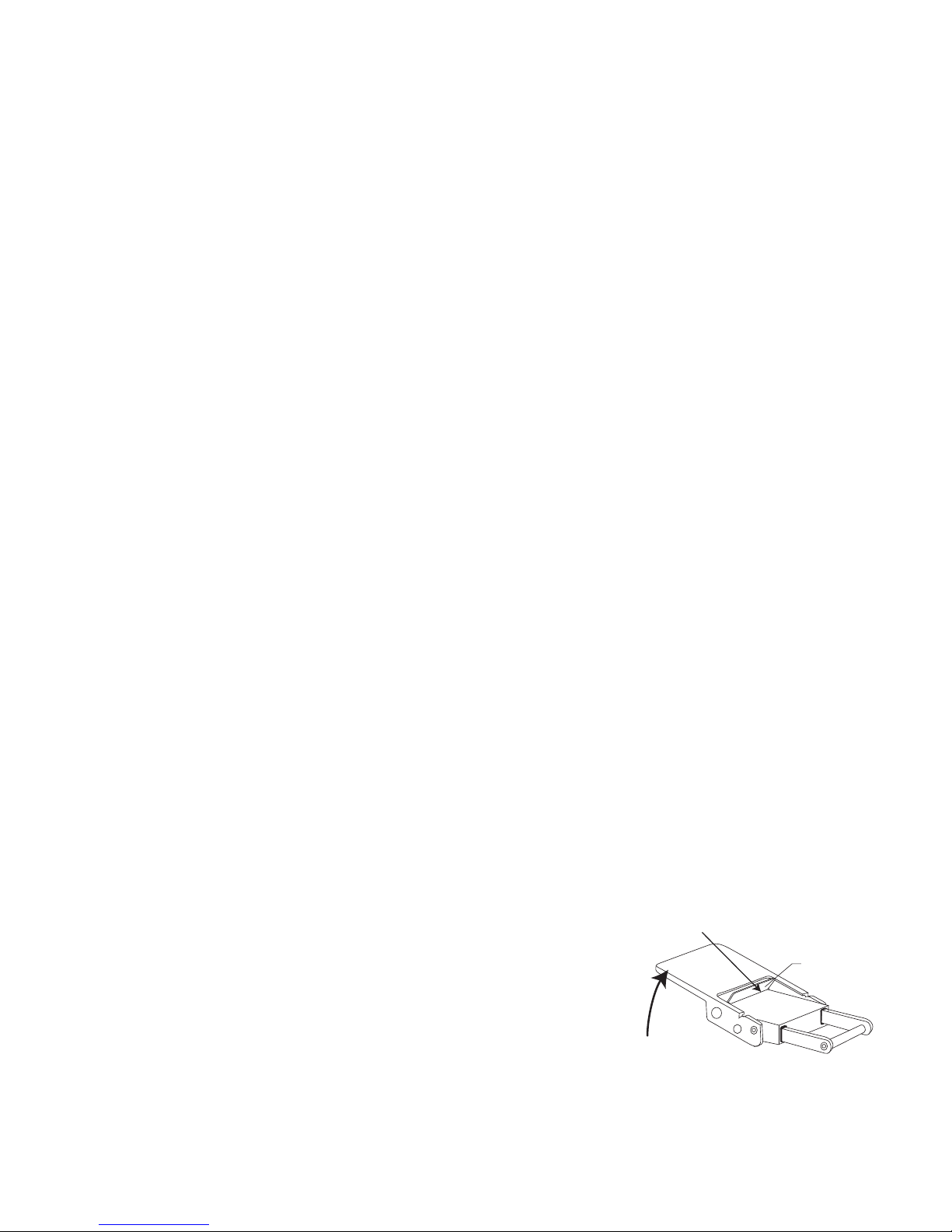

Lid Snaps have a Lock. To open, push Lid Snap

Lock forward and lift as shown. Keep pressure

on the Lid Snap so it does not fly open quickly.

Lid Snaps have a lot of spring tension once they

go over center, so have a firm grip on the Lid

Snap. Lid Snaps may be opened one at a time.

Lift

Push orward Lid Snap

Lock

Initial Camera Setup (before placing camera in housing)

- Insert a fully charged battery.

- Insert a high capacity SD or Compact lash memory card.

- Set the Shooting Mode to “A” Aperture or “M” manual for shutter speeds

faster than 1/60th second.

- Set Time Zone and Date.

- Set ISO sensitivity to “200” and Meter to “Center-weighted.”

- In “M” Manual, set shutter speed to 1/60th second or 1/125th second for

fast moving subjects. Maximum shutter speed of 1/250th second

recommended to allow full power flashes from strobes.

- Set aperture to 8 for general photography or 22 for close-ups.

- Set Image Quality to “JPEG fine.”

- Set Active D-Lighting, HDR, Auto Distortion, and Long Exposure to “Off.”

- Set Multiple exposure and Interval timer shooting to “Off.”

- Set ocus mode to “A -S.”

- Set White Balance to “Auto1.” Use Preset Manual for best results and

reset for each working depth.

- In Custom Shooting menu bank A, set A -assist illuminator to “Off.”

- Make sure Red-Eye Reduction is “Off.”

* These initial camera settings are a good starting point for shooting most

underwater photos. Adjustments may be needed based on the shooting

environment and lighting conditions . Camera functions not mentioned

should be set to the shooters preference.

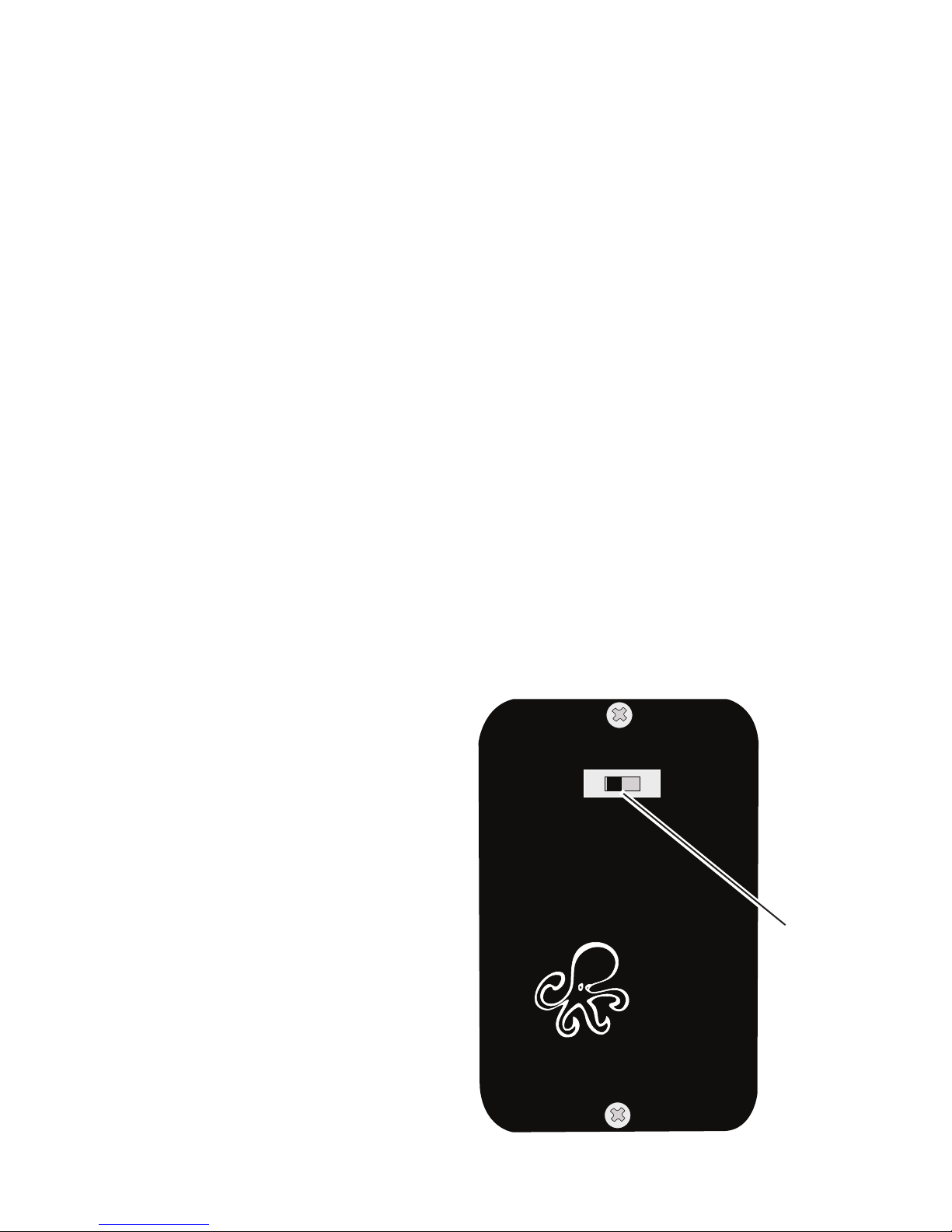

On the housing back is a switch

for setting the DS Strobe ID. Set

the switch to the Model of DS

Strobe being used.

When using dual strobes of

different models such as a

DS51 and a DS161, set the ID

switch to DS51 or the smaller

strobe.

DS DS

125

160

161

ikelite

Set DS Substrobes

to TTL Mode

200

Setting the Conversion Circuitry Strobe ID Switch

Strobe ID

Switch

Housing Conversion Circuitry

This housing contains Ikelite designed and patented Conversion

Circuitry. Once attached, turn the strobe on first before turning on the

camera.

When used with Ikelite DS Strobes the Conversion Circuitry provides

real Nikon iTTL flash exposure with over and underexposure

compensation from +1 1/3 to - 1 1/3 f-stops in 1/3 stop increments.

The Conversion Circuitry also offers Manual exposure control with 3 1/2

f-stops of underexposure control in 1/2 stop increments.

The Conversion Circuitry is powered by the Ikelite DS Strobe when

connected to the housing with the 4103.51 single or 4103.52 dual sync

cord. When using two strobes with the dual sync cord, the primary

strobe connected to the cord without the red band, must be turned on to

power the Conversion Circuitry. Always keep both strobes connected to

your dual sync cord underwater. Do not exchange your secondary

strobe for a dust cap which may not be waterproof.

Using the Conversion Circuitry (Set DS Strobe to TTL mode)

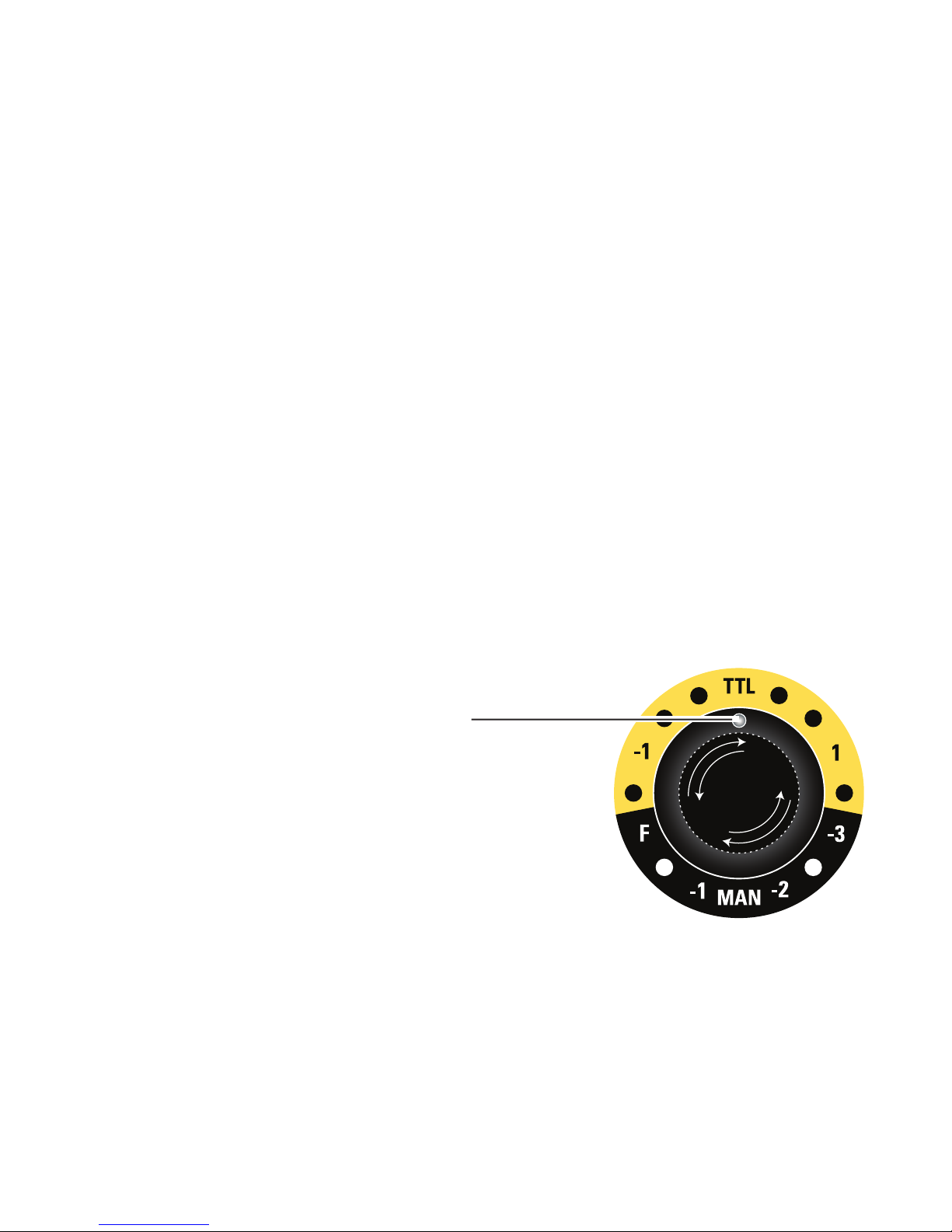

-Mode and Compensation Dial (see illustration below)

Note that the TTL compensation values are located in the yellow band.

Manual compensation values are located in the black band. Rotate the

Dial to switch between TTL and Manual Modes.

-TTL Mode compensation values are indicated in the yellow band. Place

the Setting Indicator to TTL for N Compensation. Rotate the Dial either

direction to select +/- compensation. Place the Setting Indicator to the

desired compensation value. Note that in TTL, compensation values are

in 1/3 f-stops.

-Manual Mode compensation values are indicated in the black band.

Rotate the Dial to place the Setting Indicator to the desired compensation

value. Note that in Manual Mode, compensation values are in 1/2 f-stops

from ( ) full power to -3 f-stops.

Set DS Strobe to TTL mode. This will allow the strobe power to be

varied in manual mode.

Setting Indicator

DIAL

TTL lash Scale (yellow = 1/3 stops)

Manual lash Scale (black = 1/2 stops)

Flash Mode and Compensation Dial

Using Non-Ikelite or Ikelite Non-DS Strobes (Strobe 50,

100A, 200, 400) with this Housing

The Conversion Circuitry is automatically disabled when used with a

Non-Ikelite or Non-DS Strobe. These Strobes can be used in their manual

mode utilizing any power settings provided on the Strobe.

DS50 and DS125 Strobe Compatibility

- Older DS50 Strobes with Serial Number below 63,850 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS50 Strobes with Serial Number between 63,850 and 69,999

require upgrade of electronics to operate. Strobe must be returned to

Ikelite for evaluation to provide an estimate of upgrade cost.

- Older DS125 Strobes with Serial Number below 2,500 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS125 Strobes with Serial Number between 2,500 and 4,999

require upgrade of electronics to operate. Strobe must be returned to

Ikelite for evaluation to provide an estimate of upgrade cost.

Attaching the Flash Connection for External Strobes

When using an external

strobe, connect the

housing hotshoe connector.

Slide the connector into the

hotshoe mount on the

camera from the back of

the camera as shown.

Slide the connector forward

until it stops. Due to limited

clearance between the

camera hotshoe mount and

the housing back, the

hotshoe connector should

be attached before the

camera is secured with the

mounting bolt. N TE: The camera’s built-in flash is not accessible in the

housing.

Front

External Strobe Connector

and Waterproof Cap

Housing Back

Hotshoe

Connector

Andere Handbücher für SLR-DC Housing

Inhaltsverzeichnis

Andere Ikelite Kamerazubehör Handbücher

Ikelite

Ikelite 2601.03 Bedienungsanleitung

Ikelite

Ikelite 6146.07 Bedienungsanleitung

Ikelite

Ikelite DLM200 Bedienungsanleitung

Ikelite

Ikelite 6171.05 Bedienungsanleitung

Ikelite

Ikelite DSC-V1 Bedienungs- und Wartungshandbuch

Ikelite

Ikelite 6070 Betriebsanleitung

Ikelite

Ikelite Canon 6081 Betriebsanleitung

Ikelite

Ikelite 6146.16 Bedienungsanleitung

Ikelite

Ikelite Canon HG-10 Betriebsanleitung

Ikelite

Ikelite 6148.26 Bedienungsanleitung

Ikelite

Ikelite Olympus E-3 Bedienungsanleitung

Ikelite

Ikelite Nikon S200 Bedienungsanleitung

Ikelite

Ikelite 6116.10 DSC-RX100 Bedienungsanleitung

Ikelite

Ikelite 6147.55 Bedienungsanleitung

Ikelite

Ikelite 6805.1 Bedienungsanleitung

Ikelite

Ikelite DS51 Bedienungsanleitung

Ikelite

Ikelite DS160 Bedienungsanleitung

Ikelite

Ikelite 6842.35 Bedienungsanleitung

Ikelite

Ikelite IXUS 980 IS Betriebsanleitung

Ikelite

Ikelite 6130.80 Bedienungsanleitung

Ikelite

Ikelite 6138 Bedienungsanleitung

Ikelite

Ikelite m10 Bedienungsanleitung

Ikelite

Ikelite 6282.35 Betriebsanleitung

Ikelite

Ikelite 6950.13 Bedienungsanleitung

Beliebte Kamerazubehör Handbücher anderer Marken

Viltrox

Viltrox EF-NEX Montageanleitung

Calumet

Calumet 7100 Series CK7114 Bedienungsanleitung

Ropox

Ropox 4Single Series Bedienungsanleitung

Cambo

Cambo Wide DS Digital Series Betriebsanleitung

Samsung

Samsung SHG-120 Bedienungsanleitung

Ryobi

Ryobi BPL-1820 Bedienungsanleitung

Aegis

Aegis ABL-36020P Bedienungsanleitung

Pentax

Pentax Data Back Fc Bedienungsanleitung

Fantasea

Fantasea EyeGrabber F Series Bedienungsanleitung

Honeywell

Honeywell HDZ20HD Bedienungsanleitung

EGO

EGO BA1400T Bedienungsanleitung

Sima

Sima SRW-62 Bedienungsanleitung

Shape

Shape A7SSMKIT Bedienungsanleitung

Slide Kamera

Slide Kamera HST-2 Bedienungsanleitung

Power works

Power works 2902613 Bedienungsanleitung

SES

SES SE-2047-2 Bedienungsanleitung

Olympus

Olympus PT-EP05L Bedienungsanleitung

Starlite

Starlite OctoDome nxt Bedienungsanleitung
