MILLENIUM FREESTANDING MANUAL 2014
Quality & Value In Gas Log Fires
5
INSTALLATION
IMPORTANT
The installation of any ILLUSION Gas Log Appliance must
be performed by an Authorised Installer in accordance with these instructions and must comply with AG 601.
Please read these instructions carefully before proceeding.
PRIOR TO INSTALLATION
It is highly recommended that the installation of any ILLUSION Gas Log appliance is planned on paper before installation
begins. This will ensure correct performance of the unit and eliminate potential problems.
Your ILLUSION sales representative can advise on the best position to maximize the performance of the appliance.
In most cases, an Authorised ILLUSION Installer can be arranged to install the unit, however if this is not possible, a suitably
qualied gas tter must be used. These appliances are not designed to be installed by the homeowner.
INSTALLERS CHECKLIST
CHECK CLEARANCES TO COMBUSTIBLES

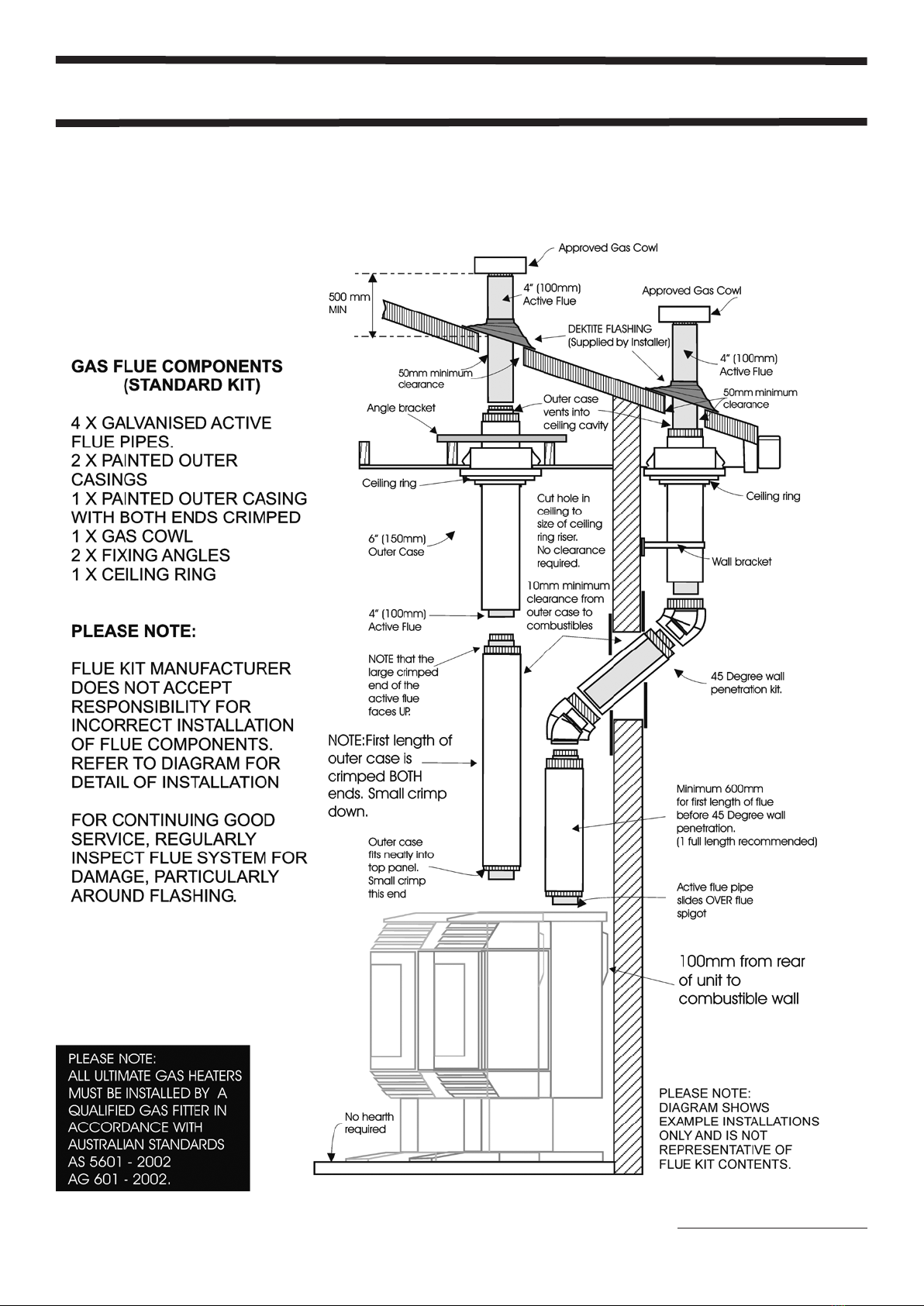

INSTALL HEATER AND FLUE SYSTEM
CONNECT GAS
TEST GAS PRESSURE
FIT GAS LOG KIT
FIT OPTIONAL WALL THERMOSTAT
SAFETY CHECK
1. These appliances must be installed in accordance with the regulations, municipal building codes and
AG601 (AGA Gas installation code.)
2. Only an Authorised person should install the appliance.
3. This appliance should be inspected prior to installation and the dealer contacted if any problems arise.
4. This appliance must be installed with an approved ue system, which terminates outside the building.
A ue system must never terminate within the roof cavity.
5. The unit should be checked periodically for lint. The fan area especially is prone to lint build up during
normal operation. Keep the area around the appliance clean and free from lint.
6. Only persons familiar with the operation of the unit should use the heater.
7. Do not modify or adjust the heater. Always contact your ILLUSION dealer if any problems arise.
8. Annual service by an Authorised service person will ensure trouble free operation for many years.
9. This Gas heater is not designed to burn solid fuels. NEVER use paper, wood or any other fuel in this
appliance.
10. Keep the immediate area around the heater free from any combustible materials: i.e.: aerosols, or other
ammables.
11. If you smell gas whilst the unit is operating, immediately shut down the unit and turn the gas off at the
supply shut off valve, or the main meter. Contact Ulimate or your local gastter.
DO NOT ATTEMPT ANY REPAIRS ON THE HEATER YOURSELF. ONLY AN AUTHORISED GASFITTER MAY REPAIR OR
ADJUST THE HEATER ACCORDING TO THE MANUFACTURERS INSTRUCTIONS.
PAINT CURING
THE EXTERIOR SURFACES OF YOUR ILLUSION GAS APPLIANCE HAVE BEEN FINISHED WITH
THE HIGHEST QUALITY HEAT RESISTANT PAINT. PLEASE NOTE THAT THE INITIAL FIRING OF
THE UNIT MAY PRODUCE SOME SMOKE AND ODOUR AS THE PAINT CURES. TO ENABLE
CURING, THE UNIT MUST BE RUN ON HIGH WITHOUT THE FAN ON FOR APPROX. 3
- 4 HOURS. IT IS ADVISABLE TO KEEP WINDOWS AND DOORS OPEN DURING THIS
PERIOD IF POSSIBLE.
SAFETY INFORMATION
