SONO-VIEW

Stand-alone display for the reliable control and configuration of processes using SONO moisture

probes. A total of up to 4 SONO probes can be monitored and the respective measurement values

presented at the LCD via a serial interface.

Thank you very much for your decision to purchase this IMKO product.

Should you have any questions in respect to this product, please contact our local

distribution partner or IMKO directly.

IMKO Micromodultechnik GmbH

Im Stöck 2

D-76275 Ettlingen

Germany

Phone: +49-7243-5921-0

Fax: +49-7243-90856

E-mail: info@imko.de

Internet: http://www.imko.de

2017-05-24 Manual SONO-VIEW Version 3_1

Seite 3

Table of Content

1 General Notices..................................................................................................................................5

1.1 Intended Use..........................................................................................................................5

2Control Elements / Connections..................................................................................................6

2.1 Control Elements...................................................................................................................6

2.2 Connections............................................................................................................................6

3Initial Commissioning....................................................................................................................7

3.1 Safety Instructions.................................................................................................................7

3.2 Checking the Package Content for Completeness ..........................................................7

3.3 Connection..............................................................................................................................7

3.3.1 Exemplary Connections................................................................................................8

4Operation........................................................................................................................................9

4.1 Initial and New Installation ...................................................................................................9

4.2 Measurement Value Display..............................................................................................10

4.4 Settings.................................................................................................................................11

4.4.1 New Set-Up..................................................................................................................11

4.4.2 Language......................................................................................................................11

4.4.3 Display Contrast...........................................................................................................12

4.4.4 Information about your SONO-VIEW........................................................................12

4.4.5 USB-IMP-Bridge..........................................................................................................12

4.5 Probe Settings......................................................................................................................13

4.5.1 Probe Info.....................................................................................................................14

4.5.2 Material Calibration .....................................................................................................14

4.5.3 Offset Balancing...........................................................................................................14

4.5.4 Averaging Mode...........................................................................................................14

4.5.5 Averaging Parameters................................................................................................15

1.1.1 Material Calibration...................................................................................................17

1.1.2 Offset Adjustment .....................................................................................................23

1.1.3 Average Mode............................................................................................................23

1.1.4 Average Parameters..................................................................................................24

4.5.6 Basic Balancing ...........................................................................................................25

5Technical Data.............................................................................................................................26

Manual SONO-VIEW Version 3_1 2017-05-24

Page 4

2017-05-24 Manual SONO-VIEW Version 3_1

Seite 5

1 General Notices

Please carefully read and get acquainted with these operating instructions.

Should any queries arise, please contact our service department under the contact data

depicted above. Do not, under no circumstances, attempt to open or repair the device

yourself. In the event of any warranty claims, please refer these to the retailer you purchased

the device.

The device is subject to technical and optical change within the scope of product

improvement.

1.1 Intended Use

This device was developed to serve as a display and configuration device for various IMKO

probes. Only the respectively intended probes may be connected to the device. The

connection of any probe which is not intended for the device, can lead to damage or the

destruction of this device and/or the connected probe.

Manual SONO-VIEW Version 3_1 2017-05-24

Page 6

2 Control Elements / Connections

2.1 Control Elements

2.2 Connections

USB (Type-Mini B)

-USB-IMP-Bridge

-Firmware Update

-Supply Voltage

-Bus-Interface

2017-05-24 Manual SONO-VIEW Version 3_1

Seite 7

3 Initial Commissioning

3.1 Safety Instructions

Attention: It is strictly necessary to read the General Notices contained under Item I at the

beginning of the operating instructions. Any not intended use of the device can lead to

damage to this device.

3.2 Checking the Package Content for Completeness

SONO-VIEW

Terminal Block

USB Cable (Type A Mini B)

3.3 Connection

For operation, the SONO-VIEW requires a supply voltage of 7...24V (approx. 80..30mA). A

joint ground wire together with the probes is not required. For the connection with the probes,

it is sufficient to merely connect the two bus lines „RT“and „COM“.

Notice: The SONO-VIEW is suited for the display and configuration of up to four

probes. Should more than four probes be connected, an error message

will be generated and the device cannot operate correctly.

+7..24V

(RT) IMP-Bus

(COM) IMP-Bus

Manual SONO-VIEW Version 3_1 2017-05-24

Page 8

3.3.1 Exemplary Connections

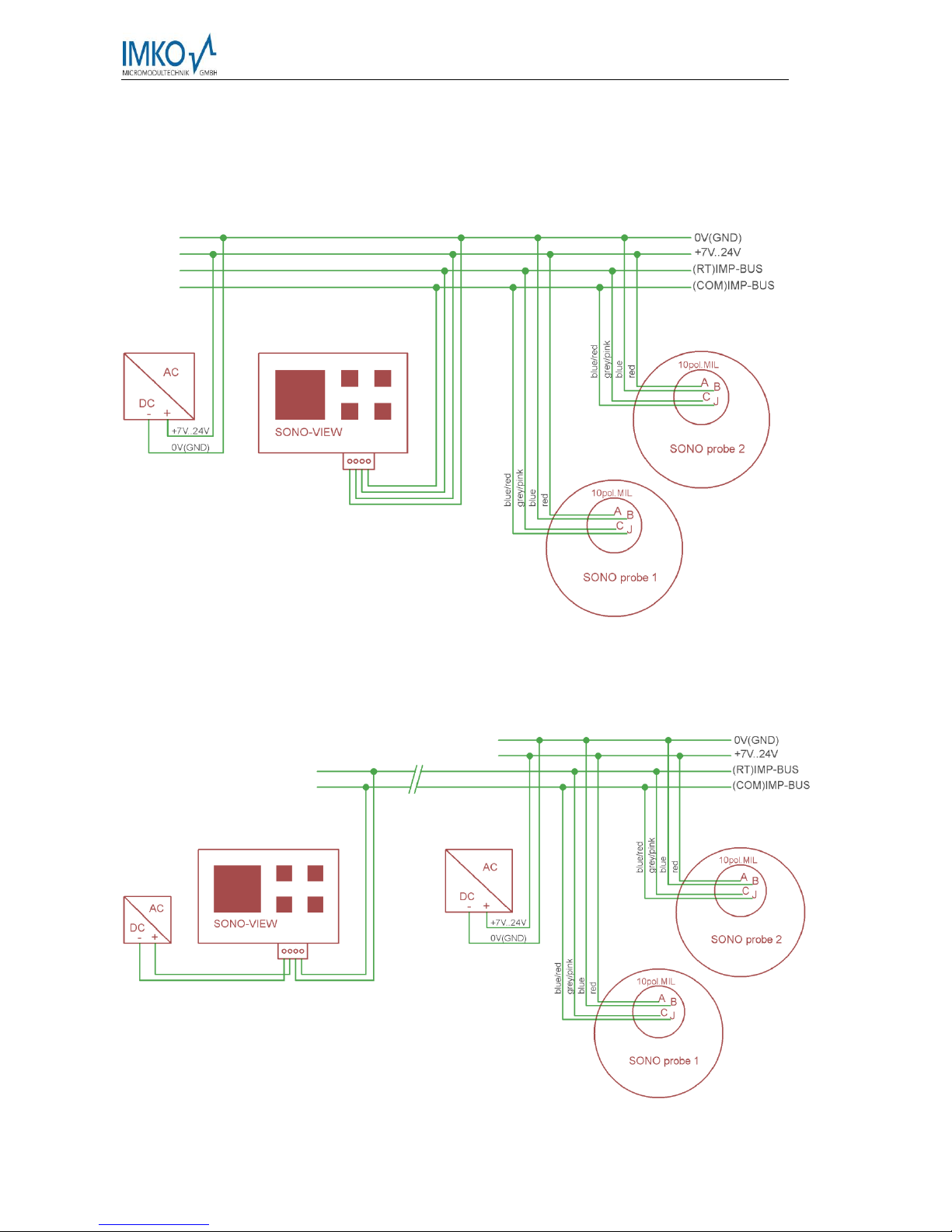

Example 1: Connection of the SONO-VIEW with two SONO probes and one joint voltage

supply source.

Example 2: Connection of the SONO-VIEW with 2 SONO-probes merely via IMP-bus.

SONO-VIEW and the probes dispose of their voltage supply. This may be

useful, if the distance between the measuring equipment and the display

device is considerable.

2017-05-24 Manual SONO-VIEW Version 3_1

Seite 9

4 Operation

4.1 Initial and New Installation

At the initial connection to your probe-network, it is necessary to set the same up,

respectively follow an installation procedure at the SONO-VIEW.

For this purpose, the device will scan the IMB bus for

connected probes.

Initiate the installation with the button .

After an instant, the serial numbers of all connected

probes are listed in the display.

In order to maintain the clarity within the administration

of the probes, the SONO-VIEW operates on the basis

of assigned probe numbers (1...4).

These must be allocated to the detected serial numbers

in the next step. For each probe number, select a serial

number using the / buttons and subsequently

acknowledge the same with the button .

Repeat this procedure until all serial numbers have

been allocated a probe number.

After completion of the above steps, all probe numbers

will be presented once more together with the

respectively allocated serial numbers in ascending

order.

Complete the installation process with the button .

Manual SONO-VIEW Version 3_1 2017-05-24

Page 10

Notice: The SONO-VIEW is suited for the display and configuration of up to four

probes. Should more than four probes be connected, an error message

will be generated and the device will not be able to operate properly.

After completion of the installation process, the SONO-VIEW will re-start, verify the

connected probes, and will immediately commence to call up the measurement values.

4.2 Measurement Value Display

The SONO-VIEW immediately commences to call up and display the measurement values

after start-up. This is performed in a 500 ms cycle. Depending on how many probes are

connected, from one to four, the following displays will be presented.

The moisture value in percent and the respective probe number is always presented. If two

or three probes are connected, the temperature measured by the probe is additionally also

presented. In the event that only one probe is connected, the calibrated radar run-time is also

presented.

If more than one probe is connected to the SONO-VIEW, there is an option to change the

display. For this purpose, actuate the buttons / . Subsequently, all connected individual

probes are presented consecutively. For the purpose of allocation, the probe number is

always also presented in the upper section. If this form of display is maintained for a longer

period, the same will be assumed as „Standard“. In this case, the SONO-VIEW will present

this set measurement display form after a re-start.
