SERVICE MANUAL

7ZPSC0342

CONTENTS

CHAPTER 1. Introduction....................................................................................................... 1-1

1.1 General.................................................................................................................................... 1-1

1.2 Above Deck Equipment (ADE) ............................................................................................... 1-1

1.3 Below Deck Equipment (BDE) ............................................................................................... 1-1

1.4 Services ................................................................................................................................... 1-1

1.4.1 Spot beam coverage area............................................................................................... 1-1

CHAPTER 2. Diagrams ........................................................................................................... 2-1

2.1 JUE-500 wiring diagram ........................................................................................................ 2-1

2.2 ADE block diagram................................................................................................................. 2-3

2.2.1 Antenna and LNA................................................................................................................ 2-3

2.2.2 ACU .................................................................................................................................... 2-3

2.2.3 RFU ...................................................................................................................................... 2-3

2.2.4 GPS and Rotary Joint.......................................................................................................... 2-4

2.2.5 Tracking system................................................................................................................... 2-4

2.3 BDE block diagram................................................................................................................. 2-5

2.3.1 ISDN ................................................................................................................................. 2-6

2.3.2 Ethernet............................................................................................................................ 2-6

2.3.3 SIM ................................................................................................................................... 2-6

2.3.4 USB................................................................................................................................... 2-6

2.3.5 RJ11 .................................................................................................................................. 2-6

2.3.6 12-Pin Connector.............................................................................................................. 2-6

2.3.7 WRF .................................................................................................................................. 2-7

2.3.8 LED................................................................................................................................... 2-7

2.4 OIU.......................................................................................................................................... 2-8

2.4.1 Ethernet............................................................................................................................ 2-9

2.4.2 2-wire FAX analogue terminals....................................................................................... 2-9

2.4.3 External buzzer, and external button connecting terminal ........................................... 2-9

2.4.4 External GPS input terminal .......................................................................................... 2-9

2.4.5 GYRO connecting terminal.............................................................................................. 2-9

2.4.6 NMEA output terminal .................................................................................................... 2-9

2.4.6 Remote Power Switch ...................................................................................................... 2-9

2.4.7 Connecting with BDE ...................................................................................................... 2-9

CHAPTER 3. Technical Specifications.................................................................................... 3-1

3.1 Standard Functions................................................................................................................... 3-1

3.2 Handset ................................................................................................................................... 3-1

3.3 Interfaces................................................................................................................................. 3-2

3.3.1 DC power connector ......................................................................................................... 3-3

3.3.2 ADE connector.................................................................................................................. 3-3

3.3.3 WRF connector ................................................................................................................. 3-3

3.3.4 RJ-11 (2W port) connectors for TEL1/2 port ................................................................... 3-3

3.3.5 Handset connector............................................................................................................ 3-3

3.3.6 USB connector .................................................................................................................. 3-4

3.3.7 RJ-45 (Ethernet) connectors-for Ethernet / ISDN port .................................................. 3-4

3.3.8 OIU connector................................................................................................................... 3-4

3.4 ADE specifications .................................................................................................................. 3-5

3.4.1 Antenna parameters ........................................................................................................ 3-5

3.4.2 RF parameters.................................................................................................................. 3-5

3.5 BDE specifications .................................................................................................................. 3-5

3.5.1 Primary power.................................................................................................................. 3-5

3.5.2 Power consumption .......................................................................................................... 3-5

3.6 Environmental conditions ...................................................................................................... 3-5

3.6.1 Temperature ..................................................................................................................... 3-5

3.6.2 Humidity........................................................................................................................... 3-5

3.6.3 Vibration........................................................................................................................... 3-6

3.6.4 Ships motion..................................................................................................................... 3-6

3.7 Dimensions and weight .......................................................................................................... 3-7

3.7.1 ADE................................................................................................................................... 3-7

3.7.2 BDE................................................................................................................................... 3-8

3.7.3 Handset............................................................................................................................. 3-9

CHAPTER 4. Setup of OIU...................................................................................................... 4-1

4.1 OIU.......................................................................................................................................... 4-1

4.1.1 Connecting with BDE ...................................................................................................... 4-1

4.1.2 Connecting with external option ..................................................................................... 4-2

CHAPTER 5. GYRO connection .............................................................................................. 5-1

5.1 Connecting GYRO................................................................................................................... 5-1

5.1.1 NMEA GYRO connection ................................................................................................. 5-1

5.1.2 SYNC/STEP GYRO connection........................................................................................ 5-2

5.1.3 GYRO I/F setting.............................................................................................................. 5-3

CHAPTER 6. Composition of Equipment ............................................................................... 6-5

6.1 ADE (GSC-501)..................................................................................................................... 6-6

6.1.1 Antenna Unit................................................................................................................. 6-6

6.1.2 LNA................................................................................................................................... 6-6

6.1.3 Radio Frequency Unit (RFU)........................................................................................... 6-6

6.1.4 Antenna Control Unit (ACU) ........................................................................................ 6-6

6.1.5 Rate sensor .................................................................................................................... 6-7

6.1.5 Rotary Joint (RJ) ........................................................................................................... 6-7

6.1.6 Cable ................................................................................................................................. 6-7

6.1.7 Motor............................................................................................................................... 6-8

6.1.8 GPS Antenna .................................................................................................................. 6-8

6.2 BDE (GSC-502) ....................................................................................................................... 6-9

6.3 Option Interface Unit (OIU)................................................................................................. 6-10

6.3.1 Option Interface Board (OIB) ........................................................................................ 6-10

6.3.2 Terminal Board (TB) ................................................................................................... 6-10

6.4 GYRO I/F Box ........................................................................................................................6-11

6.4.1 GYRO I/F JB....................................................................................................................6-11

6.4.2 NSK Unit .........................................................................................................................6-11

CHAPTER 7. Service parts and replacement ......................................................................... 7-1

7.1 Service parts ........................................................................................................................... 7-1

7.2 Replacement procedures......................................................................................................... 7-2

7.2.1 Whole of ADE replacement .............................................................................................. 7-2

7.2.2 Radome opening and closing method .............................................................................. 7-2

7.2.3 ACU replacement ......................................................................................................... 7-2

7.2.4 RFU replacement.......................................................................................................... 7-2

7.2.5 BDE replacement.......................................................................................................... 7-2

7.2.6 OIB replacement........................................................................................................... 7-2

7.2.7 TB replacement............................................................................................................. 7-2

CHAPTER 8. Service menu ..................................................................................................... 8-3

8.1 Service man log-in (HANDSET)............................................................................................. 8-3

8.1.1 Memory clear.................................................................................................................... 8-4

8.1.2 TST Config........................................................................................................................ 8-5

CHAPTER 9. Software updating............................................................................................. 9-1

CHAPTER 10. Troubleshooting ............................................................................................ 10-1

10.1 Self Test............................................................................................................................... 10-1

10.2 Alarm Pack.......................................................................................................................... 10-1

10.3 Troubleshooting according to the phenomenon ................................................................10-11

10.3.1 NOT READY ...............................................................................................................10-11

10.3.2 POSITION?................................................................................................................. 10-12

10.3.3 Heading? ..................................................................................................................... 10-12

10.3.4 Other trouble .............................................................................................................. 10-12

1-1

CHAPTER 1. Introduction

1.1 General

The JUE-500 is an Inmarsat digital satellite communication terminal for Voice (4kbps

Speech),Audio (64kbps 3.1kHz Audio), maximum 432kbps Standard IP service, 32kbps,

64kbps, 128kbps, and 256kbps Streaming IP service, and Short Messaging Service (SMS).

The JUE-500 can be operated by easy operation of dedicated software, called LaunchPad.

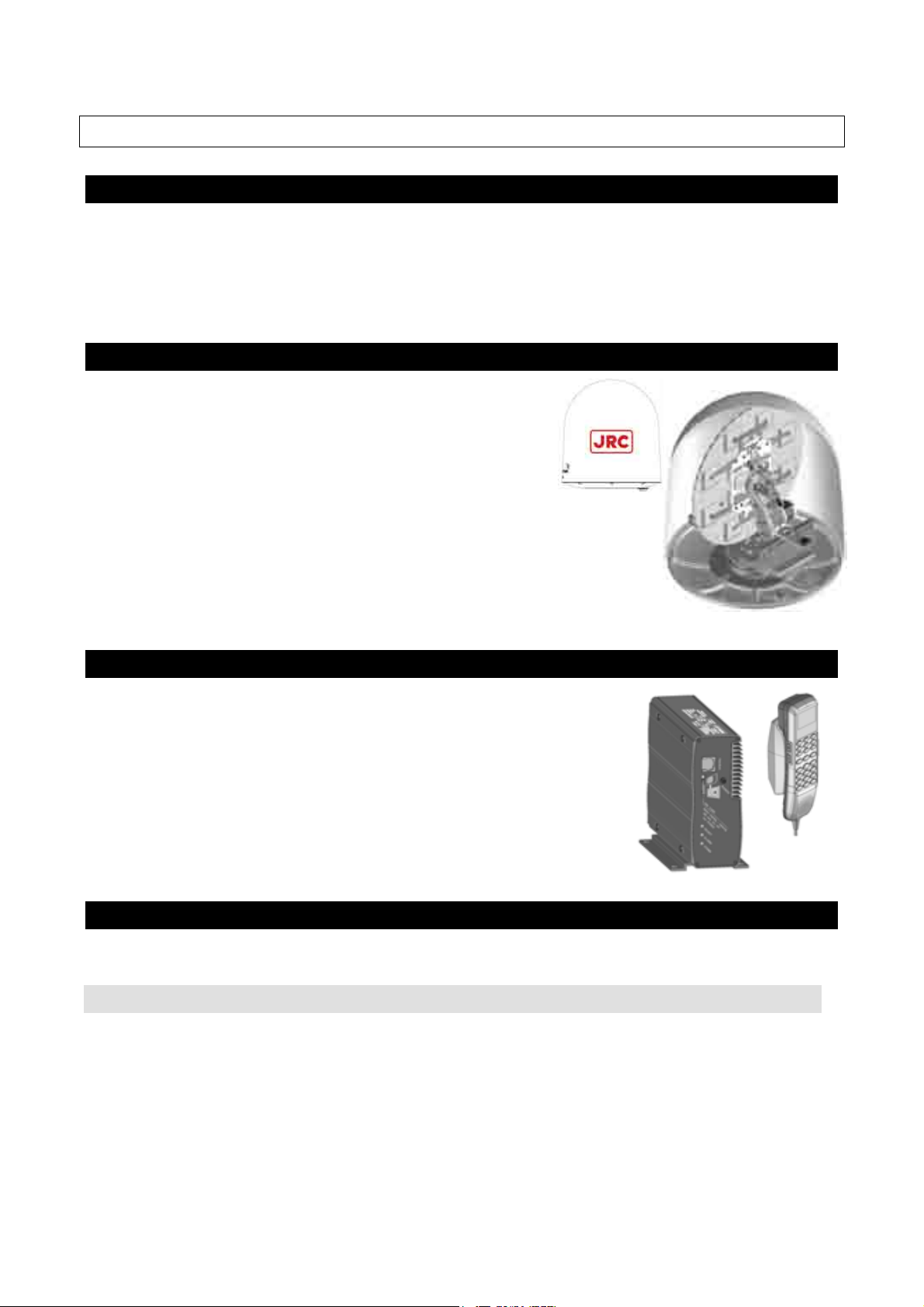

1.2 Above Deck Equipment (ADE)

The ADE is diameter 630mm, Height

683mm

No rewind (Cable unwrap) 3 axes mechanical

stabilized antenna structure and electrical circuit

are all original design of JRC.

Fig.1.2 Above Deck Equipment (ADE)

1.3 Below Deck Equipment (BDE)

The stylish BDE is the smallest size for FleetBroadband

terminals in the world.

And the BDE has a wide range of standard interface,

such as Ethernet, USB and ISDN.

These interfaces allow flexible on-board networking.

Fig.1.3 Below Deck Equipment (BDE)

1.4 Services

The FleetBroadband system provides the following communication services.

1.4.1 Spot beam coverage area

Voice(4kbps Speech)

Audio (6.4kbps 3.1kHz Audio)

Standard IP data service (maximum 432kbps)

Streaming IP data service (32kbps, 64kbps, 128kbps, or256kbps)

SMS (Short Messaging Service)

1-2

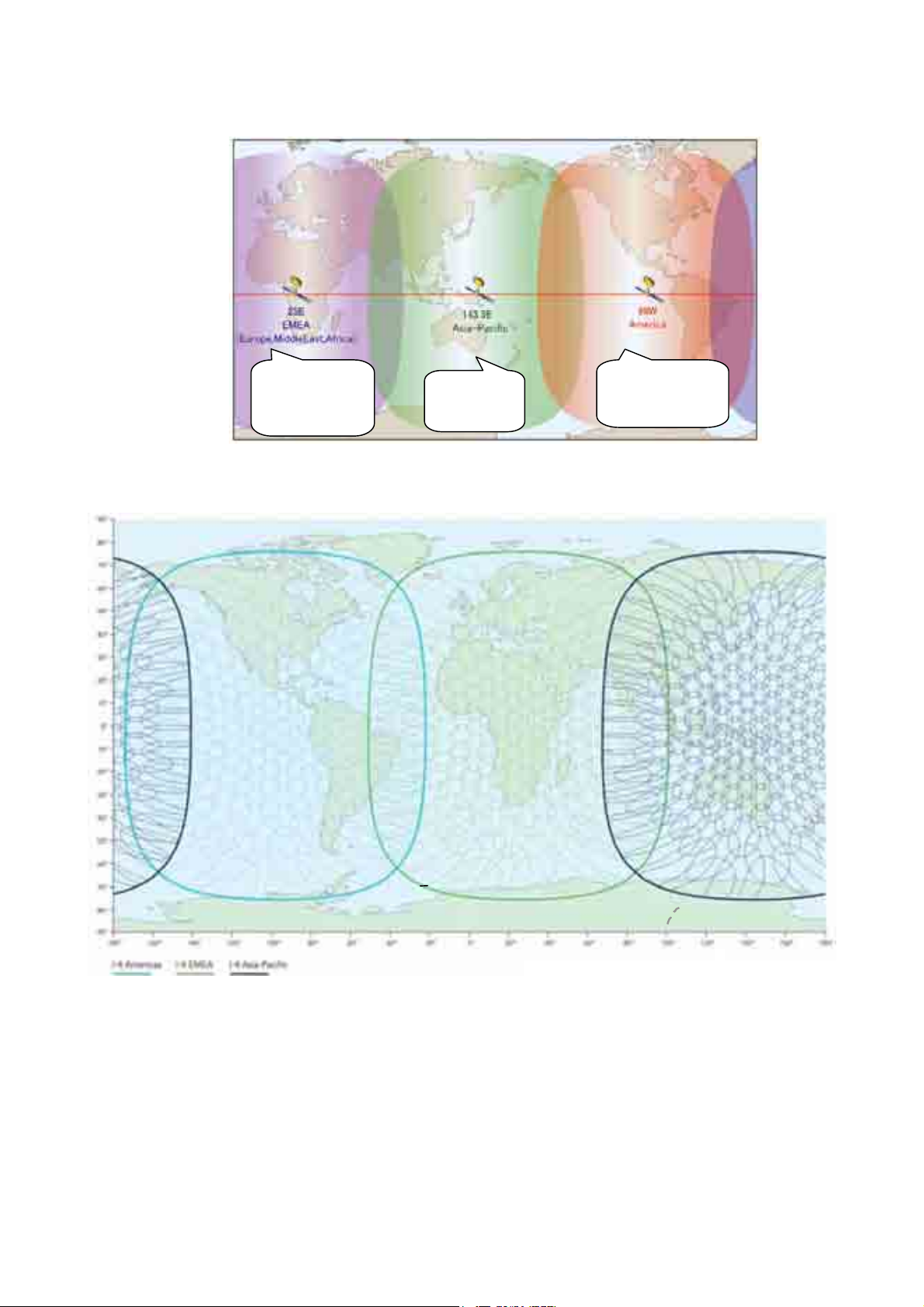

Coverage area is shown below.

Fig.1.4a Coverage area

Fig.1.4b Irradiation status of Narrow spot beam

Europe, Middle

East, and Africa

(EMEA) Ocean

Region

sia, and

Pacific Ocean

Region

America

(AMER)Ocean

Region

2-1

CHAPTER 2. Diagrams

2.1 JUE-500 wiring diagram

J901

CFQ-3922AW1: Coaxial Cable ADE

TEL1

Ethernet

ABOVE DECK

EQUIPMENT

(ADE)

INMARSAT FleetBroadband JUE-500

Cable Connection System Diagram

MAIN UNIT

WRF

USB Cable (max. 3m) PC

(Attached with Handset)

TEL2

ISDN

USB

Handset

RED

BLK

TEL JB

NQE-3058B

250V TTYCS-1 RED

BLK L2

TEL JB

NQE-3058B

TEL Cable 5m NQW-132B

TELEPHONE

Modular Cable 3m

(JRC SUPPLY)

LAN Cable 5m

(JRC SUPPLY) PCHUB

CentreCOM FS708XL

or equivalent

LAN Cable 5m

(JRC SUPPLY) (OWNER SUPPLY)

HANDSET

(JRC SUPPLY)

(Option)

(Option) (Option) (Option)

(Option) (Option)

NQW-267

BELOW DECK EQUIPMENT

(BDE)

(Option)

(DOCK SUPPLY) (Attached to TEL)

7ZCSC0222B

19-31V DC

Ship's Power

Power Supply Cable

(Attachment) 5m

External

Power Supply

AC100/220V

RED

BLK

NBD-577C

DC24V

OUT

GRN

AC100V

AC220V

AC IN

0.6/1kV DPYC-2.5

(Dock supply)

0.5m

7ZCSC0212

Coaxial Cable

(JRC SUPPLY)

(Attachment)

Earth Cable

7ZCSC0266

[SMA]

[RJ-11]

[RJ-45]

[SeriesB]

(Option)

Earth Plate

a) (Attachment)

FAX CableFACSIMILE*1

Ship's Power

AC100/220V

(Attached to FAX)

FAX Power Cable

(Option)(Option)

0.6/1kV DPYC-2.5

(DOCK SUPPLY)

*1)Ship's power AC220V :

Ship's power AC110/115V :

Ship's power AC100V :

EMC FILTER

TRANSFORMER

a), b) TRANSFORMER (DD-118564)

a), b) TRANSFORMER (DD-118525)

a) FAX-2820

b) OKIOFFICE 86

a) 3m, b) 1.8ma) 2.4m, b) 1.8m

b) not use.

a) EMC FILTER (RSHN-2003)

b) (Attached to FAX)

ISDN Cable

(Attached to TA)TA

(Option)

Fig. 2.1a JUE-500 Wiring diagram (OIU is not connected)

2-2

Fig. 2.1a JUE-500 Wiring diagram (OIU is connected)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Immarsat Touch-Terminal Handbücher

Immarsat

Immarsat Wideye FX 250 Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
