EOLO Star 23 kW

Instantaneous wall-hung

with room-sealed boilers

EOLO Star 23 kW

S.C FUTURE LINE INSTAL S.R.L

str. Biharia nr.67-77, sector 1, Bucuresti, ROMANIA

serviceimmergas.ro

Dispecerat Non Stop

Tel. Fix : 021-201.11.14

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical Documentation Technical Documentation

EOLO Star 23 kW

Compact instantaneous wall-hung room-sealed

(type C) fan-assisted boiler.

EOLO Star 23 kW

EOLO Star 23 kW is a wall-hung, room-sealed fan-assisted

boiler for heating and production domestic hot water.

is very compact boiler (H=785 mm, W=450 mm, D=250

mm), has an output heat of 23.3 kW (20,000 kcal/h).

A microprocessor controlled electronic board adjusts and

controls the appliance (burner ignition, temperature adjust-

ment, ﬂame modulation and diagnostics) and, by means of a

digital interface with display and push buttons, the operating

parameters can be displayed and set.

General features.

e hydraulic circuit is equipped with a copper bithermal type

water-gas exchanger for the production of hot water for central

heating and domestic use, an automatic by-pass on the system

and a ﬂow switch for tapping the domestic hot water.

Combustion air intake inside the sealed chamber and the

expulsion of gases are ensured by a fan. A diﬀerential pressure

switch controls correct operation.

Legend:

G - Gas supply

AC - Hot water outlet

AF - Cold water inlet

R - System return

M - System delivery

V - Electrical supply

Main dimensions and main connections.

Height (mm) Width (mm) Depth (mm)

785 450 250

CONNECTIONS

GAS

DOMESTIC

CIRCUIT

WATER

SYSTEM

G AC AF R M

3/4” 1/2” 1/2” 3/4” 3/4”

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical DocumentationTechnical Documentation

Legend:

1 - Testing hole (A air) – (F ﬂue)

2 - Sealed chamber

3 - Fan

4 - Combustion chamber

5 - D.h.w. ﬂow switch

6 - Gas valve

7 - D.h.w. probe

8 - Filling valve

9 - Pressure point, positive signal

10 - Pressure point, negative signal

11 - Flue pressure switch

12 - Delivery probe

13 - Safety thermostat

14 - System expansion vessel

15 - Automatic air vent

Main components.

16 - Boiler circulator

17 - System pressure switch

18 - Manifold

19 - 3 bar safety valve

20 - Boiler pressure gauge

21 - System draining cock

22 - Draught diverter

23 - Rapid heat exchanger

24 - Ignition/detection electrodes

25 - Burner

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical Documentation Technical Documentation

Legend:

1 - Reset Push Button

2 - Stand-by / Summer / Winter Push Button

3 - Push button (+) to increase d.h.w. temperature

4 - Push button (-) to reduce d.h.w. temperature

5 - Push button (+) to increase system water temperature

6 - Push button (-) to reduce system water temperature

7 - Boiler pressure gauge

8 - D.h.w. functioning mode

Control panel.

9 - Displays temperatures and error codes

10 - Unit of measure

11 - Central heating functioning mode

12 - Winter

13 - Summer

14 - Power supplied

15 - Burner operating

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical DocumentationTechnical Documentation

e central heating circuit, with relevant control and safety

devices, is operated every time a central heating request is

made.

Operation.

e heat contained in the fumes produced by combustion

is absorbed by the copper blades of the water-gas exchanger

(7) which, in turn, transfers it to the water circulating inside

thanks to the boiler circulator (16).

e hot water is then transferred directly into the central heat-

ing system through the delivery (M) and return (R) pipes.

Legend:

1 - D.h.w. probe

2 - D.h.w. ﬂow switch

3 - Gas valve

4 - Flow limiter

5 - Draining cock

6 - Burner

7 - Rapid exchanger

8 - Fan

9 - Sealed chamber

10 - Flue pressure switch

11 - Draught diverter

12 - System expansion vessel

13 - Delivery probe

14 - Safety thermostat

15 - Automatic air vent

16 - Boiler circulator

17 - System pressure switch

18 - Automatic by-pass

19 - 3 bar safety valve

20 - Filling valve

G - Gas supply

AC - D.h.w. outlet

AF - Cold water inlet

R - System return

M - System delivery

Hydraulic circuit.

Primary circuit (Boiler Circuit).

Hot water for central heating and domestic use is produced

by two separate circuits that work as required.

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical Documentation Technical Documentation

Boiler circulator (1).

e pump works on the primary circuit return and is located

on the brass manifold assembly.

It is connected to the enbloc and primary exchanger by means

of threaded ﬁttings.

e automatic valve vent is housed on the body (2).

Primary exchanger.

is is a water-gas bithermal type blade exchanger with pipes

and ﬁns in copper for the production of hot water for central

heating and domestic use.

(until serial number 3078554) number of ﬁns = 79.

(from serial number 3078555) number of ﬁns = 86.

It therefore works directly on both circuits to which it is con-

nected by pipes with threaded ﬁttings (3) with a ﬂat gasket

seal (4).

e 6 oval pipes it consists of, inside which ﬂows the water of

the central heating circuit, contain an equal number of “cross-

shaped” pipes for the direct transit of domestic hot water (see

illustration below).

ese pipes are plumbed in parallel in groups of three on the

central heating circuit and in series on the d.h.w. circuit.

e overheating safety thermostat (2) is ﬁxed on the side of

the exchanger exit with a fork (1).

e relevant NTC delivery probe is screwed into place on the

central heating delivery pipe (5).

Head ﬂow rate graph.

e available head the appliance is able to guarantee to the

system in the central heating mode depends on the ﬂow rate

which is shown in the following graph where we can see the

characteristic curve with the pump working at second and

top speed.

Head (m H2O)

A = Head available to the system at third speed

B = Head available to the system at second speed

Head (kPa)

Domestic

cold

water

inlet Domestic

hot

water

outlet

Domestic

hot

water

outlet System

delivery

System

return

Exchanger pipe section

System

central

heating circuit

D.h.w.

circuit

Flow rate (l/h)

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical DocumentationTechnical Documentation

Safety devices and controls.

Automatic system by-pass (4).

is device ensures circulation in the central heating circuit

even when this is prevented by the system’s high resistance.

It works between the delivery and return of the central heating

circuit and is accessible after having unscrewed the cap (5) on

the brass manifold’s hook (1).

System water pressure switch (7).

is is an absolute pressure switch that reads the pressure inside

the central heating circuit.

It is housed in the manifold (1) and coupled to a microswitch

that prevents the boiler working when the pressure measured

is below 0.3 bar.

is prevents the bithermal exchanger from overheating.

Filling valve (3).

is valve is between the boiler circuit and the domestic cold

water inlet and permits pressurisation of the central heating

system.

It is located underneath the brass manifold (1) to which it is

screwed.

3-bar safety valve (2).

is valve prevents the safety pressure being exceeded in the

circuit (3 bar).

It is on the front of the manifold (1), secured to it on the side

with an Allen screw.

When this valve triggers, water exits from the boiler return

pipe.

Automatic air vent (8).

It automatically expels any gaseous substances from the cir-

cuit.

It is mounted on the pump’s delivery side.

Expansion vessel (9).

It compensates for variations in volume as a result of heating

the water which also limits pressure variations.

It has a 6-litre capacity (3.95 useful litres) and a pre-load pres-

sure of 1.0 bar.

It is located on the right of the boiler alongside the sealed

chamber and is connected to the return manifold (1) by a

copper pipe (6) with threaded ﬁttings.

Central

heating

exchanger

delivery

Pump

return

System

delivery

System

return

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical Documentation Technical Documentation

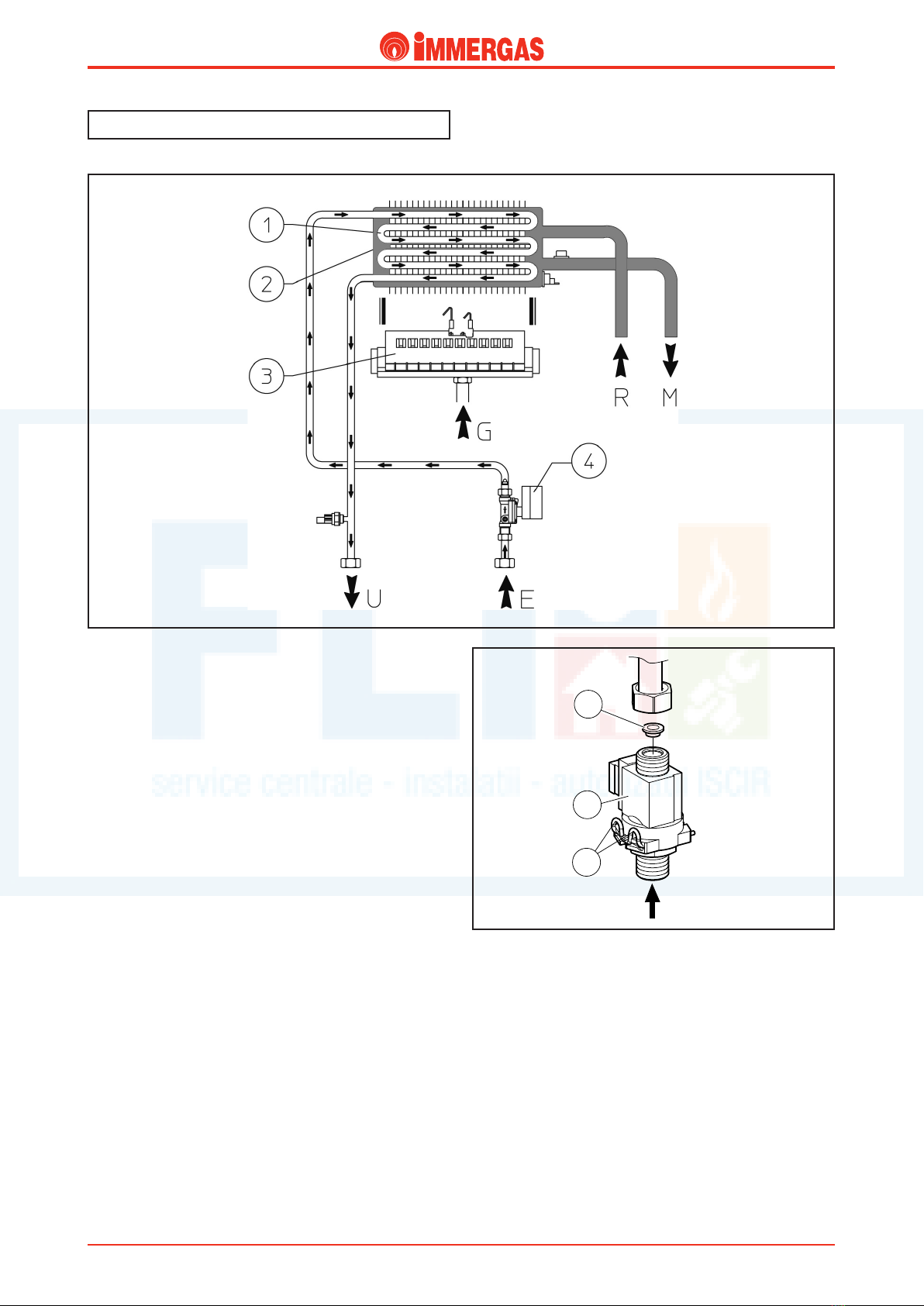

Secondary circuit (D.h.w. circuit).

Operation.

When domestic hot water is drawn, cold water ﬂows inside

the ﬂow switch (4) which closes the electrical contact coupled

to it (see the electrical circuit).

As a result, the adjustment circuit starts the d.h.w. priority

phase that ignites the burner (3) and, if there is an ongoing

central heating request, switches the boiler circulator oﬀ.

In this way, the heat in the fumes produced by combustion is

absorbed by the copper blades of the bithermal exchanger (2)

and transferred to the heating circuit water which, in turn,

transfers it to the domestic water circuit ﬂowing through the

“cross-shaped” hot water circuit pipes (1).

D.h.w. ﬂow switch.

Whenever hot water is drawn at a rate of at least 1.5 l/min and

with a dynamic pressure of 0.3 bar, the ﬂow switch (2) enables

the boiler to operate in the d.h.w. mode.

is is done by means of a magnet that, by lifting when hit by

the ﬂow of cold water, moves near to an electrical contact (reed

relay) causing it to move thanks to the eﬀect of the magnet.

When the contact closes, which is located outside the pipe

through which the water ﬂows, it enables the modulation board

to start the domestic hot water priority operating mode.

It consists of two blocks (one in brass and one in plastic) that

are coupled together and locked with a pin (3).

An 8.0 l/min (2 bar) ﬂow limiter (1) is installed at the ﬂow

switch exit.

Bithermal exchanger

(see the central heating circuit).

Note: to ensure long life and have an exchanger that is always

eﬃcient, we recommend installing the “polyphosphates dispenser

kit” if the water is likely to lead to scale forming. For example,

this kit is recommended when the hardness of the water exceeds

25 French degrees.

Cold domestic

water inlet

http://serviceimmergas.ro

STESkW ed 05/06 EOLO Star 23 kW

Technical DocumentationTechnical Documentation

e circuit consists of an atmospheric burner and a modu-

lating gas valve for gas combustion and ﬂow adjustment

respectively.

Operation.

When the main coils are energised (3) both the inner valve

shutters open allowing gas to ﬂow towards the burner.

e ﬂow rate/outlet pressure is set by means of the gas valve

stabiliser and the modulation coil (1).

By mean of the burner nozzles (7) fuel is injected into the Ven-

turi tubes (ramps) inside which the air-gas mixture is obtained

that is ignited by the spark from the ignition electrode (5).

Modulating gas valve.

e gas valve (SIT 845) features two main coils (3) and a

modulation coil (1) controlled by the integrated board.

e maximum and minimum outlet pressure can be set with

this valve (see gas settings).

Main electric coils (3).

ey are two ON-OFF type coils supplied (230 Vac) by the

integrated board when the burner has to be ignited.

ey are electrically connected in parallel and supplied by

mains power through a special connector (2).

Modulation coil (1).

is is a low voltage coil controlled by the integrated board.

It controls the gas valve stabiliser and permits changing of

the outlet pressure in a way proportionate to the DC running

through it.

Gas circuit.

Burner.

e burner consists of 12 horizontal Venturi tubes (6) inside

which the gas is injected by an equal number of nozzles (7)

mounted on the speciﬁc manifold (8) and whose diameter

varies according to the type of gas used (see technical data).

Ignition occurs by means of an integrated p.c.b. that controls

the ignition (5) and detection (4) electrodes.

Ignition electrode (5).

is is controlled by the integrated board that produces an

electrical charge between its end and the burner surface which

is responsible for igniting the air-gas mix.

is electrode is at the front of the burner in line with the

centre ramp.

Detection electrode (4).

is is controlled by the integrated board and detects burner

ignition.

It is positioned at the front of the burner on the same ramp

as the ignition electrode.

http://serviceimmergas.ro

Inhaltsverzeichnis

Andere Immergas Kessel Handbücher

Immergas

Immergas VICTRIX EXA 28 1 ERP Betriebsanleitung

Immergas

Immergas EOLO STAR 24 3 E Bedienungsanleitung

Immergas

Immergas VICTRIX TERA VIP Produkthandbuch

Immergas

Immergas Maior Eolo 24 4E Produkthandbuch

Immergas

Immergas Maior Eolo 24 4E Bedienungsanleitung

Immergas

Immergas VICTRIX ZEUS 26 2 ERP Betriebsanleitung

Immergas

Immergas ZEUS Maior Bedienungsanleitung

Immergas

Immergas NIKE Mini Export Bedienungsanleitung

Immergas

Immergas ARES 440 TEC ERP Produkthandbuch

Immergas

Immergas MAGIS VICTRIX ERP Installations- und Betriebshandbuch

Immergas

Immergas VICTRIX 90 1I Bedienungsanleitung

Immergas

Immergas Zeus Maior 24 Bedienungsanleitung

Immergas

Immergas EOLO STAR 24 3 E Leitfaden

Immergas

Immergas MINI NIKE 24 3 E Bedienungsanleitung

Immergas

Immergas VICTRIX EXA 28 1 ERP Betriebsanleitung

Immergas

Immergas VICTRIX ZEUS SUPERIOR 26 2 ERP Betriebsanleitung

Immergas

Immergas VICTRIX 24 TT 1E Produkthandbuch

Immergas

Immergas VICTRIX EXA 24x1 ERP Betriebsanleitung

Immergas

Immergas MINI NIKE X 24 3 E Produkthandbuch

Immergas

Immergas VICTRIX 26 2 I Bedienungsanleitung

Immergas

Immergas EOLO Mini S Bedienungsanleitung

Immergas

Immergas Hercules Condensing 26 3 ErP Betriebsanleitung

Immergas

Immergas MINI EOLO 28 3E Produkthandbuch

Immergas

Immergas VICTRIX 24 TT 2 ERP Produkthandbuch

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
