1. Introduction
This USB 4-Port Roaming Mouse Switcher can realize that 4-port USB1.1
keyboard and mouse or other peripherals share four computer hosts. It
supports Mouse Slide Screen Function with three modes (Mode 1, Mode 2

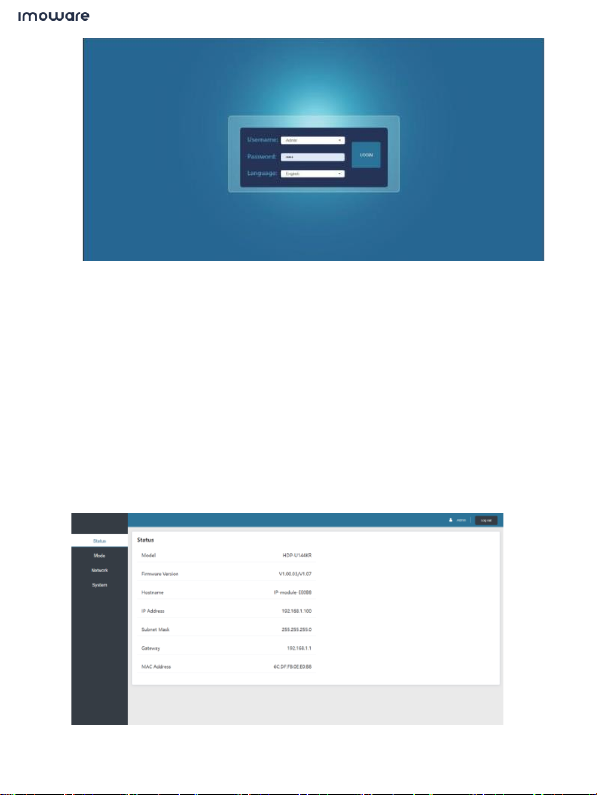

and User Defined Mode). Built-in Web GUI can set Synchronous Control
Function (One set of keyboard and mouse can control all connected
computers simultaneously). Four computer monitors support two fixed
placement modes (Web GUI users can custom the placement mode).
2. Features
☆USB 1.1 compliant
☆4 x USB1.1 keyboard and mouse port, 4 x USB 1.1 PC port (HOST end)
☆Support Mouse Slide Screen Function. In different modes, one set of
keyboard and mouse can move left and right or up and down on four
computer monitors, and the user can select one host to operate.
☆Built-in Web GUI can set Synchronous Control Function (One set of
mouse and keyboard can control all connected computers simultaneously).
☆Support three mode switch methods: mode switch button, keyboard
hotkeys and Web GUI (User can define the placement mode in the User
Defined Mode).
☆Support USB power supply
☆Simple to install, plug and play
3. Package Contents
①1 × USB 4-Port Roaming Mouse Switcher
②1 × 5V/1A Power Supply (US standard)
③4 × USB Cable (1.5 meters)
④1 × User Manual
