Indesit KD3C1/G Bedienungsanleitung

50cm Free Standing Electric Cooker

Instructions for installation and use

KD3C1/G

KD3C11/G

Contents

Introduction 3

Installation 4

Safety Information 6

Features 8

Control Panel 9

Ceramic Hob 10

Use of hotplates 10

Hotplates General Information Notes 11

Choosing Your Utensils 14

Grilling 15

Grill Chart 16

Conventional Oven 17

Conventional Oven cooking charts - Meat 18

Conventional Oven cooking charts - Baking 19

Using the Main Oven for Other Functions 20

Care and Cleaning 21

Cooking Results Not Satisfactory? 22

Something Wrong With Your Cooker? 23

If it Still Won’t Work... 24

Technical Characteristics 25

Key Contacts Back Cover

You must read these instructions prior to using your appliance and retain them

for future use.

Introduction

Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance

has been installed in accordance with the installation instructions detailed in this booklet.

To help make best use of your cooking equipment, please read this booklet carefully.

The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other

installation.

When the cooker is first used an odour may be emitted,

this will cease after a period of use.

When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and

that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the

room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any

moisture absorbed by the insulation.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with the Users Instruction Book.

(b) Has been properly connected to a suitable supply voltage as stated on the

rating plate attached to this equipment.

any person other than the authorised employee or agent.

(d) Has been correctly installed.

Installation

WARNING – THIS APPLIANCE MUST BE EARTHED.

Electrical connection

Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which

conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after removing

the back panel of the cooker itself with a screwdriver.

N.B.: the following installation procedure must be carried out by a qualified electrician. The electrical installation must

comply with the IEE Regulations, Building & local By-Lays.

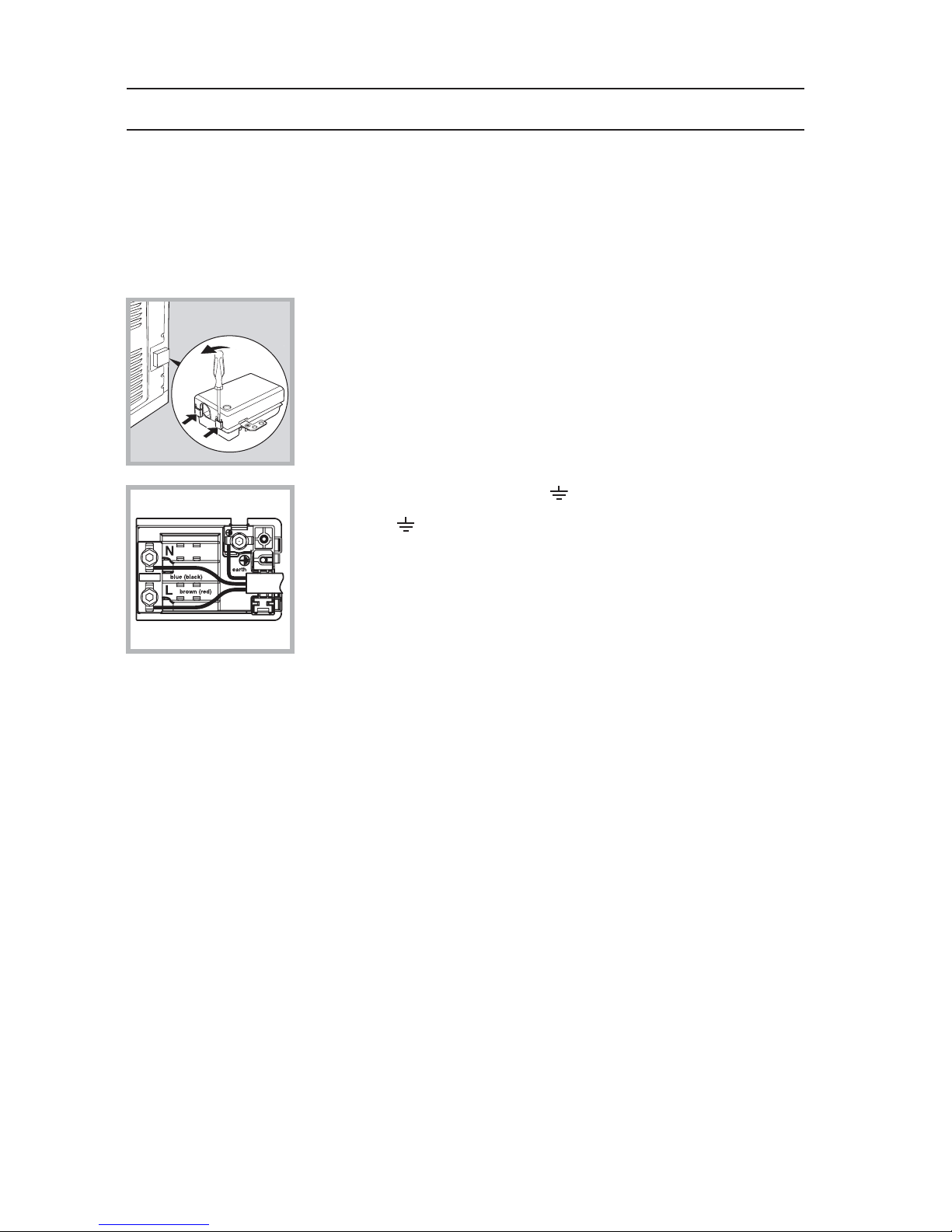

For the installation of the feeding cable carry out the following operations:

1 Open the terminal board by inserting a screwdriver into the side tabs of the

cover. Use the screwdriver as a lever by pushing it down to open the cover (see

diagram).

2 Loosen the cable clamp screw and remove it, using a screwdriver as a lever

(see figure).

3 Remove the wire contact screws L-N- , then fasten the wires under the screw

heads, respecting the colour code: Black/Blue (N), Red/Brown (L) and Bare Wire/

Yellow-Green ( ).

lOnce the connections have been made, tighten all the terminal screws fully.

lFasten the supply cable in place with the clamp and close the cover of the

terminal board.

Installation

The height of the cooker can be adjusted by means of adjustable feet in the plinth

(900mm - 915mm). Adjust the feet by tilting the cooker from the side. Then install the

product into position.

NOTE: This appliance must not be fitted on a platform.

The cooker is designed to fit between kitchen cabinets spaced 500mm apart. The

space either side need only be sufficient to allow withdrawal of the cooker for servicing.

It can be used with cabinets one side or both as well as in a corner setting. It can also

be used free-standing.

Adjacent side walls which project above hob level, must not be nearer to the cooker

than 150mm and should be protected by heat resistant material. Any overhanging

surface or cooker hood should not be nearer than 650mm.

Before moving your cooker check that it is cool, and switch off at the cooker

control unit.

Movement of your cooker is most easily achieved by lifting the front as follows:

Open the grill door sufficiently to allow a comfortable grip on the underside front

edge of the oven roof, avoiding any grill elements.

Note: Take care in moving the cooker as it is heavy.

Take care to ensure that any floor covering is not damaged.

Splashplate optional, apply to Parts Department (see Back Cover for contact

number.)

Moving the Cooker

Siting the Cooker

150 mm

650 mm

Safety Information

When used properly your appliance is completely safe but as with any electrical product there are certain

precautions that must be observed.

PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.

Always

lRemove all packing from inside the oven and grill compartments before switching on for the first time.

lUnderstand the controls prior to using the appliance.

lKeep children away from the appliance when grilling as the surfaces will get extremely hot during and after

use.

lTurn controls off when you have finished cooking and when not in use.

lStand back when opening an oven door to allow any build up of steam or heat to disperse.

lUse dry good quality oven gloves when removing items from the oven/grill.

lPlace pans centrally over the hotplate making sure handles are kept away from the edge of the hob and cannot

become heated by other hotplate/pans.

lTake care to avoid heat/steam burns when operating the controls.

lTurn off the electricity supply at the wall switch before cleaning and allow the appliance to cool.

lMake sure the shelves are in the correct position before switching on the oven.

lKeep the oven and grill doors closed when the appliance is not in use.

lTake care when removing items from the grill when the lower oven is on as the contents will be hot.

lKeep the appliance clean, as a build up of grease or fat from cooking can cause a fire.

lFollow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth.

lKeep ventilation slots clear of obstructions.

lRefer servicing to a qualified appliance service engineer.

lTake care to avoid touching heating elements inside the oven, as during use the oven becomes hot.

lThe appliance should not be operated by people (including children) with reduced physical, sensory or mental

capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals

should, at the very least, be supervised by someone who assumes responsibility for their safety or receive

preliminary instructions relating to the operation of the appliance.

Safety Information

Never

lNever line the interior of the oven with foil as this may cause the appliance to overheat.

lNever leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during

and after its use.

lDo not allow children or persons who are not familiar with the appliance to use it, without supervision.

lNever allow anyone to sit or stand on any part of the appliance.

lNever store items above the appliance that children may attempt to reach.

lNever leave anything on the hob surface when unattended and not in use.

lNever remove the oven shelves whilst the oven is hot.

lNever heat up unopened food containers as pressure can build up causing the container to burst.

lNever store chemicals/food stuffs, pressurised container in or on the appliance, or in cabinets immediately

above or next to the appliance.

lNever place flammable or plastic items on or near the hob.

lNever fill a deep fat frying pan more than 1/3 full of oil, or use a lid.

DO NOT LEAVE UNATTENDED WHILE COOKING.

lNever operate the grill with the grill door closed as this will cause the appliance to overheat.

lNever use the appliance as a room heater.

lNever use the grill to warm plates.

lNever dry any items on either the hob or oven doors.

lNever install the appliance next to curtains or other soft furnishings.

lNever use steam cleaners.

SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE

In the event of a chip pan fire or any other pan fire.

1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the

fire.

3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT. Injuries are often caused by

picking up a hot pan and rushing outside with it.

NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force

of the extinguisher is likely to tip the pan over.

Never use water to extinguish oil or fat fires.

Features

GRILL DOOR

REMOVABLE

INNER GLASS

DOOR

CONTROL

PANEL

MAIN OVEN

WIREWORK

SHELF

SUPPORTS

OVEN ROD

SHELVES

GRILL

1700W 1200W

1200W 1700W

GRILL DOOR SWITCH

GRILL/MEAT PAN

WITH REMOVABLE

HANDLE AND WIRE

FOOD SUPPORT

MODEL & SERIAL

NUMBER

HOB VENTILATION SLOTS

Hob Hot Indicators

Control Panel

MAIN OVEN

INDICATOR

LIGHT

MAIN

OVEN

GRILL LEFT

FRONT

PLATE

RIGHT

REAR

PLATE

LEFT

REAR

PLATE

RIGHT

FRONT

PLATE

GRILL

INDICATOR

LIGHT

PLATE

INDICATOR

LIGHT

TIMER*

Control Knobs The knobs for the hotplates can be rotated in either direction to provide variable heat control, the

Main Oven knob can only be rotated clockwise from the Off position.

Note: Always ensure that all controls are in the OFF position, when the appliance is not

in use.

Operating the

control when

the grill is in use

In common with all cookers having controls sited above the grill compartment, care must be taken

when setting the controls, due to hot air being emitted from the grill compartment.

Slow cooking ‘S’ The main oven has a ‘S’ setting specially designed to reduce energy usage. Full details of this can

be found in the Slow cooking section of this book.

Timer * To use the timer, the buzzer must be wound up by turning the knob one full turn clockwise; then

turn it back to the desired time so that the number of minutes on the knob matches the reference

mark on the panel.

* (only available on certain models)

Ceramic Hob

CAUTION: IF AT ANY TIME A CRACK IN THE SURFACE BECOMES VISIBLE, DISCONNECT THE APPLIANCE

IMMEDIATELY FROM THE SUPPLY.

Under no circumstances should the hob be used with aluminium foil in contact with the hob surface as damage can

occur.

The following boiling plates are located beneath the decorative circular patterned cooking areas:-

Front left 6 heat: 1200W

Rear left 6 heat: 1700W

Rear right 6 heat: 1200W

Front right 6 heat: 1700W

The cooking areas change colour when heated (become red) indicating which heating element is switched on. The

cooking area returns to its original colour when the heating element is switched Off.

Warning: Even though the cooking area has returned to its original colour it may still be hot.

The controls for the hotplates can be turned in either direction.

Turn the control to 6 for fast cooking. To reduce the heat to cook more slowly or simmer, turn the control to a lower

setting according to the size of the saucepan and the amount of liquid.

Pans can be placed on the unheated areas of the panel when cooking is finished and before serving food. It is

inadvisable at any time to leave a heating element switched on without a pan in position as this wastes energy, and

could make soil or rub-off from aluminium pans more difficult to remove. To protect elements against over-heating,

safety cut-outs have been incorporated with each element. After several minutes with the control at setting 6 the

safety cut-out switches the element Off and On continuously, thus preventing any adverse effects that may be

caused by an excessive build-up of heat in the cooking area.

Use of Hotplates

Note: Under no circumstances should the hob be used with aluminium foil in contact with the hob

surface.

Turn the control to 6 for fast cooking. To cook more slowly or simmer, turn the control to a lower setting according to

the size of the saucepan and the amount of liquid. The two small Hotplates are specially for smaller pans, low

temperature cooking and simmering.

Do Not leave a hotplate switched on without a pan as this wastes energy and may shorten the life of the hotplate.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Indesit Kocher Handbücher

Indesit

Indesit K3 G52S/R Bedienungsanleitung

Indesit

Indesit K 300 E.C/R Bedienungsanleitung

Indesit

Indesit K6M1S/F Bedienungsanleitung

Indesit

Indesit K6M52/EO Kurzanleitung

Indesit

Indesit ID67G0MCW/UK Bedienungsanleitung

Indesit

Indesit K 601 V.C/G Bedienungsanleitung

Indesit

Indesit ID67G0MCB/UK Bedienungsanleitung

Indesit

Indesit CP65SP2/HA Bedienungsanleitung

Indesit

Indesit DD60C2 AA Bedienungsanleitung

Indesit

Indesit KN6E61A/FR Bedienungsanleitung

Indesit

Indesit K3G51S.A /HU Bedienungsanleitung

Indesit

Indesit IS60G1 Bedienungsanleitung

Indesit

Indesit KT6C3 Bedienungsanleitung

Indesit

Indesit K1E107/RU Bedienungsanleitung

Indesit

Indesit ID5V92KMW/UK Bedienungsanleitung

Indesit

Indesit I6ESH2E/KZ Bedienungsanleitung

Indesit

Indesit KT6G2MIR Bedienungsanleitung

Indesit

Indesit KP100CX Bedienungsanleitung

Indesit

Indesit IS67V5PCX/E Bedienungsanleitung

Indesit

Indesit IS50D1S Bedienungsanleitung

Indesit

Indesit K3G2S/G Bedienungsanleitung

Indesit

Indesit K3E 517 Bedienungsanleitung

Indesit

Indesit IS5G1KMW/U Bedienungsanleitung

Indesit

Indesit HGK.B IB Bedienungsanleitung

Beliebte Kocher Handbücher anderer Marken

Modena

Modena FC 7645 SGM Betriebsanleitung

Electrolux

Electrolux Insight EKG6049 Bedienungsanleitung

Stanley

Stanley Donard 60 Bedienungsanleitung

Bartscher

Bartscher 201TC Bedienungsanleitung

Parkinson Cowan

Parkinson Cowan 50 GR/BU Bedienungsanleitung

Siemens

Siemens HK9P00020U Bedienungsanleitung

Creda

Creda S150E Leitfaden

Creda

Creda HB48309 Bedienungsanleitung

Bosch

Bosch HCE743220F Bedienungsanleitung

Tricity Bendix

Tricity Bendix SE545P Bedienungsanleitung

NEFF

NEFF E1461A2/01 Bedienungsanleitung

Zanussi

Zanussi ZCM 700 X Bedienungsanleitung

Smeg

Smeg SNL61MA9 Bedienungsanleitung

RiverGrille

RiverGrille TF2002501-RG Bedienungsanleitung

Vollrath

Vollrath 69504F Bedienungsanleitung

Tricity Bendix

Tricity Bendix CSIE500 Bedienungsanleitung

AEG

AEG Competence 5731 V Bedienungsanleitung

Euromaid

Euromaid ES60 Bedienungsanleitung
