Tumble dryer

Instructions for installation and use

G74V

Contents

Safety Advice

Electrical Requirements

Features - Get to know the main parts of your Dryer

Where to put and vent your Dryer

How to use your Dryer

The Controls

Sorting your laundry

Items not suitable for drying

Items requiring special attention

How to remove and clean the Fluff Filter

Guide to Drying Times

Caring for your Dryer

If something goes wrong

If it still won’t work

3 - 4

7 - 8

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important

details on the safe and proper use of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it

behind, make sure this Book is also provided so the new owner can become

familiar with the appliance and safety warnings.

Simply complete and return the Registration Form supplied with the appliance

documents.

For your safety

NEVER ● Allow children to play with or otherwise interfere with the dryer.

NEVER ● Allow the air inlet at the back of the dryer, the air outlet or vent hose

to be obstructed.

NEVER ● Direct the vent hose outlet towards the air intake at the back of the

machine.

NEVER ● Allow the tumble dryer to recycle exhaust air.

NEVER ● Switch the machine off leaving a hot load in the drum.

NEVER ●Tumble dry without the filter in position.

NEVER ● Exceed the maximum load capacity recommended or place

dripping wet items in the drum.

NEVER ● Use the dryer on a carpeted floor where the pile height would

prevent air from entering the dryer from the base.

NEVER ● Allow lint to collect around the dryer.

NEVER ● Add liquid or sheet fabric conditioner to the dryer, use liquid

conditioner in the final rinse of your wash.

NEVER ●Use the dryer for commercial drying, the dryer is only suitable for

domestic use.

NEVER ●Dry Acrylics on the high heat setting.

NEVER ●Tumble dry articles that have NOT been well washed in water and

detergent then well rinsed and spun.

NEVER ●Tumble dry articles that have had chemicals used for cleaning.

NEVER ●Dry articles that are contaminated with flammable substances such

as: petrol, oil, paint, hair lacquer, creams, cooking fat or oil.

NEVER ●Tumble dry: rubber, foam rubber, plastic, plastic foam, nappy pants

or liners, polythene or paper.

Large, very bulky items including duvets and sleeping bags.

NEVER ●Never attempt to stand on top of your dryer, it is not designed for

such use and you could injure yourself or damage the dryer by such

abuse.

NEVER ●Switch electricity On or Off with wet hands.

IMPORTANT

Using your Tumble Dryer is easy.

Nevertheless, for your own safety and to get the best results it is important to know your

Dryer by reading right through this handbook before using your dryer for the first time.

A CHILD COULD CLIMB INTO OR TAMPER WITH AN UNATTENDED

TUMBLE DRYER.

WHEN THE MACHINE IS NOT IN USE SWITCH OFF, REMOVE THE PLUG AND

CLOSE THE DOOR.

IMPORTANT

For your safety

ALWAYS ●When the dryer is not in use, switch off at the wall, remove plug

and close the door.

ALWAYS ●Comply with the specified electrical requirements.

ALWAYS ●Ensure that your dryer is installed correctly and has adequate

ventilation. (see, "Where to put and vent your dryer.")

ALWAYS ●Use the vent hose for optimum drying performance.

ALWAYS ●Finish every programme with the cool tumble cycle provided on

the control.

ALWAYS ●Clean the filter, it is essential that the filter is kept clear of fluff

after EACH drying cycle.

ALWAYS ●Observe the rules for drying garments:

In particular woollen articles should not be dried in a

tumble dryer unless they are labelled ‘Superwash’,

‘Machine washable’ or have the ‘May be tumble dried’

symbol:

If in any doubt do not dry wool in the machine.

Unlike other materials, the mechanism of wool

shrinkage is irreversible, i.e. it will not stretch back to

the original size and shape.

ALWAYS ●Buy genuine accessories and spares.

CAUTION: WHEN THE DRYER IS IN USE AVOID

TOUCHING THE REAR OF THE DRYER AS IT MAY BE

HOT.

Electrical Requirements

Supply

Changing

the fuse

Moulded plug

Changing

the plug

Rewirable plug

Changing the

mains cable

WARNING:This appliance must be earthed!

REFER TO THE RATING PLATE FOR VOLTAGE AND CURRENT

REQUIREMENTS. (see diagram for location.)

The flexible mains lead is supplied fitted with a BS1363 plug and

with a 13 amp BS1362 fuse.

The plug should be connected to the mains supply via a suitable

switched socket which is accessible after installing your dryer.

If it is necessary to fit a replacement fuse, it must be a 13 amp

ASTA approved to BS1362 type.

If a replacement fuse holder/cover is required, it must be of the

same colour coding or wording as shown on the base of the plug.

Replacements are available from your Spares stockist.

The wires in the mains lead are coloured in accordance with the

following:

GREEN/YELLOW - EARTH

BLUE - NEUTRAL

BROWN - LIVE

If a replacement plug is to be fitted, the appropriate wire must be

connected to the correct terminal,as follows:

Connect:

Green/Yellow to terminal marked Earth or Green or

Blue to terminal marked Neutral or N or Black

Brown to terminal marked Live or L or Red.

If the plug being replaced is a non-rewirable type then the cut-off

plug must be disposed of safely. DO NOT leave where it can be

inserted into a socket and create a shock hazard.

Should the mains lead ever require replacing at any time please

contact your nearest Service Centre. A charge will be made for the

replacement of the mains lead or if you require a longer lead.

The mains lead must only be replaced by a specially prepared

cable obtainable from your Spares Stockist and fitted by a

qualified electrician.

WARNING:The plug must not be used without a fuse cover.

NOTE: IF IN DOUBT ABOUT ANY OF THE ABOVE CONSULT A

QUALIFIED ELECTRICIAN.

GREEN &

YELLOW TO

EARTH

13 AMP

FUSE

BROWN

TO LIVE

CORD

CLAMP

BLUE TO

NEUTRAL

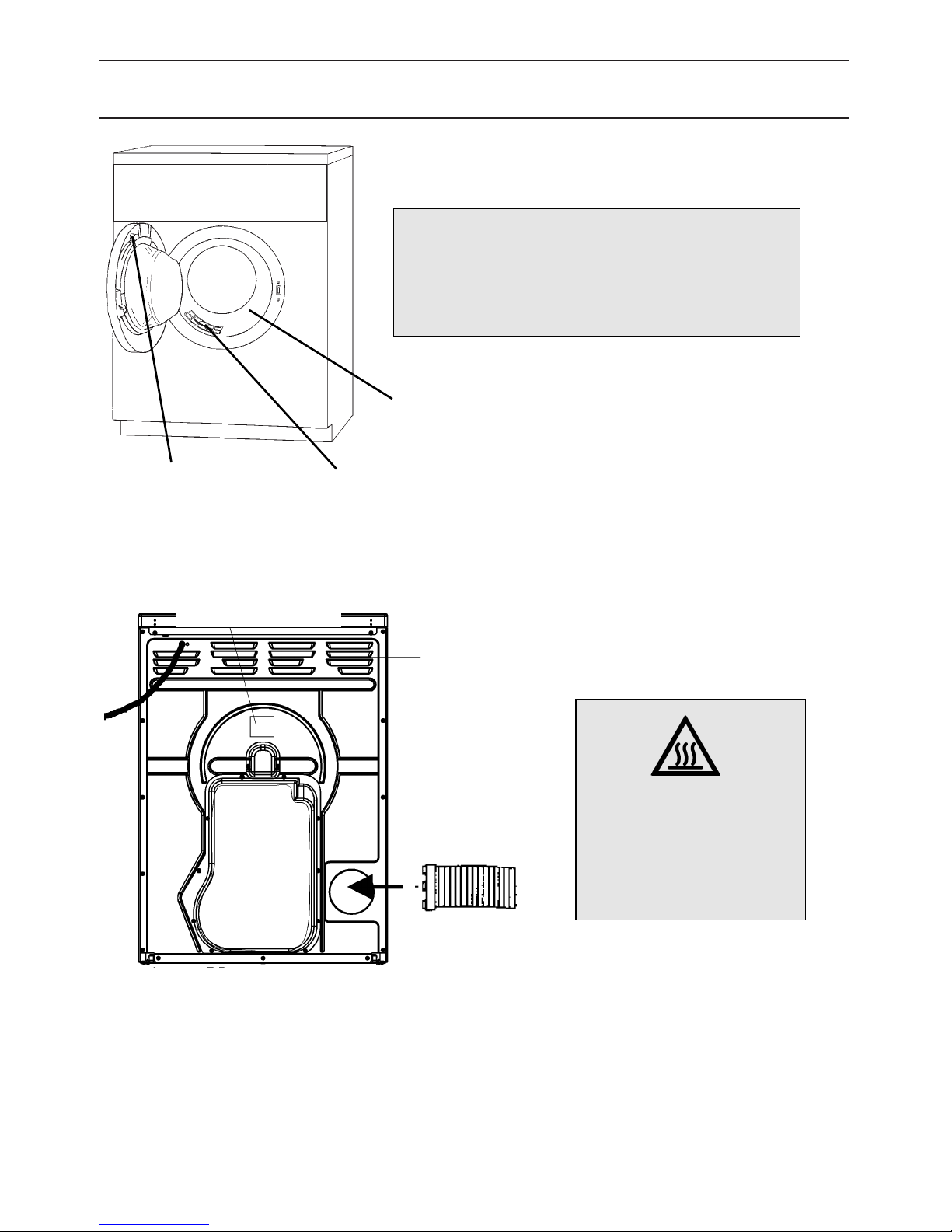

Features - Get to know the main parts of your dryer

Model and

serial numbers

NOTE: if your dryer is new wipe out

the inside of the drum before you first

use it to remove any dust which may

have accumulated during transit.

NOTE: When the

dryer is in use,

avoid touching the

back of the machine

as it may be hot.

See “The Controls”

FLUFF FILTER

Clean after

each use

Rating plate

Air intake

grille

Vent hose

fitted here

Caution

Hot

Rear venting with hose

Drum

Where to put and vent your dryer

Your Tumble Dryer should NOT be located adjacent to a gas hob

cooker, heater, or eye level grill as flames from the burners could

cause damage to your machine. When the dryer is fitted under a

work surface allow space for air to enter the rear grille, 10mm above

the dryer minimum.

DO NOT use 2-way adaptors or extension leads.

The Dryer dries your washing by drawing in air that is cool, clean

and relatively dry, heating it and then blowing it through the clothes

as they are gently tumbled. The moisture laden air is then blown out

at the back of the dryer through the vent hose which is

recommended for optimum performance.

When operating the dryer, there has to be adequate ventilation to

avoid the back flow of gases into the room from appliances burning

other fuels, including open fires.

A vent hose must always be fitted when the dryer is used in

conjunction with Mobile Venting.

The hose must be fitted securely into the back of the dryer (see

diagram on previous page). If possible, it is always best to connect

the hose to a permanent outlet close to the dryer (see instructions

below).

Ensure that the end of the hose is not directed towards the air

intake grille at the rear of the dryer.

If permanent installation is not possible, the dryer will work just as

well with the hose passed through a partly-opened window.

NOTE: The vent hose should not exceed 2.4 metres in length

and should be kept free of any possible accumulation of fluff,

lint (and water) by frequently shaking it out. Always ensure that

the hose is not squashed.

See diagram on previous page.

Ventilation

Mobile Venting

Fitting the Vent

Hose Kit

Where to put and vent your dryer

In conjunction with the vent hose we recommend the use of a

Wall/Window Vent Kit. These are available from your retailer or

nearest Spares Centre.

Fitting instructions are supplied with the kits, which can be mounted

through a wall or window. Details of positioning for wall mounting

are as follows:- Break a hole through the wall to the left of the

proposed position for the dryer. Keep the hose as short and straight

as possible to prevent condensed moisture running back into the

dryer. Similarly the duct inserted into the wall should slope

downwards to the outside. For window venting with stacked dryer,

the hole in the window should ideally be made below the outlet and

the hose should be kept as short as possible.

Depending on the frequency of use, it is essential that the areas

A and B in the illustrations are checked periodically and any fluff

or debris removed.

It is particularly important that the vent hose adaptor is fitted

securely thus preventing any moisture laden air from being

emitted back into the room.

NOTE: The dryer should not be pushed so far back that the

hose adaptor is pulled out of position or the hose squashed.

The hose should be kept clear of the air intake grille and kinks

or ‘U’ bends avoided as these will obstruct the hose or trap

condensation.

For open window venting it must be possible for the end of the hose

to be directed downwards to prevent warm, moist air condensing in

the room or in the dryer.

Permanent

Venting

Wall/Window

Venting

WARNING:

1. ENSURE THAT THE DRYER IS ADEQUATELY

VENTILATED AND THAT THE END OF THE VENT HOSE

IS NOT DIRECTED TOWARDS THE AIR INTAKE DUCT.

2. THE DRYER MUST NOT RECYCLE EXHAUST AIR.

3. THE VENT HOSE MUST ALWAYS BE FITTED FOR

OPTIMUM PERFORMANCE.

4. MAKE SURE THAT THE VENT HOSE AND AIR INTAKE

GRILLES ARE NOT OBSTRUCTED OR BLOCKED.

5. MISUSE OF A TUMBLE DRYER MAY CREATE A FIRE

HAZARD.

6. DO NOT DISCHARGE THE EXHAUST AIR INTO A FLUE

WHICH IS USED FOR EXHAUSTING FUMES FROM

OTHER APPLIANCES BURNING GAS OR OTHER FUELS.

Storm cover

How to use your dryer

Button Out

LOW HEAT

Button In

HIGH HEAT

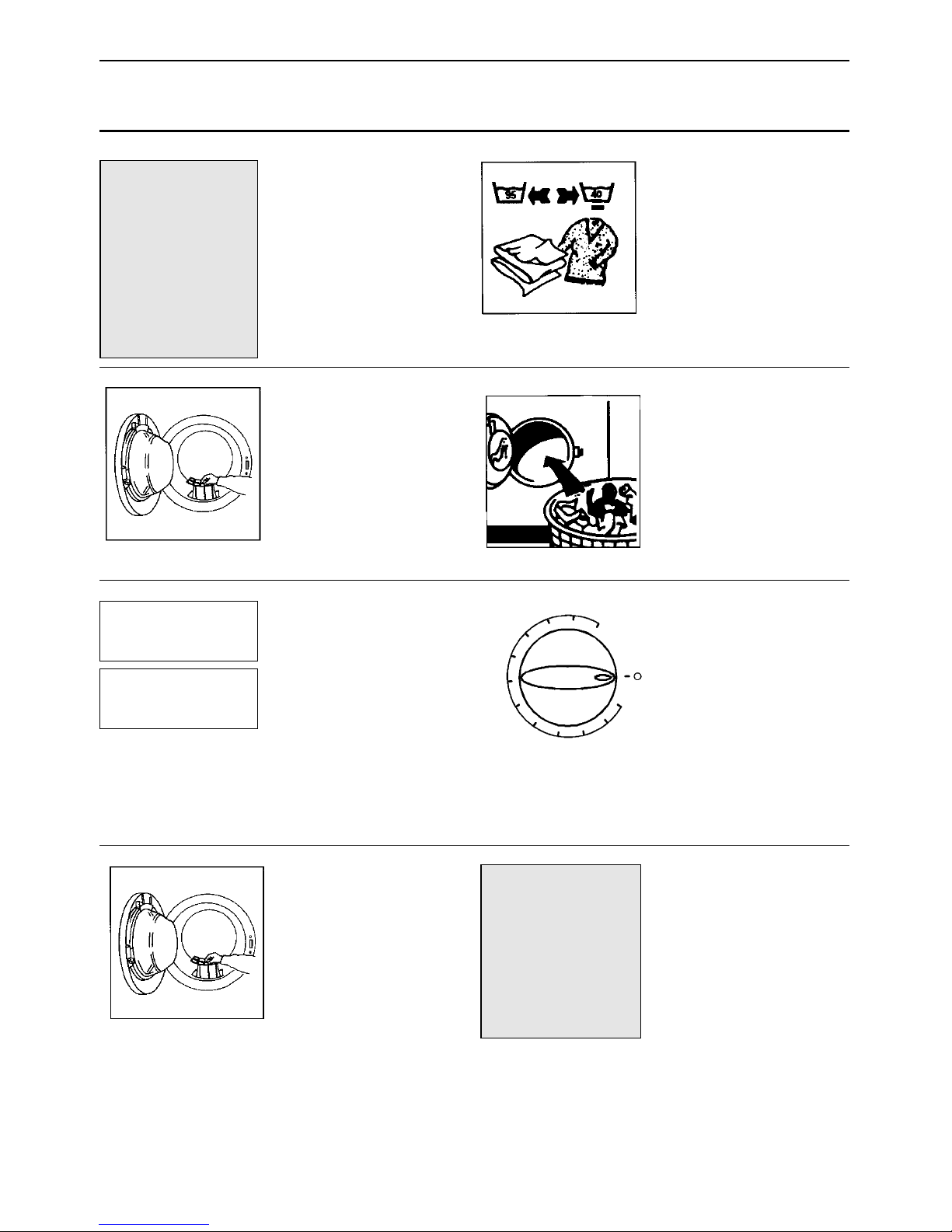

1. Plug in, switch

on electricity. 2. Sort your laundry

(see section “Sorting

Your Laundry”)

3. Open the door.

Check that the fluff

filter is clean. Lift

filter upwards, clean

away any fluff,

replace filter

correctly.

4. Load the dryer,

placing the clothes

carefully in the drum

pushing them well

towards the back and

away from the door

seal. Close the door.

5. Select the relevant

heat setting (see

section “Sorting your

laundry”).

6. Select drying time

required. The

machine will start.

7. When finished,

open the door and

take out the laundry.

Clean and replace

the fluff filter.

8. Switch off electricity

and remove plug from

socket.

WARNING: WHEN

SWITCHING ON

OR OFF, PLEASE

ENSURE THAT

YOUR HANDS

ARE DRY

WARNING: WHEN

SWITCHING ON

OR OFF, PLEASE

ENSURE THAT

YOUR HANDS

ARE DRY

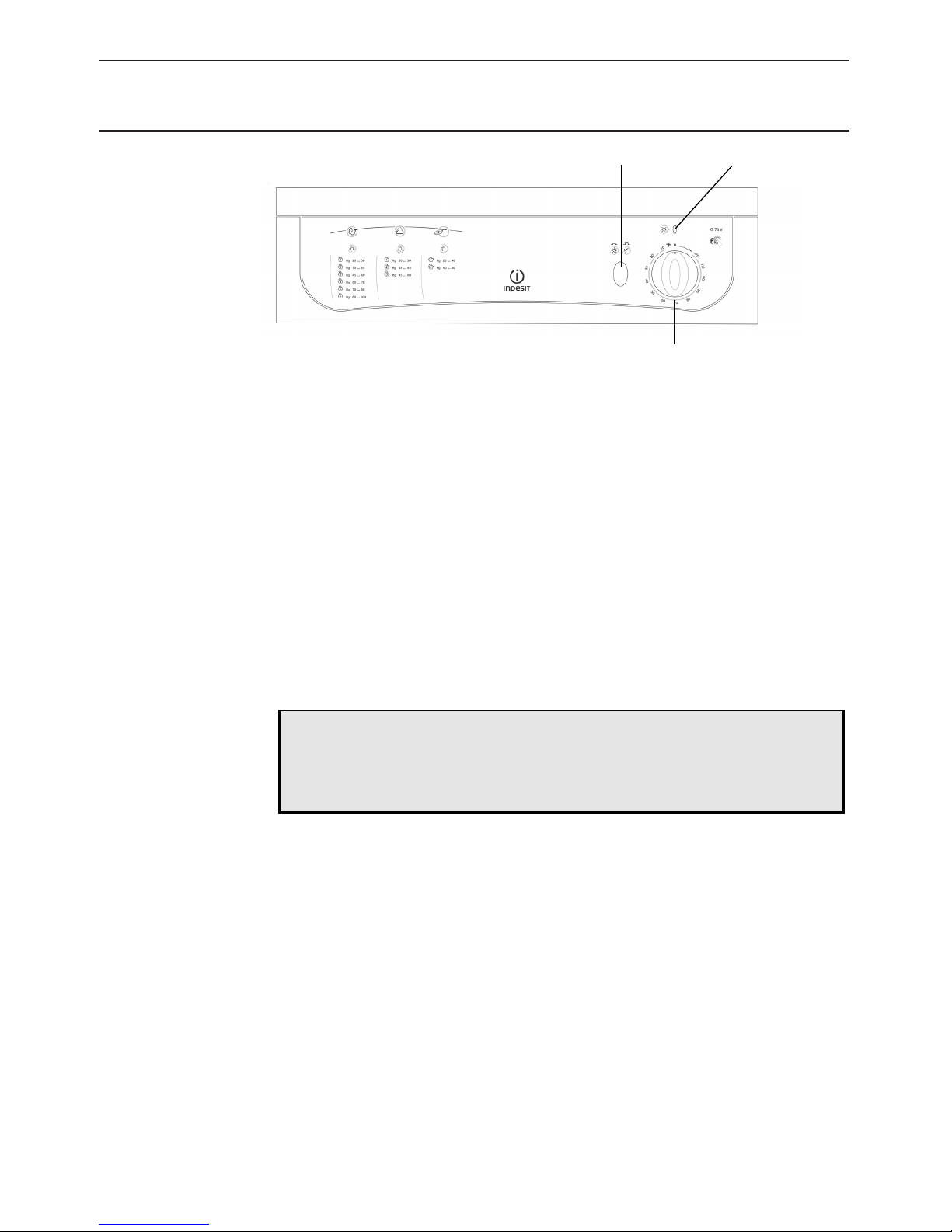

The Controls G74V

Timer Control

Door Release

Heat Selection

Drying Light

Timer control

Heat selection switch

Turn the timer clockwise to select the required drying time.

The drying time for both heat settings is controlled by the timer. All you

have to do is turn the Timer Control clockwise until the required time

appears in line with the indicator.

Never wind the timer control anti-clockwise.

This operation also starts the dryer, provided the door is closed and the

machine is plugged in. The “Guide to Drying Times” section will tell you

how much time you’ll need for various loads.

To open door, grip handle and pull towards you.

If the door is opened while the dryer is in use, the drying programme cuts

out automatically and the machine stops. When the door is closed the

dryer will restart but you will not need to reset the timer control.

You can however reset the Timer Control at any stage should you wish.

To select high heat (Cottons and Synthetics), the Heat Selection switch

must be IN.

To select Low heat (Acrylics) the Heat Selection switch must be OUT.

See section “Guide to Drying Times”.

This light glows during any drying programme and goes out at the start of the

cool tumble phase.

WARNING: CHILDREN HAVE BEEN KNOWN TO CLIMB INTO

TUMBLE DRYERS AND INJURE THEMSELVES. ALWAYS

ENSURE THAT THE MACHINE IS SWITCHED OFF AT THE

MAINS WHEN THE DRYER IS NOT BEING USED.

Drying Light

Andere Handbücher für G74V

Inhaltsverzeichnis

Andere Indesit Trockner Handbücher

Indesit

Indesit IS70C Bedienungsanleitung

Indesit

Indesit IDC 85 S Bedienungsanleitung

Indesit

Indesit IDC 75 S Bedienungsanleitung

Indesit

Indesit ISL65C Bedienungsanleitung

Indesit

Indesit IDCA 735 S Bedienungsanleitung

Indesit

Indesit IDCA 735 S Bedienungsanleitung

Indesit

Indesit IDCA 8350 B Bedienungsanleitung

Indesit

Indesit ISL69C Bedienungsanleitung

Indesit

Indesit IS31V Installationsanleitung

Indesit

Indesit IDCE 8450 B S Bedienungsanleitung

Indesit

Indesit IDCE G45X B H PS Bedienungsanleitung

Indesit

Indesit tcud93b Bedienungs- und Montageanleitung

Indesit

Indesit EDPE G45 A Bedienungsanleitung

Indesit

Indesit IDCA H G55 B Bedienungsanleitung

Indesit

Indesit EDPA 745 A ECO Bedienungsanleitung

Indesit

Indesit IDC 75 Bedienungsanleitung

Indesit

Indesit IDV 75 UK Bedienungsanleitung

Indesit

Indesit IDCE 845 Bedienungsanleitung

Indesit

Indesit IDPE 845 A1 ECO Bedienungsanleitung

Indesit

Indesit IS31 Installationsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Indesit

Indesit IDCA 835 Bedienungsanleitung

Indesit

Indesit IS 41 V Bedienungsanleitung

Indesit

Indesit IDC 75 S Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung

Frigidaire

Frigidaire CAQE7077KW0 Betriebsanleitung
