INDUCS MO/DU 7000 Bedienungsanleitung

Installation, Operation and Maintenance Manual

Original Instructions

Part Number 4532415 Rev 5 12/15

Induction Designer Series

Module-Line Built-In Models

models

MO/DU 7000

MO/DU 10000

MO/DU 14000

MO/QU 14000

MO/QU 20000

MO/QU 21000

MO/QU 24000

MO/QU 28000

READ THIS MANUAL

nWarning

Read this manual thoroughly before installing,

operating, or performing maintenance on the

equipment. Failure to follow instructions in this manual

can cause property damage, injury or death.

This manual must always be available for reference at

the place of operation.

This manual is intended for kitchen consultants, cabinet

designers, fabricators, installers, owners and operators of

our appliances.

Owners, consultants, fabricators and designers:

In order for the induction appliance to function safely

and normally, you must read and understand all

specific and critical requirements when designing the

location and the counter for the appliance.

Installers, operators and staff:

For your safety and safety of the others, you must

observe all safety instructions during installation,

operation and maintenance of the equipment.

Should you require technical assistance, call your factory

authorized service agent or distributor. Always have your

model and serial number available when you call.

Your Factory Authorized Service Agent

Service Agent Telephone Number

Your Local Equipment Supplier

Supplier Telephone Number

Model Number

Serial Number

Date of Installation

ABOUT THIS MANUAL

Throughout this manual, the induction appliance model

indicated on the cover page is referred to as appliance,

induction appliance or equipment.

A period (.) is used in this manual as the decimal separator.

Original measurements are in metrics. Measurements in

imperial are provided for reference.

Not ALL models, options and accessories are available in all

geographical regions. Please consult your local equipment

supplier for the availability of the specific products in your

region.

INSPECT THE SHIPMENT

Thoroughly inspect the equipment upon delivery.

Immediately report to the delivery carrier, any damage that

occurred during transportation and request for a written

inspection report from a claim inspector.

Your shipment might include small packages of fasteners

or silicone strips for installation. Keep all packages.

KEEP THE PACKING SLIP

The packing slip attached to the shipment contains

detailed information on all components. Keep the packing

slip for reference.

Part Number 4532415 Rev 5 12/15 3

Safety Notices

DEFINITIONS

DANGER

Indicates a hazardous situation that, if not avoided, will

result in death or serious injury. This applies to the most

extreme situations.

nWarning

Indicates a hazardous situation that, if not avoided,

could result in death or serious injury.

,Caution

Indicates a hazardous situation that, if not avoided,

could result in minor or moderate injury.

Notice

Indicates information considered important, and is used

to address practices not related to physical injury. For

example, messages relating to property damage.

NOTE: Indicates useful, extra information about the

procedure you are performing.

Reference: ANZI Z535.6-2011

SAFETY SYMBOLS AND WARNINGS ON THE APPLIANCE

This symbol alerts you to a hazardous situation

that WILL or COULD cause serious bodily harm

or death. Be alert and implement relevant safety

precautions.

DANGER - HIGH VOLTAGE

This dangerous voltage warning symbol

indicates a risk of electric shock and hazards

from dangerous voltage.

Electromagnetic Field

Warning

RISK OF FIRE OR ELECTRIC SHOCK! DO NOT OPEN!

To reduce the risk of fire or electric shock, do not remove or

open cover. No user serviceable parts inside.

Refer servicing to qualified personnel.

CAUTION ATTENTION

DISCONNECT FROM SUPPLY CIRCUIT BEFORE OPENING

DISCLAIMERS

DANGER

Disregarding any safety instructions may cause harm to

people, the surroundings, and the equipment. Garland

is not responsible for any damages or personal injury

caused by failure to observe any safety requirements.

Risks involved when disregarding safety precautions

include, but not limiting to:

• Death or injury caused by electric shock.

• Burn injury caused by contacting overheated cooking

surface, cookware, or oil and grease.

• Damage to the equipment caused by using

unsuitable cookware.

DANGER

Do not install or operate equipment and/or accessories

that have been misused, abused, neglected, damaged,

or altered from that of original manufactured

specifications.

DANGER

Contact the manufacturer if you intend to make any

changes on the equipment. For safety reasons, always

use genuine parts and accessories approved by the

manufacturer or authorized representative. Refer to the

warranty documents for your equipment.

DANGER

Owners and operators are cautioned that maintenance

and repairs must be performed by an authorized service

agent using only genuine replacement parts. The

manufacturer will have no obligation with respect to any

product that has been improperly installed, adjusted,

operated or not maintained in accordance with national

and local codes and/or installation instructions provided

with the product or any product that has its serial

number defaced, obliterated or removed, and/or which

has been modified or repaired using unauthorized parts

or by unauthorized service agents.

DANGER

Improper installation, adjustment, alteration, service,

or maintenance of this appliance or installation of

a damaged appliance can result in DEATH, INJURY,

EQUIPMENT DAMAGE, and void the warranty.

DANGER

All utility connections and fixtures must be maintained

in accordance with local and national codes.

4 Part Number 4532415 Rev 5 12/15

Safety Notices

nWarning

Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

Never use flammable oil soaked cloths or combustible

cleaning solutions for cleaning.

nWarning

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mentalcapabilities,orlackofexperienceandknowledge,

unless they have been given supervision concerning

use of the appliance by a person responsible for their

safety. Do not allow children to play with this appliance.

nWarning

This product contains chemicals known to the State

of California to cause cancer and/or birth defects or

other reproductive harm. Operation, installation, and

servicing of this product could expose you to airborne

particles of glass-wool or ceramic fibers, crystalline

silica, and/or carbon monoxide. Inhalation of airborne

particles of glass-wool or ceramic fibers is known to the

State of California to cause cancer. Inhalation of carbon

monoxide is known to the State of California to cause

birth defects or other reproductive harm.

nWarning

Authorized Service Representatives are obligated to

follow industry standard safety procedures, including,

but not limited to, local/national regulations for

disconnection / lock out / tag out procedures for all

utilities including electric, gas, water and steam.

Notice

This appliance is not approved or authorized for home

or residential use, but is intended for commercial

applications only. The manufacturer and/or authorized

representative will not provide service, warranty,

maintenance or support of any kind other than in

commercial applications.

Notice

Routine adjustments and maintenance procedures

outlined in this manual are not covered by the warranty.

NOTE: Proper installation, care and maintenance are

essential for maximum performance and trouble-free

operation of your equipment. Visit our website

www.mtwkitchencare.com for manual updates,

translations, or contact information for service agents in

your area.

CORRECT DISPOSAL OF THIS PRODUCT

This marking shown on the product

indicates that the product should not be

disposed as household waste or regular

commercial waste. Instead it shall be

handed over to the applicable collection

point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed correctly,

you will help prevent potential harm to the environment

or human health, which could otherwise be caused by

inappropriate waste handling of this product.

For more detailed information regarding recycling of the

product, please contact your local city office or your waste

disposal service.

DANGER

Induction appliances, sent for disposal, can be brought

back into operation and their use must be avoided.

NOTE: The appliance is built with common electrical,

electromechanical and electronic parts. No batteries are

used.

NOTE: The owner and operator are responsible for the

proper and safe disposal of the appliance.

Safety Notices

Definitions.................................................................................................................................................3

Safety symbols and Warnings on the Appliance ........................................................................3

Disclaimers................................................................................................................................................3

Correct Disposal of This Product.......................................................................................................4

Table of Contents

Section 1

General Information

Description of Product.......................................................................................................7

Application .........................................................................................................................7

Compliances .......................................................................................................................7

Components and Features ................................................................................................ 8

Serial Plate Location ..........................................................................................................9

Model Number....................................................................................................................9

Marketing Identifier........................................................................................................... 9

Serial Number...................................................................................................................10

Accessories........................................................................................................................10

Section 2

Installation

Important Installation Safety and Electrical Requirements ................................................. 11

Installation safety—Disclaimer ...................................................................................................... 12

Installation Safety—Clearance and Ventilation........................................................................ 12

Installation Safety—Electrical......................................................................................................... 12

Personal Protection ............................................................................................................................ 13

Exploded View of a Typical Installation..........................................................................14

Planning for Installation..................................................................................................15

Cabinet Requirements .....................................................................................................15

Typical Applications.........................................................................................................17

Specifications ...................................................................................................................21

Component charts and connection diagrams.......................................................................... 21

Dimensions: induction generator IN/MO 7000, IN/MO 10000, IN/MO 7000FL............. 21

Dimensions: induction generator IN/MO 14000FL................................................................. 22

Dimensions: Control Unit ................................................................................................................. 23

Dimensions: Mounting Frames ...................................................................................................... 24

Cut-Out Dimensions: Counter-top................................................................................................ 27

Cut-out Dimensions: Holes and Studs for Control / Operation unit................................. 27

Installation Clearance ........................................................................................................................ 28

Installation distance between components.............................................................................. 28

Electrical Specifications..................................................................................................................... 29

Electrical Cables................................................................................................................................... 30

Operating Conditions........................................................................................................................ 30

Orientation of Coil Carrier, Glass and Frame for Installation................................................ 31

Installation Instructions ..................................................................................................32

Installing the Induction Generator ............................................................................................... 32

Installing the Control Unit................................................................................................................ 32

Installing the Operation Unit (Power Switch) ........................................................................... 32

Installing The Mounting Frame, Glass and Coil Carrier.......................................................... 33

Electrical Installation.......................................................................................................................... 37

Function Test ....................................................................................................................38

Table of Contents

Part Number 4532415 Rev 5 12/15

6 Part Number 4532415 Rev 5 12/15

Table of Contents (continued)

Installation Appendix B: Power Supply Cable Wiring Diagrams ..................................44

Wiring Diagram: Module-Line and Built-In Dual Cook-Top, 208V, 400V.......................... 44

Wiring Diagram: MO/QU 14kW/20kW, Round coils. 208V, 400V.........................................45

Wiring Diagram: MO/QU, 21kW/24kW, Flat+Round coils. 208V, 400V. ............................ 46

Wiring Diagram: MO/QU, 28kW, Flat coils. 208V, 400V........................................................... 47

Installation Appendix A: Component Charts and Connection Diagrams....................39

Chart 1, Module-Line Round Coil Dual Models........................................................................ 39

Chart 2, Module-Line Round Coil Quad Models ...................................................................... 40

Chart 3, Module-Line Full Coil Dual Models .............................................................................. 41

Chart 4, Module-Line FULL Coil Quad Models.......................................................................... 42

Chart 5, Module-Line Round+FULL Coil Quad Models ......................................................... 43

Section 3

Operation

Operation Safety—Disclaimer........................................................................................................ 48

Operation Safety—Personal Protection...................................................................................... 48

Important Rules—Operation and Maintenance............................................................50

Types of Induction Coil In Your Equipment....................................................................51

Proper Induction Cookware ............................................................................................51

Condition ............................................................................................................................................... 51

Round bottom Wok pans.................................................................................................................. 51

Material................................................................................................................................................... 52

BOIL TEST: Testing the Performance of Cookware................................................................... 52

Size of Pan.............................................................................................................................................. 52

Placing Pan On A Cook Zone ...........................................................................................53

Power Control...................................................................................................................55

Power Level Settings.......................................................................................................................... 55

Automatic Pan Detection, No Pan No Heat ....................................................................56

Indicator Lamp Signals ....................................................................................................56

When Appliance Is Idle.....................................................................................................56

Section 4

Maintenance

Maintenance Safety—Disclaimer.................................................................................................. 57

Dangerous Electrical Voltage.......................................................................................................... 57

Maintenance Safety—Cleaning..................................................................................................... 57

Personal Protection ............................................................................................................................ 58

Daily Cleaning and Maintenance....................................................................................59

Glass Cleaning ...................................................................................................................................... 59

Stainless Steel case ............................................................................................................................. 59

Visual Inspection of Silicone Seal .................................................................................................. 59

Weekly Cleaning and Maintenance ................................................................................59

Air intake filters .................................................................................................................................... 59

Yearly Maintenance..........................................................................................................59

Section 5

Troubleshooting

Dangerous Electrical Voltage.......................................................................................................... 60

Common Problems...........................................................................................................60

Symptoms.........................................................................................................................60

Boil Test .............................................................................................................................60

Troubleshooting Without Error Code / Flash Code........................................................61

Troubleshooting — Error Code / Flash Code..................................................................61

Wearable Parts List...........................................................................................................63

Part Number 4532415 Rev 5 12/15 7

Description of Product

Built with a robust construction, our induction appliances

are compact and powerful with the revolutionary RTCS®

or RTCSmp® Technology (Realtime Temperature Control

System).

The RTCS®/RTCSmp® Technology monitors continuously in

realtime, the energy supply, temperature of the cook zone,

and the state of the components such as the induction coil.

This monitoring system ensures the most efficient energy

transfer, as well as maximizes safety:

• Safety functions such as Pan Detection and Boil Dry

Protection are therefore guaranteed.

• The appliance generates power only when a pan is in

contact with the cook zone surface.

• When a malfunction occurs, the integrated fault

diagnostic system reports the malfunction instantly.

The unique RTCSmp® Module-Line are engineered for

building the most flexible kitchen operation. The Module-

Line Family offers a wide selection of cooking surfaces: dual

or quad cook zones with round, full or a combination of

round and full induction coils. In addition, griddle, braising

pan, and wok cooking options are also available.

The components are compact and low profile. The

induction generator can be installed up to 3 meters or 10

feet away from the cooking surface or away from the high

heat area of the island suite. All power and communication

connections can be connected conveniently through plug

connections.

Application

The RTCS®/RTCSmp® induction appliances are designed to

be incorporated into a custom-built counter or an island

suite. See section 2 Installation.

You can use your appliance for many applications

throughout the day, such as cooking, warming up,

keeping warm, flambéing and roasting of food. All these

applications are possible because:

• Temperature control is instantaneous and precise.

Instant energy transmission from inverter coil to the

bottom of cookware, allows for fast startup time.

• High power is possible for braising application and

quick sauté.

• High power also means you can heat up a large

stockpot quickly (3.5kW coil or above).

• Cooking surface fitted with full coils: Several large or

small pans can be placed on one cook zone at the same

time. A small pot engages only 3.5kW power and a large

pot engages the full 7.0kW power.

• Cooking surface fitted with round coils: One pan is used

for each cook zone.

Compliances

• North American models:

ETL recognized* in compliance with UL 197, CSA C22.2

No.109, NSF-4. Complies with FCC part 18, ICES-001

*See section 2 Installation.

• CE models comply with the latest European Norms:

EN 60335-1, EN 60335-2-36, EN 62233 (EMC/EMV)

Section 1

General Information

8 Part Number 4532415 Rev 5 12/15

General Information Section 1

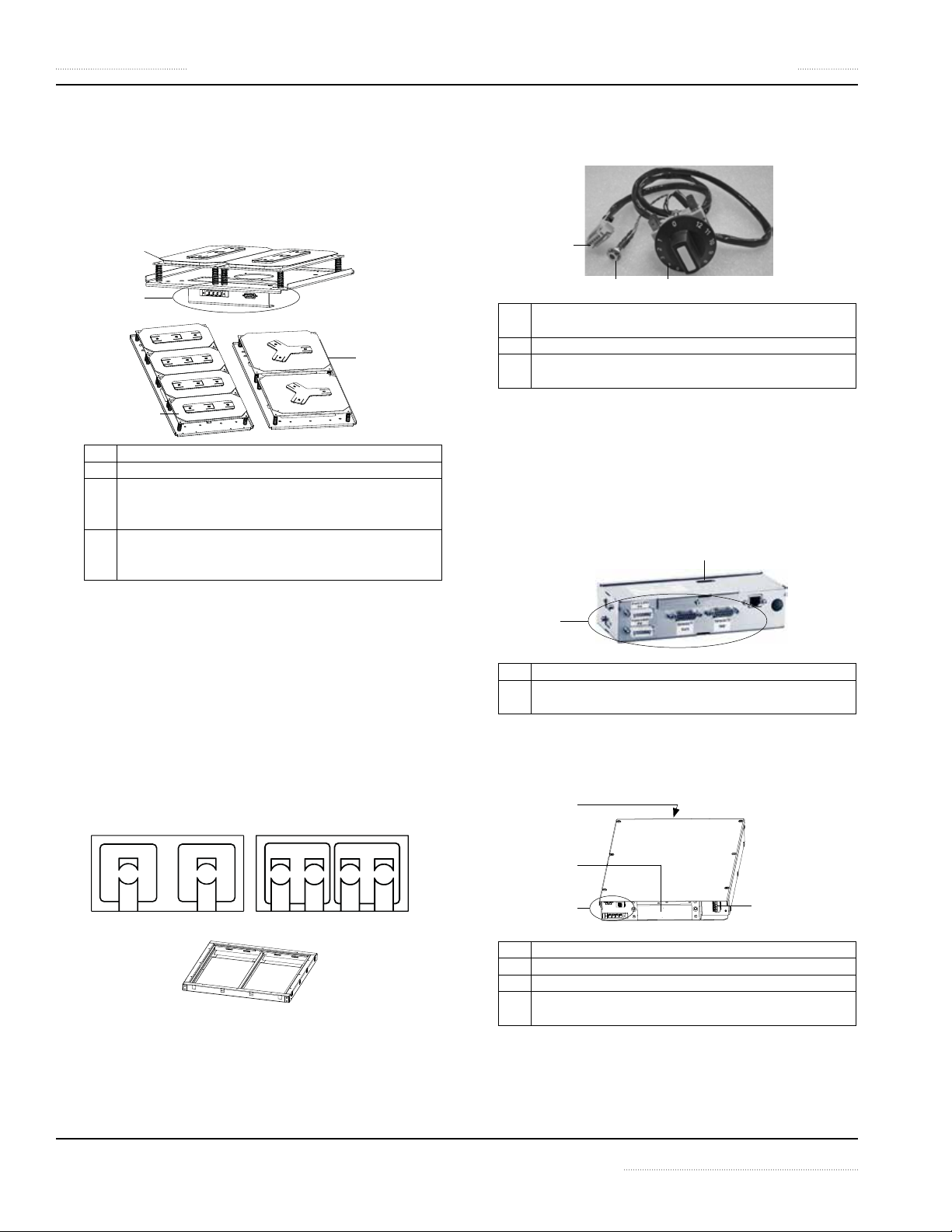

Components and Features

1. Coil Carrier Sheet (Induction Coil and Sensor

Assemblies)

Multiple versions available:

round coil (RU) or full coil (FL) in single, dual, quad, or

combined RU+FL configurations.

1.1

1.2

1.3

1.4

1.1 Cable connectors for coil and sensor cables.

1.2 Induction coil and sensor assembly.

1.3 Full coil (FL): Rectangular in shape. Each cook-zone

consists of two coils. More than one pan can be placed

on a single cook zone at the same time.

1.4 Round coil (RU): Round coils have higher power

density. Each cook zone consists of one coil. Only one

pan can be placed on a single cook zone.

2. Ceran® Glass-Top

• 6mm thick. 5 sizes available:

• Dual: 360x360x6mm; 650x375x6mm;

720x360x6mm

• Quad: 650x650x6mm; 720x720x6mm

• Included: silicone gaskets (not shown) for

installation.

• Glass-top pattern matches the corresponding coil

version underneath: Round coil (2.1, below) or full

coil (2.2, below).

2.1 2.2

3. Installation Frame

• Installation frame is provided to mount both the

coil carrier sheet and glass-top.

• 5 sizes available.

4. Operating Unit

4.14.2

4.3

4.1 Rotary power switch, allows for continuously variable

power adjustment. Dial is marked 0 to 12 power levels.

4.2 Indicator lamp

4.3 1-meter [39.4”] long cable, to connect to the Control

Unit.

5. Control unit

• Communication and diagnostic hub for the

induction equipment.

• Mounting brackets are provided.

• 2 versions available:

IN/MO7000/10000, IN/MO7000/14000

5.1

5.2

5.1 Cable connectors.

5.2 Service interface, provides service technician a wireless

connection to diagnose problems.

6. Induction generator

• 4 versions available: IN/MO7000FL, IN/MO14000FL,

IN/MO7000, IN/MO10000

6.1

6.2

6.3

6.4

6.1 Cable connectors.

6.2 Fresh air intake.

6.3 Hot air exhaust vent. Refer to the dimensional drawing.

6.4 Power supply connection.

Power supply cable is NOT INCLUDED.

Part Number 4532415 Rev 5 12/15 9

Section 1 General Information

7. Cable Kit

• Cable kit voltage versions: 208V or 400V

• Standard, 2.5-meter cable kit, includes:

• Coil Cable, 2.5-meter [98”]

• CAN/BUS RJ-45 Cable, 3-meter [118”]

• Sensor Cable, 1-meter [39”]

• Fan Cable is included where applicable.

• Options, 4-meter cable kit, includes:

• Coil Cable, 4-meter [157.5”]

• CAN/BUS RJ-45 Cable, 5-meter [197”]

• Sensor Cable, 1-meter [39”]

• Fan Cable is included where applicable.

• Option, 6-meter cable kit, includes:

• Coil Cable, 6-meter [236.2”]

• CAN/BUS RJ-45 Cable, 7-meter [276.6”]

• Sensor Cable, 1-meter [39”]

• Fan Cable is included where applicable.

• There are different cable kits for Round coil (RU)

components and Full coil (FL) components.

• RU cable kit descriptions: IN/MO7000/10000-

360 or IN/MO7000/10000

• FL cable kit descriptions: IN/MO7000FL-360 or

IN/MO14000

Serial Plate Location

The serial plate specifies the model number, serial number,

and electrical specifications of the appliance.

See illustration below for location.

Model Number

The model number is located on the serial plate.

NOTE: The model number on the serial plate is the model

number of the induction generator.

This manual covers the following models:

IN/MO 7000 IN/MO 7000FL

IN/MO 10000 IN/MO 14000FL

READING THE MODEL NUMBER

Example: IN/MO 7000

IN/MO 7000FL

3 4

1Product Series 1 IN = Built-In Line

2Product Series 2 MO = Module Line

3Power (Watt) 7000, 10000

4Type of Induction Coil Standard, Round Coil

FL = Full Coil (Rectangular)

Marketing Identifier

Marketing identifier is used when specifying the product

on specification sheet and other marketing literature. This

product is identified as:

Dual Models Quad Models

MO/DU 7000-360/650/720 MO/QU 14000-650/720

MO/DU 10000-360/650/720 MO/QU 20000-650/720

MO/DU 7000-360FL MO/QU 21000-720

MO/DU 14000-360/650/720FL MO/QU 24000-720

MO/QU 28000-650/720FL

READING THE MARKETING IDENTIFIER

Example: MO/DU 7000-650FL

3 4

1Product Series MO = Module Line

2Multi-Zone DU = Dual Cook Zones

QU = Quad Cook Zones

3Power (Watt) 7000, 10000, 14000, 20000,

21000, 28000

4Glass Size, length (mm) 360, 650, 720

5Type of Induction Coil Standard, Round Coil

FL = Full Coil (Rectangular)

10 Part Number 4532415 Rev 5 12/15

General Information Section 1

Serial Number Accessories

Induction cooking equipment requires Induction Ready

pans to operate. Consult your equipment supplier for a list

of our pan selection and prices.

The serial number is located on the serial plate.

READING THE SERIAL NUMBER

Example: BA01 . 00014 . 1214

3 4 5

1Type of induction appliance:

BA = Base Line Series (Counter-Top Cook-Top)

IN = Built-In Series

WO = Counter Wok Series

MO = Module Line Series

HO = Hold Line Series

GR = Griddle Line Series

2Last two(2) or three(3) digits of the appliance article number

or part number that can be found on the invoice or the

packing slip.

3A sequential number:

• A 4-digit sequence number indicates that the

appliance is not RTCS® nor RTCSmp®.

• A 5-digit sequence number indicates that the

appliance is either a RTCS® or RTCSmp® appliance.

• A RTCSmp® appliance is marked as such on the serial

plate.

4Month of manufacture: 01,02,03,04,...

5Year of manufacture: 2014 (14), 2015 (15), ...
