QUICK START GUIDE

AIROCTM CYW20829 Bluetooth® Low Energy SoC

Evaluation Kit

Kit contents

1. AIROC™ CYW20829 Bluetooth® Low Energy SoC

Evaluation Board (CYW9BTM2BASE3+CYW920829M2IPA2)

2. USB Type-A to Micro-B cable

3. Six jumper wires (five inches each)

4 . Quick start guide (this document)

CYW920829M2EVK-02

www.infineon.com/CYW920829M2EVK-02

Before you start

1. Ensure that you have the following:

–PC with USB 2.0 port

–UART terminal soware such as Tera Term or Minicom

–Download and install the AIROC™ Bluetooth® Connect

app from Play Store or iOS App Store.

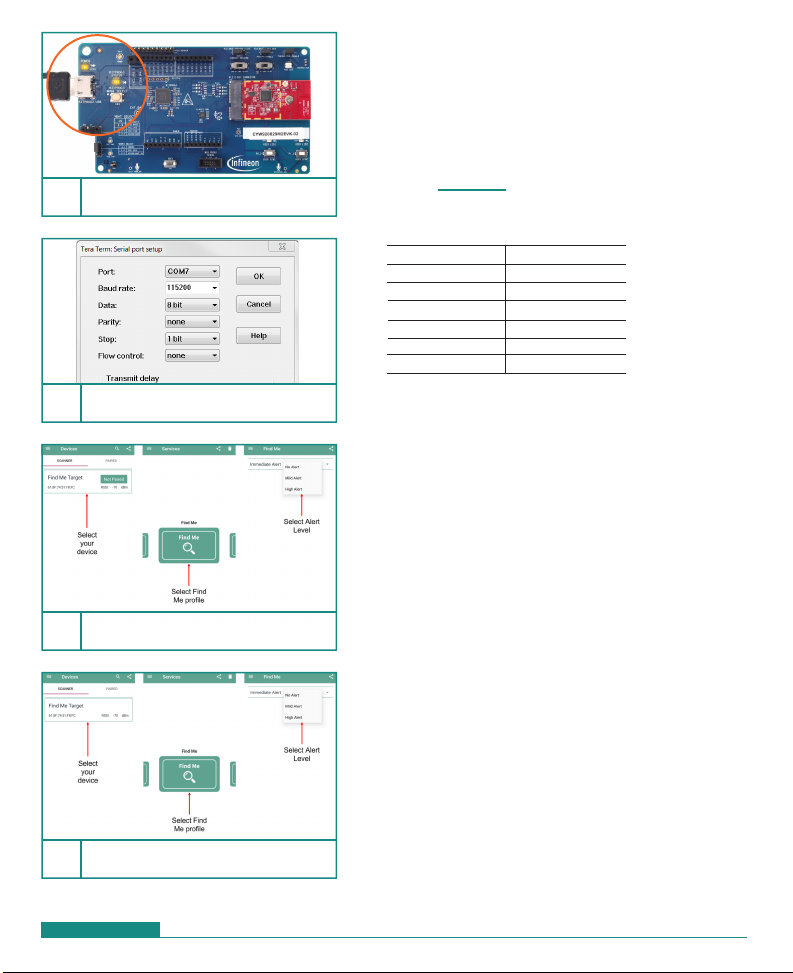

2. Connect the KitProg3 USB connector (J5) to your PC.

3. Visit the kit webpage to download and install the required

soware.

4. Ensure the following jumper settings to select 3.3 V. and other

jumpers as default state.

5. Once the driver installation is complete, open the UART terminal

soware and set the COM port parameters to 8N1 and 115200

baud.

Run the AIROC™Bluetooth®Connect application

1. Turn ON Bluetooth® on your Android or iOS device.

2. Launch the AIROC™Bluetooth®Connect app.

3. Press the reset button (SW1) on the CYW920829M2EVK-02

board to send advertisements and when the “Advertisement

started” message on the serial terminal is displayed, confirm

that USER LED2 is blinking.

4. Swipe down on the AIROC™Bluetooth®Connect app

home screen to scan for Bluetooth® Low Energy peripheral

devices.

5. Your device (“Find Me Target”) appears on the home screen.

Tap to establish a Bluetooth® LE connection with the device.

6. The USER LED2 changes from blinking state to always ON state

aer establishing a successful connection with the device.

7. Select ‘Find Me Profile’ and select an Alert level.

The USER LED1 state is linked to the type of alert sent.

Jumper

J10

J12

1 - 3

1 - 2

J13 1 - 2

J14 1 - 2

J17 1 - 2

Position

–No Alert: USER LED1 OFF

– Mild Alert: USER LED1 blinking

– High Alert: USER LED1 ON

Quick Start Guide Page 2 of 4

1USB cable connected to the

KitProg3 USB connector

2USB-UART COM port setup

AIROC™ Bluetooth®

Connect app – Android

AIROC™ Bluetooth® Connect app – iOS

89 10 11 12 13 14

2526 24

272829303132

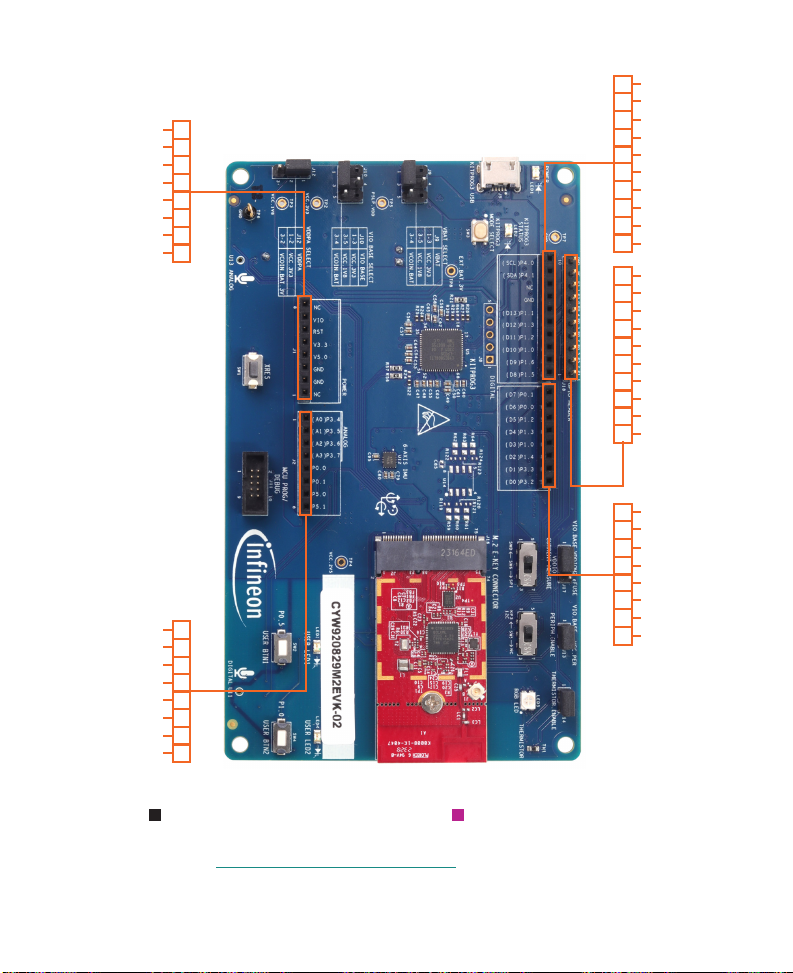

AIROC™ CYW20829 Bluetooth® Low Energy SoC Evaluation Board details

1. Power LED (LED1)

2. KitProg3 USB Micro-B connector (J5)

3. KitProg3 programming mode selection button (SW3)

4. KitProg3 (PSoC™ 5LP) programmer

and debugger (CY8C5868LTI - LP039, U5)

5. VBAT voltage selection jumper (J9)

6. VIO_BASE voltage selection jumper (J10)

7. VDDPA voltage selection jumper (J12)

8. Analog mic (U13)**

9. Power header compatible with

Arduino Uno R3 (J1)

10. Reset button (SW1)

11. 10-pin MCU PROG/DEBUG header (J11)

12. Analog header compatible with

Arduino (J2)

13. User Button 1 (SW2)

14. Digital mic (U11)**

15. User Button 2 (SW4)

16. User LED 1 (LED3)

17. User LED 2 (LED4)

18. M.2 stand-o (MT1)

19. AIROC™ CYW20829 Bluetooth® and

Bluetooth® LE system on chip

20. M.2 E-key interface connector (J16)

21. RGB LED (LED5)

22. Thermistor (TH1)

23. Thermistor enable header (J14)

24. KP3 to I2C Bus connect/

NC Selection SW (SW5)

25. Peripheral enable header (J13)

26. SWD /SPI Selection SW (SW6)

27. VDDIO current measurement header (J17)

28. Six-axis IMU (U12)

29. QSPI flash memory (U14)*

30. Digital I/O headers compatible

with Arduino Uno R3 (J3, J4)

31. Extended GPIO header (J18)

32. KitProg3 status LED (LED2)

*Footprint only, not populated on the board

**Component is located at the bottom side of the board

Quick Start Guide Page 3 of 4

VIO/IOREF

RST/RESET

V3.3/V3.3

V5.0/V5.0

GND/GND

NC/VIN

P4.0/SCL

P4.1/SDA

GND/GND

P1.1/D13

P1.3/D12

P1.2/D11

P1.0/D10

P1.6/D9

P1.5/D8

GND

P3.1

P3.0

P0.4

P0.3

P0.2

P0.5

P5.2

P1.1

P0.1/D7

P0.0/D6

P1.2/D5

P1.3/D4

P1.0/D3

P1.4/D2

P3.3/D1

P3.2/D0

P3.4/A0

P3.5/A1

P3.6/A2

P3.7/A3

P0.0/A4

P0.1/A5

P5.0/A6

P5.1/A7

CYW20829 I/Os

AIROC™ CYW20829 Bluetooth® Low Energy SoC Evaluation Board pinout

Date: 02 / 2024

Infineon Technologies AG

Document number: 002-37204 Rev. *B

See the kit guide available at www.infineon.com/CYW920829M2EVK-02 for more details.
