1
Projector
IN5122/IN5124
Instant Stack Guide
Thank you for purchasing this product.
This manual only explains the Instant Stack feature. If you need other information,
please see the other product manuals.
WARNING ►Before using this product, read all the product manuals. After
reading them, store them in a safe place for future reference.
►Follow all the instructions in the manuals and on the product. The
manufacturer assumes no responsibility for damage caused by mishandling that
is beyond normal usage as dened in these manuals.
NOTES • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
All the trademarks in this manual are the properties of their respective owners.
Features

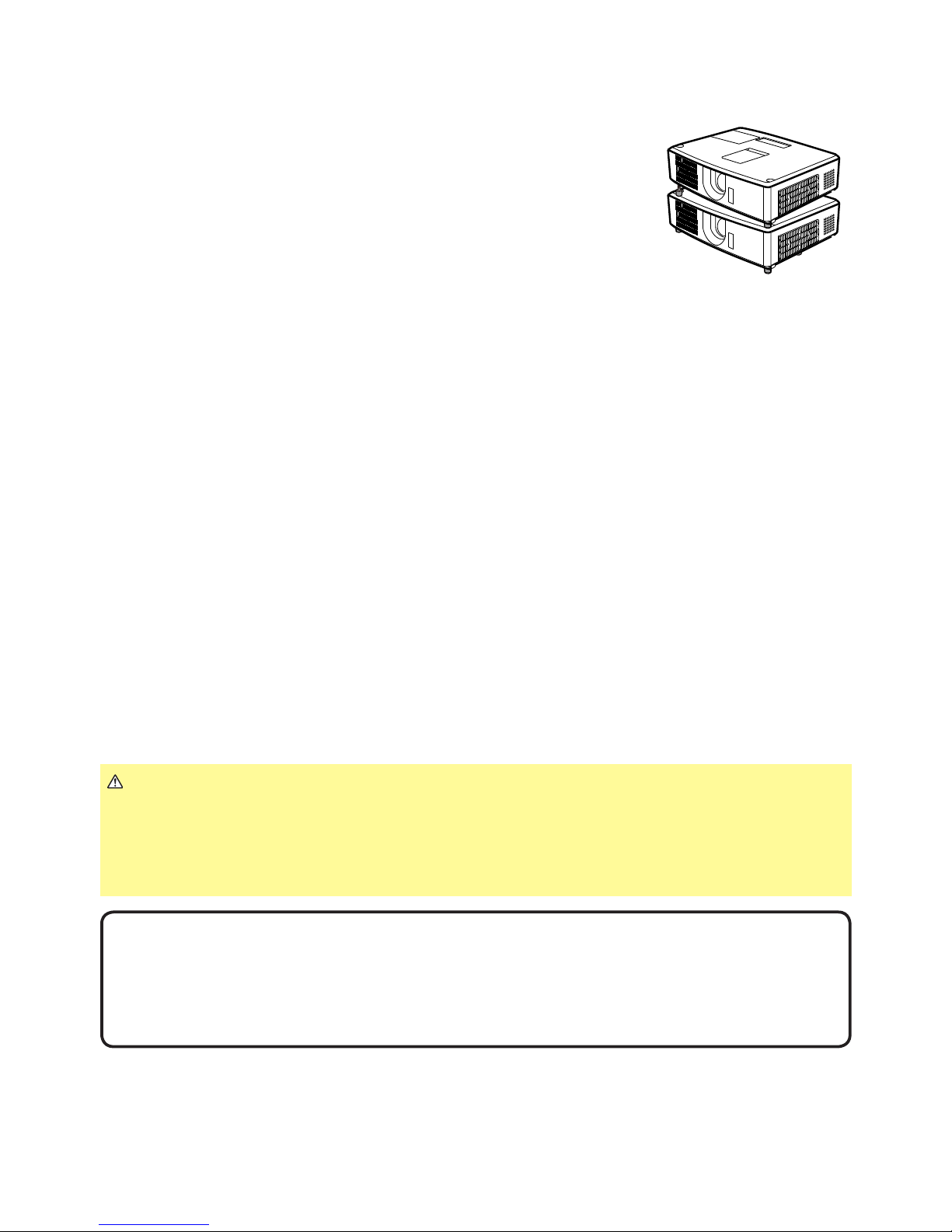

This IN5122/IN5124 projector can be used with another IN5122/IN5124 projector
to project an image on the same screen using the Instant Stack feature.
Both projectors can be operated simultaneously to make the image brighter.
Moreover, if you connect both projectors with an RS232 cross-over cable, it
becomes a smart stacking system. Both projectors can also work separately,
so that if one projector fails, the other will start displaying your presentation
automatically. This Instant Stack feature provides great installation exibility.
2
1. Introduction ........................3
1.1 Entries and graphical
symbols explanation........................3
1.2 Important safety instruction ..........3
Instant Stack feature............................3
General installation..............................5
1.3 Basic information
and preparation...............................6
Instant Stack........................................6
Smart Stack and Simple Stack............6
Smart Stack and Simple Stack Remote
Control..............................................6
Installation options...............................6
Temporary terms for both projectors....6
2. Installation ..........................7
2.1 Smart Stack preparation...............7
2.2 Installing
the rst projector (Projector A) ......8
Preparing the elevator feet ..................8
Deciding on the installation position ....8
Setting up Projector A ........................9
2.3 Installing
the second projector (Projector B) 11
Stacking the projectors ...................... 11
Connecting projectors........................ 11
Setting up Projector B ......................12
2.4 Conrming Main
and Sub settings............................14
2.5 Fine adjustment ot the image
position..........................................15
For Smart Stack users .......................15
For Simple Stack users......................16
3. STACK menu settings......17
3.1 Displaying the STACK menu ......17
3.2 Selecting Main, Sub or off ..........18
3.3 Selecting lamp operation mode..19
3.4 Selecting lamp switching mode ..21
3.5 Selecting the Sub input source...22
3.6 Saving Smart Stack settings.......23
STACK menu .....................................23
STACK menu dialogs.........................23
3.7 Important information
for Smart Stack..............................24
4. Connecting cables ...........27
4.1 Connecting an RS232 cable.......27
4.2 Connecting signal cables............28
Inputting the image from Main to Sub 28
Inputting the image
to Sub and Main separately............28
5. Setting input ports
using menu.........................29
5.1 Preparing for menu operation.....29
5.2 Checking the Main projector's
operating status.............................29
5.3 Starting the Main projector .........30
5.4 Setting the Source Inputs...........31
Inputting an image from Main to Sub
- Computer signal ...........................31
Inputting an image from Main to Sub
- Video signal
(either component or video) ...........32
Inputting an image to
Sub and Main separately................32
6. Scheduling Limitations....34
7. Troubleshooting ...............36
Contents
3
1.1 Entries and graphical symbols explanation
The following entries and graphical symbols are used for this manual and the
product as follows, for safety purposes. Please review and heed this information.
1.2 Important safety instructions
Following are important safety instructions for using this product in an Instant
Stack application. Read this information carefully and always follow these guide-
lines when using this product in an Instant Stack application.
(continued on next page)
WARNING This entry warns of a risk of serious personal injury or even
death.
CAUTION This entry warns of a risk of personal injury or physical
damage.
NOTICE This entry indicates fear of causing trouble.
WARNING ► Do not allow the stacked projectors to fall.
• When stacking two projectors, make sure the elevator feet and heel of the
upper projector are inserted securely into the corresponding pockets of the
lower projector. (
11
)
• When using two projectors in an Instant Stack application, you can change
the projection angle of the stacked projectors by
adjusting the elevator feet of the lower projector.
(
8
) Prevent the stacked projectors from falling
off or tipping over when adjusting the elevator feet.
• A maximum of two projectors can be stacked. Do
not stack three or more projectors.
• Stacked projectors (which are using the stack
pockets, elevator feet and heel of the lower
projector) should never be installed in a place
higher than the person's height.
• Do not install stacked projectors (which are using
the stack pockets, elevator feet and heel of the
lower projector) in a ceiling mount application.
• Do not touch the stacked projectors unless
otherwise instructed by this manual. Do not hit the
projectors with any type of object.
Stack pocket
Elevator feet
Heel
Lens
adjuster
door
Stack
pocket
1. Introduction
Instant Stack feature
4
Introduction
1.2 Important safety instructions (continued)
NOTICE ► Instant Stack allows you to stack two projectors or arrange
them side-by-side easily. Depending on the installation and surrounding
environment, images projected from both projectors may not superimpose
perfectly. The images cannot superimpose well when the screen is slanted,
warped or has an uneven surface.
• Images projected immediately after turning on the projectors are unstable due
to rising internal temperatures. Wait at least 20 minutes before beginning to
adjust the superimposed images.
• Image positions may shift due to temperature change, vibration, or shock
caused by a projector impact. Install the projectors in a stable environment
when using Instant Stack. If the image positions shift, re-adjust the images.
(
9, 12, 15
)
• The image positions may shift over time due to the tension and the weight of
connecting cables. Make sure not to impose any load on the projectors when
arranging the cables.
• If the volume level of the built-in speakers is too high, both projectors may
resonate, noise may occur and the image quality may deteriorate. In this
case, check the volume setting on both projectors. Lower the volume until the
symptoms disappear or arrange the projectors side-by-side.
• When two projectors are connected using an RS232 cable, the Main projector
will be able to control the Sub projector. This feature is known as Smart
Stack. (
11
) When Smart Stack is used with an RS232 cable, RS232
communication cannot be used to control the projectors. If you wish to control
the projectors, use either of the projector's LAN connections.
• When Smart Stack is used, some function operations and settings are
unavailable. Refer to this manual for details. (
34
)
5
Introduction
General installation
NOTICE ► Position the projectors to prevent light from directly hitting the
projector’s remote sensor.
• Do not place the products in a place where radio interference can occur.
CAUTION ► Place the projectors in a cool place with sufcient ventilation.
• Keep a space of 11.8" (30 cm) or more between the sides of the projectors
and other objects such as a wall. If you install two projectors side-by-side
(Option 2
6
), keep a space of 11.8” (30 cm) or more between both projec-
tors.
• Do not impede, block or cover the projectors' vent holes.
• Do not put the projectors in places which are exposed to magnetic elds.
Doing so can cause the cooling fans inside the projector to malfunction.
► Avoid placing the projectors in smoky, humid or dusty places.
• Do not place the projectors near humidiers. Humidiers (particularly
ultrasonic humidiers) cause chlorine and minerals contained in tap water
to be atomized. These minerals can enter the projectors and cause image
degradation and other problems.
WARNING ► Install the projectors where you can access the power outlet
easily.
► Do not subject the projectors to unstable conditions. Install the projectors in
a stable horizontal position.
► Do not use any mounting accessories except the accessories specied by
the manufacturer. Read and keep all the manuals for accessories which are
used.
►For special installations, such as ceiling mounting, be sure to consult with
your dealer beforehand. Specic mounting accessories and services may be
required.
► Do not install the projector near thermally conductive or ammable items.
► Do not place the projector in a place where it may get wet.
6
Introduction
Temporary terms for both projectors
To help you better understand the stacking arrang-
ment of each projector, these terms will be periodi-
cally used to reference the projectors:
Projector A : Projector placed underneath
Projector B : Projector placed on top of Projector A Projector A
Projector B
Installation options
Following are two options to install the projectors. Instant Stack supports both
options.
Option 1 : Stack vertically
Option 2 : Arrange side-by-side
This manual primarily describes vertically stacked projectors (Option 1). If you
wish to install two projectors side-by-side (Option 2), refer to the descriptions in
this manual.
1.3 Basic information and preparation
Instant Stack
Instant Stack allows you to superimpose images projected from two projectors
easily. This projector is designed with Instant Stack capabilities to install two pro-
jectors and superimpose their images.
Smart Stack and Simple Stack
Instant Stack includes the following two features.
When two projectors are connected via an RS232 cable with necessary settings
performed on the projectors, these two projectors will automatically operate in
synchronization with each other according to the settings. This is known as Smart
Stack in this manual.
Both projectors can operate separately without an RS232 connection. This is
known as Simple Stack in this manual.
Remote control for Smart Stack and Simple Stack
For Smart Stack, one projector must be dened as the Main projector and the
other must be dened as the Sub Projector. (
18
) Only the Main projector is ca-
pable of receiving remote control signals. To operate the Sub projector, you need
to point the remote control at the Main projector.
For Simple Stack, both projectors can receive remote control signals. To avoid
crosstalk when operating with the remote control, it is recommended that you
operate one projector with the remote control and the other with either the projec-
tor’s control panel or a wired remote control.
7
For safety reasons, read 1.2 Important safety instructions (
3~5
) carefully before
installation. In addition, review the following for proper use of Instant Stack.
● When using Smart Stack, both projectors will respond to remote control signals
until the STACK MODE on either projector is set to SUB.
During installation, we recommend you operate one projector with the remote
control and the other with the projector control panel or a wired remote control.
●Images from Projector A and Projector B may superimpose well initially but
shift over time. Re-adjust the images as needed.
●If the volume level of the built-in speakers is too high, both projectors may
resonate, noise may occur and image quality may deteriorate.
In this case, check the volume setting on both projectors. Lower the volume
until the symptoms disappear or arrange the projectors side-by-side. If the
image positions are shifted, re-adjust.
2.1 Smart Stack Preparation
When using Smart Stack via an RS232 connection, you must set up both projec-
tors according to the following settings. Otherwise, the Smart Stack menu will not
be available.
●POWER SAVING MODE in SETUP menu: ENABLE
(User's Manual → SETUP menu)
●COMMUNICATION TYPE under COMMUNICATION in SERVICE menu: OFF
(User's Manual → OPTION menu)
●STACK LOCK in SECURITY menu: OFF
When STACK LOCK is set to on, menus related to Instant Stack cannot be
operated. Therefore it is necessary to set it to off during installation and menu
settings.
(1) Use the ▲/▼/◄/► buttons to go into the following menu.
ADVANCED MENU > SECURITY
> STACK LOCK
STACK LOCK dialog will appear on screen. (User's
Manual → SECURITY menu)
(2) Use the ▲/▼ buttons to highlight OFF, and press the ► button to save the
change.
2. Installation
8
Installation
NOTE • Set the tilt angle of Projector A to within 12 degrees from the level
line.
• Follow these recommendations when installing.
- Set the VERTICAL adjuster to its upper-most position.
- Do not set the ZOOM ring to its widest position.
- Set the HORIZONTAL adjuster near its center position.
Preparing the elevator feet
When stacking both projectors, minimize the length of
the elevator feet using the elevator buttons on Projec-
tor A and B.
CAUTION ► Be careful when stacking both pro-
jectors. The projector on top may slide off.
Deciding on the installation position
Decide the position of Projector A and its projection angle. (Quick Start Guide
→Arrangement and Adjusting the projector’s elevator)
2.2 Installing the rst projector (Projector A)
Andere Handbücher für IN5122
7
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere InFocus Projektor Handbücher
InFocus
InFocus LP70+ Bedienungsanleitung
InFocus
InFocus LP340 Betriebsanleitung
InFocus
InFocus Quantum Laser Core Series Bedienungsanleitung
InFocus
InFocus LASER PROJECTOR LP 540 Bedienungsanleitung
InFocus
InFocus X1 Bedienungsanleitung
InFocus
InFocus IN5132c Bedienungsanleitung
InFocus
InFocus SP110 Leitfaden
InFocus
InFocus LP 740 LiteMount Bedienungsanleitung
InFocus
InFocus LP260 Referenzhandbuch
InFocus
InFocus IN5132 Bedienungsanleitung
InFocus
InFocus LP 250 Bedienungsanleitung
InFocus
InFocus Play Big IN1 Bedienungsanleitung
InFocus
InFocus in2100 Series Bedienungsanleitung
InFocus
InFocus LiteBoard IN3902LB Bedienungsanleitung
InFocus
InFocus sp8600hd3d Bedienungsanleitung
InFocus
InFocus sp8600hd3d Bedienungsanleitung
InFocus
InFocus LP 850 Gebrauchs- und Pflegehandbuch
InFocus
InFocus ScreenPlay 7205 Bedienungsanleitung
InFocus
InFocus LP720 Bedienungsanleitung
InFocus
InFocus IN102 Bedienungsanleitung
Beliebte Projektor Handbücher anderer Marken
Panasonic
Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung
NEC
NEC NP600S EDU Bedienungsanleitung
BenQ
BenQ SH753P Bedienungsanleitung
Eiki
Eiki EK-623U series Bedienungsanleitung
Epson
Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung
Epson
Epson PowerLite Home Cinema 705HD Bedienungsanleitung
