MAINTENANCE & TROUBLESHOOTING

This section describes how to:

•clean the lens

•replace the projection lamp

•replace the batteries in the remote

•use the security lock feature

•troubleshoot the projector

Cleaning the Lens

Follow these steps to clean the projection lens:

1Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

•Avoid using an excessive amount of cleaner, and don’t

apply the cleaner directly to the lens.

•Abrasive cleaners, solvents or other harsh chemicals might

scratch the lens.

2Lightly wipe the cleaning cloth over the lens in a circular

motion.

3If you don’t intend to use the projector immediately, replace

the lens cap.

Replacing the Projection Lamp

WARNING: To avoid burns,

allow the projector to cool for at

least 30 minutes before you open

the lamp module door. Never

extract the lamp module while the

projector is operating.

The lamp hour counter in the Status menu counts the number of

hours the lamp has been in use. After 2,000 hours of use, the mes-

sage “Change Lamp” temporarily appears on the screen when

the projector is turned on. Change the lamp within the next 50

hours. After 2,050 hours, the LED flashes orange and the lamp

will not light. You can order new lamp modules from your InFo-

cus dealer. See “Accessories” on page 42 for information.

Follow these steps to replace the projection lamp:

1Turn off the projector and unplug the power cord.

2Wait 30 minutes to allow the projector to cool thoroughly.

Maintenance & Troubleshooting

3Invert the projector on a soft flat surface, then insert a small

screwdriver or other flat object into the tabs on the lamp mod-

ule door (Figure 20) and gently pry the door up.

WARNING: Be extremely careful

when removing the lamp module.

In the unlikely event that the bulb

ruptures, small glass fragments

may be generated. The lamp

module is designed to contain

these fragments, but use caution

when removing the lamp module.

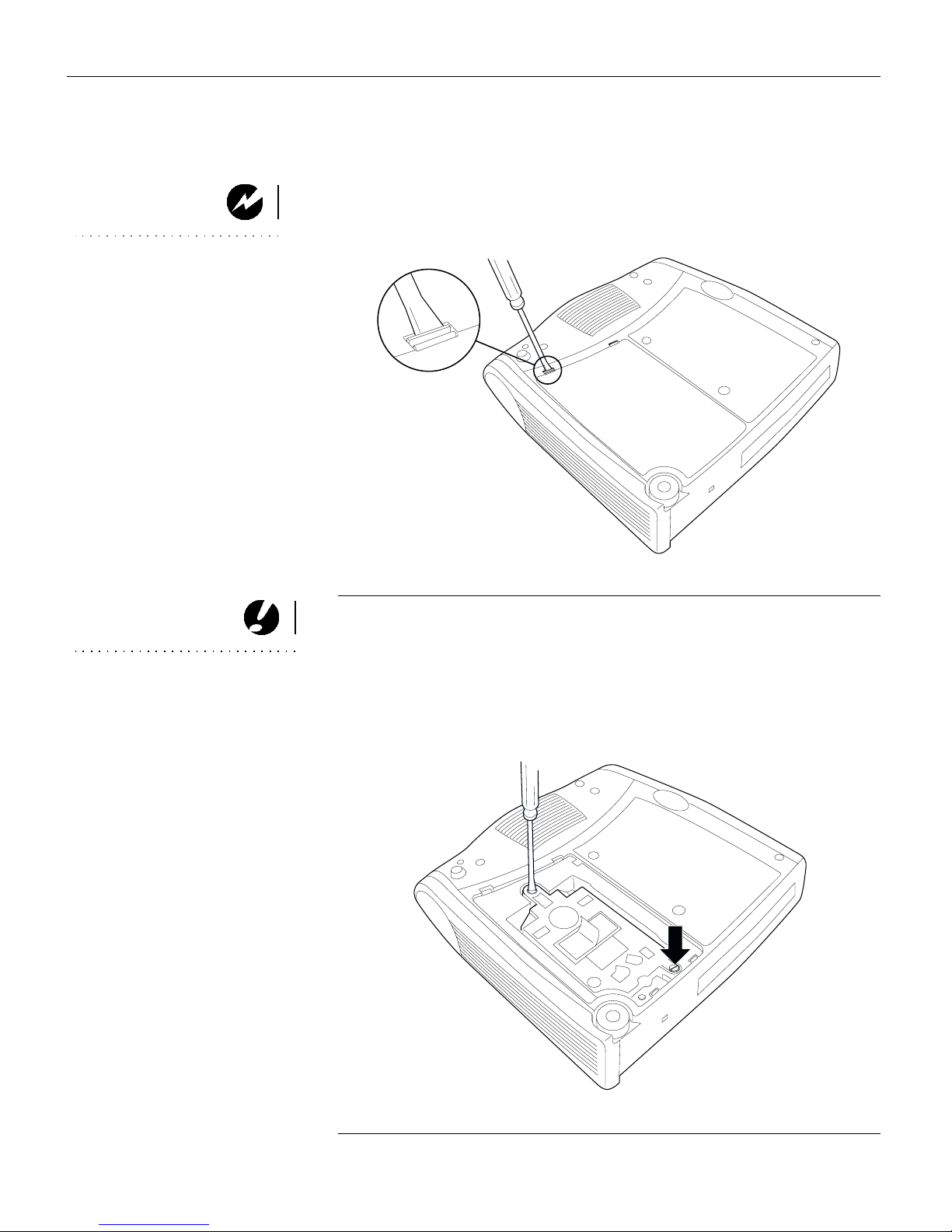

FIGURE 20

Removing the lamp door

CAUTION: Never operate the

projector with the lamp door open

or removed. This disrupts the air

flow and causes the projector to

overheat.

4Pull the lamp door up and remove it.

5Loosen the two non-removable screws on the outside of the

module (Figure 21).

FIGURE 21

Loosening the screws on the lamp module

6Lift and grasp the pull tab and lift the module out (Figure 22).

Dispose of the lamp module in an environmentally proper

manner.

FIGURE 22

Removing the lamp module

WARNING: Do not drop the

lamp module or touch the glass

bulb! The glass may shatter and

cause injury.

7Install the new lamp module, being sure to align the connec-

tors properly.

8Push the module in until it is flush with the bottom case of the

projector.

9Tighten the screws on the outside of the module.

10 Replace the lamp door by inserting the hooks on the lamp

door into the slots on the projector and pressing the lamp door

into place. If the lamp door does not fit properly or bulges out,

remove the door and re-seat the lamp module.

11 Plug in the power cord and press the Power button to turn the

projector back on.

12 To reset the lamp hour counter in the Status window, press

and hold the volume - button, then press the menu button

(while still holding down the volume - button) for 5 seconds.

Verify that the counter was reset by pressing the menu button

and viewing the counter in the Status window.

pull tab

Maintenance & Troubleshooting

Replacing the Batteries in the Remote Control

The life of the batteries depends on how often and how long you

use the remote. Symptoms of low battery charge include erratic

responses when using the remote and a reduced range of opera-

tion.

Follow these steps to replace the batteries:

1Turn the remote face down in your hand.

2Slide the battery cover off the end of the remote.

3Remove the old batteries and dispose of them in an environ-

mentally proper manner.

4Install two new AAA alkaline batteries. Make sure you install

each in the correct direction.

5Slide the battery cover back on the remote.

Using the Security Lock

The projector has a security connector for use with a PC Guardian

Cable Lock System (Figure 23). See “Optional Accessories” on

page 43 for ordering information. Refer to the information that

came with the lock for instructions on how to use it to secure the

projector.

FIGURE 23

Installing the security lock

Troubleshooting

Problem: The projector is not running

•Make sure that the power cord is properly connected to a fully

functional AC electrical outlet. Make sure that the power cord

is also properly connected to the projector.

•If the projector is plugged into a power strip, make sure the

power strip is turned on.

•Make sure the projector is turned on.

Problem: Projector is running, but nothing appears on projec-

tion screen

•Make sure you have removed the lens cap on the projection

lens at the front of the projector.

•Make sure the lamp has not been in use for over 2,050 hours.

The lamp automatically shuts off at 2,050 hours and the LED

blinks orange. See “Replacing the Projection Lamp” on

page 33.

•Check the projector’s lamp to ensure that it is securely con-

nected in the lamp module. Make sure the lamp door is

installed. See “Replacing the Projection Lamp” on page 33.

Problem: Only the start-up screen displays

•Verify that the cables are connected correctly. See page 9

through page 10 for connection procedures.

•Make sure that the cables do not have any bent pins.

•Verify that the proper input source is connected. See “Source

(keypad only) or Computer and Video (remote only)” on

page 18.

•You might need to turn everything off and power up the

equipment again in the proper order. Refer to your com-

puter’s documentation to determine the correct order.

•Make sure your laptop’s external video port is turned on. See

the “Portable and Laptop Activation Chart” on page 44 or

your computer’s manual for details.

Maintenance & Troubleshooting

•Make sure your computer’s video board is installed and con-

figured correctly.

•Make sure your computer has a compatible video board. The

projector isn’t CGA, EGA or SXGA compatible.

If you’re using Windows 98:

1Open “My Computer” icon, the Control Panel folder and

then the Display icon.

2Click the Settings tab.

3Verify that the Desktop area is set to 1024x768 or less.

Problem: Color or text not being projected

•You might need to adjust the brightness up or down until the

text is visible. Refer to “Brightness” on page 21 for more infor-

mation.

Problem: The screen resolution is not right

•Make sure the computer’s video card is set for a resolution of

no greater than 1024x768.

Problem: Image isn’t centered on the screen

•Move the projector to reposition the image.

•Reposition the image using the menu. Refer to “Horizontal

position” on page 26 and “Vertical position” on page 26.

•Be sure the projector is at a 90 degree angle to the screen.

Problem: Image is too wide or narrow for screen

•Adjust the zoom or projector placement.

•Adjust the resolution of your video card if it’s greater than

1024x768.

Problem: Image is out of focus

•Turn the projection lens to focus the image.

•Make sure the projection screen is at least 5 feet (1.5 m) from

the projector.

•Check the projection lens to see if it needs cleaning.

Problem: Image and menus are reversed left to right

•Rear projection mode is probably turned on. Turn Rear Projec-

tion off in the Controls menu. The image should immediately

return to forward projection. See “Rear Projection” on

page 28.

Problem: the projector displays vertical lines, “bleeding” or

spots

•Adjust the brightness. See “Brightness” on page 21.

•Check the projection lens to see if it needs cleaning.

Problem: no sound

•Adjust volume.

•Verify audio/input connections.

•Adjust audio source.

Problem: Image is “noisy” or streaked

Try these steps in this order.

1Deactivate the screen saver on your computer.

2Turn Auto Image off and then back on again. See “Auto

Image” on page 24.

3Turn Auto Image off and adjust the synchronization and track-

ing manually to find an optimal setting. See “Manual Sync”

on page 25 and “Manual Tracking” on page 25.

•The problem could be with your computer’s video card. If

possible, connect a different computer.

Problem: Projected colors don’t match the computer or video

player’s colors

•Just as there are differences in the displays of different moni-

tors, there are often differences between the computer image

and the projected image. Adjust the brightness, tint and/or

contrast from the Display menu. See “Brightness” on page 21,

“Tint” on page 21 and “Contrast” on page 21.

Problem: Lamp seems to be getting dimmer

•The lamp begins to lose brightness when it has been in use for

a long time. Replace the lamp as described in “Replacing the

Projection Lamp” on page 33.

Maintenance & Troubleshooting

Problem: Lamp shuts off

•A minor power surge may cause the lamp to shut off. Unplug

the projector, wait at least a minute, then plug it back in.

•Make sure the vents are not blocked.

•Make sure the lamp has not been in use for over 2,050 hours.

The lamp automatically shuts off at 2,050 hours. See “Replac-

ing the Projection Lamp” on page 33.

The most current troubleshooting information can be found in

the Service and Support section of our website at

http://www.infocus.com/service. You’ll also find a Technical

Library, FAQs, and support contacts including a technical sup-

port e-mail form.

Before calling your dealer or InFocus Technical Support for assis-

tance, please have the following information available:

•the projector’s serial number (located on the bottom label)

•the resolution of your computer.

Call InFocus Technical Support at 1-800-799-9911 between 6 a.m.

and 6 p.m. PST, Monday through Friday. Service is available in

North America after hours and on weekends for a fee at

1-888-592-6800.

In Europe, call InFocus in The Netherlands at (31) 35-6474010

between 8 a.m. and 6 p.m. Central European Time.

In Asia, call (65) 332-0659 between 9:30 a.m. and 5:30 p.m.

Or, send us an e-mail at techsupport@infocus.com

Andere Handbücher für LP340

Dieses Handbuch passt für folgende Modelle

Andere InFocus Projektor Handbücher

InFocus

InFocus LP130 Bedienungsanleitung

InFocus

InFocus ScreenPlay 4800 Bedienungsanleitung

InFocus

InFocus LP70+ Bedienungsanleitung

InFocus

InFocus IN24 Bedienungsanleitung

InFocus

InFocus SP-LAMP-100 Leitfaden

InFocus

InFocus IN82 Montageanleitung

InFocus

InFocus in8601 Bedienungsanleitung

InFocus

InFocus SP8600 series Bedienungsanleitung

InFocus

InFocus LP790 Bedienungsanleitung

InFocus

InFocus LP500 Bedienungsanleitung

InFocus

InFocus IN3118HD Bedienungsanleitung

InFocus

InFocus Quantum Laser Core Series Bedienungsanleitung

InFocus

InFocus LP 600 Bedienungsanleitung

InFocus

InFocus LitePro 720 Bedienungsanleitung

InFocus

InFocus LP335 DRAGONFLY Bedienungsanleitung

InFocus

InFocus X1 Bedienungsanleitung

InFocus

InFocus LP 650 Bedienungsanleitung

InFocus

InFocus LiteBoard IN3902LB Bedienungsanleitung

InFocus

InFocus IN146 Bedienungsanleitung

InFocus

InFocus IN1156 Bedienungsanleitung

InFocus

InFocus SP777 Gebrauchs- und Pflegehandbuch

InFocus

InFocus in5316HD Bedienungsanleitung

InFocus

InFocus Play Big IN83 Bedienungsanleitung

InFocus

InFocus LP 240 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
