ScreenPlay 777 Installer’s Guide

This product requires professional installation. Please contact your local dealer.

Declaration of Conformity

Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon

97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that this projector conform to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

February, 2004

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. Digital Light Processing is a trademark or reg-

istered trademark of Texas Instruments. Faroudja, DCDi, and TrueLife are trade-

marks or registered trademarks of Faroudja. InFocus and ScreenPlay are trademarks

or registered trademarks of InFocus Corporation.

Ver. 6-1

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by InFocus Corporation can void

the user's authority to operate the equipment.

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, NOM, IRAM, GOST, C-tick

Other specific Country Approvals may apply. Please see product certification label.

InFocus reserves the right to alter product offerings and specifications at any time

without notice.

Table of Contents

Positioning the projector 6

Video connections 7

Shutting down the projector 8

Using the remote control 9

Optimizing video images 10

Customizing the projector 10

Using the menus 11

Picture menu 12

Settings menu 16

Replacing the projection lamp 19

Installing a lens 22

Appendix 22

Red LED behavior and projector errors 22

Projector placement calculator based on screen size 23

Ceiling mount information 25

Source compatibility 26

RS-232 terminal specifications 27

Please visit our website at www.infocus.com/service for the latest informa-

tion and tools.

Important Operating Considerations

• Place the projector in a horizontal position no greater than 15 degrees

from horizontal. See “Positioning the projector” on page 6.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided.

• Refer to this manual for proper startup and shutdown procedures.

• In the unlikely event of the lamp rupturing, discard any edible items

placed in the surrounding area and thoroughly clean the area along all

sides of the projector. Wash hands after cleaning the area and handling

the ruptured lamp. This product has a lamp which contains a very

small amount of mercury. Dispose of it as required by local, state or

federal ordinances and regulations. For more information see

www.eiae.org.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the warranty section at

the end of this Installer's Guide.

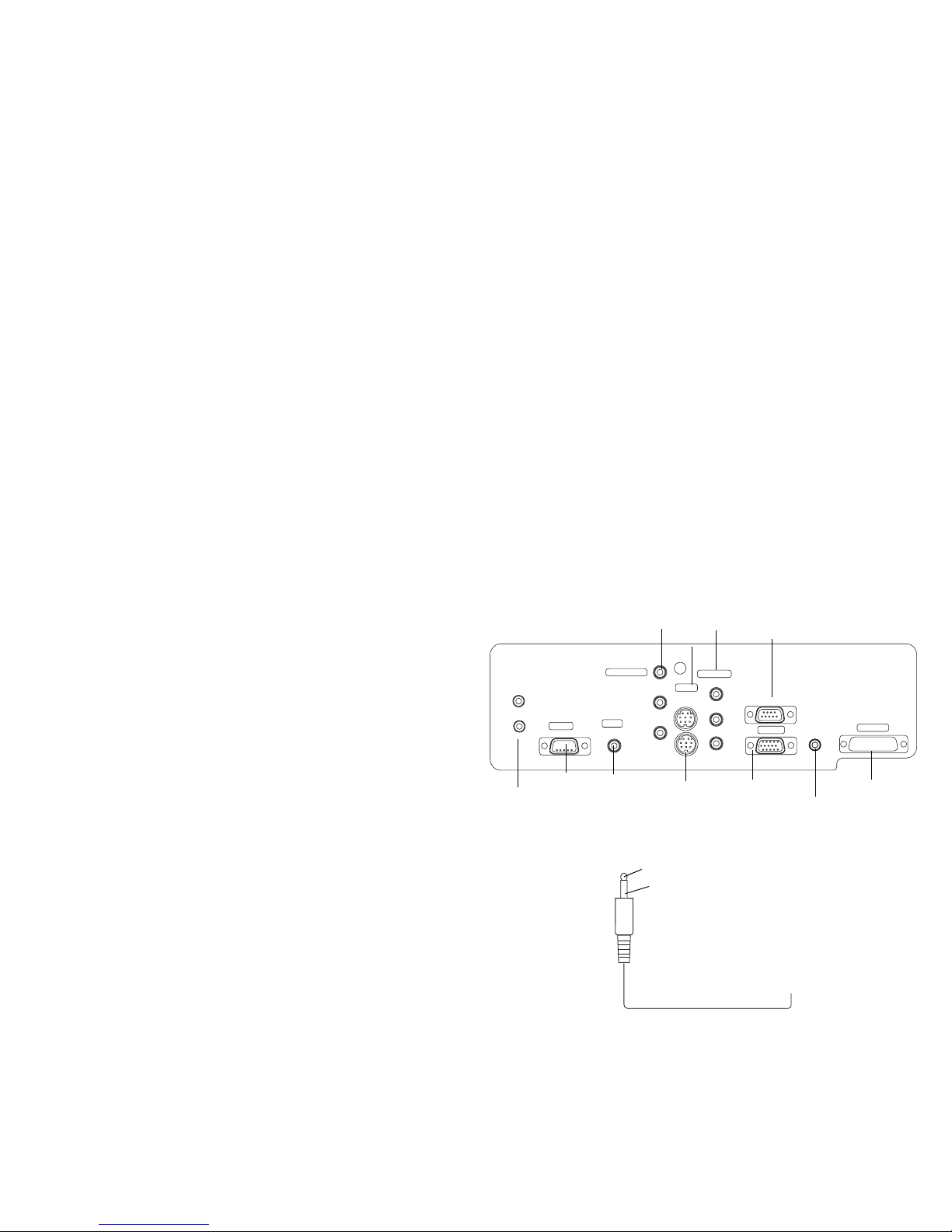

Connector Panel

The projector provides eight discreet video connectors:

• one red-green-blue RCA (SD/ED/HD component)

• one red-green-blue BNC (SD/ED/HD component)

•twoS-video

•onecompositeRCA

• one M1-DA (HD, RGBHV, HD component, DVI, and computer)

• one VESA (HD, RGBHV, HD component, and computer)

• one D5 (SD/ED/HD component, RGB SCART)

It also has a mini-jack input for a Niles or Xantech-compatible IR repeater

and an RS-232 connector for serial control. The Command Line Interface

(CLI) specifications and commands are listed in the Appendix starting on

page 27.

Two 3.5mm mini-jack triggers provide 12 volt current. Screen trigger pro-

vides a constant output while the projector is on. For example, if you con-

nect your projection screen to the screen trigger, when you turn on the

projector the screen will move down; when you turn the projector off, the

screen will return to the storage position. Screen mask provides a 4:3 aspect

trigger. When you select 4:3 in the Aspect Ratio menu or from the Resize

button on the remote, a 12v signal will be sent after a five second delay. Use

this trigger for screens with 4:3 aspect curtains. When you switch back to

16:9 format, the curtains open to reveal the entire screen.

For details on each connector type and their inputs, see page 26.

screen mask

screen trigger

IR in

D5 M1-DA 1

video

s-video

component

component 6

vesa 2

serial control

IR in

status

composite

component

video (BNC) serial

(RS-232)

video

12v triggers video (RCA) VESA (HD15) DVI (M1-DA)

component

video (RCA)

S-video

IR input

3.5mm mono plug for

+12v

ground

to screen relay (see screen manufacturer

for details)

12 volt current

connection

Positioning the projector

There are a number of factors to consider when determining where to set up

the projector, including the size and shape of your screen, the location of

your power outlets, and the distance between the projector and the rest of

your equipment. Here are some general guidelines.

1Position the projector on a flat surface at a right angle to the screen.

The projector must be within 10 feet (3 m) of your power source. To

ensure adequate cable access, place the projector at least 6 inches

(0.15m) from a wall or other objects. Place the projector at least 5.6 feet

(1.7 m) from the projection screen.

If you install the projector on the ceiling, refer to the installation guide

that comes with the Ceiling Mount Kit for more information. To turn

the image upside down, see page 16. InFocus recommends use of an

authorized InFocus ceiling mount. The Ceiling Mount Kit is sold sepa-

rately.

2Position the projector the desired distance from the screen.

The distance from the lens of the projector to the screen, the zoom set-

ting, and the video format determine the size of the projected image.

Go to www.infocushome.com/support for a complete image size calcula-

tor.

Video connections

You can connect VCRs, DVD players, camcorders, digital cameras, video

games, HDTV receivers, and TV tuners to the projector. (You cannot directly

connect the coaxial cable that enters your house from a cable or satellite

company; the signal must pass through a tuner first. Examples of tuners are

digital cable boxes, VCRs, digital video recorders, and satellite TV boxes.

Basically, any device that can change channels is considered a tuner.) Audio

must be provided by your own speakers, as the projector has no separate

audio controls. If there is more than one output, select the highest quality

one. DVI, Component video and RGB (M1, HD15) have the best quality, fol-

lowed by S-video, and then composite video.

For a complete list of compatible sources, see page 26 of the Appendix.

Table 1: Video connections

Input signal Connector

Connector label

on projector

Standard Broadcast TV (not

HDTV), via cable, digital

cable, satellite TV, DirectTV

Component video

S-video

Composite video

Component 3, 6

S-video 4, 5

Video 7

HDTV Component video

VESA

DVI

Component 3, 6

VESA 2

M1-DA 1

DVD Component video

S-video

Composite video

Component 3, 6

S-video 4, 5

Video 7

VCR Composite video

S-video

Component video

Video 7

S-video 4, 5

Component 3, 6

Video Camera Composite video

S-video

Video 7

S-video 4, 5

Video Game VESA

Composite video

S-video

Component video

VESA 2

Video 7

S-video 4, 5

Component 3, 6

Table 1: Video connections

Shutting down the projector

Power Save

The projector has a Power Save feature in the System menu that automati-

cally turns the lamp off after no signals are detected for 20 minutes. After 10

additional minutes with no signal, the projector powers down. If an active

signal is received before the projector powers down, the image is displayed.

You m ust press the Power button to display an image after 30 minutes have

passed.

Turning off the projector

To turn off the projector, press the Power button on the remote. The lamp

turns off and the LED blinks green for about one minute while the fans con-

tinue to run to cool the lamp. When the lamp has cooled, the LED lights

green and the fans stop. Unplug the power cable to completely power off

the projector.

Using the remote control

The remote uses two (2) provided AAA batteries. They are easily installed

by sliding the cover off the remote’s back, aligning the + and - ends of the

batteries, sliding them into place, and then replacing the cover.

To operate, point the remote at the projection screen or at the projector (not

at the video device or computer). The range of optimum operation is up to

30 feet (9.14m).

Press the remote’s Menu button to open the projector’s menu system. Use

the arrow buttons to navigate, and the Select button to select features and

adjust values in the menus. See page 11 for more info on the menus.

The remote also has:

•Power button to turn the projector on and off (see page 8 for shutdown

info)

• backlight button to light the remote’s buttons in the dark

•Brightness and Contrast buttons to adjust the image

•Blank button to display a blank screen instead of the current image (to

change the color of the blank screen, see page 17)

•Source buttons to switch among sources (to assign a particular source

to a source button, see page 16) and a source toggle

•Resize button to change the Aspect Ratio (see page 12)

•Auto Image button to resynchronize the projector to the source

•Preset button to restore stored settings (see page 13)

•Overscan button to remove noise in a video image (page 13)

Adjusting power zoom lens

You can adjust the lens using the Up and Down navigation buttons on the

remote (only when the menus aren’t open). The Lens Control Enable option

in the System menu must be turned on to do this (on by default, see

page 17).

When you power on the projector, the buttons are mapped to adjust focus.

Press the Select button to scroll through other available functions: zoom,

vertical lens shift, horizontal lens shift, and back to focus, then use the Up

and Down buttons to make adjustments. The name of the currently selected

function appears on the projection screen.

Troubleshooting the remote

• Make sure the batteries are installed in the proper orientation and are

not dead.

• Make sure you’re pointing the remote at the projector or the screen, not

at the video device or the computer, and are within the remote range of

30 feet (9.14m).

backlight button

navigation buttons

Optimizing video images

After the video device is connected properly and the image is on the screen,

you can optimize the image using the onscreen menus. For general informa-

tion on using the menus, see page 11.

• Change the Aspect ratio. Aspect ratio is the ratio of the image width to

image height. TV screens are usually 1.33:1, also known as 4:3. HDTV

and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your

input source in the menus, or press the Resize button on the remote to

cycle through the options. See page 12.

• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture

menu. See page 12.

• Select a different Color Temperature or use the Color Control to adjust

the gain and offset of the red, green, and blue color. See page 15.

• Select a specific Color Space or Gamma. See page 13 and page 15.

• Select a different Video Standard. Auto tries to determine the standard

of the incoming video. Select a different standard if necessary. See

page 15.

• Turn Overscan on to remove noise around the video image. See

page 13.

• Fine tune component inputs using the TrueLife™ adjustments. See

page 14.

• Tune colors to your specifications using Blue Only and ADC Calibra-

tion. See page 18.

• Make sure your DVD player is set for a 16:9 television. See your DVD

player’s user’s guide for instructions.

Customizing the projector

You can customize the projector for your specific setup and needs. See

page 16 to page 18 for details on these features.

• For rear projection, turn Rear mode on in the Settings>System menu.

• For ceiling mounted projection, turn Ceiling mode on in the Set-

tings>System menu.

• Turn the projector’s display messages on and off.

• Turn on power saving features.

• Specify blank screen colors and startup logos. Make the menus translu-

cent.

• Specify the menu language.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere InFocus Projektor Handbücher

InFocus

InFocus Learn Big XS1 Bedienungsanleitung

InFocus

InFocus LS110 Bedienungsanleitung

InFocus

InFocus LitePro 610 Bedienungsanleitung

InFocus

InFocus SP7200 Montage- und Bedienungsanleitung

InFocus

InFocus LP 240 Bedienungsanleitung

InFocus

InFocus LP 240 Bedienungsanleitung

InFocus

InFocus LP690 Gebrauchs- und Wartungshandbuch

InFocus

InFocus IN74 Bedienungsanleitung

InFocus

InFocus IN5132 Bedienungsanleitung

InFocus

InFocus Work Big IN38 Bedienungsanleitung

InFocus

InFocus IN5552L Bedienungsanleitung

InFocus

InFocus in1144 Bedienungsanleitung

InFocus

InFocus LP770 Bedienungsanleitung

InFocus

InFocus IN1156 Bedienungsanleitung

InFocus

InFocus Work Big IN1100 Bedienungsanleitung

InFocus

InFocus LP 70+ Bedienungsanleitung

InFocus

InFocus LP 740 LiteMount Bedienungsanleitung

InFocus

InFocus LiteBoard IN3902LB Bedienungsanleitung

InFocus

InFocus LP630 Montageanleitung

InFocus

InFocus LP530 Bedienungsanleitung

InFocus

InFocus LP 425 LiteMount Bedienungsanleitung

InFocus

InFocus IN112 Bedienungsanleitung

InFocus

InFocus LP810 Gebrauchs- und Pflegehandbuch

InFocus

InFocus XXCITEMENT x2 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
