Insignia NS-DPFC01 Bedienungsanleitung

Clock Radio with LCD Photo Viewer

NS-DPFC01

User Guide

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 1 Friday, July 24, 2009 12:14 PM

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 2 Friday, July 24, 2009 12:14 PM

www.insigniaproducts.com 3

Insignia NS-DPFC01

Clock Radio with LCD Photo Viewer

Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Setting up your clock radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Using your clock radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

90-day limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Welcome

Congratulations on your purchase of a high-quality Insignia product. Your

NS-DPFC01 represents the state of the art in clock radios and is designed

for reliable and trouble-free performance.

Important safety instructions

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this apparatus near water.

6Clean only with dry cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 3 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

10 Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit from

the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been

dropped.

15 To reduce the risk of fire or electric shock, do not expose this device to

rain, moisture, dripping, or splashing, and no objects filled with liquids,

such as vases, shall be placed on it.

16 An apparatus with a three-prong, grounding-type plug is a Class I

apparatus, which needs to be grounded to prevent possible electric

shock. Make sure that you connect this Class I device to a

grounding-type, three-prong outlet.

17 The wall plug is the disconnecting device. The plug must remain

readily operable.

18 Batteries should not be exposed to excessive heat such as sunshine,

fire, or the like.

Features

Package contents:

• Clock radio with LCD Photo Viewer

•ACAdapter

• Remote control with bracket

• Battery (CR2032 x 1)

•USBCable

• User Guide

•QSG(QuickSetupGuide)

Warning

Danger of explosion if battery is incorrectly replaced. Replace

only with the same or equivalent type.

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 4 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

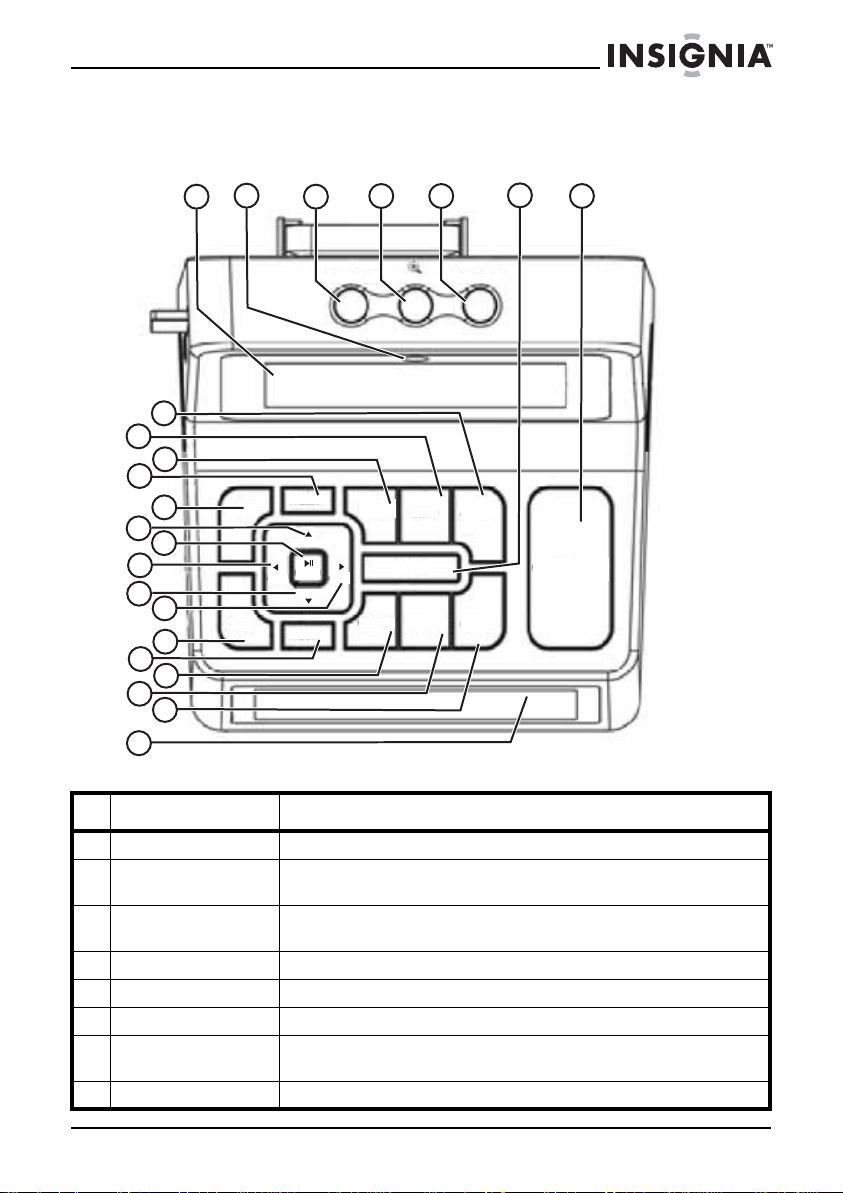

Top view

# Description Function

1 Photo display LCD screen where photos are displayed.

2 Remote sensor Receives the infrared signal from the remote control. Point the remote control at this

sensor.

3PHOTO MENU

button

Press to display the photo menu on the LCD.

4ZOOM button Press to zoom in on the photo being displayed.

5DEL/COPYbutton Press to delete or copy photos while in thumbnail picture mode.

6RADIObutton Press once to turn the radio on. Press again to turn the radio off.

7SNOOZE/DIMMER

button

Press to temporarily turn off the alarm (snooze), when the alarm is sounding. Press to

set the backlight level to high, middle, or low, when the alarm is off.

8ALARM 1button Press to set Alarm 1.

PHOTO MENU ZOOM DEL/COPY

VOL+ PRESET+ PHOTO

DISPLAY

SLEEP ALARM 1

VOL-

TUNE+

TUNE-

PREV NEXT

RADIO

MEMORYPRESET- TIME SET ALARM 2

SNOOZE/DIMMER

ENTER

13 4

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 5 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

9SLEEPbutton Press to set the sleep timer, which automatically turns off the radio after the time

duration selected. Press repeatedly to select the duration.

10 PHOTO DISPLAY

button

Press once to turn the photo display on. Press again to turn the photo display off.

11 PRESET+button In radio mode, press to select the next preset station. In memory mode, press to select

the preset number for the station.

12 VOL+ button Press to increase the radio volume.

13 TUNE+button In radio mode, press to tune the radio to a higher station.

In photo zoom mode, press to pan up in the photo.

14 ENTERbutton Press to confirm your selection in photo menu mode.

15 PREV button In photo playback mode, press to select the previous photo.

In photo zoom mode, press to pan left in the photo.

In photo menu mode, press to move the cursor.

16 TUNE–button In radio mode, press to tune the radio to a lower station.

In photo zoom mode, press to pan down in the photo.

17 NEXT button In photo playback mode, press to select the next photo.

In photo zoom mode, press to pan right in the photo.

In photo menu mode, press to move the cursor.

18 VOL–button Press to decrease the radio volume.

19 PRESET–button In radio mode, press to select the previous preset station. In memory mode, press to

select the preset number for the station.

20 MEMORYbutton Press to set radio station presets.

21 TIME SETbutton Press and hold briefly to set the time.

22 ALARM 2button Press to set Alarm 2.

23 Clock display Displays the current time, radio, and alarm information.

# Description Function

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 6 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

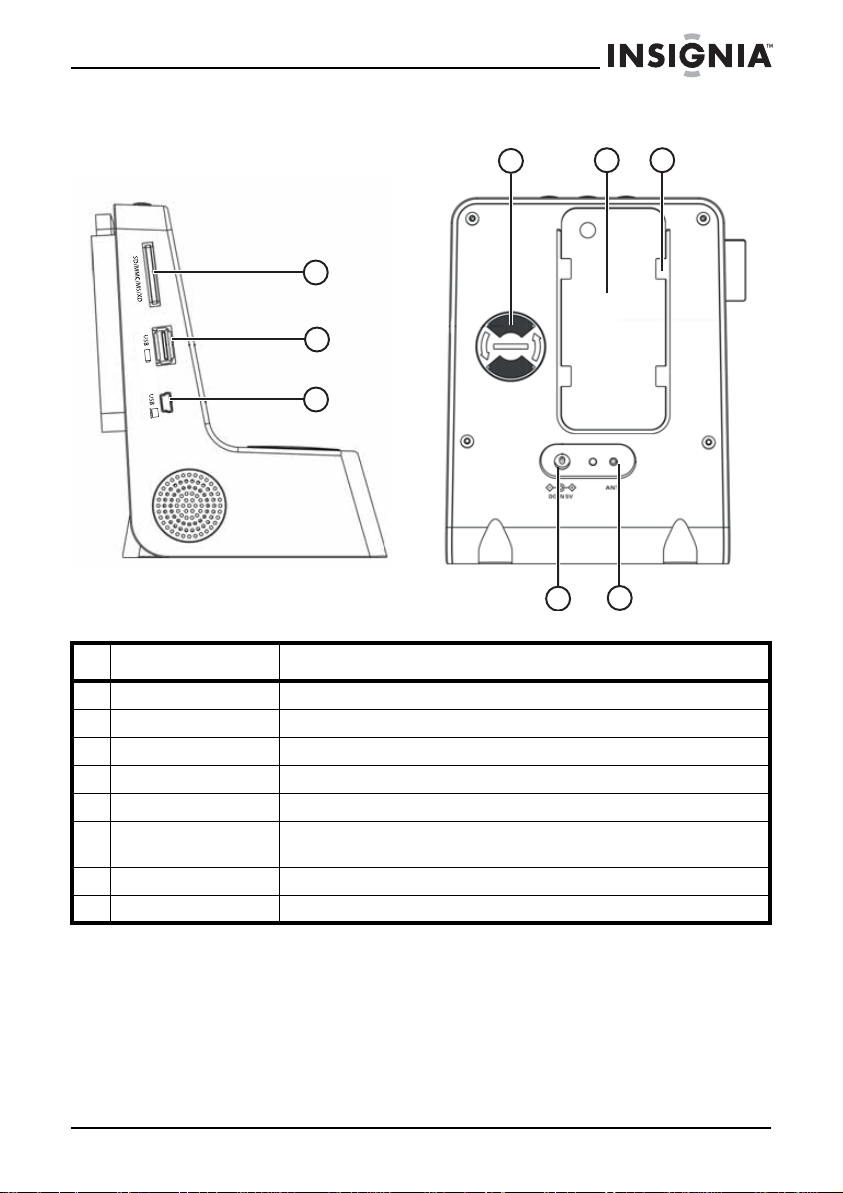

Side and back views

# Description Function

1 Card slot Plug an SD, MMC, MS, or XD card into this slot.

2 USB port Plug an external USB device into this port.

3 USB cable port Plug a USB cable from a computer into this port.

4 Backup battery slot Insert a backup battery into this opening.

5 Remote control Remotely control your radio with this remote control.

6 Remote control storage

bracket

Store your remote control in this bracket.

7DC INjack Plug the output cable of the AC adapter into this jack.

8ANT The FM antenna to improve reception.

45 6

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 7 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

LCD display

# Description Function

1 Alarm 1 status icon Indicates the status of Alarm 1. The icon to the right of the status icon indicates your

selection.

• Bell icon–wake to buzzer

• Music note icon–wake to radio

• No icon–alarm 1 off

2 Alarm 2 status icon Indicates the status of Alarm 2. The icon to the right of the status icon indicates your

selection.

• Bell icon–wake to buzzer

• Music note icon–wake to radio

• No icon–alarm 2 off

3 Main display Shows the current time, radio frequency, sleep time setting, or alarm ring time.

4 FM Lights when radio is on.

5 SNOOZE Lights when snooze is on.

6 SLEEP Lights when the sleep timer is set.

7 VOL (volume) Shows the volume setting of the radio.

8 Preset station number Indicates the preset number selected.

9 MEM icon Indicates a preset is selected.

12 3 4567

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 8 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

Remote control

# Description Function

1PHOTO MENU button Press to display the photo menu on the LCD.

2PREV button

TUNE+ button

NEXT button

TUNE– button

In photo playback mode, press to select the previous photo.

In photo zoom mode, press to pan left in the photo.

In photo menu mode, press to move the cursor.

In radio mode, press to tune the radio to a higher station.

In photo zoom mode, press to pan up in the photo.

In photo playback mode, press to select the next photo.

In photo zoom mode, press to pan right in the photo.

In photo menu mode, press to move the cursor.

In radio mode, press to tune the radio to a lower station.

In photo zoom mode, press to pan down in the photo.

3ENTER button In Press to confirm your selection in photo menu mode.

4ZOOM button Press to zoom in on the photo being displayed.

5ROTATE button Press to rotate the displayed photo in 90° steps.

6PHOTO DISPLAY button Press once to turn the photo display on. Press again to turn the photo display off.

TUNE+

PREV NEXT

ENTER

TUNE-

ROTATE ZOOM

DEL/

COPY


DISPLAY

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 9 Friday, July 24, 2009 12:14 PM

Insignia NS-DPFC01 Clock Radio with LCD Photo Viewer

www.insigniaproducts.com

Setting up your clock radio

Supplying power

Your clock radio is powered by an AC adapter.

Plugging in your clock radio

To plug in your clock radio:

1Place your clock radio in a convenient place and find an AC power

outlet within range of the AC adapter.

2Plug the AC adapter into the AC power outlet.

3Plug the AC adapter into the DC IN socket on the radio.

Installing the backup battery

You can install a backup battery (included) to provide temporary power in

case the AC power fails. The backup battery only maintains the correct

time.

To install a backup battery:

1Unplug your clock radio, then turn it around to the back and remove

the circular backup battery cover by unscrewing it.

2Insert one (1) CR2032 button cell battery (included) into the battery

compartment. Make sure that the + symbol on the battery is facing up.

3Reinstall the backup battery slot cover.

7DEL/COPY button Press to delete or copy photos while in thumbnail picture mode.

Caution

To protect your clock radio during thunderstorms, unplug the AC

power adapter from the AC power outlet.

# Description Function

NS-DPFC01 09-0621_MAN_ENG_V2.fm Page 10 Friday, July 24, 2009 12:14 PM

Andere Handbücher für NS-DPFC01

Inhaltsverzeichnis

Andere Insignia Radiowecker Handbücher

Insignia

Insignia NS-CLWL01 Bedienungsanleitung

Insignia

Insignia NS-C2111 - Clock Radio Model Bedienungsanleitung

Insignia

Insignia NS-CLLT01 Bedienungsanleitung

Insignia

Insignia NS-CL1111 Bedienungsanleitung

Insignia

Insignia NS-CLBT01 Stücklistenhandbuch

Insignia

Insignia NS-C2114 Bedienungsanleitung

Insignia

Insignia NS-PRCL01 Bedienungsanleitung

Insignia

Insignia NS-CLBT01 Bedienungsanleitung

Insignia

Insignia NS-CLW01 Kurzanleitung

Insignia

Insignia NS-CLWL01 Bedienungsanleitung

Insignia

Insignia NS-CL3B01 Bedienungsanleitung

Insignia

Insignia NS-CLIP02 Installations- und Betriebshandbuch

Insignia

Insignia NS-CLVR01 Bedienungsanleitung

Insignia

Insignia NS-PRCL01 Bedienungsanleitung

Insignia

Insignia NS-CLBT01-W Bedienungsanleitung

Insignia

Insignia NS-CLIP02 Bedienungsanleitung

Insignia

Insignia NS-CLOPP1 Bedienungsanleitung

Insignia

Insignia NS-CLBT02 Bedienungsanleitung

Insignia

Insignia NS-CLVR01 Bedienungsanleitung

Insignia

Insignia Insignia Narrator NS-CLHD01 Bedienungsanleitung

Insignia

Insignia NS-CL3B01 Installations- und Betriebshandbuch

Insignia

Insignia Insignia Narrator NS-CLHD01 Bedienungsanleitung

Insignia

Insignia NS-CLVR01 Bedienungsanleitung

Insignia

Insignia NS-CLIP02 Stücklistenhandbuch

Beliebte Radiowecker Handbücher anderer Marken

Denver

Denver CRQ-105 Bedienungsanleitung

Audiovox

Audiovox CE90 Bedienungsanleitung

Sony

Sony Dream Machine ICF-C763L Bedienungsanleitung

Sanyo

Sanyo DMP-P6 Bedienungsanleitung

RCA

RCA RPC100 Bedienungsanleitung

Yamaha

Yamaha ISX-80 Bedienungsanleitung

Pyle

Pyle PLMR20W Bedienungsanleitung

Blaupunkt

Blaupunkt CR7BK Bedienungsanleitung

Philips

Philips AJ3180 Bedienungsanleitung

HoMedics

HoMedics SS-5500-2EU Bedienungsanleitung

RCA

RCA RC66i Bedienungsanleitung

Versaudio

Versaudio Vers Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR8100 Bedienungsanleitung

Audiovox

Audiovox CE90 Bedienungsanleitung

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Bedienungsanleitung

Roberts

Roberts ChronoDAB Bedienungsanleitung

AEG

AEG MRC 4132 BT Bedienungsanleitung

Tokai

Tokai TC-155 Bedienungsanleitung
