Insignia 09-0339 Bedienungsanleitung

Actual product may vary from image shown.

Quick Setup Guide

NS-L7HTV-10A TV

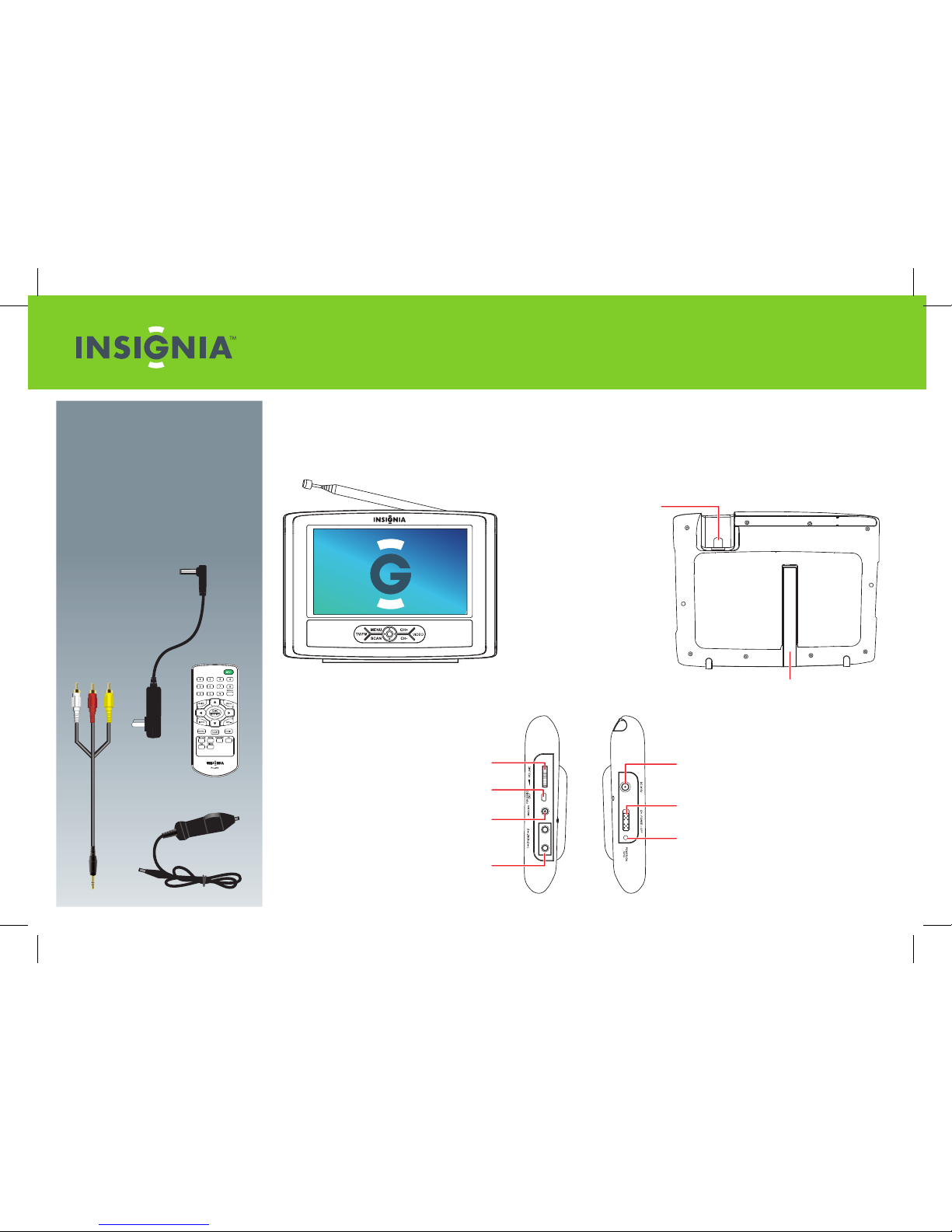

Step 1 Getting to know your TV and connecting your devices

Check out the front, side, and back panels to familiarize yourself with button controls and connection options.

Connect your devices using the diagram below as a guide. Press INPUT on your remote control to switch between devices.

Congratulations on your purchase of a high-quality

Insignia product.Your TV is designed for reliable and

trouble-free performance. Use this guide for initial

setup of yourTV. See your User Guide for more

information on using yourTV.

Package contents

• Remote control with battery

• AC adapter

•Vehicle adapter

• AV cable

• User Guide

• Quick Setup Guide

Volume

Adjust the volume.

Service port

Do not use.

VIDEO IN

Connect a standard

video device to this jack.

PHONE1 and 2 jacks

Connect a pair of

headphones to these jacks.

DC IN 9V jack

Connect the AC

adapter to this jack.

Power On/Charge indicator

Displays the power status.

When the TV is on, the indicator

is green. When the battery is

charging, the indicator is orange.

Power switch

Antenna jack

In TV mode, connect an antenna, cable TV, or

satellite TV to this jack. In radio mode, connect

the supplied antenna to scan for radio stations.

Note: The supplied antenna will be attached

with the portable TV when you receive the

product. The antenna is detachable. If you

want to connect an external antenna, you can

detach the antenna and connect other

external antenna.

Frame Stand

Open up the frame stand and

use it for supporting your TV.

Vehicle adapter

Remote control

AV cable

AC adapter

ENGLISH 09-0339

Step 4 Charging the built-in battery

Note: There is no standby mode for this TV, because it runs on a rechargeable battery.

Turn o your TV before charging the battery. Connect the supplied AC adapter. Charging starts, and the POWER

ON/CHG indicator is red. When the charging is completed, the indicator turns o.

Note: On initial use of the TV, charge the battery for 6 hours.

Step 5 Establish a signal

Make sure that the included rod antenna or a stronger HDTV antenna (not included) is attached to the input at the

top of theTV. Extend the antenna rod and move theTV to a location where it can receive the strongest signal, free

of obstructions and interference from other devices. Press TV on your remote control to ensure you are inTV mode.

Step 6 Scan for channels

Note: See your User Guide for more information on connecting your TV

directly to cable or satellite service and for scanning for radio stations.

To scan for channels when the TV signal source is Antenna

Press MENU on the remote control, using the buttons to

highlight (channel icon).The Channel menu opens. Press

OK/ENTER or to enter the Channel menu. Press the buttons

to select Auto Channel Search, then press OK/ENTER or to enter

the Auto Channel Search menu. Start to Scan is highlighted. Press

OK/ENTER or to start the scan.

If the Automatic Channel Search does not locate the channels you were expecting, try moving theTV to a location

where you can pick up a stronger signal, then try rerunning the search.

Step 3 Connect the AC adapter

Connect the AC adapter into the DC IN jack on the right

side of your unit, then connect the AC adapter to a

100-240V power outlet.

© 2009 Best Buy Enterprise Services, Inc. All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

Note: The coin-shaped battery is already in the remote control. The ﬁrst time you use the remote

control, remove the plastic sheet from the bottom of the battery to activate the remote.

Select OK:Enter Menu:Exit

Antenna/Cable Antenna

80.3

PBS1DTV

Auto Channel Search

Add/Skip Channels

Favorites

Channel No.

Channel Label

Step 2 Install the remote control battery

Remove the battery holder from the back of the remote control by inserting a ngernail into the groove and

pulling out the holder. Place a CR2025 battery with the + side up on the holder. Insert the holder into the

remote control.
