INSTEON 2867-222 Bedienungsanleitung
Alert Module
Owner’s Manual
Alert Module
Owner’s Manual
Contents
Getting Started
Insteon Alert Module 4
Device Overview
Buttons
Installation
Alert Types 5
Triggering Alert Module from an Insteon Device 6
Local Programming
About Local Programming 8
Local Programming Flow Chart 9
Factory Reset
Factory Reset 11
Appendix
Specications 13
Troubleshooting 15
Certications and Warnings 16
Product Warranty 17
3
Everything you need to quickly get up and running.
Getting Started
Everything you need to quickly get up and running.
Getting Started
4
Installation
ButtonsDevice Overview
Insteon Alert Module
Set Button
Alert Speaker
Status LED
Armed
Disarmed
Plug Alert Module into an unswitched wall outlet.
Set Button
See sections on Local Programming
for set button functions
5
Instant Chime
Two short beeps will sound
the moment Alert Module is
triggered
Instant Loud Ringing
Loud ringing will sound the
moment Alert Module is triggered.
The loud ringing will persist for
30 seconds unless stopped by
disarming Alert Module.
Alert Types
Alert Module features two types of audible alerts. Choose the
suitable alert when creating a Scene using tap-tap linking.
6
Your Insteon device will
now trigger Alert Module
Triggering Alert Module from an Insteon Device
1On Alert Module, tap the set
button until you hear the desired
alert tone.
2On your Insteon device, press and
hold the set button until its LED
begins blinking.
3On Alert Module, press and hold
the set button until you hear a
double-beep.
4Test Alert Module by triggering
your sensor or turning on your
Insteon device.
7
Use the local programming to link Insteon devices together with the set button.
Local Programming
Use local programming to link Insteon devices together with the set button.
Local Programming
8
About Local Programming
Local Programming Features
Linking Mode Readies the module for linking to another Insteon device. As linking is directional, the rst
device placed into linking mode will become the controller in the controller/responder
relationship. The second device will become the responder. The device automatically exits
linking mode after a link has been made with another Insteon device or four minutes have
elapsed without linking.
Multi-Linking
Mode
Readies the module for linking to multiple Insteon devices. The module will remain in linking
mode for 4 minutes or until the module’s set button is tapped. This mode is very usefully for
manually creating scenes.
Unlinking
Mode
Allows the removal of links from the Insteon device. The device will automatically exit
unlinking mode after a link has been removed from another Insteon device or four minutes
have elapsed without linking.
Multi-
Unlinking
Mode
Allows the removal of multiple links from the Insteon device. The device will stay in unlinking
mode for 4 minutes or until the device’s set button is tapped.
To move right, press and
hold the set button
To move down, tap the set
button
Status LED blinks green
Status LED double-blinks
green
Status LED blinks red
Status LED double-blinks
red
The Local Programming Flowchart is a visual
representation of the device’s settings. Many
device features can be congured using this
diagram. Some devices have more options
than others but the Local Programming
Flowchart presents even the most
complicated devices with a straightforward,
navigable path.
If using the Insteon Hub or any other central
controller, it is strongly advised that you
not use Local Programming. Your central
controller can manage the device properties
and links for you.
NavigationLocal Programming
Using a Central Controller
NEW
X
9
Arm & Disarm
Instant Loud
Ringing
Instant Chime
Instant Loud
Ringing
TapTap Tap TapTap Tap
Press
Press
Press
Press
Unlinking
Mode
Multi-
Unlinking
Mode
Select
Linking Mode
Multi-Linking
Mode
Select
Press
Tap
Tap
PressPress
TapTap
ExitExit
ExitExit

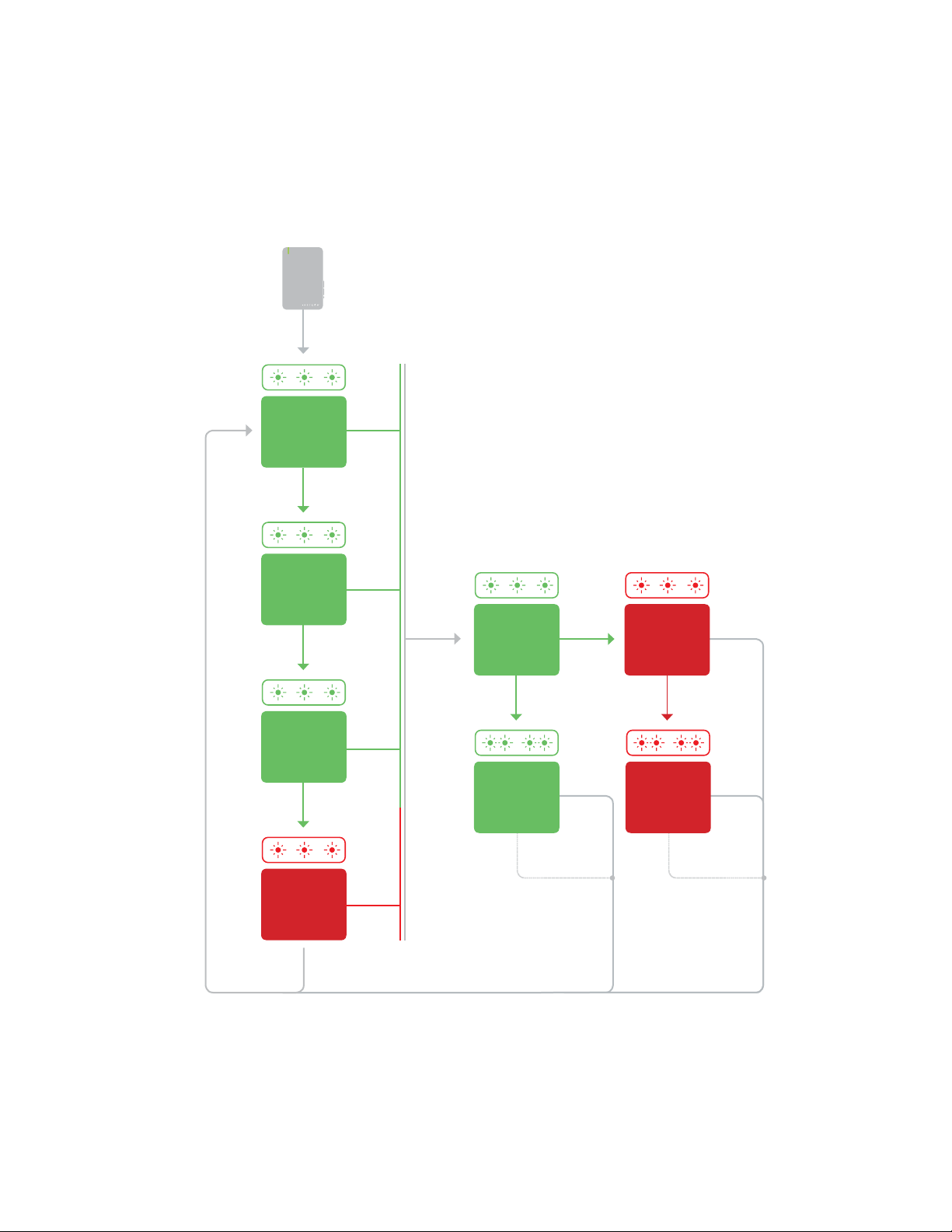

Local Programming Flow Chart
Press
Exit
10
A factory reset will erase all links stored in the device’s database as well as
any customized properties.
Factory Reset
A factory reset will erase all links stored in the device’s database as well as
any customized properties.
Factory Reset
