Blu-ray Disc Player
Quick Start Guide
DBS-30.1
Connecting an AV receiver
Make one of the following connections, depending on the capabilities of your existing device.
COMPONENT
VIDEO OUT
Y
PB
PRHDMI OUT
HDMI IN
AUDIO OUT
LR
VIDEO CONNECTIONAUDIO CONNECTION
RCA video cable
(not supplied)
HDMI-DVI cable
(not supplied)
RCA
component
video cable
(not supplied)
RCA
component
video cable
(not supplied)
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
VIDEO
IN
VIDEO
OUT
COMPONENT
VIDEO IN
Y
PB
PR
RCA audio cable
(not supplied)
TV TV or Projector
AUDIO IN
LR
RCA video cable
(supplied) HDMI cable
(not supplied)
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
VIDEO OUTPUT
(COMPONENT)
VIDEO OUTPUT
(VIDEO)
HDMI OUT
VIDEO
IN
COMPONENT
VIDEO IN
Y
PB
PR
RCA audio cable
(supplied)
this unit
AUDIO OUTPUT
(ANALOG L/R)
AUDIO IN
LR
and
and or or
or or
AV receiver
DVI IN
and
Basic Connections
Make one of the following connections, depending on the capabilities of your existing device.
HDMI IN
VIDEO CONNECTIONAUDIO CONNECTION AUDIO/VIDEO CONNECTION
RCA video cable
(supplied)
HDMI cable
(not supplied)
RCA component
video cable
(not supplied)
Method 1 Method 2 Method 3
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
better picture best audio/picture
VIDEO OUTPUT
(COMPONENT)
VIDEO OUTPUT
(VIDEO)
HDMI OUT
or
or
VIDEO
IN
COMPONENT
VIDEO IN
Y
PB
PR
RCA audio cable
(supplied)
TV
this unit
standard picturestandard audio
AUDIO OUTPUT
(ANALOG L/R)
AUDIO IN
LR
and
HDMI Connection
HDMI OUT
HDMI cable
(not supplied)
HDMI cable
(not supplied)
AV receiverthis unit TV
HDMI IN
HDMI IN
HDMI cable (not supplied)
or
Press [Resolution] to change the resolution of the video signal begin output from HDMI OUT jack.
(For BD/AVCHD, press [Stop C]rst.)
Note
• You cannot select the video resolutions which are not supported by the connected TV.
• In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is
recommended) and select “1080p24” if the connected TV is compatible with 1080p24 frame input.
• If no sound is output, check “HDMI Audio Out” setting. (Refer to page 38 in the Instruction Manual.)
OR
E5K55UD
1VMN27614/★★★★★
SN 29400135
© Copyright 2009 ONKYO CORPORATION Japan. All rights reserved.
Printed in China
E5K55UDDBS-30.1QGENv1.indd1E5K55UDDBS-30.1QGENv1.indd1 2009/05/1511:46:512009/05/1511:46:51
EN EN

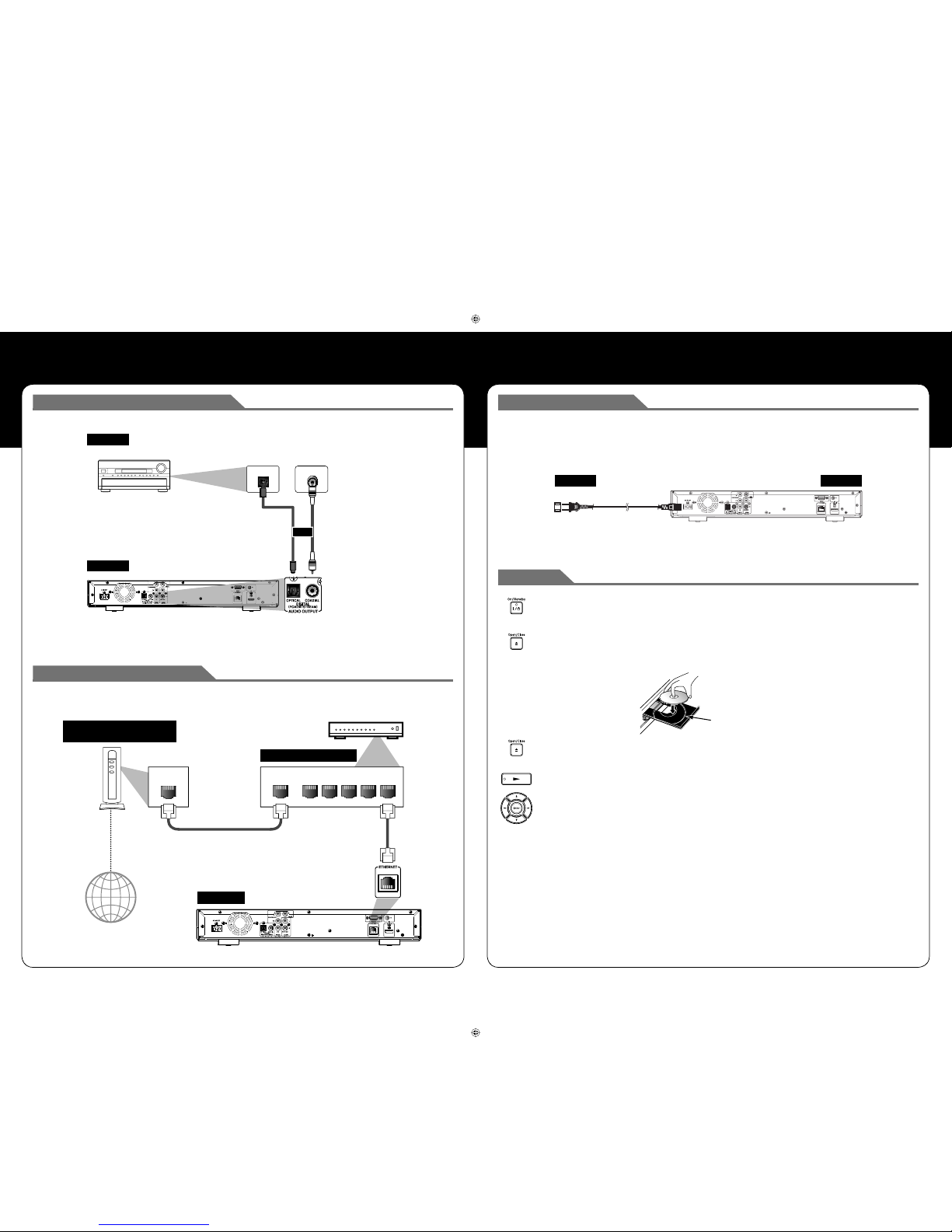

Connecting to a Digital Audio System
AV receiver / amplier
audio
digital audio
coaxial input jack
digital audio coaxial cable
(not supplied)
this unit
AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL)
digital audio optical cable
(not supplied)
digital audio
optical input jack
DIGITAL AUDIO INPUT
COAXIAL
DIGITAL AUDIO INPUT
OPTICAL
or
Network Connection with LAN
You can use a disc which oers BD-Live function by connecting the unit to the Internet.
(For BD-Live information, please refer to page 29 in the Instruction Manual)
LAN NALNAW
12345
Hub or broadband router
Telecommunications
equipment (modem, etc.)
Internet
LAN cable
this unit
LAN cable
Connecting the AC Cord
After you made all necessary connections, connect the AC cord to the AC INLET. Then connect the AC cord to the AC outlet.
Insert the plugs securely. Incomplete connections will result in the generation of noise.
this unit
AC cordAC 120V, 60 Hz
AC outlet
Playback
1 Press [On / Standby I / Q].
2 Turn on the TV and select the appropriate input on the TV to which the unit is connected.
3 Press [Open / Close A] to open disc tray.
4 Place the disc on the disc tray with its label side facing up.
Align the disc to the disc
tray guide.
5 Press [Open / Close A] to close the disc tray.
It may take a while to load the disc.
• Some discs may start playback automatically.
6 Press [Play B] to start playback.
• For many of BD-video and DVD-video, a menu screen may appear.
• In this case, use [K/ L/
{
/
B
]to select the desired item, then press [Enter].
To pause playback:
Press [Pause k].
To return to normal playback:
Press [Play B].
To stop playback:
Press [Stop C].
To eject the disc:
Press [Open / Close A]to open the disc tray, then
remove the disc before turning o the unit.
