Integrity Shark Base Bedienungsanleitung

Integrity Worldwide Inc.

www.iwwinc.ca Shark

Base

Instruction

!!! REFER TO GENERAL NOTES FOR SAFETY INFORMATION !!!

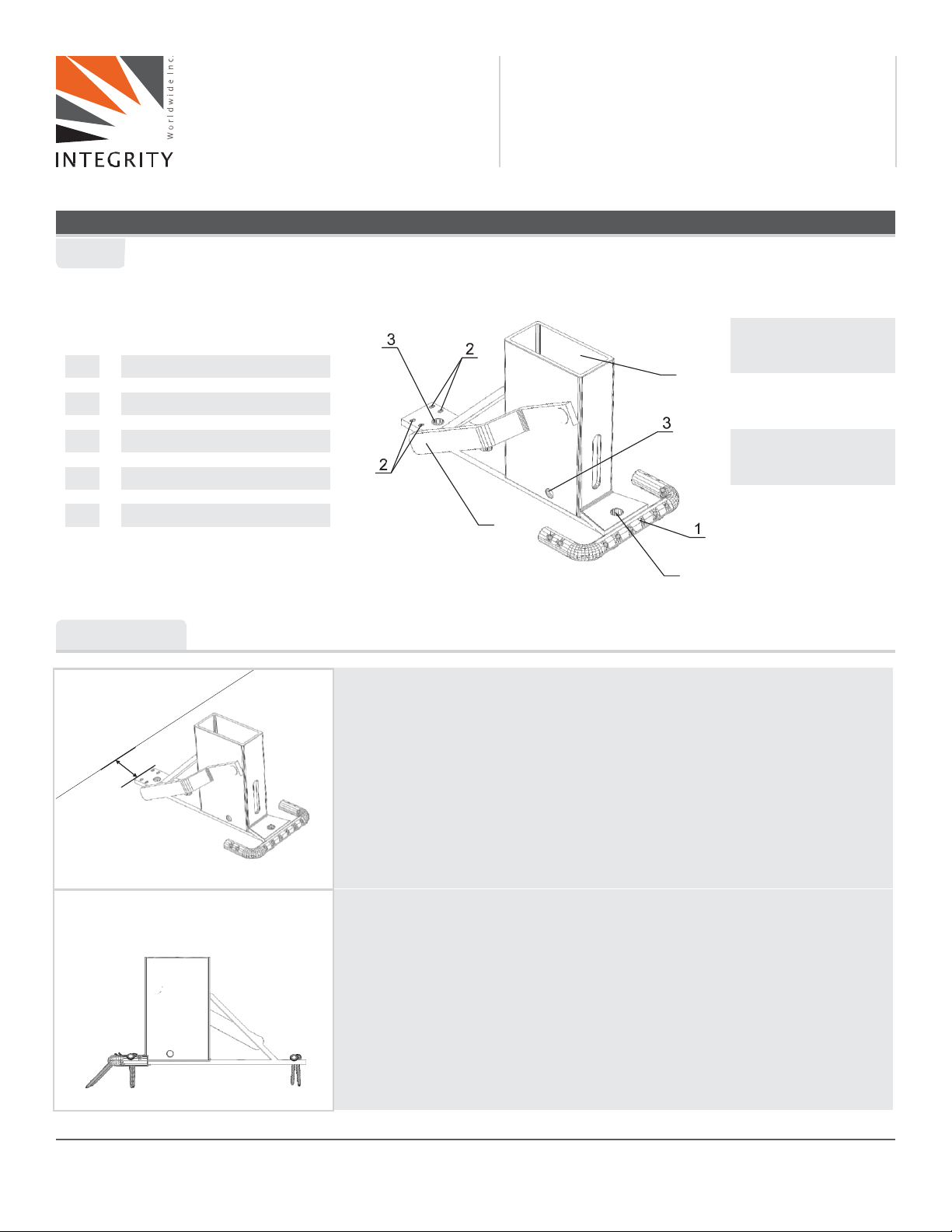

PARTS

PART

DESCRIPTION Code:

1 Nailing Bar

2 Nail Holes

3 Anchor Holes

4 Timber Post Holder

5 Notching Lever

BACK

4 SB

Weight:

4.4 kg (9.7 lb)

Maximum Spacing:

2743 mm (108")

FRONT 3

INSTALLATION FOR MORE TECHNICAL INFORMATION CONTACT US AT: info@iwwinc.ca

MINIMUM 25 mm (0.98")

• Place the Shark Base with the side opposite the C-shape nailing bar

a minimum 25mm (1”) from the working edge

FASTENING TO

PLYWOOD

(NAILING OPTION)

• At the back of the Shark Base hammer four (4) " diameter x 2" nails at

a 45° angle into the four nailing holes

• For a 90 kg (200 lb) rating use six (6) " diametar x 2" nails into the

nailing bar. Two (2) of the six (6) nails must be nailed into the nailing bar

opposite the other four (4). Alternatively in place of nails, you may use four

(4) #8,

50 mm (2”) wood screws.

• For a 136 kg (300 lb) rating use eight (8) " diametar x 2" nails into the nailing

bar. Four (4) of the eight (8) nails must be nailed into the nailing bar

opposite the other four (4).Alternatively in place of nails, you may

use six (6) #8, 50 mm (2”) wood screws.

www.iwwinc.ca

INSTALLATION 2

FASTENING TO

CONCRETE

(CONCRETE ANCHOR OPTION)

PRIMARY ALTERNATE

• With the Shark Base in the desired position, mark the hole location

between the nailing bar and the timber post holder on the concrete

• Drill and anchor the Shark Base with a 3/8” diameter anchor with a

minimum 75 mm (3”) embedment

• Anchor Options:

• Hilti Quick Bolt 3

• Red Head True Bolt

• Powers Power Stud

• Powers Wedge Bolt

• Two (2) Anchors may be installed at alternate holes when necessary 3

• Open the notching lever bar by rotating it until it is facing the front of the

Shark Base

• Insert a 38 mm x 89 mm (2 x 4) structural class timber into the

timber post holder

• Close the notching lever by rotating it until it is facing the back of the

Shark Base. Confirm the timber is locked into place

• Shark Base with post installed is now ready for futher installation of

Safety Fence or guardrails

NOTE:

Distributed by:

Shark

Base

Instruction
