UNIT PLAN

Build a Mini Arcade

with the Intel® Galileo Gen 2 board

Created by Oliver Chen, Cheryl Daisin, Shammi Jayaraj, Dustin Byars, Sruti

Chigullapalli, Luke Filose, Romanna Flores on August 30, 2014

Last modified by Tom Seaman on September 25, 2015

A sensor is a device that responds to a stimulus, such as heat,

light, or pressure. It then generates a signal that can be measured

or interpreted.

Humans, animals and even plants have sensors that can detect

the world around them.

What Are Sensors?

The Intel®Galileo Circuit Board

What will you make?

What You Will Need

Figure'1'

!"#$%&'()%*%$+'

,+)-.'

(Including'power'

cable,'USB'cable)'

/-$).,+)-.' 010'234'

5)#-*1'

6789$-'

:*-$;'

<=>'

?$;*;+-;'

(Qty'3)'

@7;A'

/7B+";'

(Qty'3)'

In addition, you will need the Intel®Galileo board’s power cable, USB cable, and a PC or Mac.

Reading Resistors

Figure'2'

Practice with Resistors

220 Ohms

47 KOhms

10 MOhms

Figure'3'

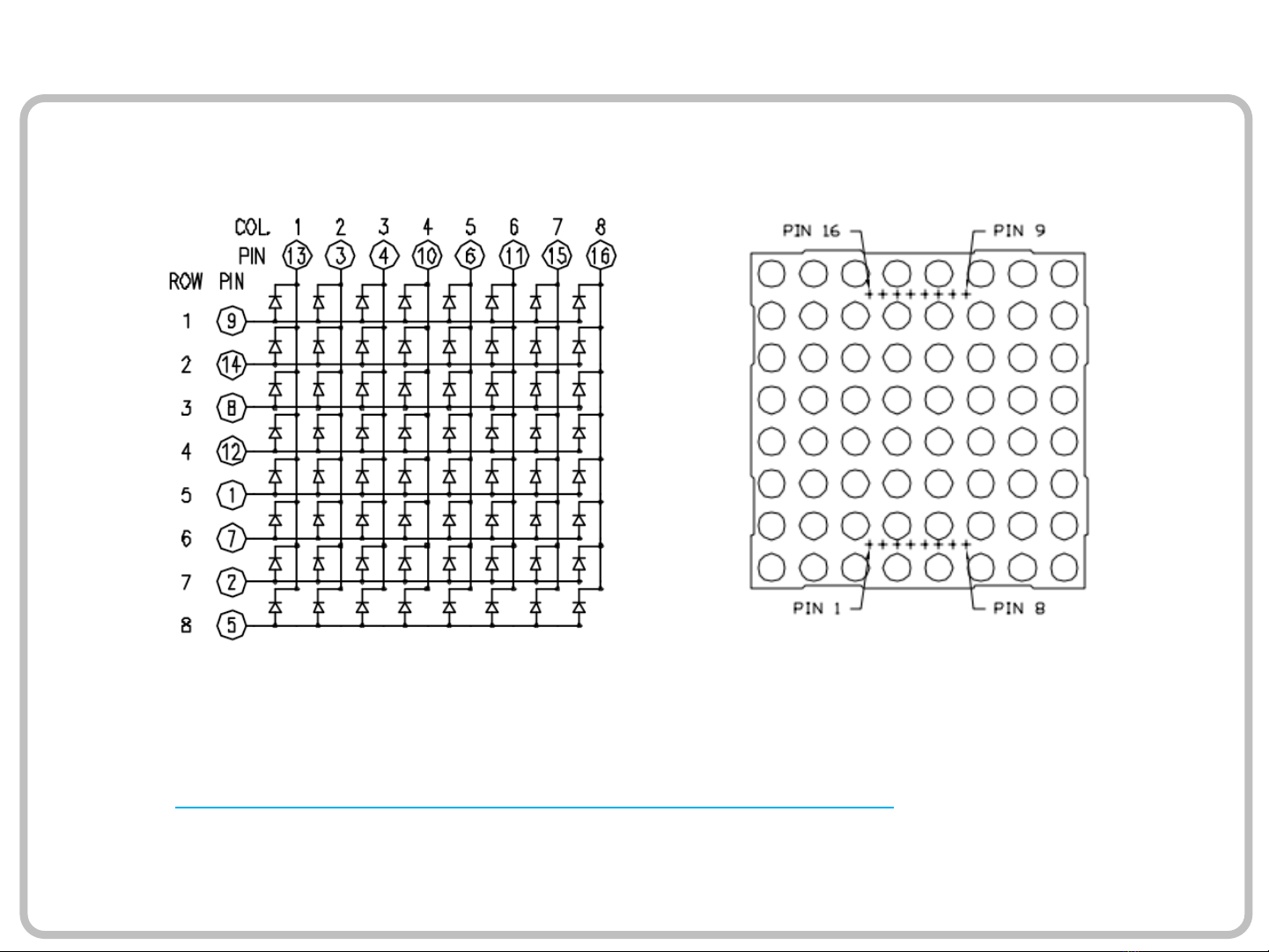

Mini Arcade 8x8 LED Matrix

To load the code for the 8x8 LED Matrix, open a browser and select File !Open

and locate and select the file

dot-matrix-code-generator/dot-matrix-code-generator.html

Figure 5

Blink

Turns on an LED on for one second, then off for one second, repeatedly.

This example code is in the public domain.

// Pin 13 has an LED connected on most Arduino boards.

// give it a name:

int led = 13;

// the setup routine runs once when you press reset:

void setup() {

// initialize the digital pin as an output.

pinMode(led, OUTPUT);

}

// the loop routine runs over and over again forever:

void loop() {

digitalWrite(led, HIGH); // turn the LED on (HIGH is the voltage level)

delay(1000); // wait for a second

digitalWrite(led, LOW); // turn the LED off by making the voltage LOW

delay(1000); // wait for a second

}

Coding Tips

{ Curly Brackets }

Any code you write inside the

curly brackets will be executed

when the function is called.

// Comments

Comments are notes you leave

for yourself that the computer

ignores. To write a comment, add

two slashes // before you’re the

text you want ignored.

Case sensitivity

Pay attention to the case

sensitivity in your code.

Created by Oliver Chen, Cheryl Dalsin, Shammi Jayaraj

Note: If the set-up is done ahead of

time, skip this step and proceed to the

next slide, Build the Circuit.

Step-by-step instructions for connecting

Galileo are found here:

https://software.intel.com/en-us/iot/

library/galileo-getting-started.

Within the step-by-step instructions,

when prompted to choose a

development environment, choose

Arduino.

Proceed all the way through the getting

started exercise to the point where you

blink the LED on the Galileo board.

This affirms the set-up was done

correctly.

Connect the Galileo Board and Install Software

Caution!

Always make sure the Galileo board is plugged in BEFORE

connecting the USB cable to the computer!

Also, always unplug the USB cable BEFORE disconnecting the

power from the Galileo.

Doing these steps in the wrong order can permanently damage

your board.

Note: If the set-up is done ahead of time, skip this step and proceed to the “Build

the Circuit” slide.

Instructions for Windows or Mac:

1. Download to the PC’s desktop the file called IESC.zip. (The file is attached to

the unit plan “Make a Mini-Arcade” housed in the Idea Showcase in

engage.intel.com.)

2. Unzip the file. This will unpack the zip file and place all the relevant files in a

folder called IESC it creates for you on the desktop.

3. Remember to tell your students that the sketches they will need to run for the

activities are located inside this IESC folder.

Install the Sketches
