Intelligent Home Cronus Bedienungsanleitung
Cronus Video Door Phone
2-wire Series
Installation and User Manual
www.intelligenthomeonline.com
1
2
3
4
Manual
Monitor
Memory
Playback
Monitor
Album User Setup
Intelligent Home
Image Recording Version No Memory Version
Digital Touch Screen 7 inch Monitor
Intercom Multimedia
Main Menu
Monitor ...
Close
02/12/2010 Thu.10:41AM
1
2
3
4
Manual Monitor
Intercom
User Setup
Close
i About
PRECAUTIONS
●Read this manual thoroughly before using the product.
●Slots or openings in the back of the monitor, are provided for ventilation
and to ensure reliable operation of the video monitor or equipment and
to protect if from overheating. These openings must not be blocked or
covered. The monitor should never be placed near or over a radiator or
heat register and should not be placed in a built-in installation such as a
bookcase unless proper ventilation is provided.
●All parts should be protected from violent vibration, impacts, knocking and
dropping.
●Clean the LCD monitor with Plastic Protection cleaner only.
●Image distortion may occur if the video door phone is mounted too close to
a magnetic eld e. g. Microwaves, TV, computer etc.
●Please keep away the video door monitor from wet, high temperature,
dust, and caustic and oxidation gas in order to avoid any unpredictable
damage.
●Do NOT open the device. If there is a malfunction, call the administrator for
help. Opening the device will invalidate the warranty.
CONTENT
1. Monitor Parts and Functions ---------------------------1
2. Monitor Mounting ------------------------------------1
3. Installation ------------------------------------------1
4. Connection of Peripheral Devices -----------------------2
5. Cable specication -----------------------------------------3
6. Operating Instructions --------------------------------4
7. Built-in Memory and SD Card ---------------------------8
8. Specications ---------------------------------------10

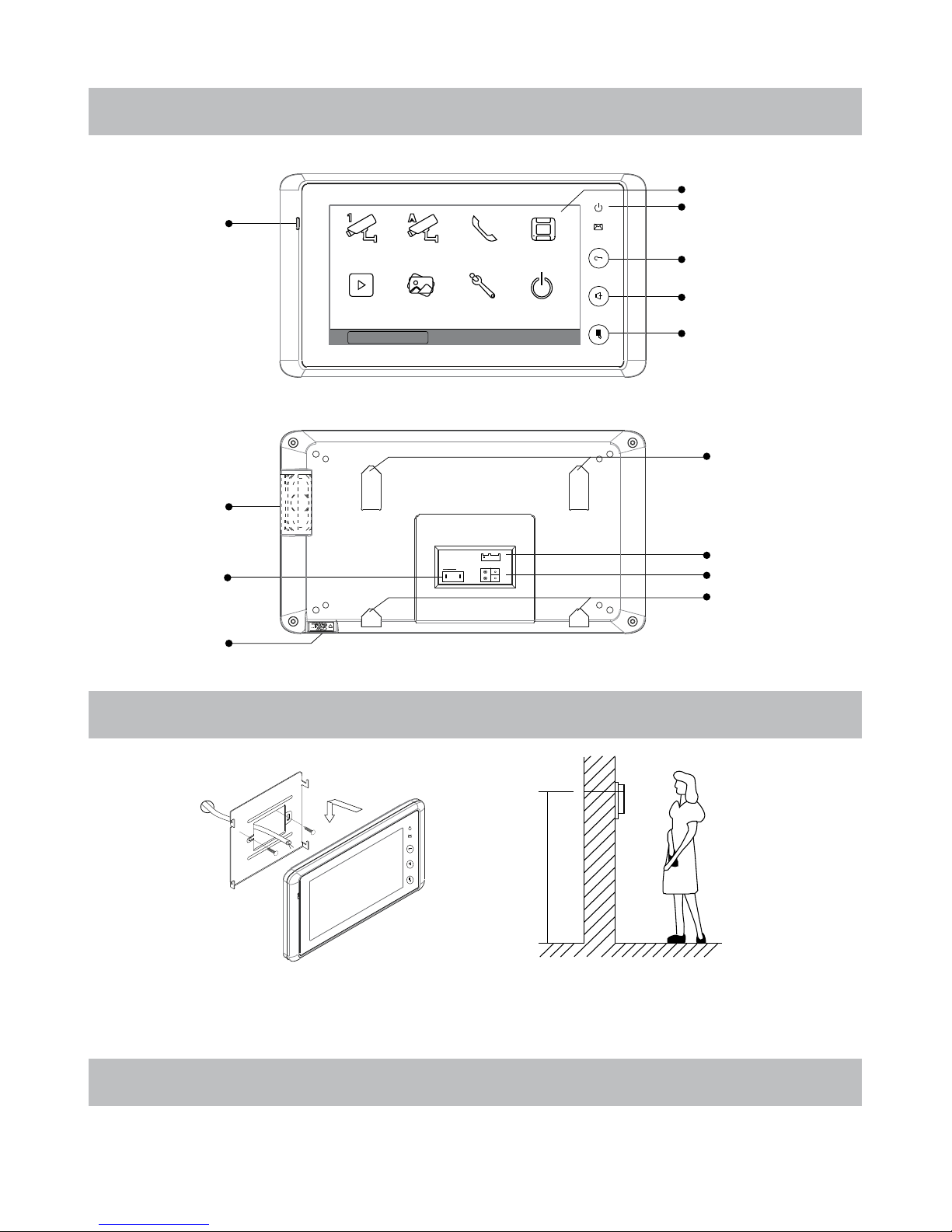

1. Monitor Parts and Functions
2. Monitor Mounting
3. Installation
BT1
BT2
EH
GND
VD
ONDIPS
L1
L2
1 2 3 4 5 6
145~160 cm
Manual
Monitor
Memory
Playback
Monitor Intercom Multimedia
Album User Setup Close
Intelligent Home 02/12/2010 Thu.10:41AM
Microphone
Speaker
DIP Switches
SD card slot
1. Use the screws to x the mounting bracket on the wall;
2. Hang the Monitor on the mounting bracket rmly.
For connection diagram please refer to the door station manual.
-1-
Screen
Indicator
UNLOCK Button
TALK/MON Button
MENU Button
Mounting Hook
Peripheral Devices
Connection Port
Mounting Hook
4. Connection of Peripheral Devices
Door bell call button
SW+
SW-
EXT-RING
GND
VIDEO
External Ringer
- +
12Vdc 300mA
SW+
SW-
EXT-RING
GND
VIDEO
Television
video cable
SW+
SW-
EXT-RING
GND
VIDEO
Additional Door Bell can be connected according
the diagram below. There will be no video on the
monitor when this door bell used.
4.2 Additional Ringer
Additional Ringer can be connected according the
diagram below. One ringer per video monitor. Lo-
cate a ringer in a position where you are unlikely to
hear the ringing of the monitors like a garage, shed,
garden or porch.
4.3 Connection To a TV
Each monitor can be connected to a TV with an-
tenna cable according the diagram below. The core
of antenna cable must be connected to the Video
and the shield to the GND. When the door station
rings you don’t have to walk to the monitor to see
the visitor. Instead you can change AV channel on
the TV and see who is calling on the TV screen.
4.4 CCTV Interface
Up to 2 x CCTV cameras can be connected with
one DCU CCTV Interface. This interface provides
power to the CCTV cameras as well. Up to a three
DCU CCTV Interfaces can be connected to sup-
port maximum six CCTV cameras. For connection
diagram please refer to DCU manual.
DCU
AC
4.1 Additional Doorbell
-2-
5. Cable specication
to telephone
TPC
network
TPC Telephone Interface Allows you to call-forward
from a door station to a mobile phone or landline
phone. One TPC Telephone Interface per house
system required. For Flats system one TPC Tel-
ephone Interface per at required. For connection
diagram please refer to TPC telephone Interface
manual.
4.6 IPC IP Interface
IPC IP Interface Allows you to connect your door
entry system to the Internet. Allows you to see and
answer the door via web.
Cable type
RVV 2 * 1.5 mm2
RVV 2 * 1.0 mm2
RVV 2 * 0.75 mm2
Max. distance(meters)
300 (Non-shielded, Twisted)
200 (Non-shielded, Twisted)
150 (Non-shielded, Twisted)
4.5 TPC Telephone Interface
to telephone
The best cable for this system is 2-wire twisted pair cable; 2-wire stranded core such as power
ex cable or certain speaker cables. CAT5 or CAT6 can be used as well (not recommended) if all
cores are paired up in two sets of cores.
-3-
6. Operating Instructions
Talk/
22/04/2011 Fri.
11 : 44 AM
1:1
Home
i
i Exit
Input Code Number:[- - - -]
1 2 3
4 5 6
7 8 9
*
Exit
0 #
Home
6.1 Answering a Door Call
When door station rings the monitor comes on
with video. To start conversation, touch
Monitor button or Talk icon on the screen.
To end conversation touch Talk/Monitor
button once again or, monitor will shut down auto-
matically after 90s.
Most multi-monitor systems contain one Image Recording monitor and a number of ‘No Memory’
monitors. By default the system is set to power saving mode which means that only the rst moni-
tor in the system (with code “zero”) comes on with video when the door station is activated. All the
other monitors will ring but without video. Video will be transferred instantly to the monitor which is
used to answer the call.
If you would prefer to set ALL monitors to ring with video please do following: Enter the Main Menu
by touching the screen anywhere; digital clock will open, touch the screen again.
Touch the “ About” icon on the left hand side, at the bottom. Where you see the text in the
middle of the screen,touch and HOLD for approximately 2s
Using the keypad, type in following code: 8006#.
-4-
6.2 Multi Monitor System
Intelligent Home
Repeat this process on ALL monitors in system. After completing all monitors, your system will
ring with video.
Image Recording Monitor settings can be accessed similar way.
Touch “Intelligent Home” icon on the left hand side, at the bottom. Where you see the text in the
middle of the screen, touch and HOLD for approximately 2s. Go to “Installer Setup”.
Using the keypad, program desired settings and press icon to save it.
You may increase the power on the combined power supply if needed by
adjusting power on the PS5 to a higher power (maximum 32V). If you feel
that one power supply provides not enough power (depends on number of
video monitors, additional devices and distances) you may need to add a
second combined power supply.
-5-
Camera 2 could be second door station or DCU CCTV Interface with two CCTV cameras
connected.
Camera 3 could be third door station or DCU with two CCTV cameras.
Camera 4 could be forth door station or DCU with two CCTV cameras.

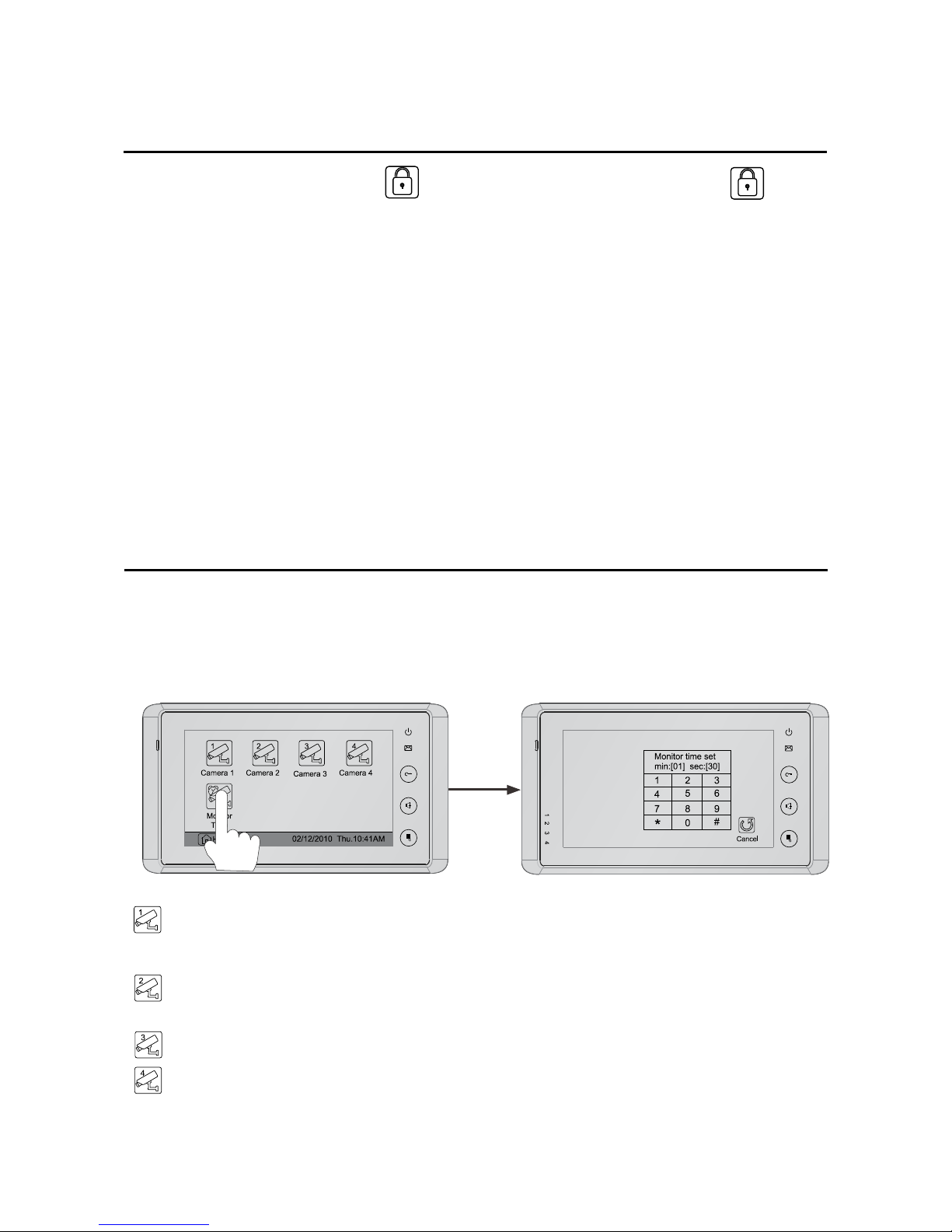

6.3 Electric Lock Release
You can open the lock by touching Lock icon on the monitor. There are two icons
Lock1 and Lock2 which means you can have up to 2 electric locks connected and opened inde-
pendently.
When system connected to a lock, remember to set unlocking time and a lock mode. Enter the
Main Menu by touching the screen anywhere; digital clock will open, touch the screen again.
Touch the icon “Intelligent Home” on the left hand side, at the bottom. Where you see the text in
the middle of the screen, touch and HOLD. Go to ‘Installer Setup’. Using the keypad, type in fol-
lowing codes:
8010 # for Power-on-to open lock;
8011 # for Power-off-to open lock.
Next step to set the unlocking time between 1~9s, codes 8021~8029#.
Type 8021 # for 1s unlocking time, 8029 for 9s unlocking time.
6.4 Manual and Auto Monitoring
You can see the outside any time even nobody rings the bell, even if nobody rings the bell. To do
so, open the Main menu and nd icons “Manual Monitoring”- mainly for house system and “Auto
Monitoring” - mainly for Flats/Apartment system. Manual monitoring allows choosing door station
or CCTV cameras (if connected) manually.
Camera 1 represents the main door station.
-6-
Home 02/12/2010 Thu.10:41AM
When CCTV monitored manually it will work the following way: for example Camera 2 is
connected to a DCU with two CCTV cameras, so it will show video from CCTV cameras switching
between two of them every 20 sec for as long as monitoring time was set.
Auto monitoring will show in sequence all door stations/CCTV cameras connected with time inter-
val was set by additional software. To set the monitoring time for “Manual Monitoring” please
do following: go to Main menu and then to Manual Monitoring. You will see the Monitoring
Time. Using the digital keypad set desired monitoring time following by #. Monitoring time could
be set for a maximum 99min 99s.
6.5 Intercom Function
There are two types of Intercom between monitors. Each one of them depends on system set-
tings. Please decide before you do the programming, which way you prefer.
TYPE 1. Intercom by “Name list” allows you to call to a specic monitor in the system. Program-
ming should be done by DIP switches. Name list could be created with additional software which
is a little bit complicated. Monitor numbers could be used instead of names. You will have to
memorise or make a note what number represents which room.
TYPE 2. Intercom “Inner Call” when you started a call from one of the monitors, then all monitors
in the system will ring. Programming should be done via menu (Master, Slave monitors)
6.6 Ring Tone Settings
Touch User setup icon on the main menu and you will see different ring tones for door sta-
tion, Intercom, Day and Night rings which can be selected and saved.
6.7 Screen Settings
Screen settings, such as brightness, colour, scene and talk volume are accessible when the
monitor is in monitoring state. Touch Talk/Monitor button and then the Adjust icon.
Change parameters as desired and save your settings.
-7-
