1. INTRODUCTION

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™ Rackmount

Console KVM Switch, Model 521796 (15” LCD, 8-port); Model 521871 (15” LCD,

16-port); Model 523561 (17” LCD, 8-port); or Model 523578 (19” LCD, 8-port).

With a keyboard mouse, LCD panel and KVM switch module housed in an industry-

standard 19” 1U- or 2U-height rack drawer, the console saves you as much as a

third of the space needed for a rack cabinet. And when the console is cascaded

with other INTELLINET NETWORK SOLUTIONS KVM switch modules to increase

server management capacity, you save even more space.

Flip-open 15,” 17” or 19” LCD panels support VGA resolution up to 1280 x 1024

without any degradation. The advanced VGA circuit design guarantees smooth and

ﬂicker-free switching from one computer to another with cable lengths up to 100 ft.

/ 30 m (tested with high-quality UL2919-rated, low-loss and shielded cables).

With the on-screen display (OSD) menu, you can name your computers, switch

to a computer from a list, easily conﬁgure settings and view the name of the

selected computer on-screen with a programmable time interval. Plus, the OSD

menu shows the system status throughout operation.

All KVM switch modules come with a universal CEN36 connector for connection

between the console drawer and a KVM switch module. This modularized design

offers maximum ﬂexibility, as you can choose and swap the modules to ﬁt your

needs. A KVM switch module can also be used as an independent KVM switch.

This user manual shows you how to set up and operate the KVM switch. (For

instructions on assembling and positioning the console drawer and the switch

in a rack, refer to the separate Rackmount Console KVM Switch quick installation

guide.) Follow the instructions in this user manual and you’ll soon be enjoying

these additional popular features:

• Integrated LCD console, keyboard, mouse and KVM switch module for sturdy

rack-mount installation with tilt-free, two-piece rear bracket and extension kit

• Manage/control 8 or 16 computers from one keyboard, monitor and mouse

• Standard 19” 1U or 2U rack drawer

• Fits rack cabinets with depth from 67.5 to 80.5 cm (26 5/8 to 31 5/8 in.)

• Locking mechanism locks the drawer when pulled out, pushed in or folded down

• Full 105-key, low-proﬁle, sturdy keyboard

• Ergonomic handrest design

• • Auto-scan automatically selects computers sequentially

• Supports Microsoft IntelliMouse (Pro)

• Supports both PS/2 and serial mice

• 3-in-1 space-saving cables

• Programmable scan ﬁlters unused computers

• Store system settings and name entries to non-volatile memory

INTRODUCTION

• Password security protects computers from unauthorized use

• Hotkey functions allow easy computer access

• Keyboard states automatically saved and restored when switching computers

• Operating system independent, transparent to all applications

• Plug and Play system conﬁguration

• Keyboard and mouse can be hot plugged at any time

• DDC2B compatible

• Includes 6 ft. (1.8 m) PS/2 connection cable (plus 6 ft. [1.8 m] USB connection

cable for Models 523561 and 523578)

• Lifetime Warranty

Use the chart below for cross-referencing the different INTELLINET NETWORK

SOLUTIONS Rackmount Console KVM Switch models with their various

manufacturer part/reference numbers and speciﬁcations.

Overview

The combination of console and KVM switch module offers the latest and the

most efﬁcient way of controlling server rooms and multiple computers. With

models of KVM switch modules available to control from eight to 136 servers

at the console — or at another set of consoles up to 100 ft. away — it’s the

ultimate tool for server management.

The variety of models of KVM switch modules available — including the four

INTELLINET NETWORK SOLUTIONS models addressed in this user manual —

present different computer interface options, which are listed below and shown

in the images that follow.

• Standard models feature three connectors: for PS/2 keyboard, PS/2 mouse

and monitor (HDB15).

• Hybrid (PS/2 + USB) models feature connectors for PS/2 keyboard, PS/2

mouse, USB (keyboard + mouse) and monitor (HDB15).

• Slim PS/2 models feature special 3-in-1 connectors for PS/2 keyboard,

mouse and monitor (HDB15).

INTRODUCTION

Console/ KVM Rear Brkt. KVM

Model Drawer Module & Ext. Kit Console Port KVM Package

No. Part No. Part No. Part No. Size Type Ports Ht. Contents

• Console

• Rear brkt. & ext. kit

• KVM Switch Module

• Power supply

• 6’ PS/2 cable

Combo • Console

(USB and/ • Rear brkt. & ext. kit

or PS/2) • KVM Switch Module

Combo • Power supply

(USB and/ • 6’ PS/2 cable

or PS/2) • 6’ USB cable

521871 Transa PRO 15 IKM116D REK7 15” PS/2 16 2U

521796 Transa PRO 15 IMM108D REK7 15” PS/2 8 1U

523561 Transa PRO 17 IUM108D REK7 17”

523578 Transa PRO 19 IUM108D REK7 19”

8 1U

INTRODUCTION

Conﬁgurations

KVM switch modules are available with four, eight (Models 521796, 523561 and

523578) and 16 ports (Model 521871) with various interfaces. In applications

that require a larger number of computers, the KVM switch modules can be

cascaded in a master/slave conﬁguration. NOTE: Throughout this user manual,

“master” refers to the KVM switch module that connects directly to the console

drawer; “slave” refers to a KVM switch module that has its console port connected

to a master’s “PC-x” port. Slaves only exist in cascade conﬁguration.

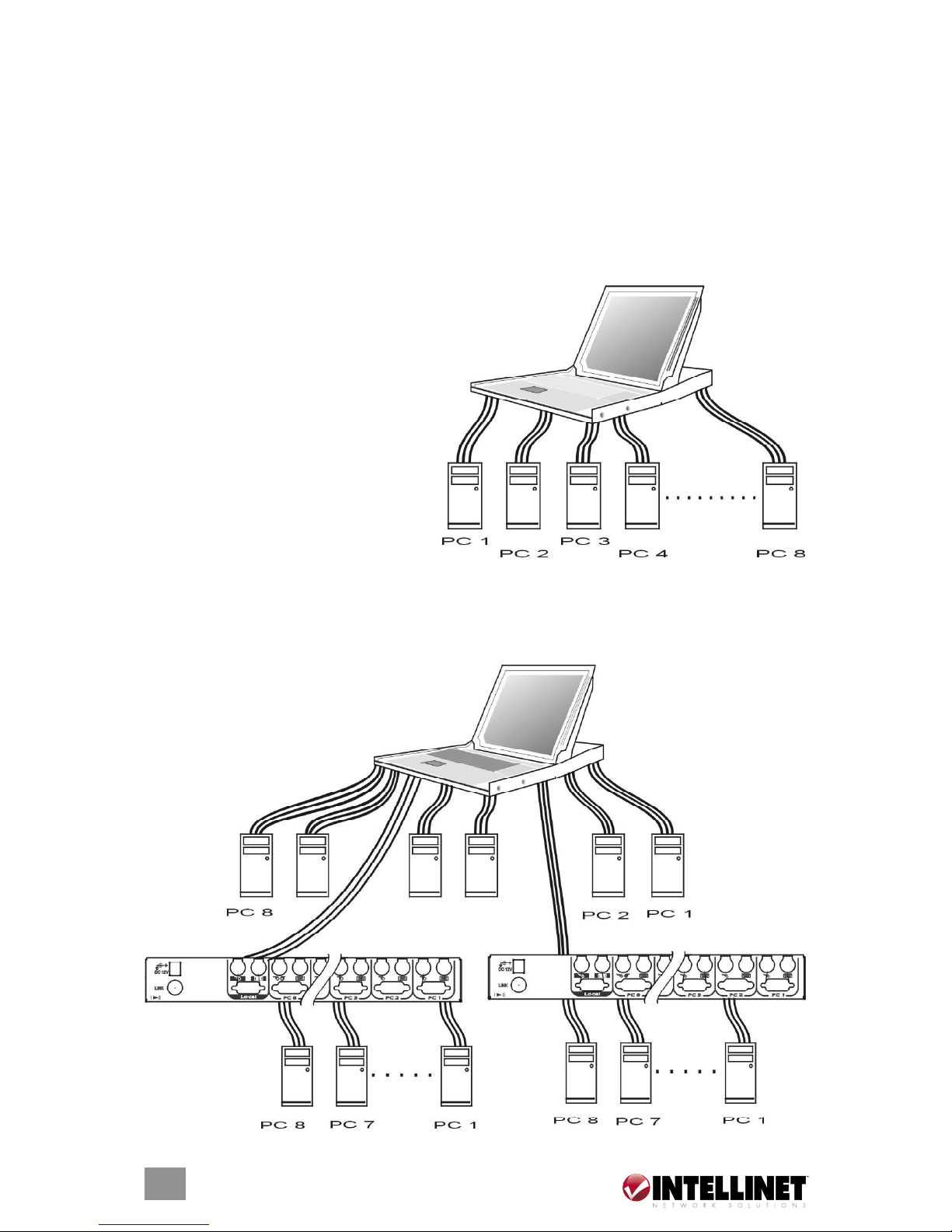

Single KVM Switch Module Conﬁguration:

Combined with a console, the KVM switch module

can be connected to multiple computers with

keyboard, mouse and monitor cables

as shown at right.

KVM Switch Module in Cascade

(Master/Slave) Conﬁguration:

You can connect a second level

of one or more KVM switches

modules to a master unit.

Cascade conﬁguration expands

system ability, allowing you to select computers connected to the master or

slaves. There is only one master that connects to the console directly operated

by a user. Once connected, the KVM switch modules automatically conﬁgure

themselves to either master or slave.

Slaves of different KVM switch

modules can be mixed in cascade

conﬁguration as shown

here.

INTRODUCTION

2. INSTALLATION

Device Connection

Standard Models (Model 521871):

Determine the port

number of each

computer. For

computers using

a PS/2 mouse,

connect the

computer’s mouse

and keyboard

cables to the

connectors marked

with a mouse and

keyboard, respectively, as shown. Repeat this step for PC-1 through PC-8.

For computers using a serial mouse, connect the DB9-to-mini-DIN6 adapter

(included with the

switch) to the computer

mouse port, then use

PS/2 cables to connect

the mouse to the KVM

switch module.

Connect the computer’s

monitor cable to the

HD-DB-15 VGA connector.

NOTE: This function is only available for PC-7 and PC-8 marked with two mice.

Hybrid (PS/2 + USB) Models:

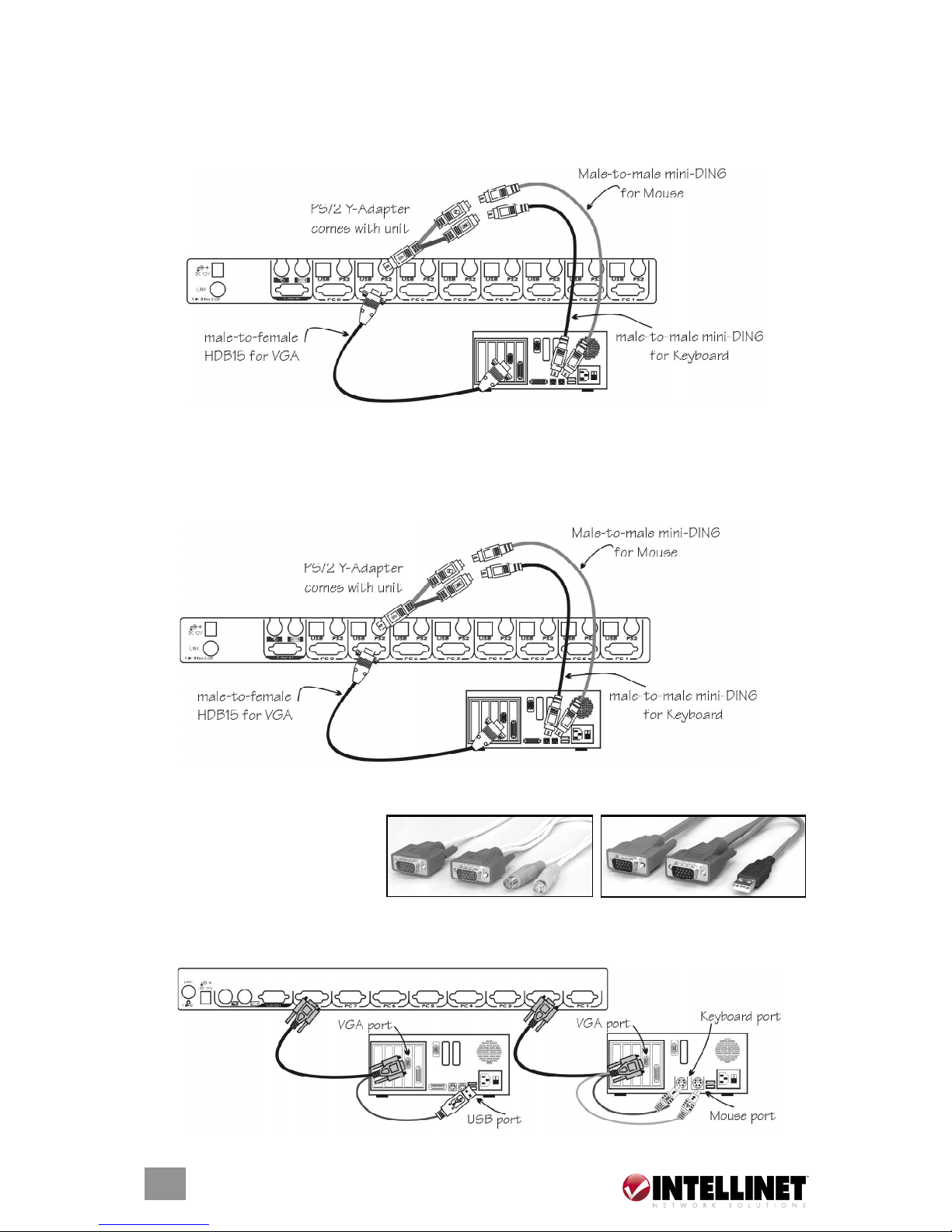

With a hybrid, you can connect to a computer using either a PS/2 or USB port.

To a USB computer: Use a USB A-B cable to connect from one of the PC ports

to the USB port of a computer (A connector, ﬂat connector), as shown below.

The computer can be a USB-ready PC, Sun, HP server or Mac.

INSTALLATION

To a PS/2 computer: Connect a PS/2 “Y” adapter, which comes with the unit,

to the PS/2 port on the PC side, then use two mini-DIN6 male-to-male cables

for the keyboard and mouse, as shown below. There are two mini-DIN6 female

connectors on the PS/2 “Y” adapter marked for the keyboard and mouse.

NOTE: Be sure not to swap the connections.

To a laptop computer: In most cases, all you need is one PS/2 male-to-male

cable connecting the KVM switch module and your laptop, as shown below;

the “Y” adapter is not necessary. However, as some laptop computers do not

follow the industry standard, check your laptop’s user manual for details.

Slim Models (Models 521796, 523561 and 523578):

Use only the cables shown

at right. Connection from a

slim KVM module to a PS/2

computer or a USB computer

is shown below.

INSTALLATION

For PS/2 computers connected to

IMM and IUM models (Models

521796, 523561, 523578).

For USB computers connected to IUM

models (Models 523561, 523578).

A Module as a Slave or a Stand-Alone KVM Switch

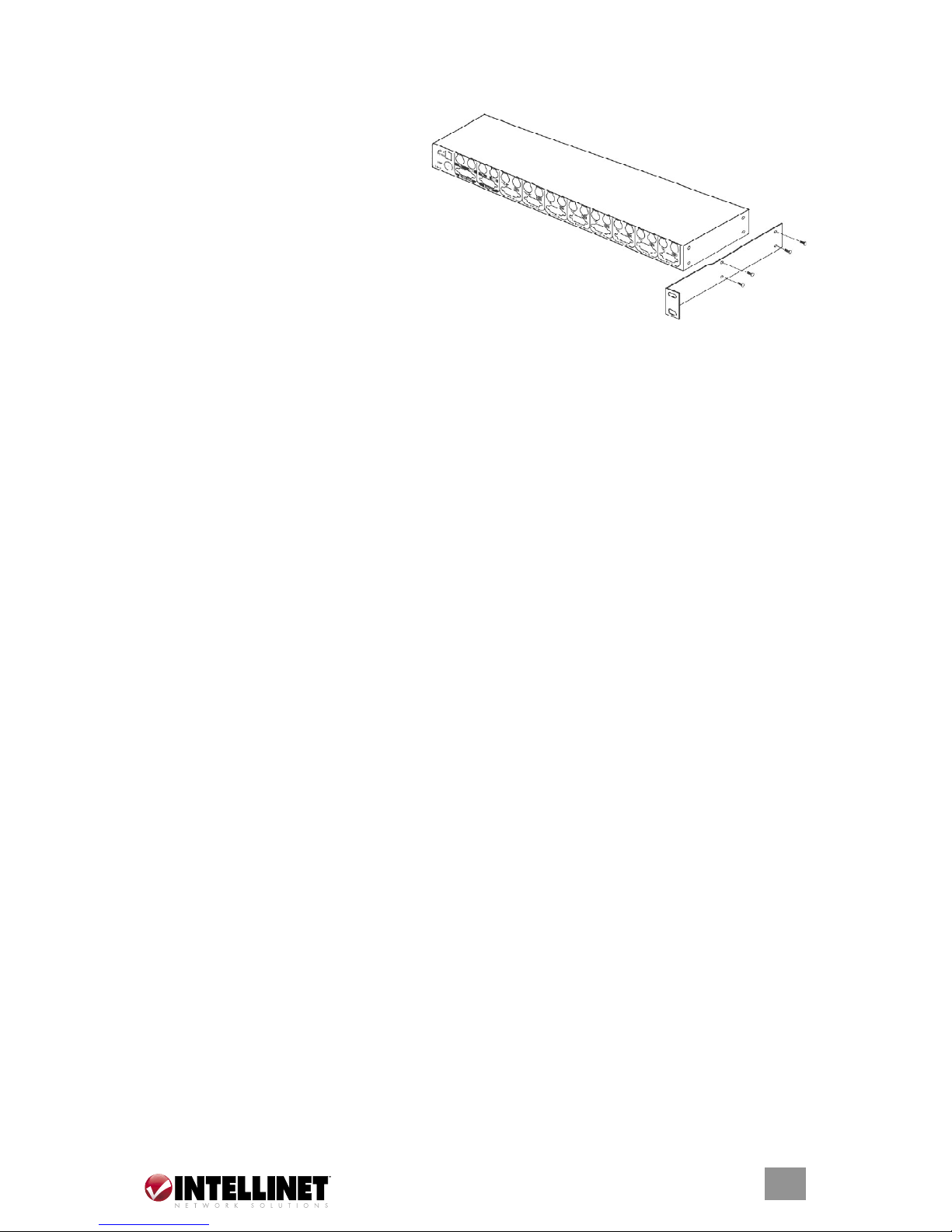

A slave KVM switch module can be mounted to the inside of the rear uprights

of a rack cabinet using the rear

brackets (which come with all

units except IKM001), with

computer connectors facing to the

rear, as well. NOTE: The connectors

(keyboard and mouse) at the local port on the

rear of the KVM module are not applicable when

the module is connected to the TFT LCD drawer by the

CEN36 connector. When the CEN36 connector is not

connected to the TFT LCD drawer, the KVM switch module acts as a rear-mount

stand-alone KVM switch module. The VGA ports (local and remote) can be

connected to external VGA monitors at any time.

Initial Power-Up

Make sure all computers and KVM switch modules are powered down during

installation. You must power up the master before turning on any other devices.

For a single KVM switch module:

1. Connect a power adapter (output power = 12 V DC) to the master.

2. Turn on the computers.

For cascaded KVM switch modules:

1. Connect a power adapter (O/P = 12 V DC) to the master.

2. Connect power adapters (O/P = 9 – 12V DC) to all slaves.

3. Turn on the computers.

NOTE: After the initial power-up, you can hot-plug additional powered-down

computers or a slave KVM switch module without turning off already-connected

computers.

3. OPERATION

Push Buttons

A computer can be selected by pressing the push button directly, by issuing

hotkey commands or by activating the OSD (on-screen display) window. The

indicator changes to reﬂect the computer port selected (red). The indicator

ﬂashes red when it is in either Auto Scan or Manual Scan mode.

NOTE: For 16-port modules (Model 521871), “1” – ”8” are for the lower row of

eight ports and “A” – ”H” are for the higher/upper row of eight ports. Port 1 and

Port A share the same button: If Port 1 is already selected, tap its button to select

OPERATION

Port A. If Port 1 is not selected, press and hold the “1” button on the console

panel for two seconds to select Port A. The OSD menu and hotkeys are also

available for computer selection.

K/M Reset:

K/M Reset solves most problems developed by the keyboard, the mouse,

device replacement or a change of conﬁguration. Press both the front-panel

“1” and “2” buttons for two seconds to re-conﬁgure the whole system without

turning off either the switch module or any computer.

Auto Scan:

The KVM switch module has an easy-to-use feature to start auto-scanning. Press

both the front-panel “7” and “8” buttons for two seconds to start Auto Scan.

(For 4-port models, press “3” and “4” instead.)

On-Screen Display (OSD) Operation

By hitting the left Control key

twice within two seconds,

you’ll see the hotkey menu

if it is enabled (an OSD

option). Or, by hitting the

left Control key three times

within two seconds, you’ll

see a KVM menu showing

a list of the computers with

corresponding port numbers,

names and status.

The port number of the

selected computer is

displayed in red (as on the

console panel) at the right

corner of the OSD menu.

A device name is green if

it has power and is ready

for operation. It’s white if it

has no power. The OSD

menu updates the color

when it is activated.

Press the Page Up or Page Down keys to view another eight computers.

Use the up/down arrow keys, “1“ – “8“ or “A“ – “H“ to highlight a computer,

and the Enter key to select it. Or, press the Escape (ESC) key to exit the OSD and

remove the OSD menu from the display; the status window returns to the display

OPERATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Intellinet LCD-Schublade Handbücher

Intellinet

Intellinet 506540 Bedienungsanleitung

Beliebte LCD-Schublade Handbücher anderer Marken

Acnodes

Acnodes KD 8228 Bedienungsanleitung

Ameriwood

Ameriwood 9524328PCOM Bedienungsanleitung

Kesseböhmer

Kesseböhmer TANDEM solo Bedienungsanleitung

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Bedienungsanleitung

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Bedienungsanleitung

NTI

NTI RACKMUX-V17-N Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView L120 Bedienungsanleitung

Uplift Desk

Uplift Desk STR018 Bedienungsanleitung

Acnodes

Acnodes KDC 81932 Bedienungsanleitung

Acnodes

Acnodes RK1200T Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1501 Bedienungsanleitung

Mocka

Mocka Mischa Bedienungsanleitung

GRASS

GRASS DWD XP Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1701 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Bedienungsanleitung

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Bedienungsanleitung

Fujitsu

Fujitsu RC25 Bedienungsanleitung

Acnodes

Acnodes RK 1000B Bedienungsanleitung
