Intellinet 520409 Bedienungsanleitung

Fast

EthErnEt

rackmount

switch

usEr

manual

MODELS 520409

& 520416

INT-520409/520416-UM-1009-01

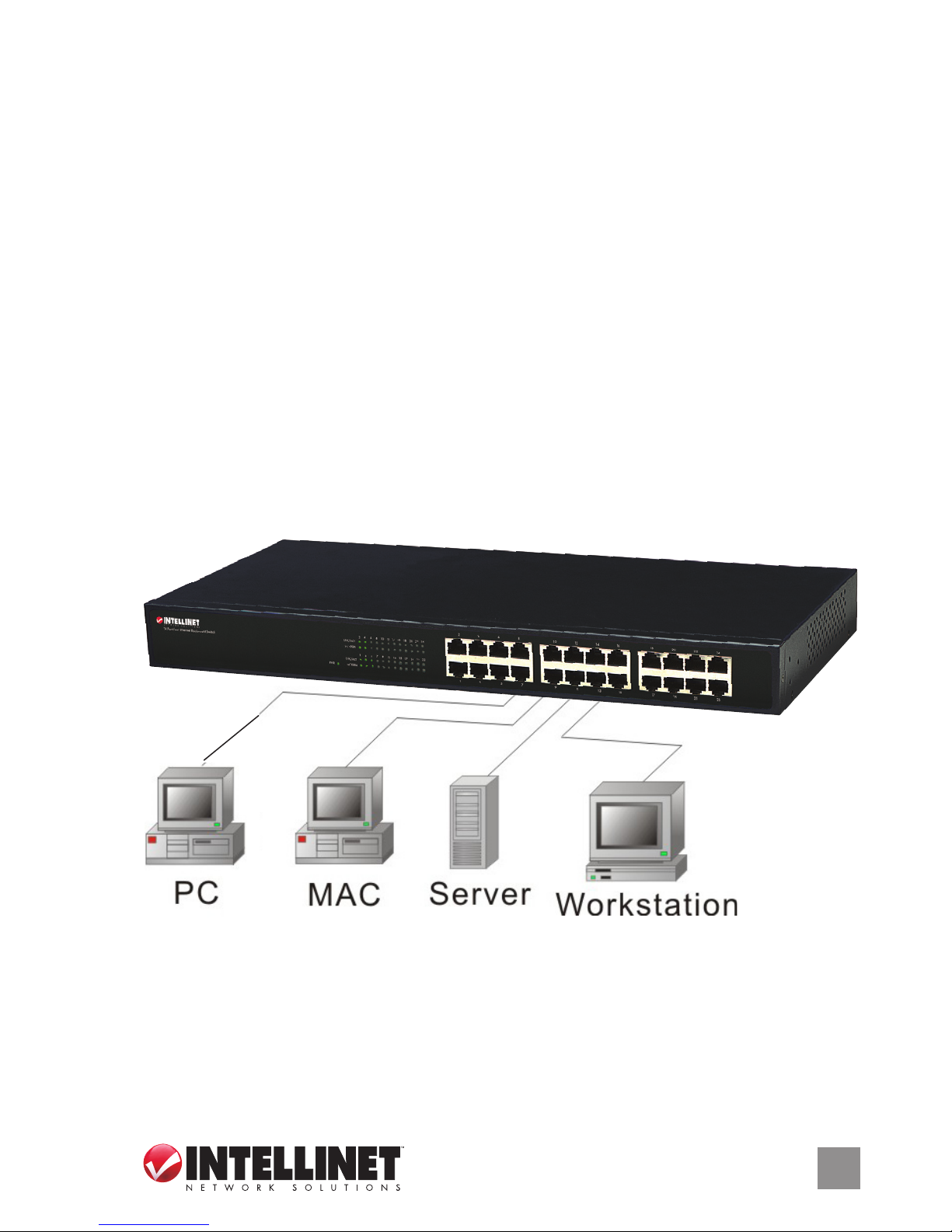

Shown: Model 520416, 24-Port

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™

Fast Ethernet Rackmount Switch, Model 520409 (16-Port) or Model

520416 (24-Port).

This high-performance 10/100 Mbps LAN switch — with auto-sensing

and auto-negotiation on every port — provides you with a space-saving,

cost-effective design that allows you to connect multiple devices to your

local area network while only taking up one slot in your network rack or

cabinet.

Easy-to-follow instructions in this user manual help make installation

of the switch quick and simple, so you’ll also soon be enjoying the

benets of these additional features:

• Supports any combination of 10 Mbps or 100 Mbps network devices

• All RJ45 ports with Auto-MDIX (auto uplink) support

• Supports 802.3x ow control for full duplex mode and collision-based

backpressure for half duplex mode

• Non-blocking & non-head-of-line blocking full wire speed forwarding

• Store and forward switching architecture

• Supports up to 8192 MAC address entries

• 156 kBytes buffer memory

• 19” compact rigid metal case with rackmount brackets

• Lifetime Warranty

FCC Warning

This device has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of FCC Rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and radiates radio frequency energy and,

if not installed and used in accordance with the user manual, may cause

interference, which the user will be required to correct at his own expense

CE Warning

This is a Class A product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.

ports & indicators

Ports

The RJ45 connections on the front panel (partially shown in the image

below) match workstations, servers or other network devices to 10/100

Mbps switching ports that sense 10/100Mbps speed and automatically

negotiate full/half duplex mode, allowing you to connect the switch to

10Base-T and 100Base-TX devices.

LEDs

The front-panel LEDs will be on (lighted, as shown for some ports in the

image above), off or blinking/ashing, indicating function status as follows.

POWER On (green): The switch has power and is ready for use.

Off: The switch has no power.

LINK / ACT On (green): The corresponding port is connected to a device.

Flashing: Data is being transmitted/received.

10 / 100 M On (green): Data is being transmitted/received at 100 Mbps.

Off: Data is being transmitted/received at 10 Mbps (if

the corresponding LINK / ACT light is ashing).

connEctions

Power

The AC power outlet is on the rear

panel (as shown at right). Using

the included power cord, connect

the switch’s power outlet to an AC

outlet and conrm that the Power LED on the switch’s front panel is lit.

PCs, Servers, Hubs and Other Switches, and Other Devices

All of the RJ45 ports on the switch support Auto-MDI/MDI-X, allowing you

to use straight-through or crossover cable to connect it to workstations,

hubs and such.

Connect one end of the network cable to an RJ45 port on the switch and

connect the other end to an RJ45 port on the network device. Follow the

same simple procedure to connect any number of devices the switch can

accommodate (in this case, 16 or 24). NOTE: UTP cables need to comply

with EIA/TIA 568 specications and the Cat5 standard for 100 Mbps

data transmission. Limit the length of any UTP cable connecting a device

to the switch to 100 m (328 ft.)

Once the cable connections are made and the attached network device

is powered on, the corresponding LINK/ACT LED on the front panel of

the switch should be lit — either on or ashing. (If not, check all network

cable and power cord connections and quality conditions.)

spEciFications

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3x (Flow Control and Backpressure)

General

• Media support: 10Base-T Cat3, 4, 5 UTP/STP RJ45; 100Base-TX Cat5

UTP/STP RJ45

• Ports: 10/100Base-TX RJ45 (Model 520409: 16; Model 520416: 24)

• Packet lter/forwarding rate: 148,800 pps (100 Mbps); 14,880 pps (10

Mbps)

• Backplane speed: Model 520409: 3.2 Gbps; Model 520416: 4.8 Gbps

• MAC address table: 8192 entries

• Buffer size: 156 kBytes

• Switch architecture: store and forward

• FCC Class A, CE, RoHS

LEDs

• Power, LINK/ACT, 10/100 M

Power

• Internal power supply: 100 – 240 V AC, 50/60 Hz

• Power consumption: 8 W

• UL safety approved

Environmental

• Dimensions: 19”, 1U rackmount, 440 (W) x 200 (D) x 44 (H) mm

(17.25 x 7.87 x 1.75 in.); 2.5 kg (5.5 lbs.)

• Operating temperature: 0 – 50°C (32 – 122°F)

• Storage temperature: -20 – 70° (-4 – 158°F)

• Operating humidity: 10 – 90%, non-condensing

• Storage humidity: 5 – 90%, non-condensing

Package Contents

• Fast Ethernet Rackmount Switch

• Rackmount kit for rack installation

• Power cord

• User manual

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
